Synergy Audio SYN Series 12" Subwoofer — 1,250W RMS DVC
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%2012%22%20is%20a%20strong,%20accurate,%20loud%20daily%20subwoofer%20built%20on%20a%20triple%20190mm%20Y35%20strontium%20ferrite%20magnet%20motor%20with%20an%20extended%20pole,%20flared%20vent,%20and%2012%20magneti...
){kind=link}

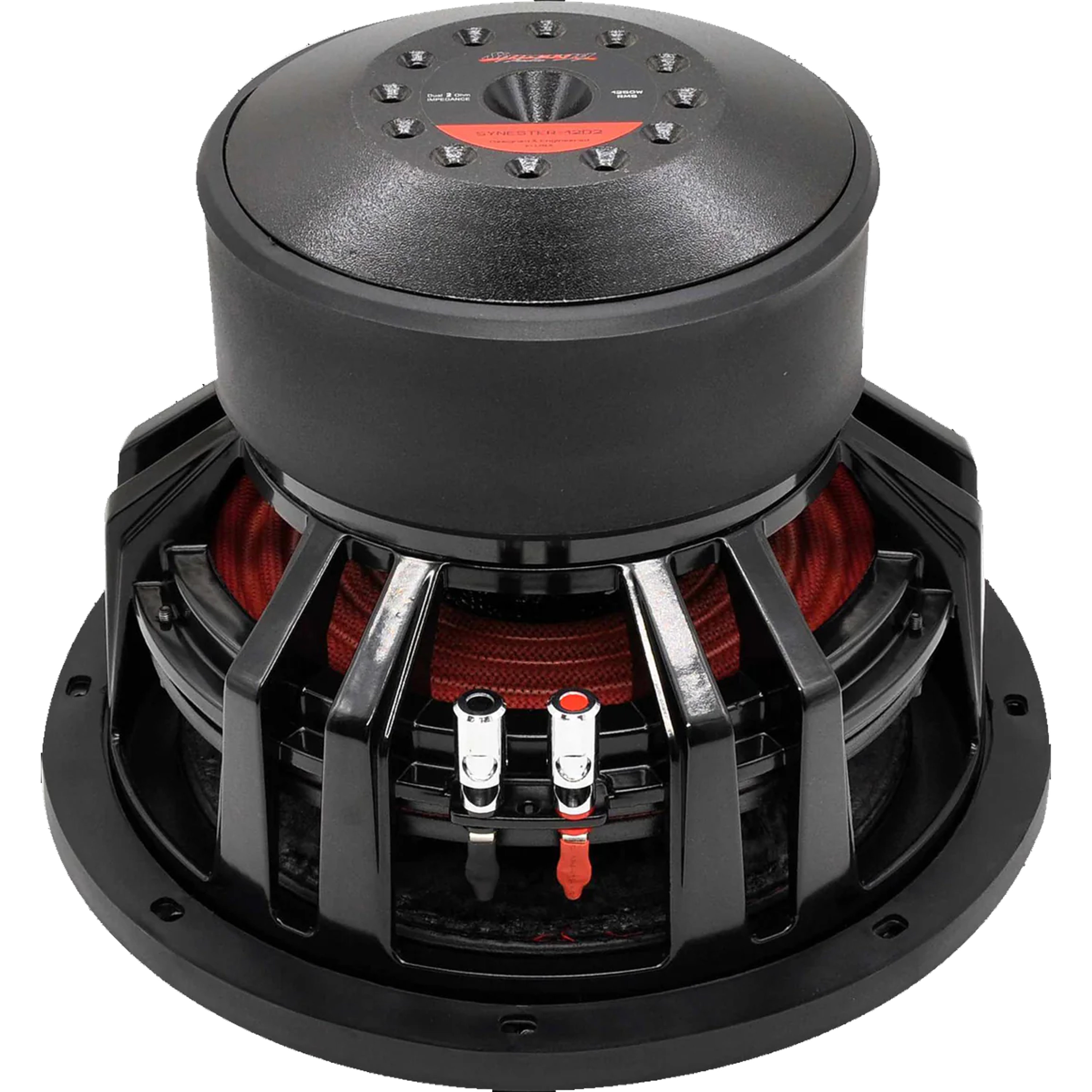

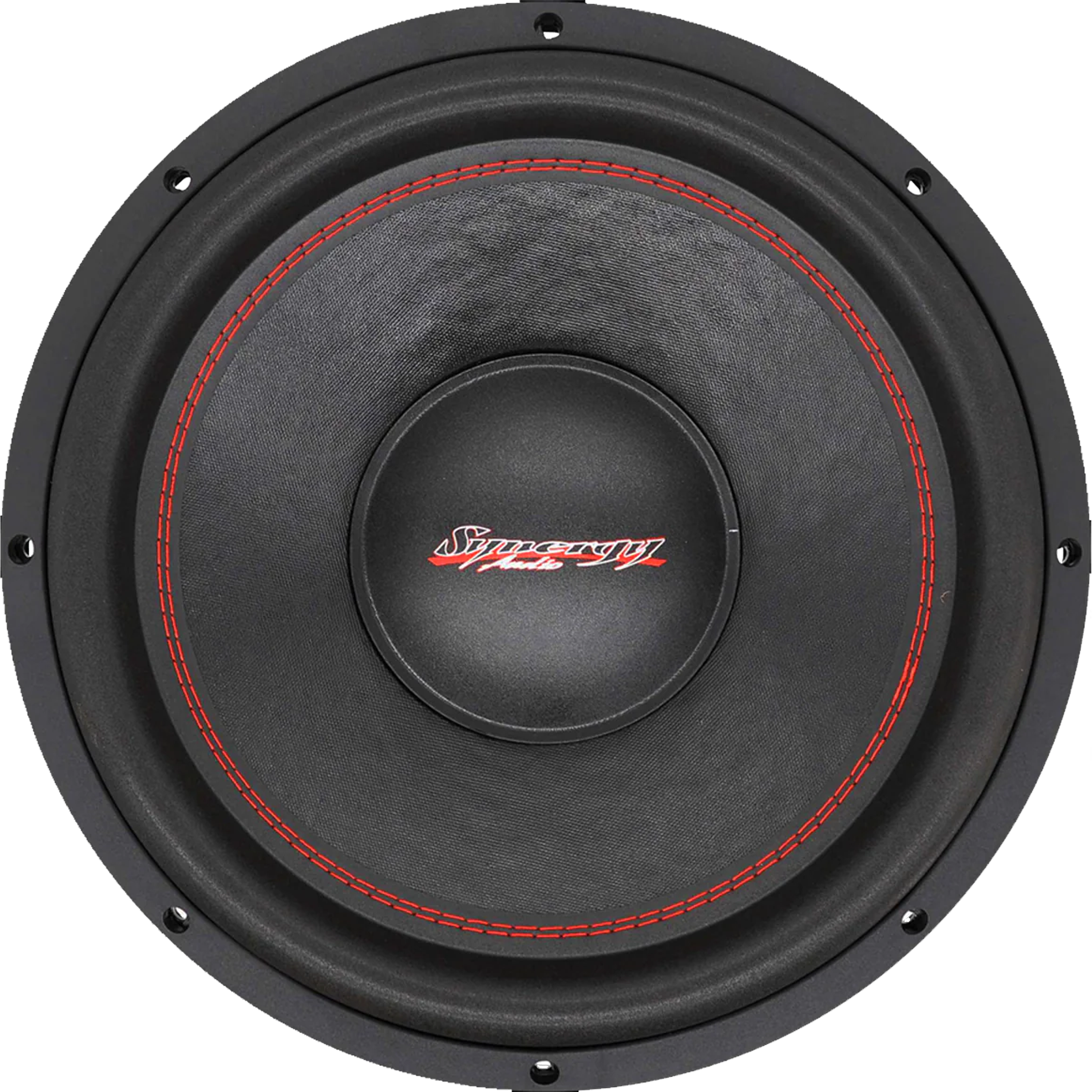

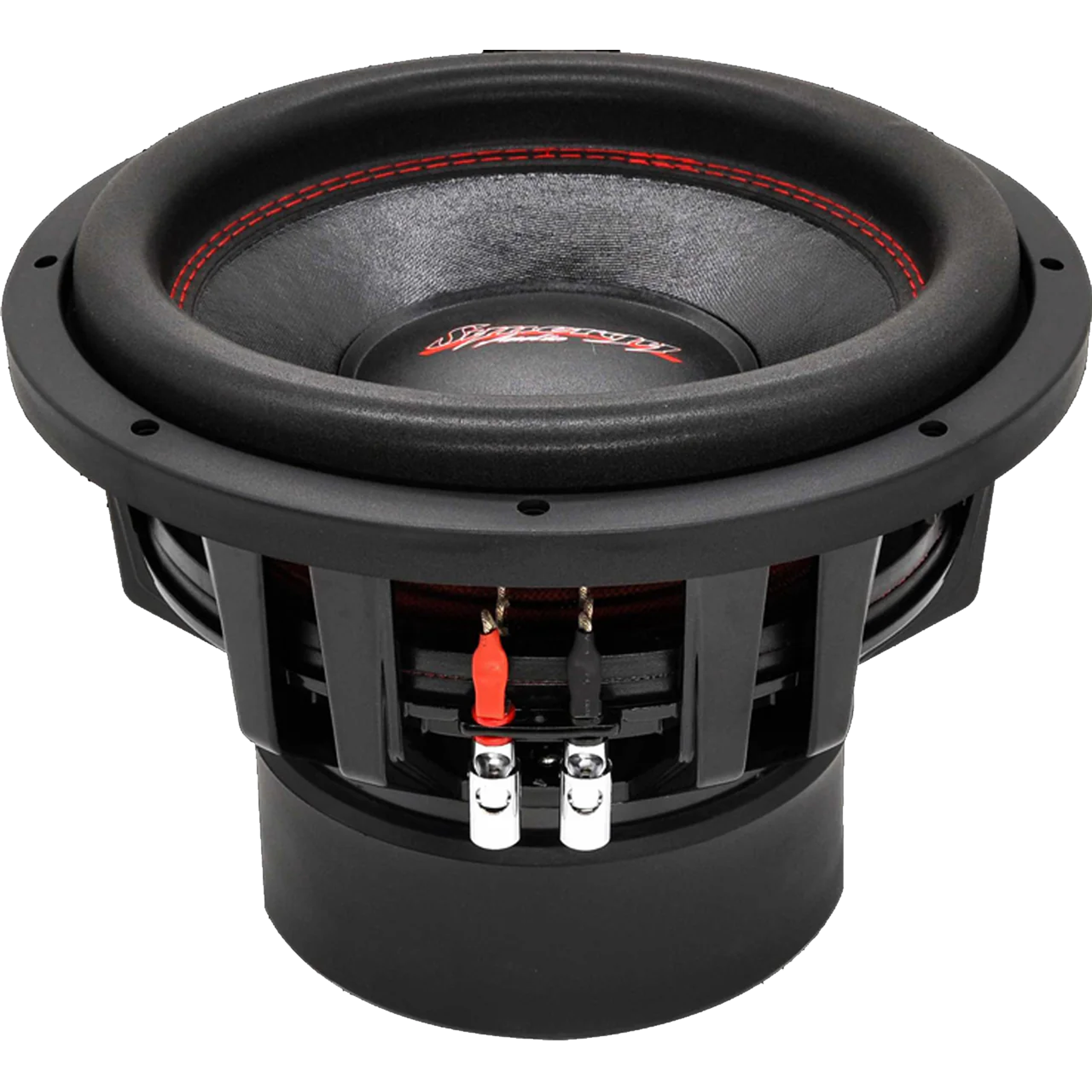

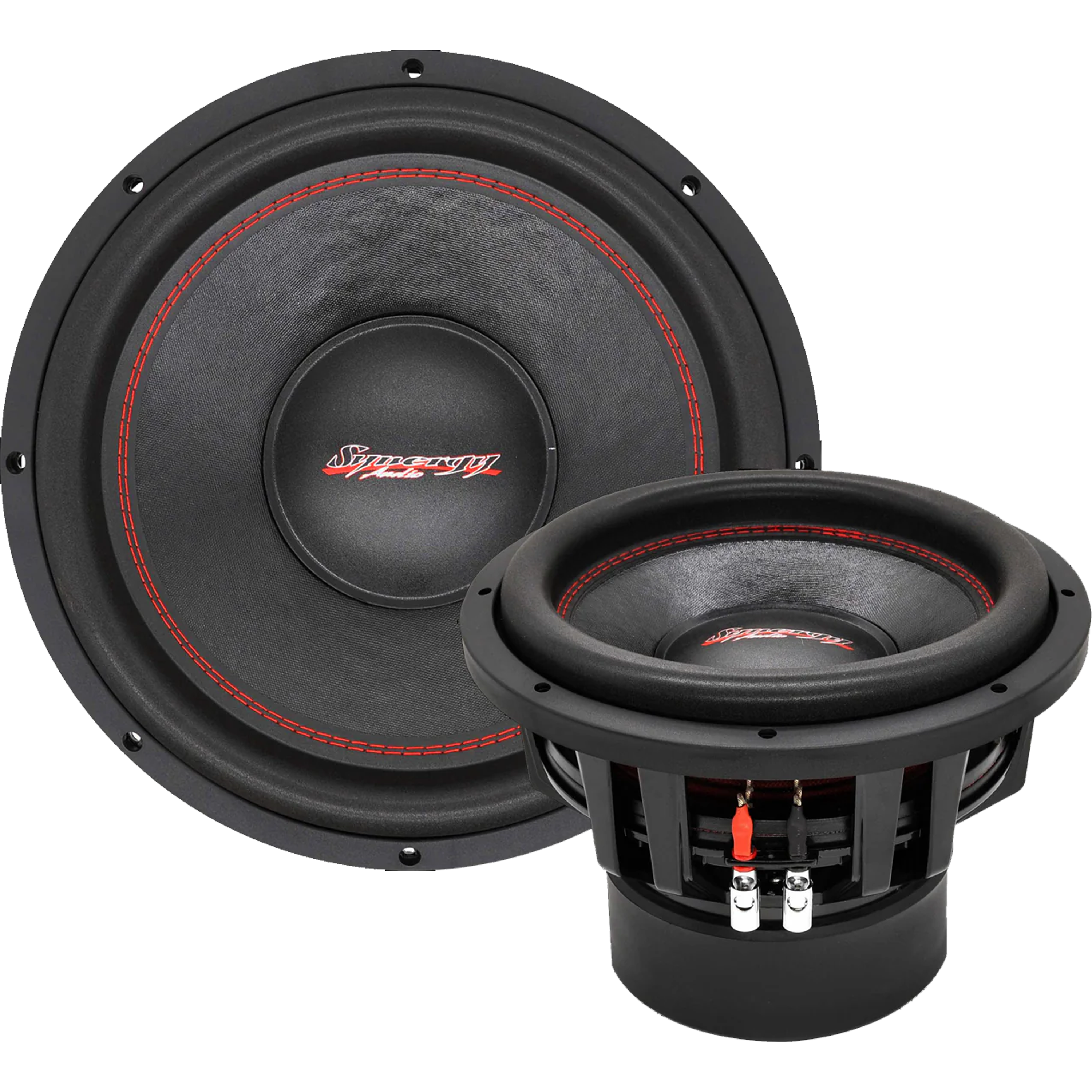

The Synergy Audio SYN Series (Synester) 12" is a strong, accurate, loud daily subwoofer built on a triple 190mm Y35 strontium ferrite magnet motor with an extended pole, flared vent, and 12 magnetic gap vents for maximum cooling. A high-temperature 4-layer 3" voice coil on a black aluminum former, non-pressed pulp paper cone with red double stitching, high-roll foam surround, and dual red 10" Nomex spiders combine on a 6-spoke heavy-duty cast aluminum frame in gloss black.
Rated at 1,250 watts RMS. Choose your coil configuration below — Dual 2 Ohm or Dual 4 Ohm — to match your amplifier and wiring plan.
Specifications
| RMS Power | 1,250W |
| Voice Coil Diameter | 3" |
| Suggested Ported Space | 2.0–3.0 ft³ |
| Cutout Diameter | 11.5625" |
| Mounting Diameter | 12.875" |
| Re (12D2 / 12D4) | 4.00 ohm / 6.40 ohm |
| Fs (12D2 / 12D4) | 38.571 Hz / 39.571 Hz |
| Sd | 530.930 cm |
| SPL | 88.3 dB |
| Qts (12D2 / 12D4) | 0.554 / 0.689 |
| Vas (12D2 / 12D4) | 29.224 L / 22.714 L |
| Mms (12D2 / 12D4) | 268.430 g / 285.119 g |
JS Ultimate Sounds is an authorized Synergy Audio dealer. Every product is 100% genuine and backed by full manufacturer warranty. Questions about fitment, wiring, or building your system? Our car-audio experts are here to help — reach out any time.
