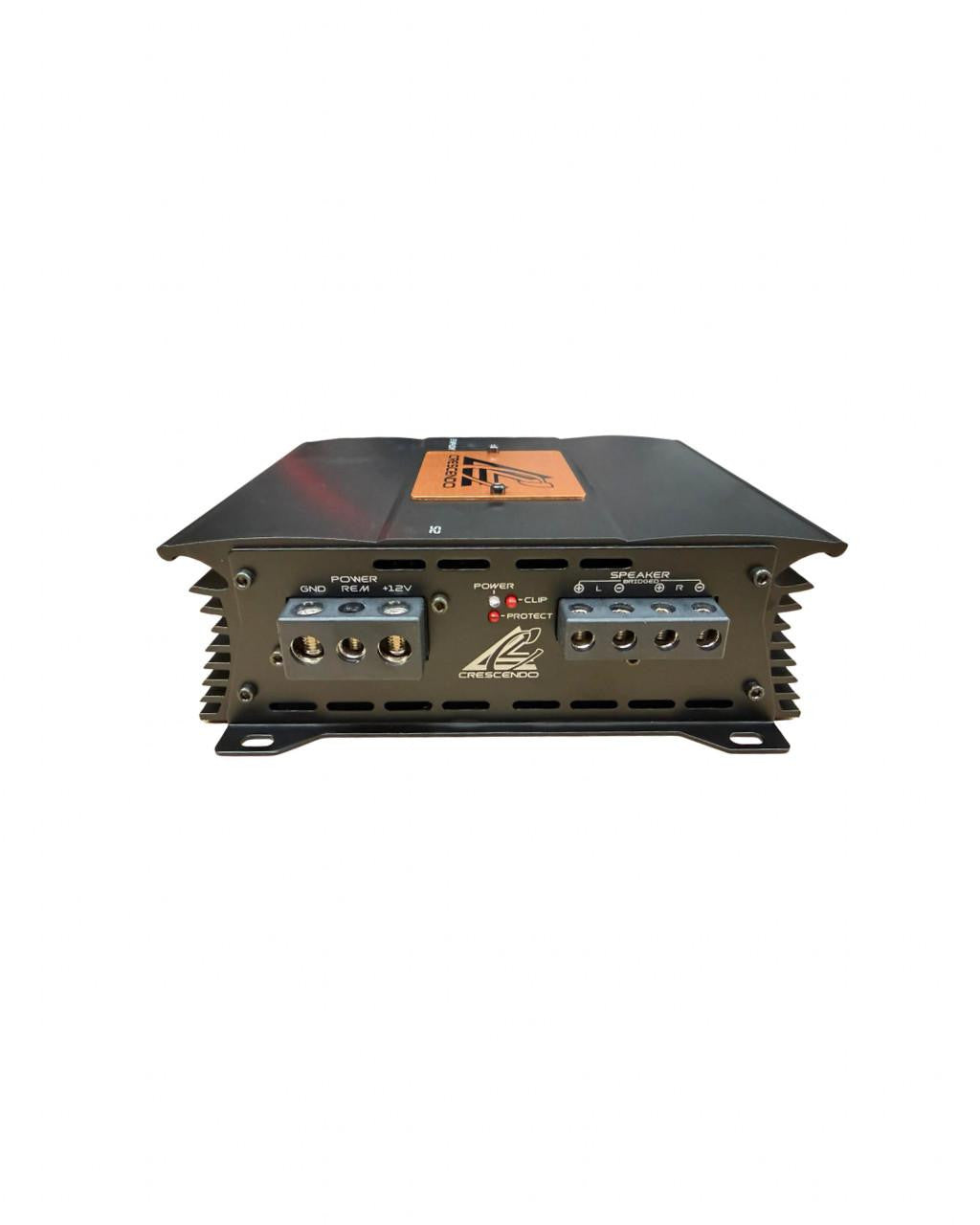

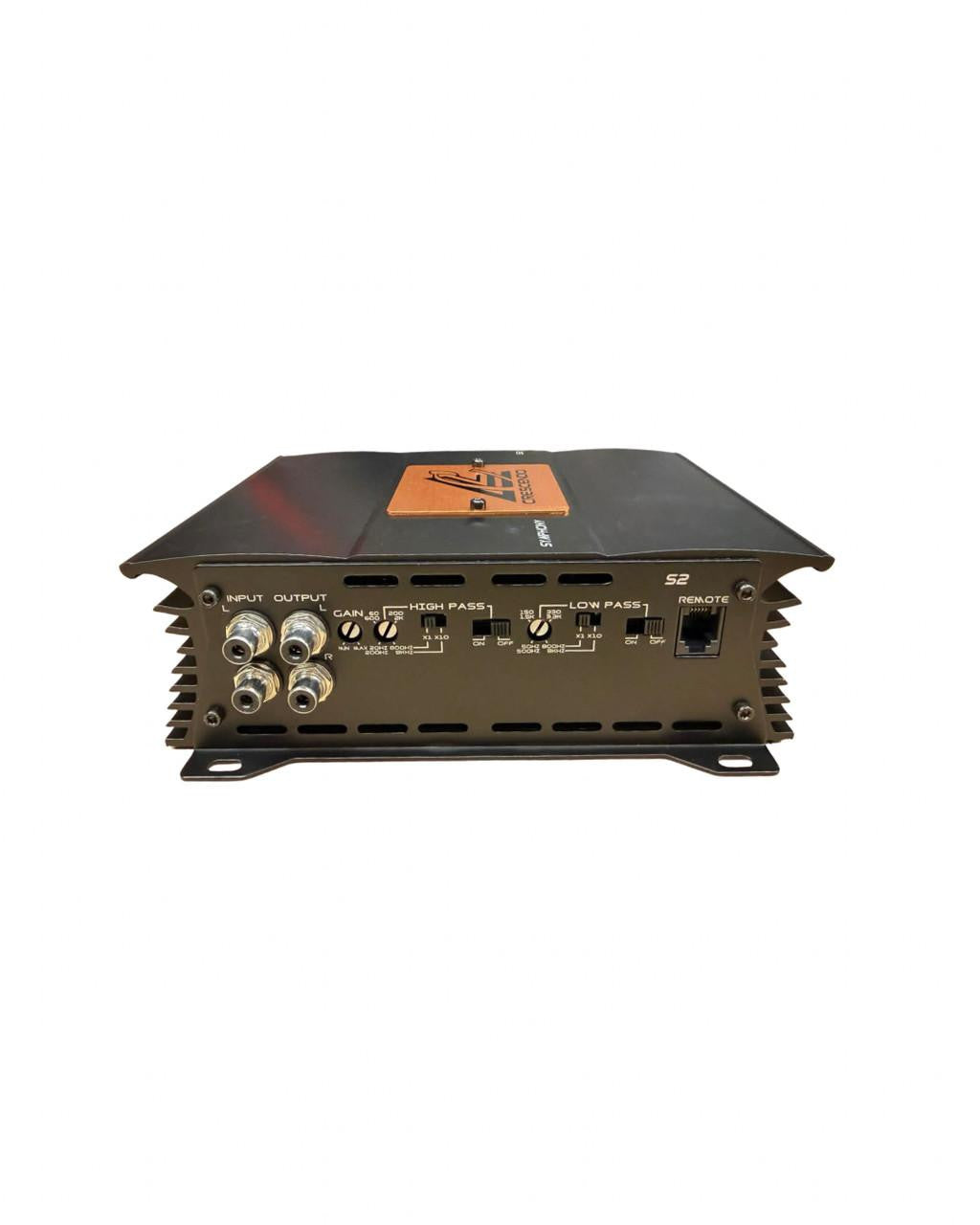

Crescendo Audio Symphony S2 2-Channel Amplifier 600W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- POWER — 600W total clean RMS output, 600W bridged at 4 ohm
- CROSSOVER — Built-in 18dB/slope network with LPF/HPF and Bandpass, adjustable up to 8kHz
- EFFICIENCY — Efficient design only requires 4 gauge power and ground cables
- COOLING — Custom-tooled Symphony heatsink for low-profile heat dissipation
- SIGNAL — Tiffany-style RCA input jacks for clean signal transfer
This Listing Includes: (1) Crescendo Audio Symphony S2 2-Channel Amplifier
The Symphony S2 is a compact full-range Class D amplifier built with the same power density that made the originals so popular. It pairs heavy copper traces on Korean-built boards with top-quality components for clean, reliable output. A 60A fuse on the power input is suggested. Authorized Crescendo Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Full-range Class D 2-channel design
- Built-in 18dB/slope crossover with LPF/HPF and Bandpass up to 8kHz
- Custom-tooled Symphony heatsink
- Heavy copper traces on Korean-built boards
- Tiffany-style RCA input jacks
Specifications
| RMS Power @ 2 ohm | 300W x2 |
| RMS Power @ 4 ohm | 190W x2 |
| Bridged @ 4 ohm | 600W |
| Rated Voltage | 13.8V |
| Recommended Power Wire | 4 gauge |
| Suggested Fuse | 60A |
| Dimensions | 7"L x 7.5"W x 2.5"H |
