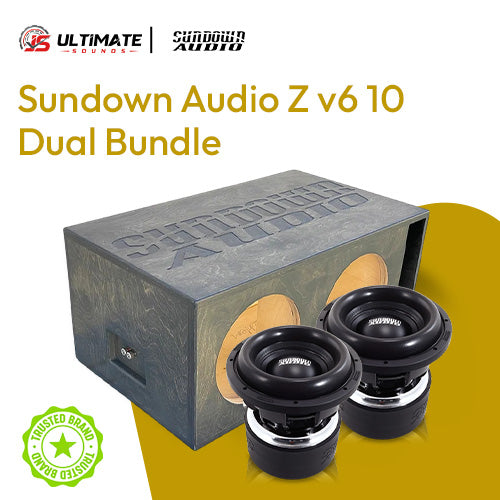

Sundown Audio Z v6 10 Dual Bundle (Baltic Birch)
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
How this package ships
- Two separate deliveries. Your subwoofers ship from JS Ultimate Sounds and usually arrive first.
- Separate tracking numbers. You will get one for each delivery, so a tracking link showing only part of your order is normal.
- The enclosure is built to order by Basshead Supply and ships direct from them in about 2 to 3 weeks.
- The subwoofers are not pre-installed. You mount them in the enclosure once both have arrived.
- The enclosure arrives finished in a gray stain, ready to install.
What is included
- (2) Sundown Audio Z-Series ZV6 10" 3250W Subwoofer Z v.6s
- (1) Sundown Audio ZV6 10" Dual Ported Subwoofer Enclosure, Baltic Birch
Priced 10% below buying the subwoofers and enclosure separately.
Choose your impedance below.

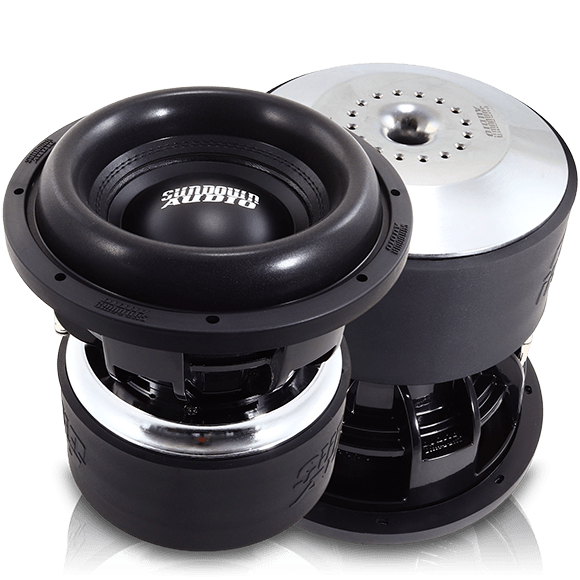

Sundown Audio Z-Series ZV6 10" 3250W Subwoofer Z v.6
- Power Handling — 3250 Watts RMS / 6500 Watts Peak
- Impedance — Dual 1 or Dual 2 ohm voice coils
- Voice Coil — 3" black aluminum, 8-layer flat-wire aluminum
- Motor — Quad-stacked 240mm (9.45") structure, hyper-extended pole
- Xmax — 35mm one-way by 70% BL
This Listing Includes: (2) Sundown Audio Z-Series ZV6 10" Subwoofers
The Z v.6 is the second step in Sundown's ultra-high-excursion lineup and replaces the Z v.5 series. A patented custom-tooled frame mates to a quad-stacked 240mm (9.45") motor with a 100mm (3.94") magnet stack, a hyper-extended pole, and clearances allowing over 4" peak-to-peak travel before mechanical bottom. The 3" 8-layer flat-wire aluminum voice coil — shared with the NS v.5 series — drives extreme excursion, cooled by a high-velocity pole vent, a heavily vented magnetic gap, and machined channels around the pole piece. Built for the lowest bass extension possible in a small ported box while keeping distortion extremely low; rated 3250 watts RMS / 6500 watts peak with 35mm one-way Xmax.
Features
- 3" 8-layer flat-wire aluminum voice coil on a thick aluminum former
- Quad-stacked 240mm motor with hyper-extended pole
- High-velocity pole vent and heavily vented magnetic gap
- Mega-Roll v.2 surround and custom-tooled ultra-linear spider packs
- Large aluminum Faraday (shorting) ring with stitched-on XL tinsel leads
Specifications
| Power Handling (RMS) | 3250 Watts |
| Power Handling (Peak) | 6500 Watts |
| Impedance Options | Dual 1 ohm (D1) / Dual 2 ohm (D2) |
| Voice Coil | 3" 8-layer flat-wire aluminum |
| Motor | Quad-stacked 240mm (9.45"), 100mm magnet stack |
| Xmax | 35mm one-way by 70% BL |
| Surround | Mega-Roll v.2 |

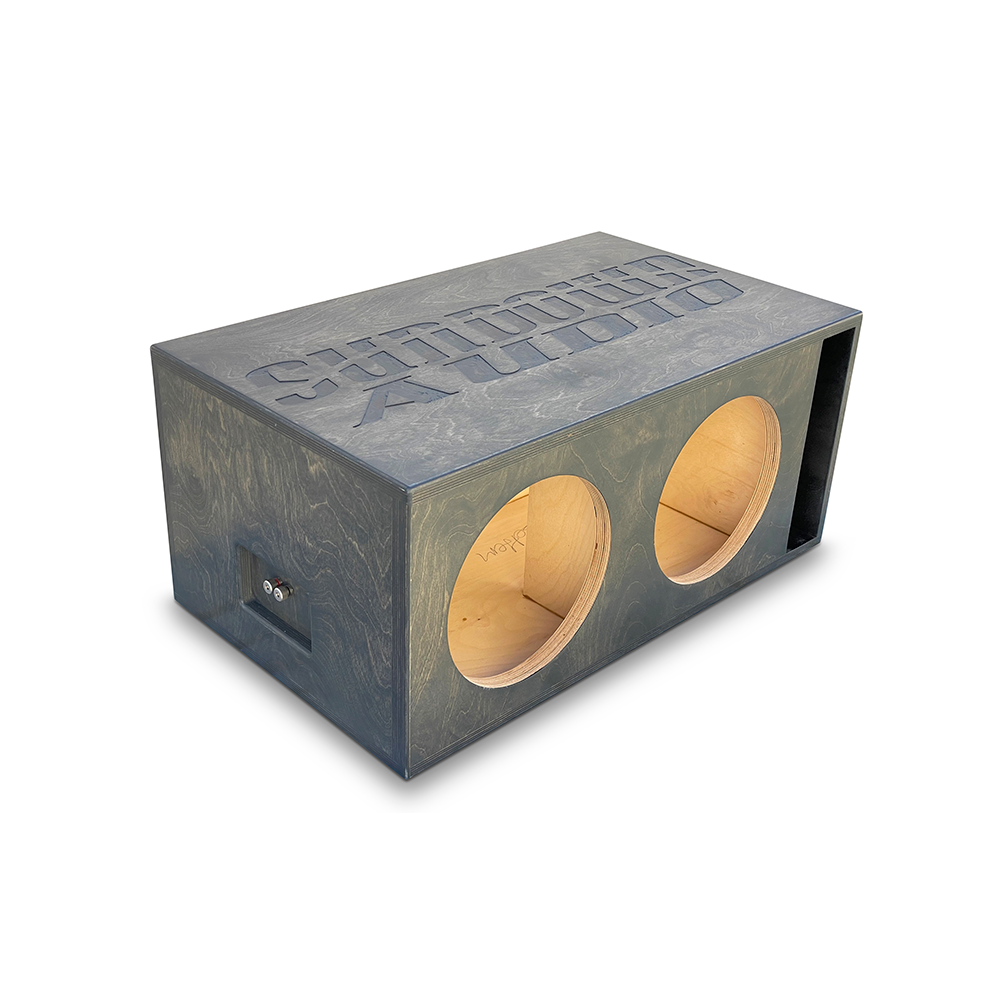

Sundown Audio ZV6 10" Dual Ported Subwoofer Enclosure
- Net Volume - 3.0 cu ft
- Tuning - 32.0 Hz
- Port Area - 43.8 sq in
- Sub Cutout - 10.01"
- Construction - 1" (24mm) plywood construction
This Listing Includes: (1) Basshead Supply ported enclosure for the Sundown Audio ZV6 10" subwoofer
This enclosure is custom built specifically for the Sundown Audio ZV6 10" subwoofer. Basshead Supply's Performance Series enclosures are subwoofer-specific boxes engineered for strong, clean output, built with a refined assembly process that leaves no visible screw holes. Every box is glued with Titebond III and internally braced, then pre-wired with a recessed satin-nickel binding post and OFC 10-gauge wire - built by hand in the USA. Custom built to order by Basshead Supply and shipped directly from them, about 2 to 3 weeks.
Features
- 1" (24mm) plywood construction
- 17 ply birch veneer construction
- Gray stained finish
- Refined assembly - no visible screw holes
- Glued with Titebond III and internally braced
- Pre-wired recessed satin-nickel binding post with OFC 10-gauge wire
- Built by hand in the USA
Specifications
| Net Volume | 3.0 cu ft |
| Tuning | 32.0 Hz |
| Port Area | 43.8 sq in |
| Port Dimensions | 12.0" x 3.65" |
| Sub Cutout | 10.01" |
| Construction | 1" (24mm) plywood construction |
| Finish | Gray stained finish |
| Wiring | Pre-wired metal binding post with 10ga OFC wire |
| Dimensions (HxWxD) | 14.0" x 32.0" x 22.5" |
