Sundown Audio Z v6 10 Dual Bundle
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Bundle Includes: Sundown Audio Z-Series ZV6 10" 3250W Subwoofer Z v.6 + Sundown Audio ZV6 MDF 10" Dual Ported Subwoofer Enclosure
Priced at 10% off the combined retail price of the subwoofer and enclosure bought separately. Select your impedance below.

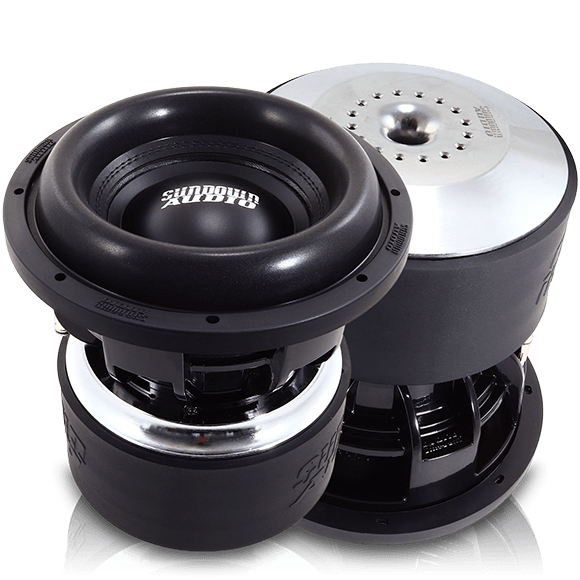

Sundown Audio Z-Series ZV6 10" 3250W Subwoofer Z v.6
- Power Handling — 3250 Watts RMS / 6500 Watts Peak
- Impedance — Dual 1 or Dual 2 ohm voice coils
- Voice Coil — 3" black aluminum, 8-layer flat-wire aluminum
- Motor — Quad-stacked 240mm (9.45") structure, hyper-extended pole
- Xmax — 35mm one-way by 70% BL
This Listing Includes: (1) Sundown Audio Z-Series ZV6 10" Subwoofer
The Z v.6 is the second step in Sundown's ultra-high-excursion lineup and replaces the Z v.5 series. A patented custom-tooled frame mates to a quad-stacked 240mm (9.45") motor with a 100mm (3.94") magnet stack, a hyper-extended pole, and clearances allowing over 4" peak-to-peak travel before mechanical bottom. The 3" 8-layer flat-wire aluminum voice coil — shared with the NS v.5 series — drives extreme excursion, cooled by a high-velocity pole vent, a heavily vented magnetic gap, and machined channels around the pole piece. Built for the lowest bass extension possible in a small ported box while keeping distortion extremely low; rated 3250 watts RMS / 6500 watts peak with 35mm one-way Xmax. In stock and shipping free from JS Ultimate Sounds — your authorized Sundown Audio dealer.
Features
- 3" 8-layer flat-wire aluminum voice coil on a thick aluminum former
- Quad-stacked 240mm motor with hyper-extended pole
- High-velocity pole vent and heavily vented magnetic gap
- Mega-Roll v.2 surround and custom-tooled ultra-linear spider packs
- Large aluminum Faraday (shorting) ring with stitched-on XL tinsel leads
Specifications
| Power Handling (RMS) | 3250 Watts |
| Power Handling (Peak) | 6500 Watts |
| Impedance Options | Dual 1 ohm (D1) / Dual 2 ohm (D2) |
| Voice Coil | 3" 8-layer flat-wire aluminum |
| Motor | Quad-stacked 240mm (9.45"), 100mm magnet stack |
| Xmax | 35mm one-way by 70% BL |
| Surround | Mega-Roll v.2 |

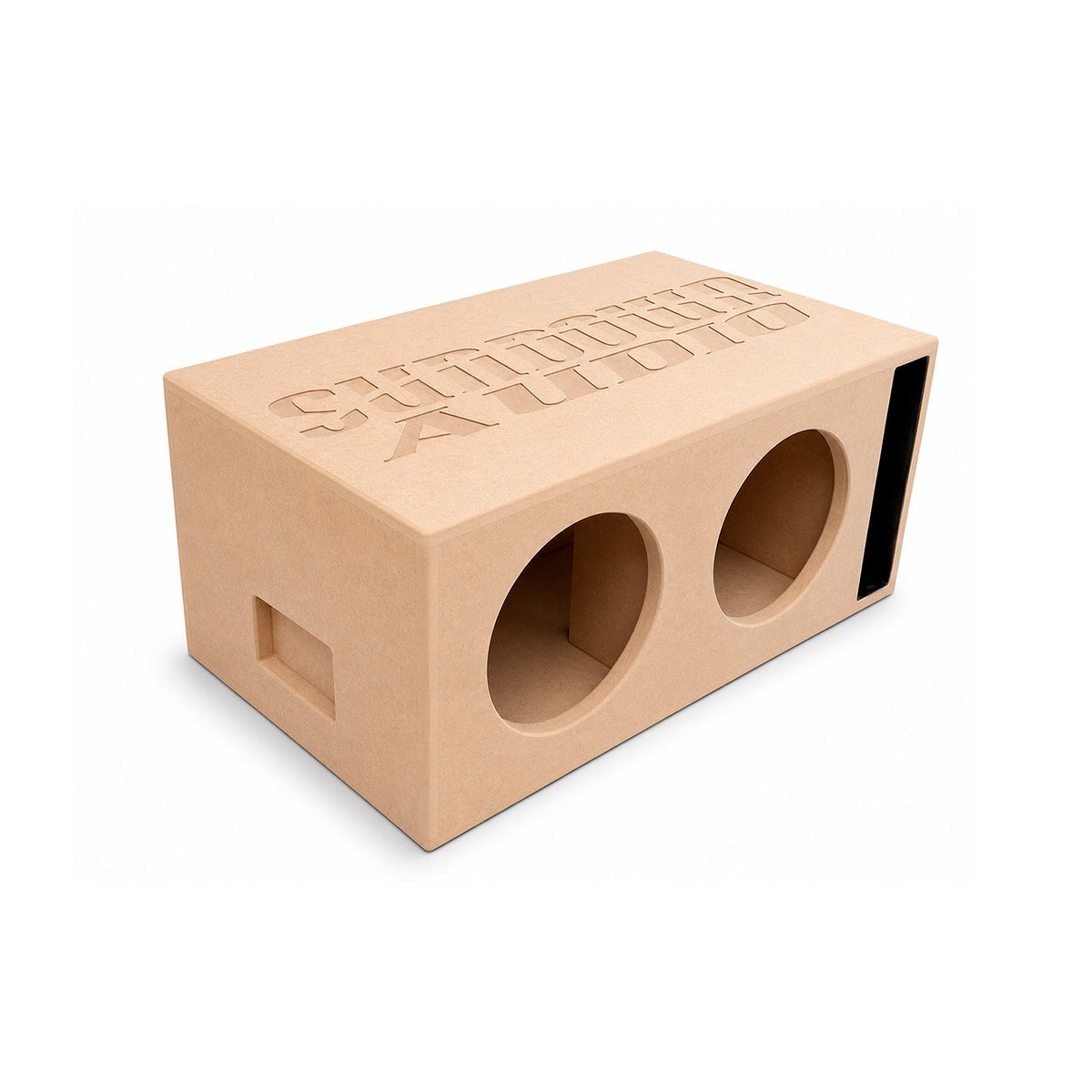

Sundown Audio ZV6 MDF 10" Dual Ported Subwoofer Enclosure
- Net Volume - 3.0 cu ft
- Tuning - 32.0 Hz
- Port Area - 43.8 sq in
- Sub Cutout - 10.11"
- Construction - Dense, uniform, void-free triple refined MDF panel
This Listing Includes: (1) Basshead Supply ported enclosure for the Sundown Audio ZV6 MDF 10" subwoofer
This enclosure is custom built specifically for the Sundown Audio ZV6 MDF 10" subwoofer. Basshead Supply's Performance Series enclosures are subwoofer-specific boxes engineered for strong, clean output, built with a refined assembly process that leaves no visible screw holes. Every box is glued with Titebond III and internally braced, then pre-wired with a recessed satin-nickel binding post and OFC 10-gauge wire - built by hand in the USA. Made to order (2-3 week lead time) and shipping from JS Ultimate Sounds, your Basshead Supply dealer.
Features
- Dense, uniform, void-free triple refined MDF panel
- Ships bare / unfinished - sanded and ready to finish your way
- Refined assembly - no visible screw holes
- Glued with Titebond III and internally braced
- Pre-wired recessed satin-nickel binding post with OFC 10-gauge wire
- Built by hand in the USA
Specifications
| Net Volume | 3.0 cu ft |
| Tuning | 32.0 Hz |
| Port Area | 43.8 sq in |
| Port Dimensions | 12.0" x 3.65" |
| Sub Cutout | 10.11" |
| Construction | Dense, uniform, void-free triple refined MDF panel |
| Finish | Ships bare / unfinished - sanded and ready to finish your way |
| Wiring | Pre-wired metal binding post with 10ga OFC wire |
| Dimensions (HxWxD) | 14.0" x 32.0" x 22.5" |
