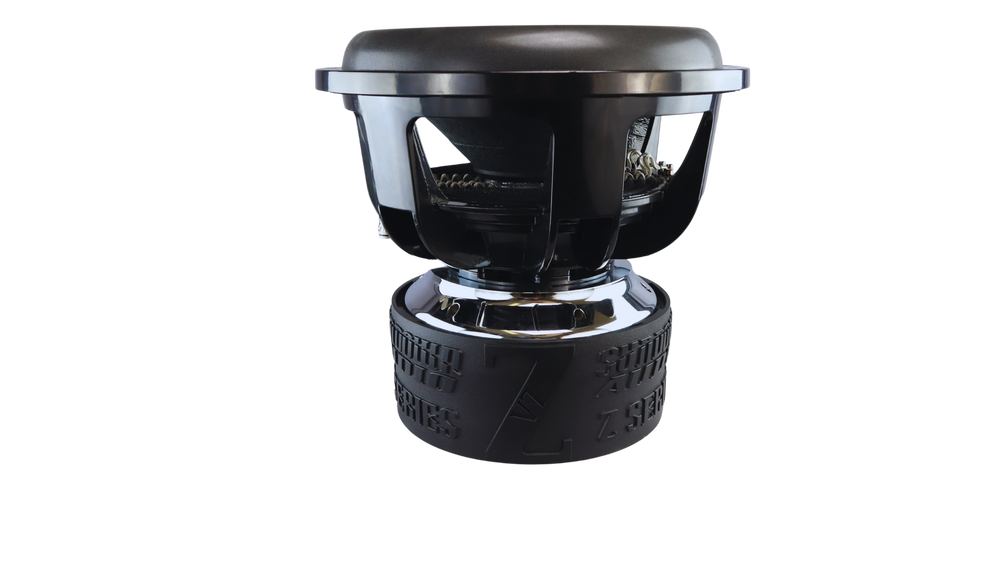

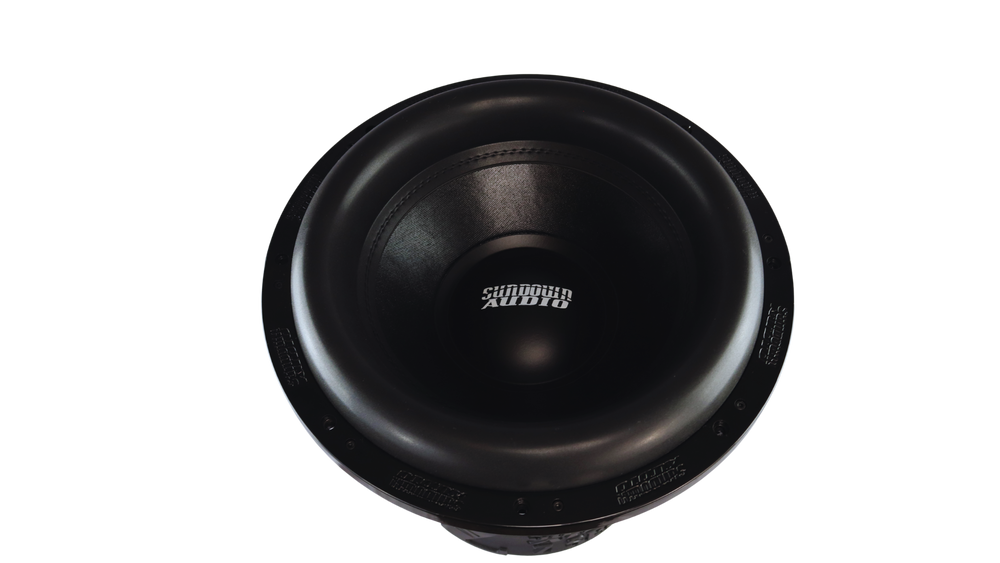

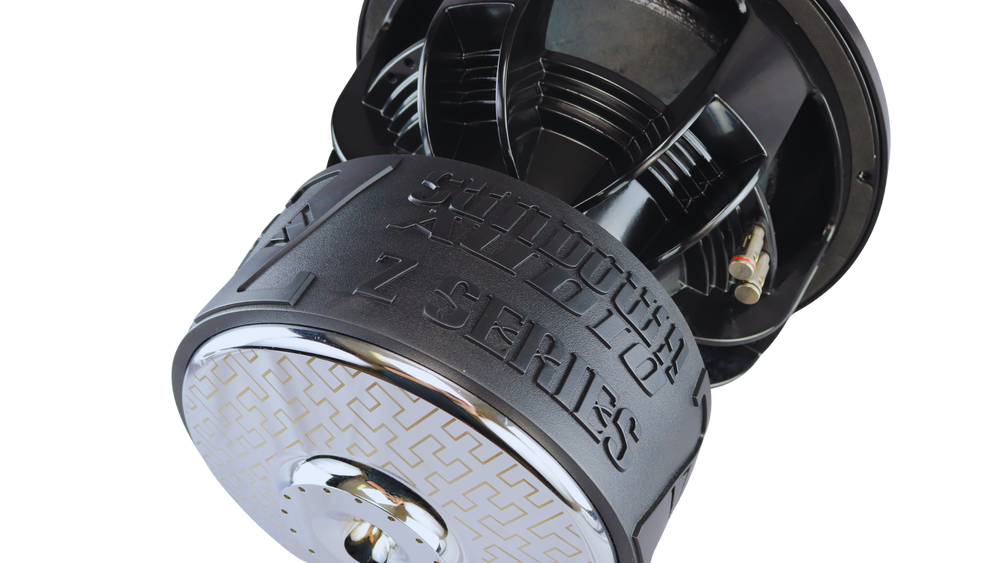

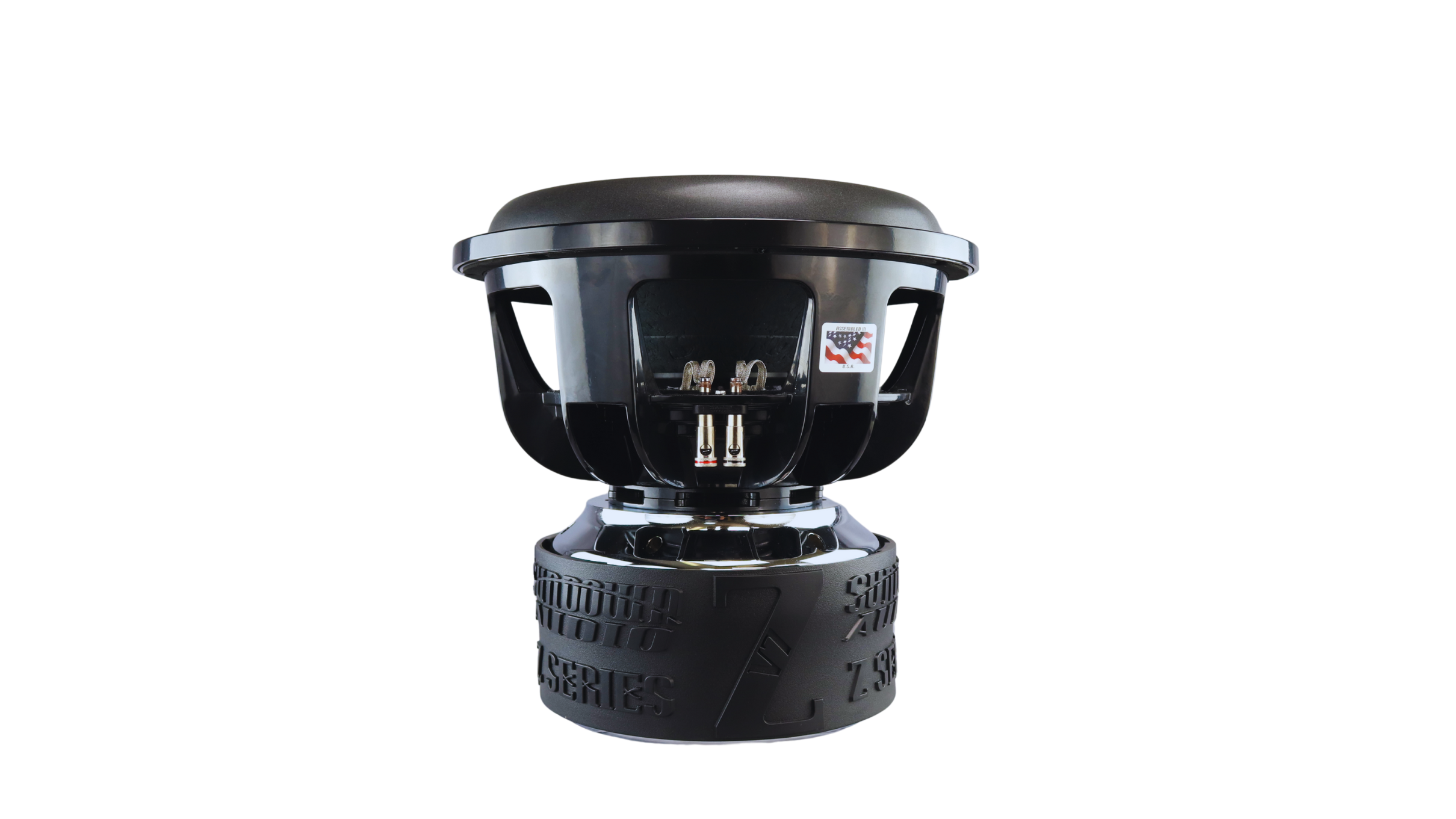

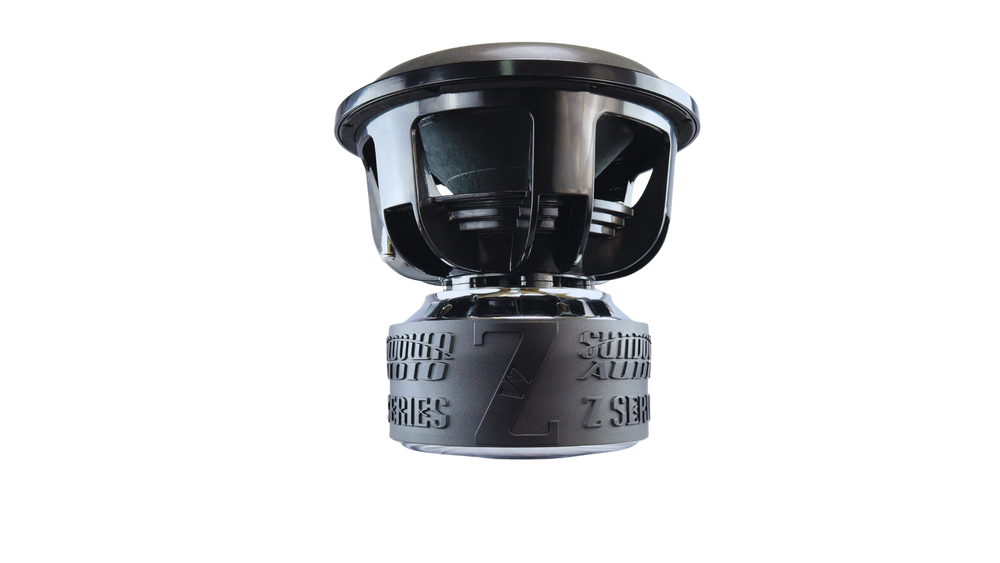

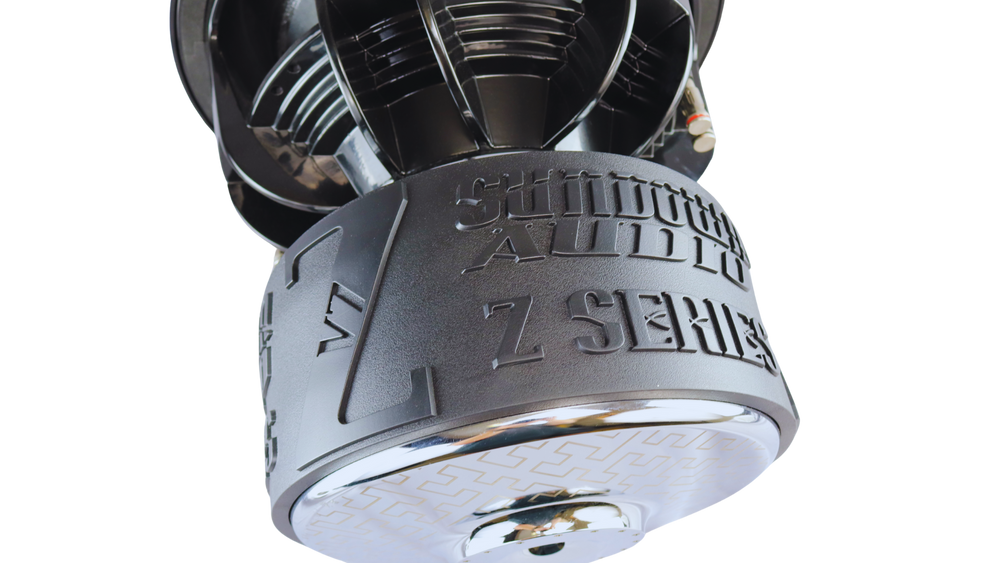

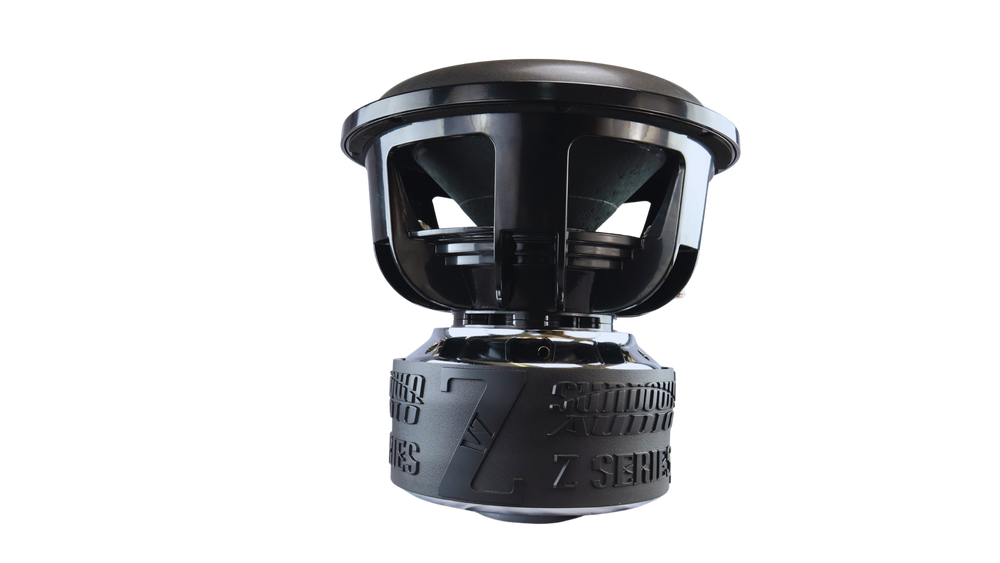

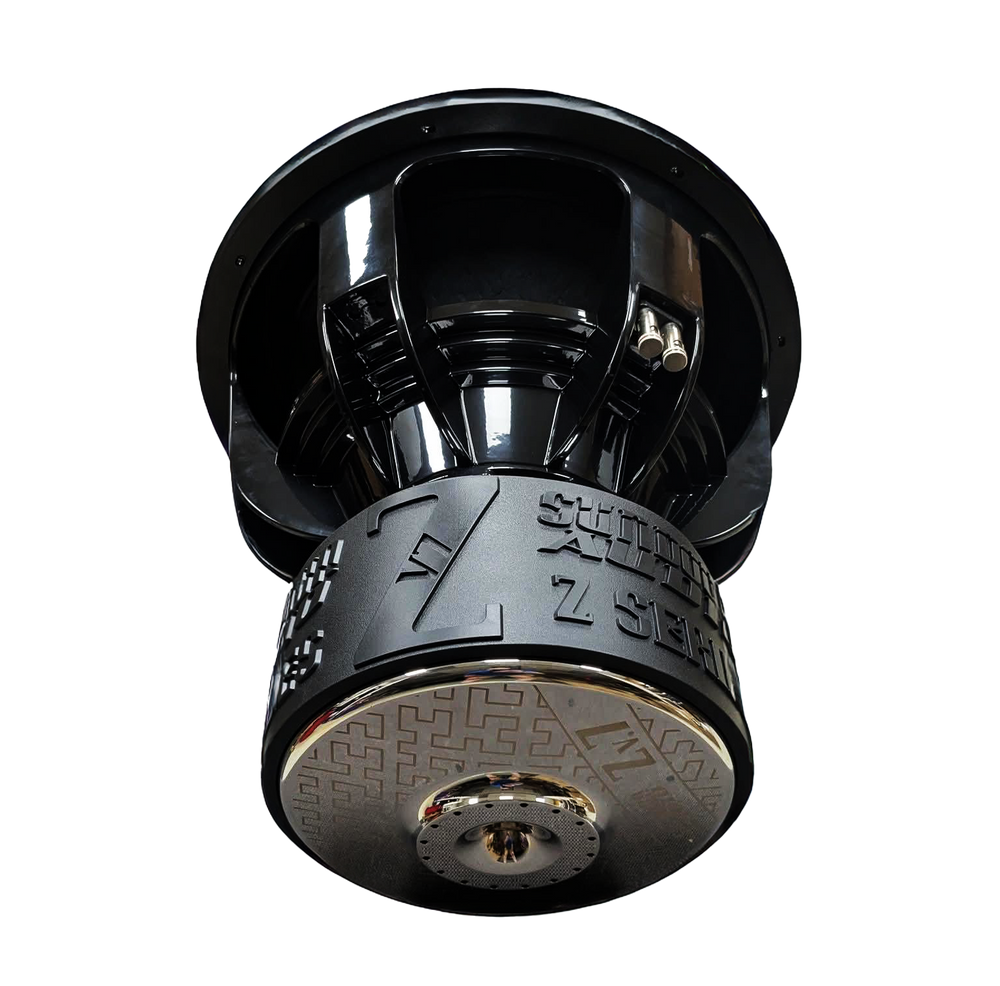

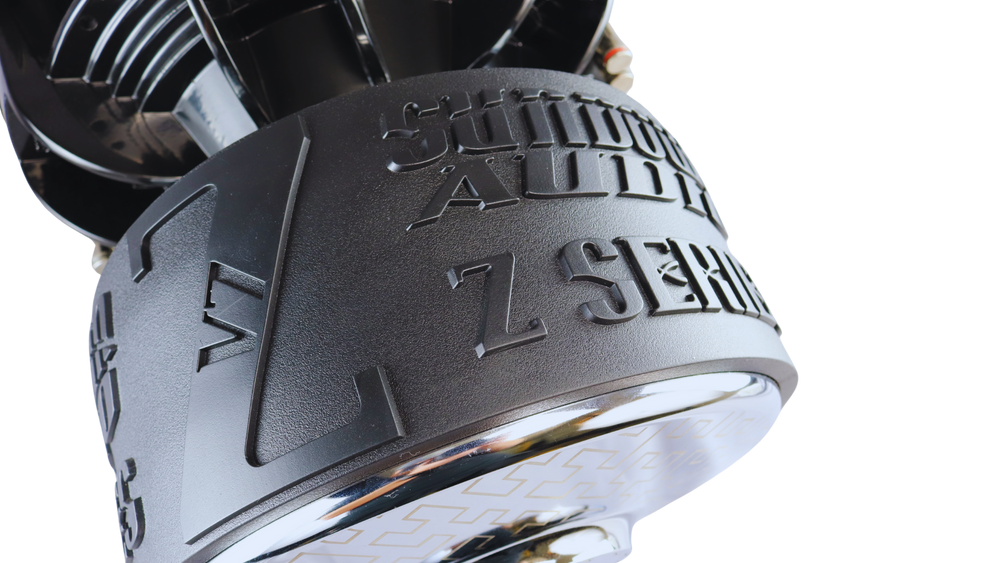

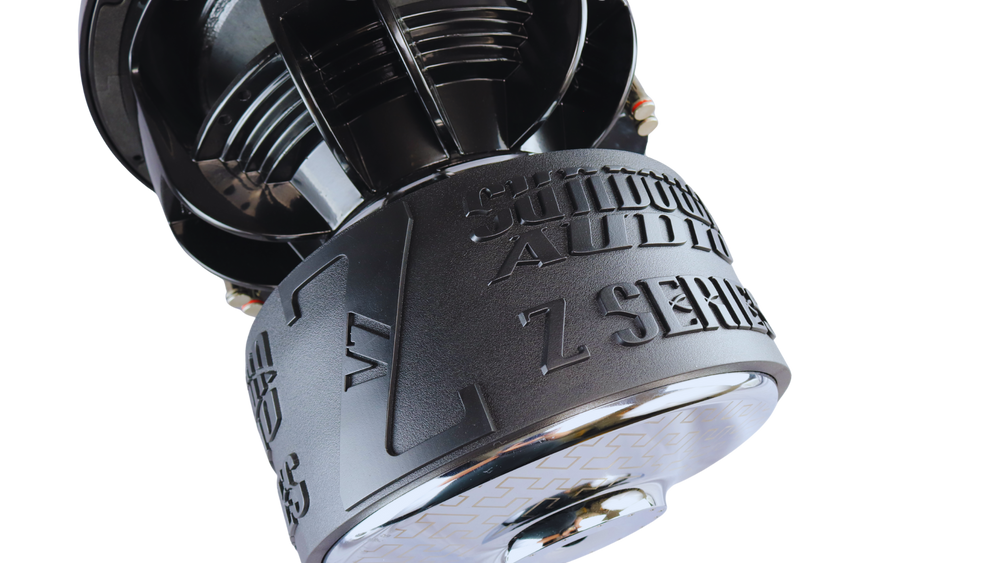

Sundown Audio Z-Series ZV7 15" Subwoofer
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20structure,%20100mm%20(3.94%E2%80%B3)%20magnet%20stack%0A%0AExcursion%20%E2%80%94%2042m...
){kind=link}
- Voice Coil — 3.3″ diameter, 4-layer round-wire aluminum on a thick aluminum former, 95mm winding length

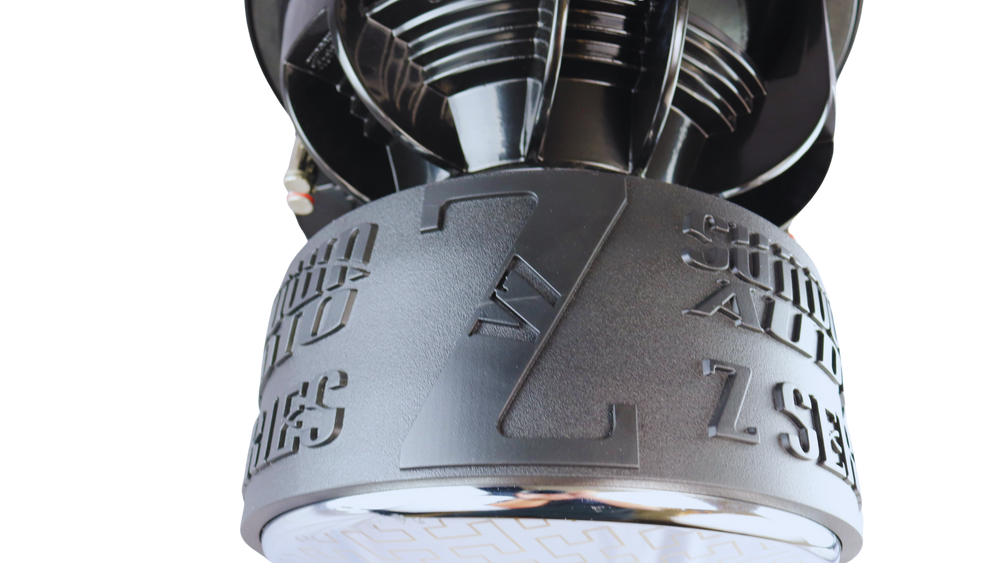

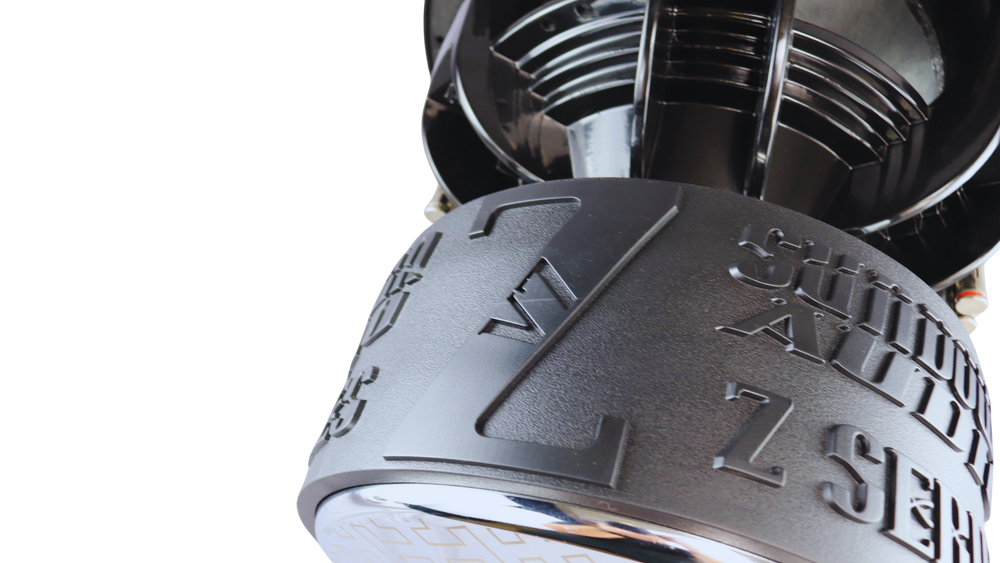

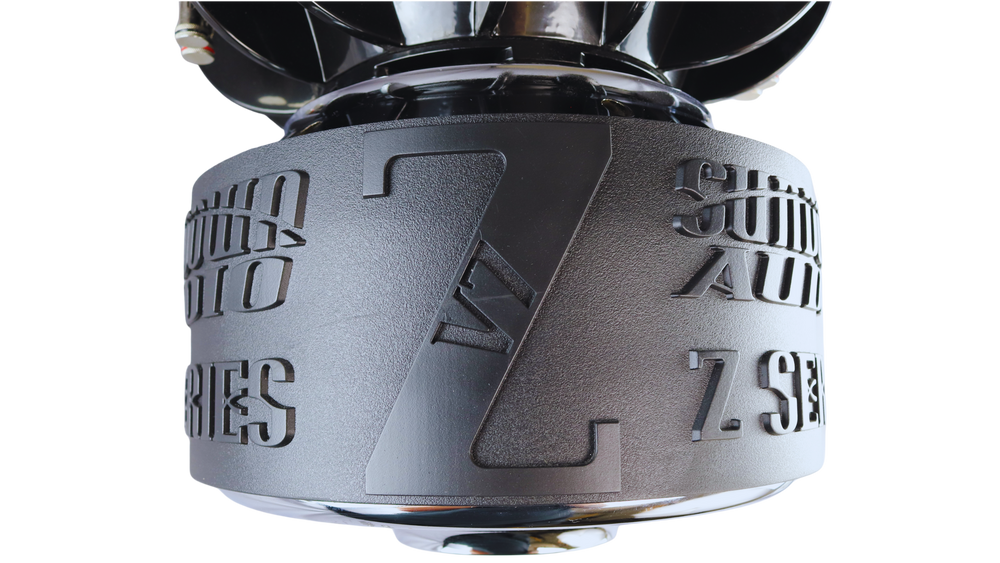

- Motor — Quad-stacked 265mm (10.43″) structure, 100mm (3.94″) magnet stack
- Excursion — 42mm one-way linear by 70% BL; over 4″ p-p before mechanical bottom
- Impedance — Dual 1-ohm or dual 2-ohm
This Listing Includes: (1) Sundown Audio Z-Series ZV7 15″ Subwoofer
The Z v.7 is the third step in Sundown’s 2025 ultra-high-excursion lineup after the M and X v.4 series, built on the custom-tooled, patented “mega-platform” frame. It pairs that frame with a quad-stacked 265mm (10.43″) motor and a 100mm (3.94″) magnet stack — the largest motor ever used on a Z series sub — driving a 3.3″ 4-layer round-wire aluminum voice coil with a 95mm winding length. A patent-pending airflow-directing pole cap, six pole-OD channels, sixteen gap vents, and a cross-drilled top plate keep the coil cool, while a 9mm magnet-ID Faraday ring and pole-extension inductance sleeve deliver highly linear inductance. The result is 42mm of one-way linear excursion by 70% BL with an extremely uniform curve, designed for the lowest bass extension possible in a small ported enclosure with very low distortion. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Patented Sundown “mega-platform” custom-tooled frame
- Quad-stacked 265mm (10.43″) motor with 100mm (3.94″) magnet stack
- 3.3″ 4-layer round-wire aluminum voice coil, 95mm winding length

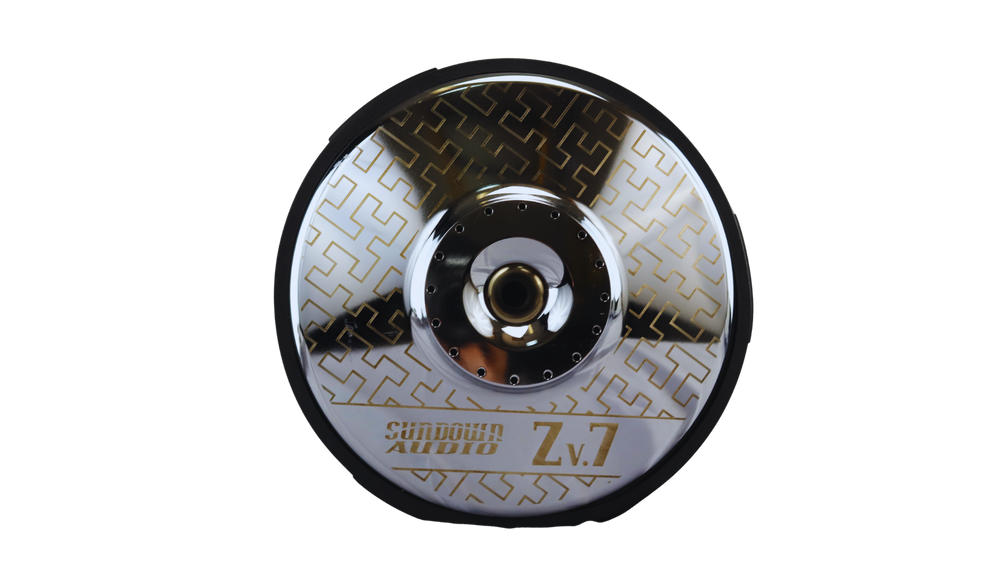

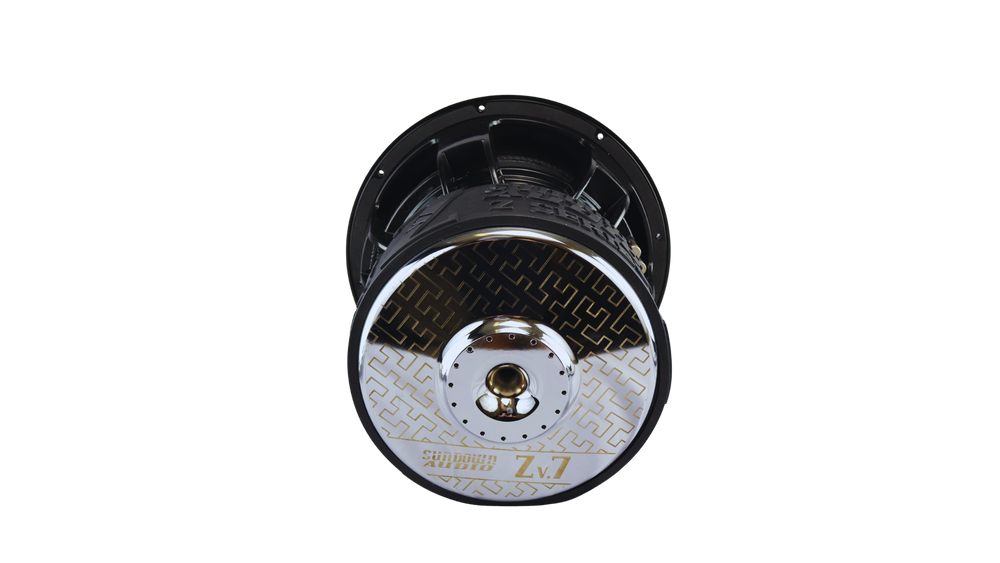

- Patent-pending pole cap, six pole-OD channels, sixteen gap vents, cross-drilled top plate
- 9mm magnet-ID Faraday ring with pole-extension inductance sleeve
Specifications
| Impedance | Dual 1-ohm or Dual 2-ohm |
| Voice Coil | 3.3″ diameter, 4-layer round-wire aluminum, 95mm winding |
| Motor | Quad-stacked 265mm (10.43″) |
| Magnet Stack Height | 100mm (3.94″) |
| Linear Excursion | 42mm one-way by 70% BL |
| Faraday Ring | 9mm magnet-ID |
