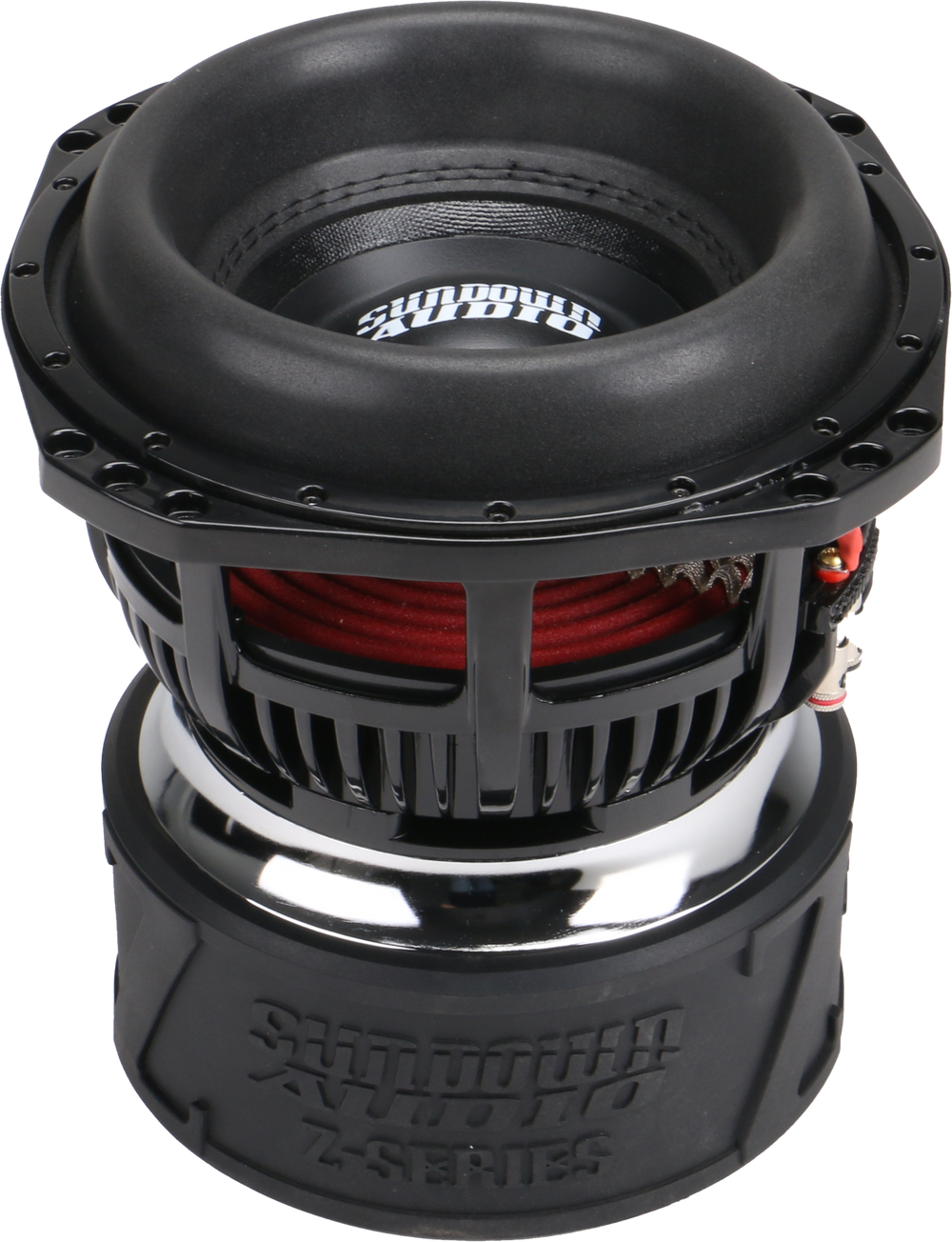

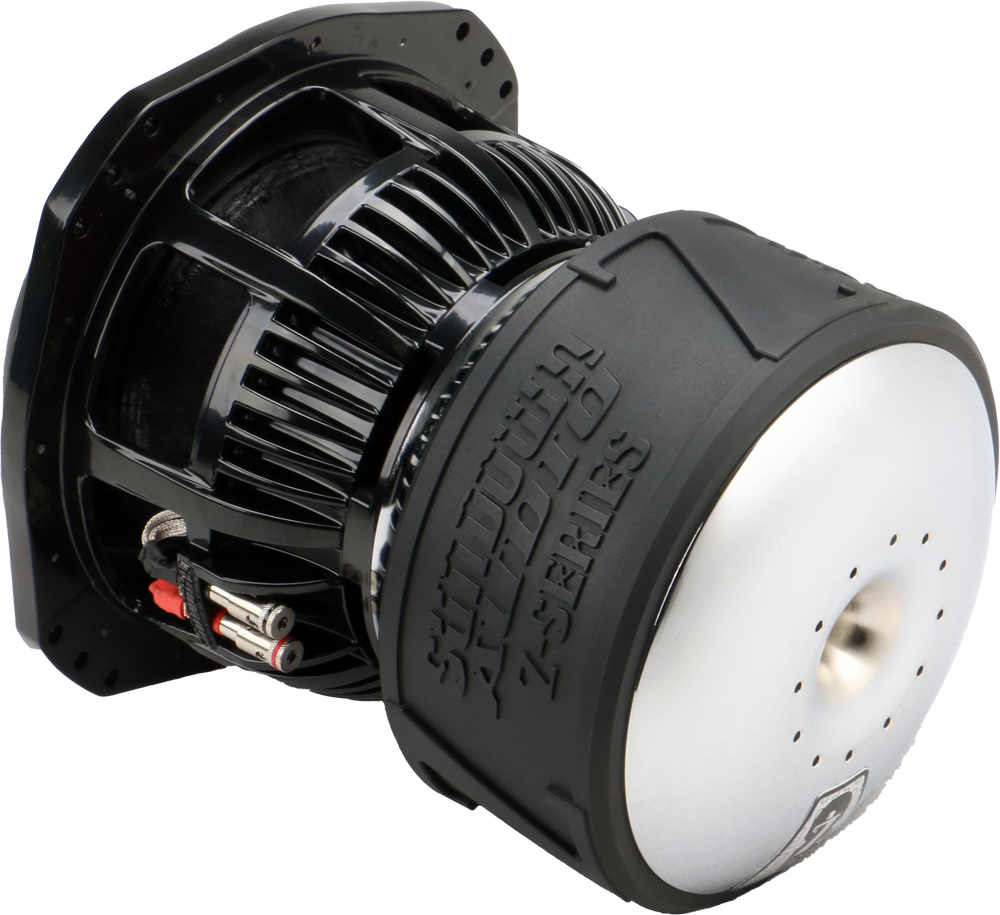

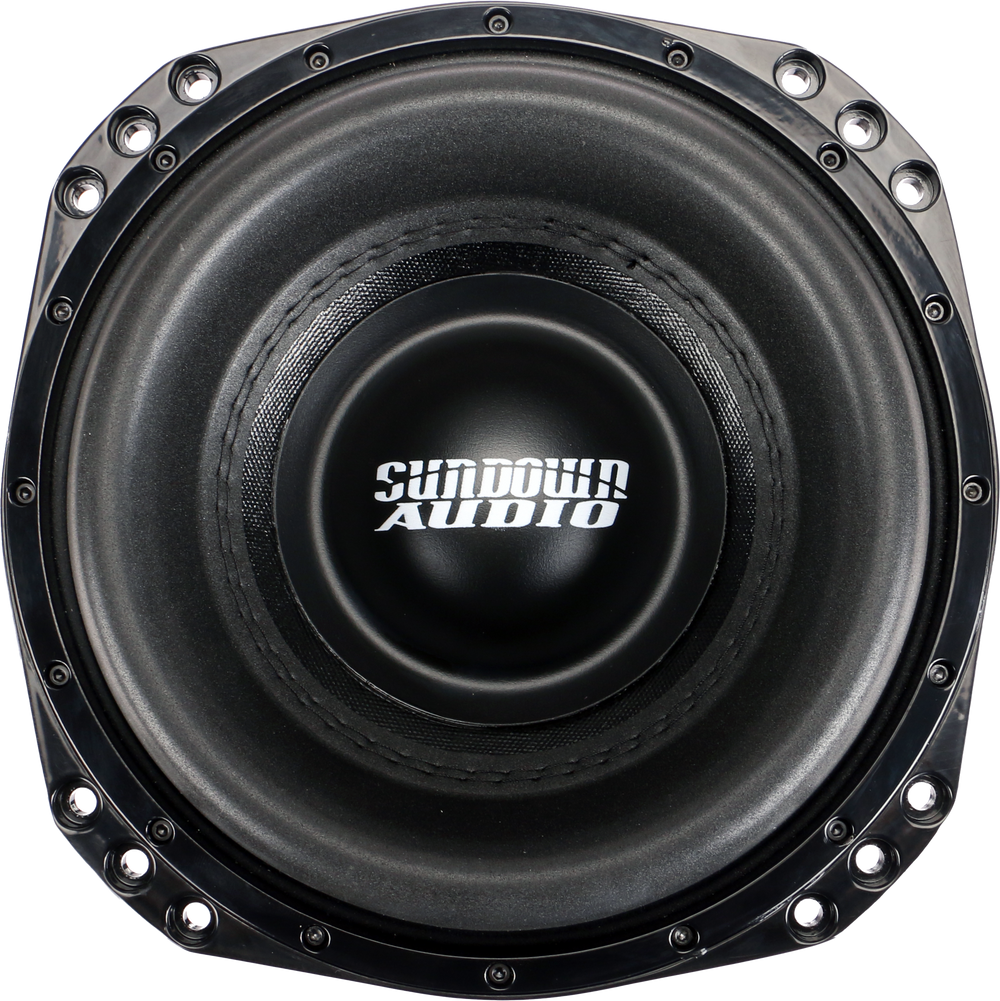

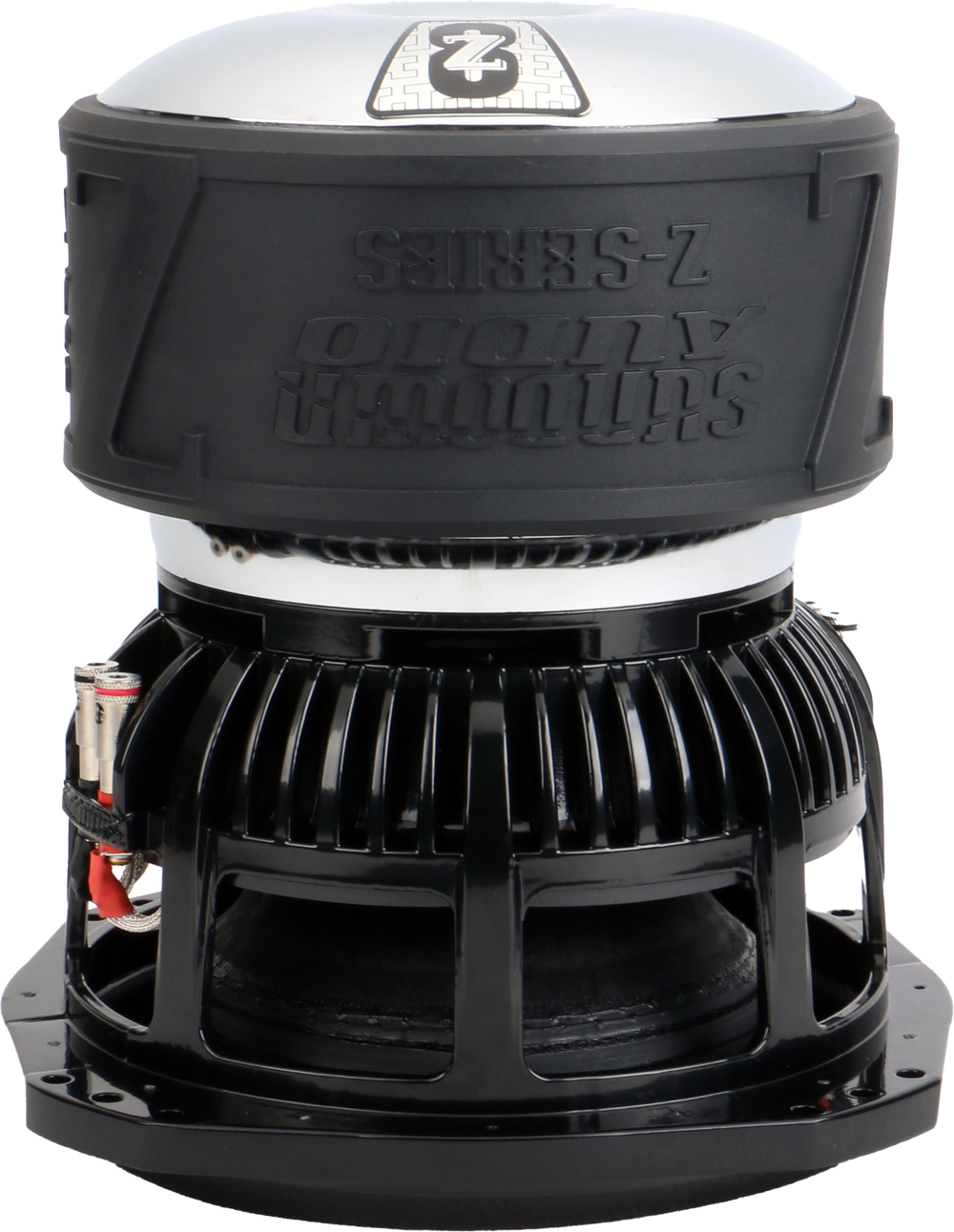

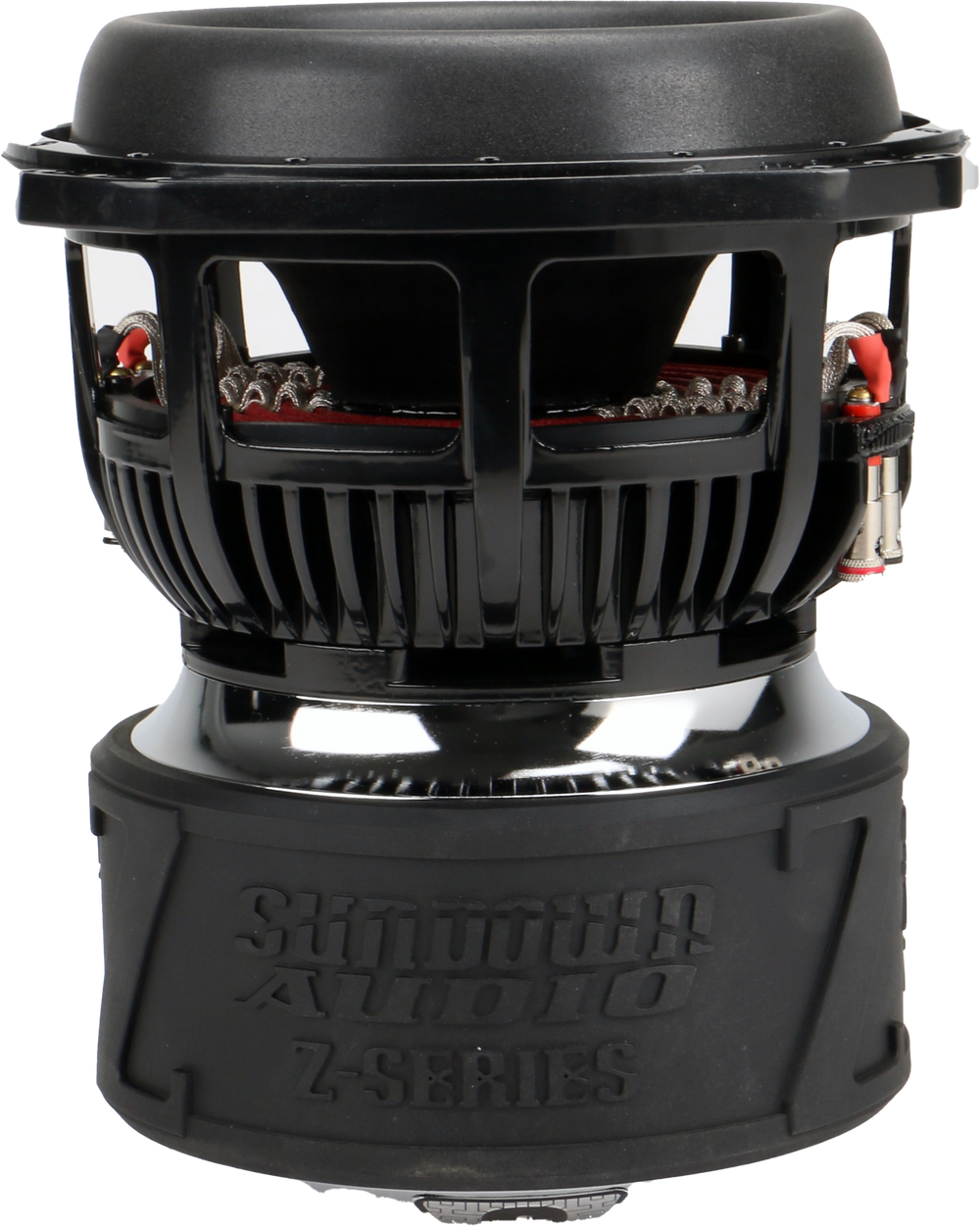

Sundown Audio Z-Series Z8" 4000W Subwoofer Z-8
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%0A%0ARecommended%20Enclosure%20%E2%80%94%201.0%20...
){kind=link}
- Power Handling — 2,000W RMS / 4,000W Peak
- Voice Coil — Black aluminum 2.75" 4-layer round-winding
- Xmax — 30mm
- Impedance — Available in D1 and D2 (dual voice coil)
- Recommended Enclosure — 1.0 cu. ft. ported, tuned to 32Hz (sealed not recommended)
This Listing Includes: (1) Sundown Audio Z-Series Z8 8" Subwoofer
The Z8 packs elite Z Series engineering into an 8-inch frame, handling 2,000 watts RMS and 4,000 watts peak. It is built around a black aluminum 2.75" 4-layer round-winding voice coil with a 30mm Xmax for serious excursion and power handling in a compact size. Cooling comes from an optimized high-velocity pole vent, a cast-aluminum vented frame spacer ring, and a heavily vented magnetic gap, while stitched XL tinsel leads, a Mega-Roll v.2 surround, custom spider packs, and a large aluminum Faraday ring keep it durable under abuse. It is designed for ported enclosures and thrives in a 1.0 cu. ft. net box tuned to 32Hz. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 2,000W RMS / 4,000W peak power handling
- Black aluminum 2.75" 4-layer round-winding voice coil with 30mm Xmax
- Optimized high-velocity pole vent and heavily vented magnetic gap
- Mega-Roll v.2 surround with custom-tooled ultra-linear spider packs
- Large aluminum Faraday ring and stitched XL tinsel leads
Specifications
| RMS Power | 2,000W |
| Peak Power | 4,000W |
| Impedance Options | D1, D2 (Dual Voice Coil) |
| Voice Coil | 2.75" 4-Layer Round-Winding (Black Aluminum) |
| Xmax | 30mm |
| Recommended Enclosure | 1.0 cu. ft. Ported @ 32Hz |
