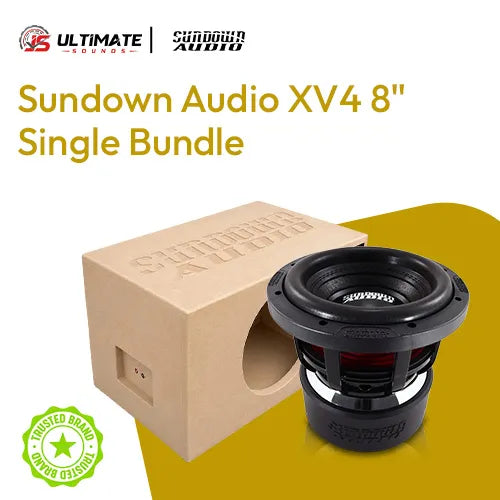

Sundown Audio XV4 8" Single Bundle (MDF)
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
How this package ships
- Two separate deliveries. Your subwoofer ships from JS Ultimate Sounds and usually arrives first.
- Separate tracking numbers. You will get one for each delivery, so a tracking link showing only part of your order is normal.
- The enclosure is built to order by Basshead Supply and ships direct from them in about 2 to 3 weeks.
- The subwoofer is not pre-installed. You mount it in the enclosure once both have arrived.
- The enclosure arrives bare and sanded, ready for you to finish however you like.
What is included
- (1) Sundown Audio X-Series v.4 8" Subwoofer 1250W RMS
- (1) Sundown Audio XV4 MDF 8" Single Ported Subwoofer Enclosure
Priced 10% below buying the subwoofer and enclosure separately.
Choose your impedance below.
Sundown Audio X-Series v.4 8" Subwoofer 1250W RMS
- Power — 1,250W RMS / 2,500W Peak
- Impedance — Dual 2-ohm or dual 4-ohm voice coil
- Voice Coil — 2.5" voice coil
- Motor — Triple-stacked magnet with hyper-extended pole
- Excursion — ~20mm linear x-max one-way
This Listing Includes: (1) Sundown Audio X-Series v.4 8" Subwoofer
The X-8 v.4 builds on the legacy of the v1, v2, and v3 models and out-performs all previous generations of Sundown's standard cut-out 8" subwoofer. The gains come largely from an FEA-optimized spider and surround, built on a newly revised version of the brand's custom-tooled 8" frame. Rated at 1,250 watts RMS and 2,500 watts peak, the motor and 2.5" voice coil are capable of roughly 20mm of linear x-max one-way and around 2.4" peak-to-peak before the coil leaves the gap. A triple-stacked magnet, hyper-extended pole, and aluminum magnet ID shorting ring reduce inductive distortion.
Features
- FEA-optimized spider and surround
- Triple-stacked magnet
- Hyper-extended pole
- Aluminum magnet ID shorting ring for reduced inductive distortion
- Custom-tooled 8" frame platform
Specifications
| RMS Power | 1,250 watts |
| Peak Power | 2,500 watts |
| Impedance | Dual 2-ohm or Dual 4-ohm |
| Voice Coil | 2.5" |
| Magnet | Triple-stacked |
| Linear X-max | ~20mm one-way |
Sundown Audio XV4 MDF 8" Single Ported Subwoofer Enclosure
- Net Volume - 1.0 cu ft
- Tuning - 34.0 Hz
- Sub Cutout - 7.375"
- Construction - Dense, uniform, void-free triple refined MDF panel
This Listing Includes: (1) Basshead Supply ported enclosure for the Sundown Audio XV4 MDF 8" subwoofer
This enclosure is custom built specifically for the Sundown Audio XV4 MDF 8" subwoofer. Basshead Supply's Performance Series enclosures are subwoofer-specific boxes engineered for strong, clean output, built with a refined assembly process that leaves no visible screw holes. Every box is glued with Titebond III and internally braced, then pre-wired with a recessed satin-nickel binding post and OFC 10-gauge wire - built by hand in the USA. Custom built to order by Basshead Supply and shipped directly from them, about 2 to 3 weeks.
Features
- Dense, uniform, void-free triple refined MDF panel
- Ships bare / unfinished - sanded and ready to finish your way
- Refined assembly - no visible screw holes
- Glued with Titebond III and internally braced
- Pre-wired recessed satin-nickel binding post with OFC 10-gauge wire
- Built by hand in the USA
Specifications
| Net Volume | 1.0 cu ft |
| Tuning | 34.0 Hz |
| Sub Cutout | 7.375" |
| Construction | Dense, uniform, void-free triple refined MDF panel |
| Finish | Ships bare / unfinished - sanded and ready to finish your way |
| Wiring | Pre-wired metal binding post with 10ga OFC wire |
| Dimensions | 11.5" tall / 13.25" deep |
