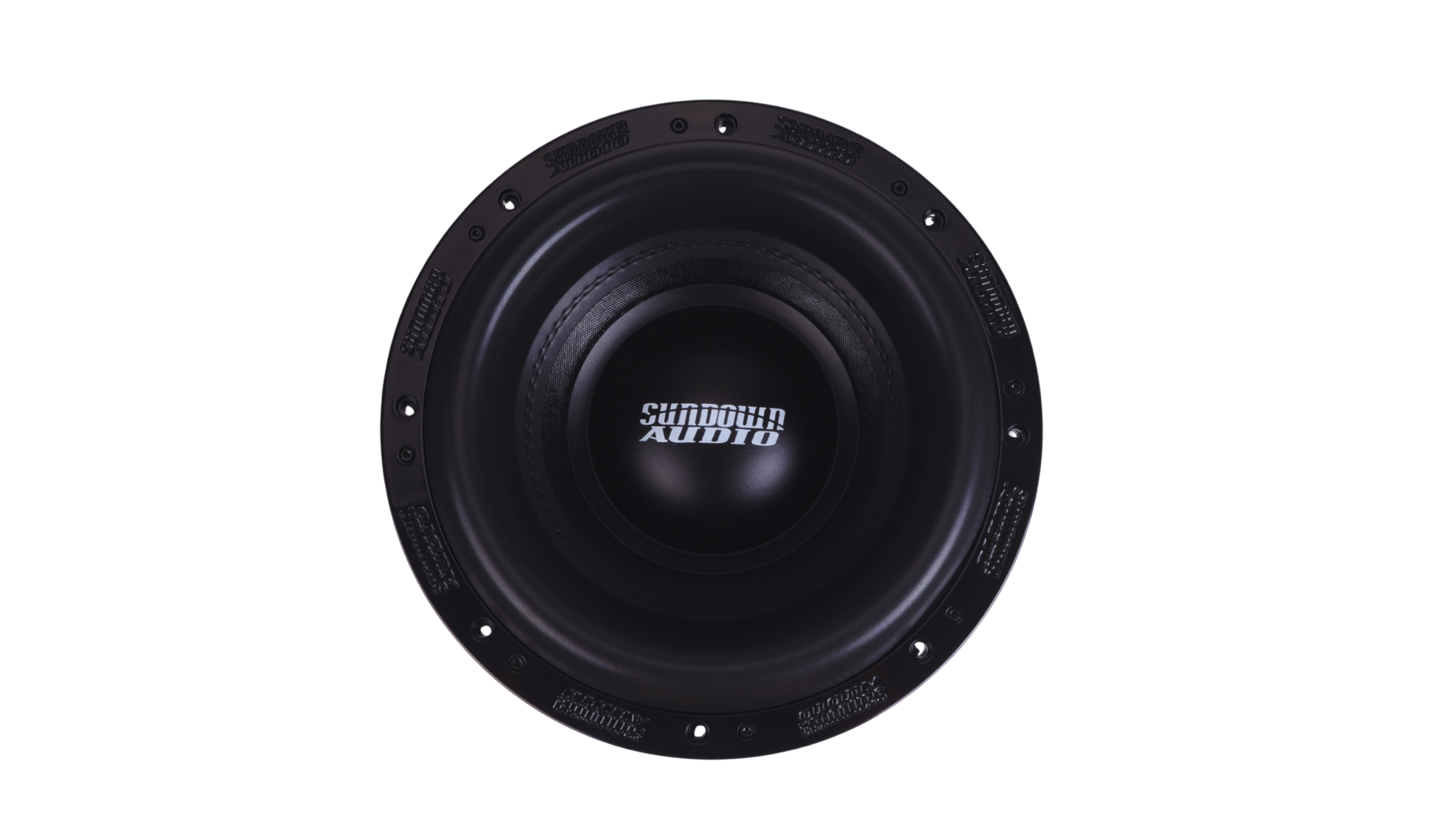

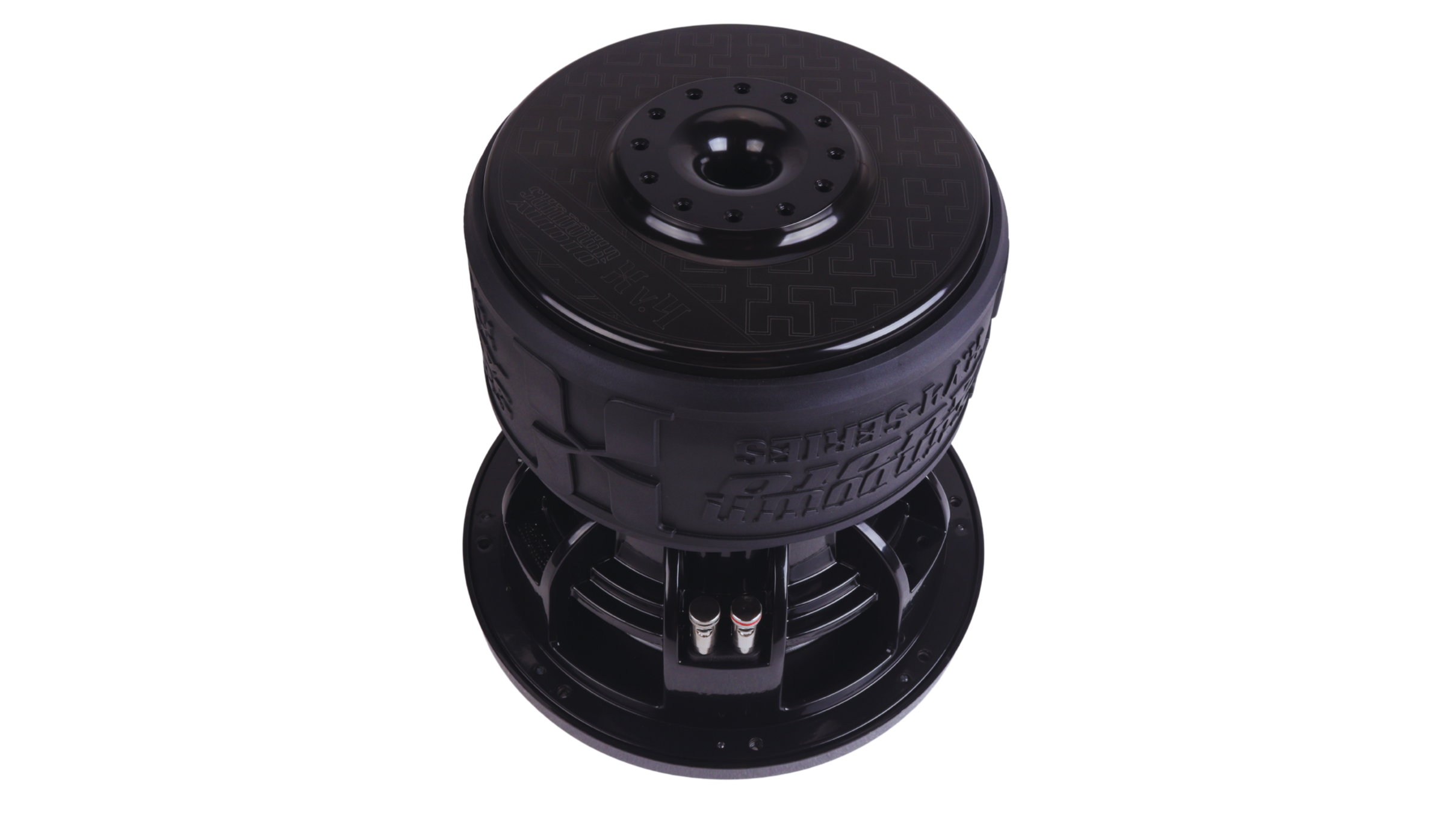

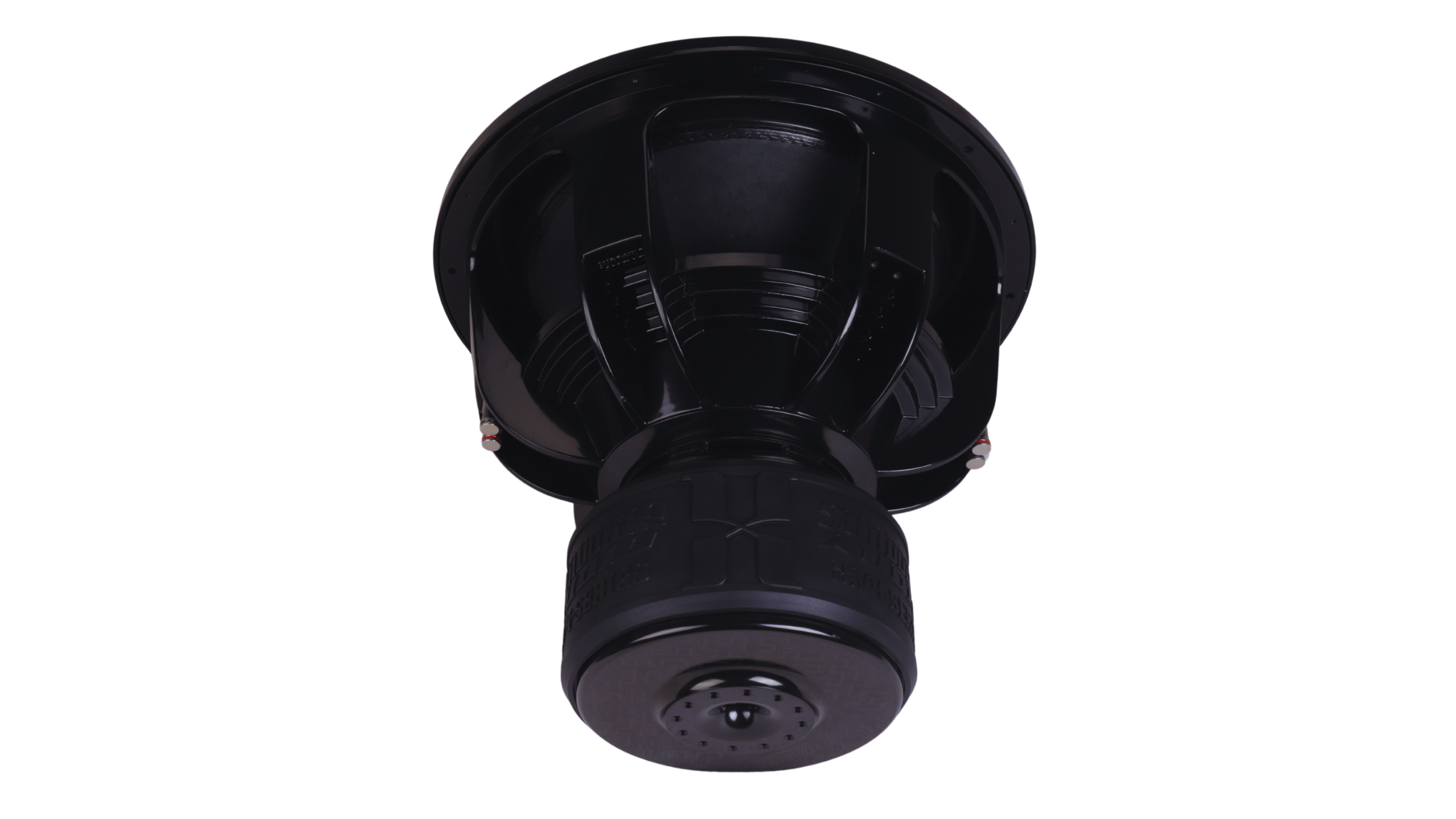

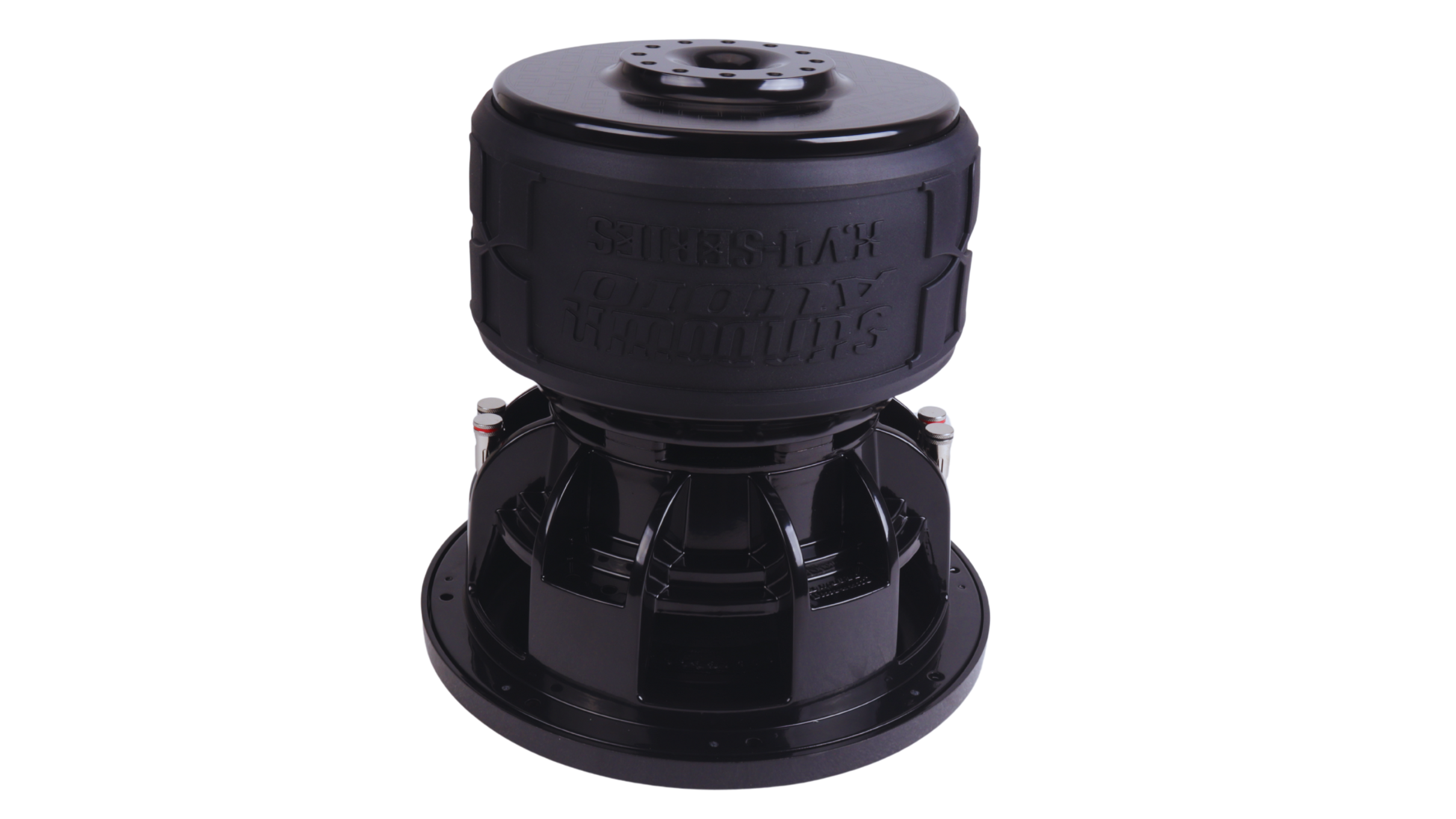

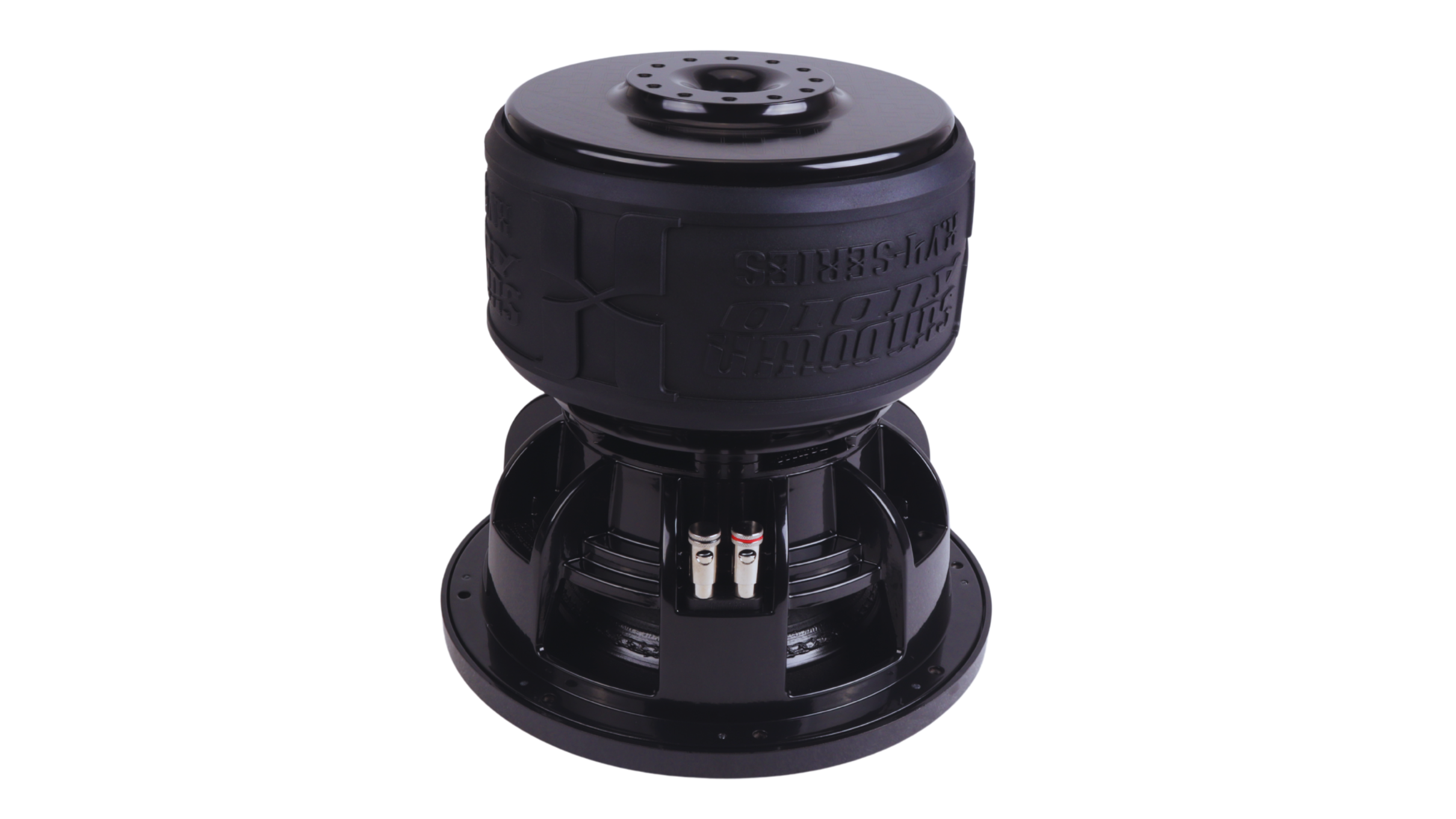

Sundown Audio X-Series XV4 12" 3000W RMS Subwoofer
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power — 3,000W RMS / 6,000W peak
- Voice Coil — X v.4 coils, available Dual 1Ω or Dual 2Ω
- Xmax — 30mm for deep excursion
- Recommended Enclosure — Ported 2.5 cu ft @ 32Hz
This Listing Includes: (1) Sundown Audio X-Series XV4 12″ Subwoofer
The Sundown Audio Xv4 12″ subwoofer is built for those who demand real power and precision, delivering 3,000W RMS and 6,000W peak with premium X v.4 coils. A high-efficiency motor structure with a strong BL factor and 30mm of Xmax keeps the bass deep, tight, and accurate even during extended play. It’s available in Dual 1Ω and Dual 2Ω versions and is optimized for ported enclosures at 2.5 cu ft tuned to 32Hz. With a reinforced cone built to handle extreme sound pressure, the Xv4 continues Sundown’s legacy of reliability and high-SPL performance. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 12-inch subwoofer with X v.4 voice coils
- 3,000W RMS / 6,000W peak power handling
- Available in Dual 1Ω and Dual 2Ω versions
- High-efficiency motor structure with strong BL factor
- Optimized for ported enclosures (2.5 cu ft @ 32Hz), 30mm Xmax
Specifications
| RMS Power | 3,000W |
| Peak Power | 6,000W |
| Impedance | Dual 1Ω or Dual 2Ω |
| Voice Coil | X v.4 |
| Xmax | 30mm |
| Recommended Enclosure | Ported, 2.5 cu ft @ 32Hz |
