Sundown Audio X-Series v.3 15" Subwoofer 2500W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power — 2500W RMS / 5000W Peak
- Voice Coil — Dual 1 or 2 ohm, 3"
- Excursion — 30mm Xmax, four inches peak-to-peak

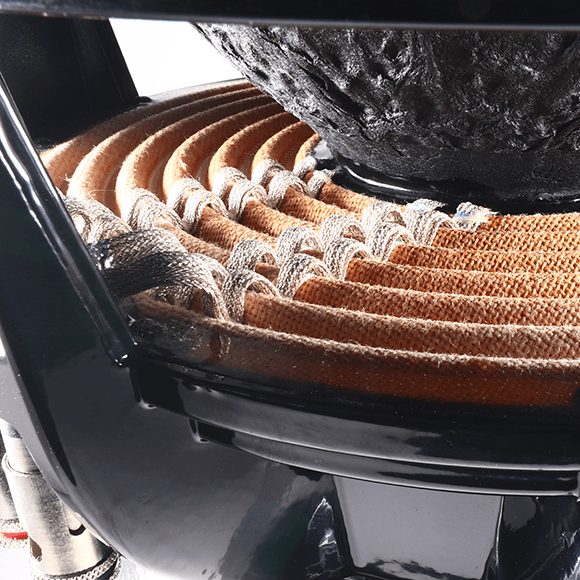

- Motor — Triple-stacked magnet, 220mm structure, hyper-extended pole
- Surround — All-new Mega-Roll v.2

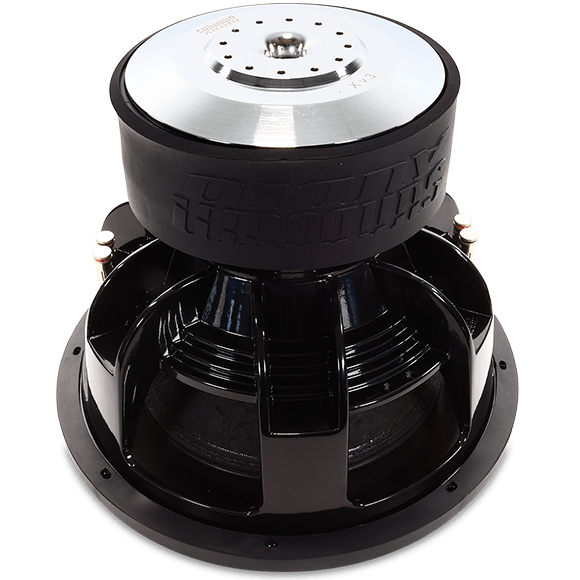

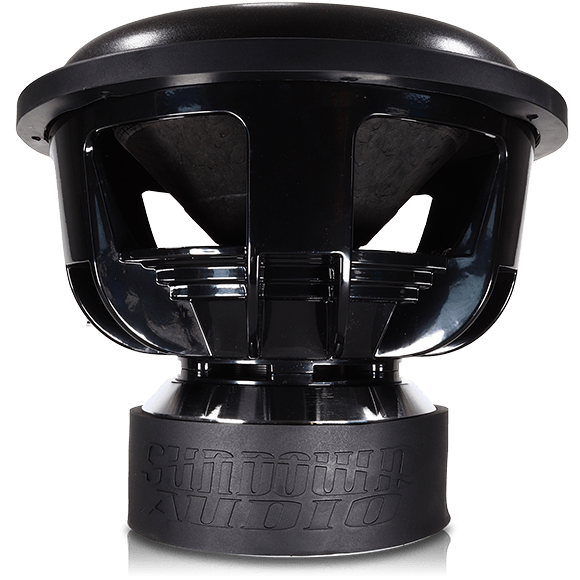

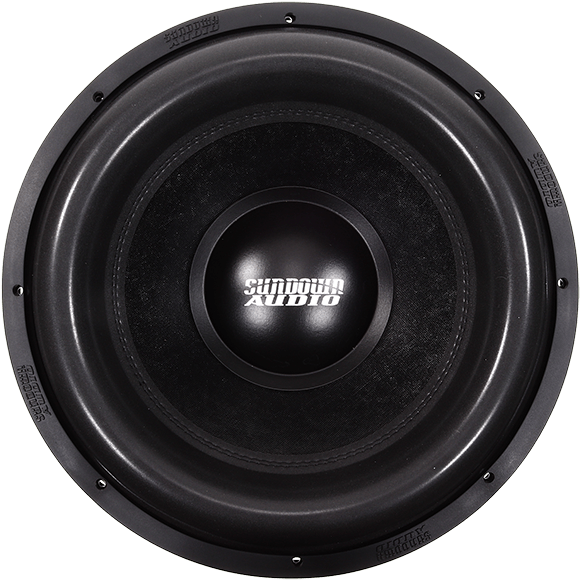

This Listing Includes: (1) Sundown Audio X-Series v.3 15" Subwoofer
Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 15" is engineered for ultra-deep bass and high power handling. Built for the low-frequency, small-ported-box category, it can also run in up to a 50% larger enclosure for even more low-end extension. The v.3 differentiates itself with an incredibly linear suspension that maintains extremely low distortion, and steps up to a much larger 220mm motor structure (versus 190mm on v.1) with improved ventilation and the all-new Mega-Roll v.2 surround. Rated at 2500W RMS (5000W peak) with dual 1 or 2 ohm coils and a 30mm Xmax. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Triple-stacked magnet with hyper-extended pole
- 3" voice coil with 30mm Xmax
- Larger 220mm motor structure versus 190mm on v.1
- Improved motor ventilation
- All-new Mega-Roll v.2 surround
Specifications
| RMS Power | 2500 Watts |
| Peak Power | 5000 Watts |
| Impedance | Dual 1 ohm or Dual 2 ohm |
| Voice Coil | 3" |
| Magnet | Triple-stacked |
| Motor Structure | 220mm |
| Xmax | 30mm |
| Fs | 31.4 Hz |
| Vas | 45.9 L |
| Qts | 0.409 (D1) / 0.468 (D2) |
| Sensitivity | 86.5 dB (D1) / 85.9 dB (D2) @ 1w/1m |
| Ported Enclosure | 4.25 cu ft |
| Recommended Tuning | 32 Hz |
| Recommended Port Area | 68 sq in |
| Displacement | 0.22 cu ft |
| Mounting Depth | 11.6" |
| Outside Diameter | 15.51" |
| Cutout Diameter | 13.83" |
