- Power — 2500W RMS / 5000W Peak
- Voice Coil — Dual 1 or 2 ohm, 3"
- Excursion — Four inches peak-to-peak

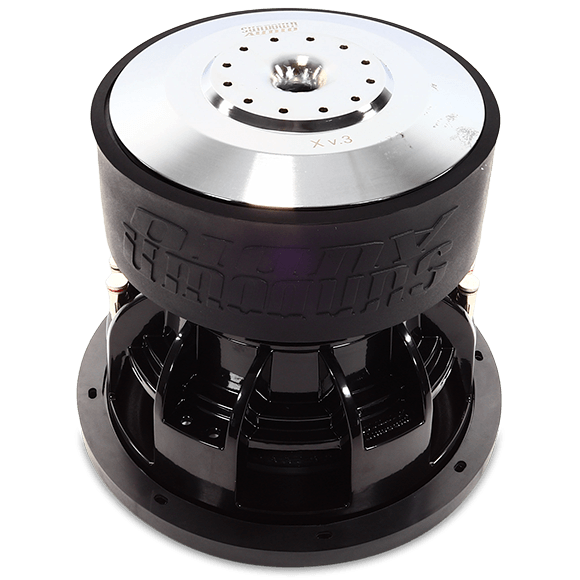

- Motor — Triple-stacked magnet, 220mm structure, hyper-extended pole
- Surround — All-new Mega-Roll v.2

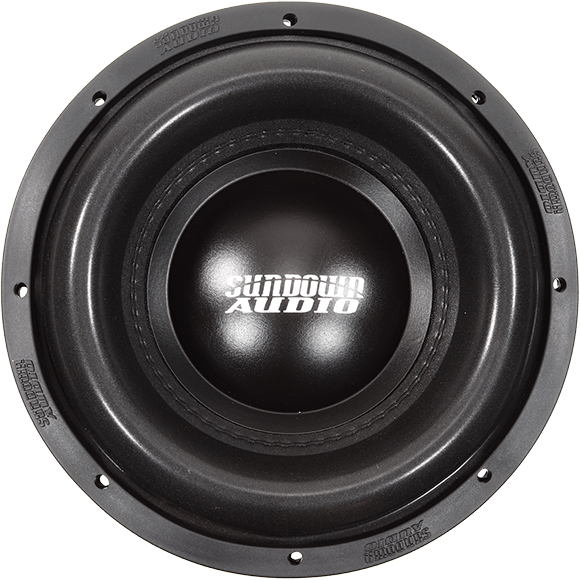

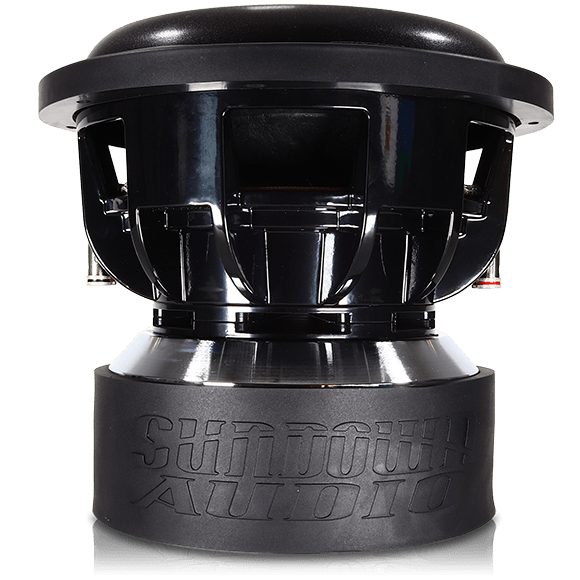

This Listing Includes: (1) Sundown Audio X-Series v.3 10" Subwoofer
Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 10" is engineered for ultra-deep bass and high power handling. Built for the low-frequency, small-ported-box category, it can also run in up to a 50% larger enclosure for even more low-end extension. The v.3 differentiates itself with an incredibly linear suspension that maintains extremely low distortion, and steps up to a much larger 220mm motor structure (versus 190mm on v.1) with improved ventilation and the all-new Mega-Roll v.2 surround. Rated at 2500W RMS (5000W peak) with dual 1 or 2 ohm coils. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Triple-stacked magnet with hyper-extended pole
- 3" voice coil
- Larger 220mm motor structure versus 190mm on v.1
- Improved motor ventilation
- All-new Mega-Roll v.2 surround
Specifications
| RMS Power | 2500 Watts |
| Peak Power | 5000 Watts |
| Impedance | Dual 1 ohm or Dual 2 ohm |
| Voice Coil | 3" |
| Magnet | Triple-stacked |
| Motor Structure | 220mm |
| Peak-to-Peak Excursion | 4 inches |
| Surround | Mega-Roll v.2 |
