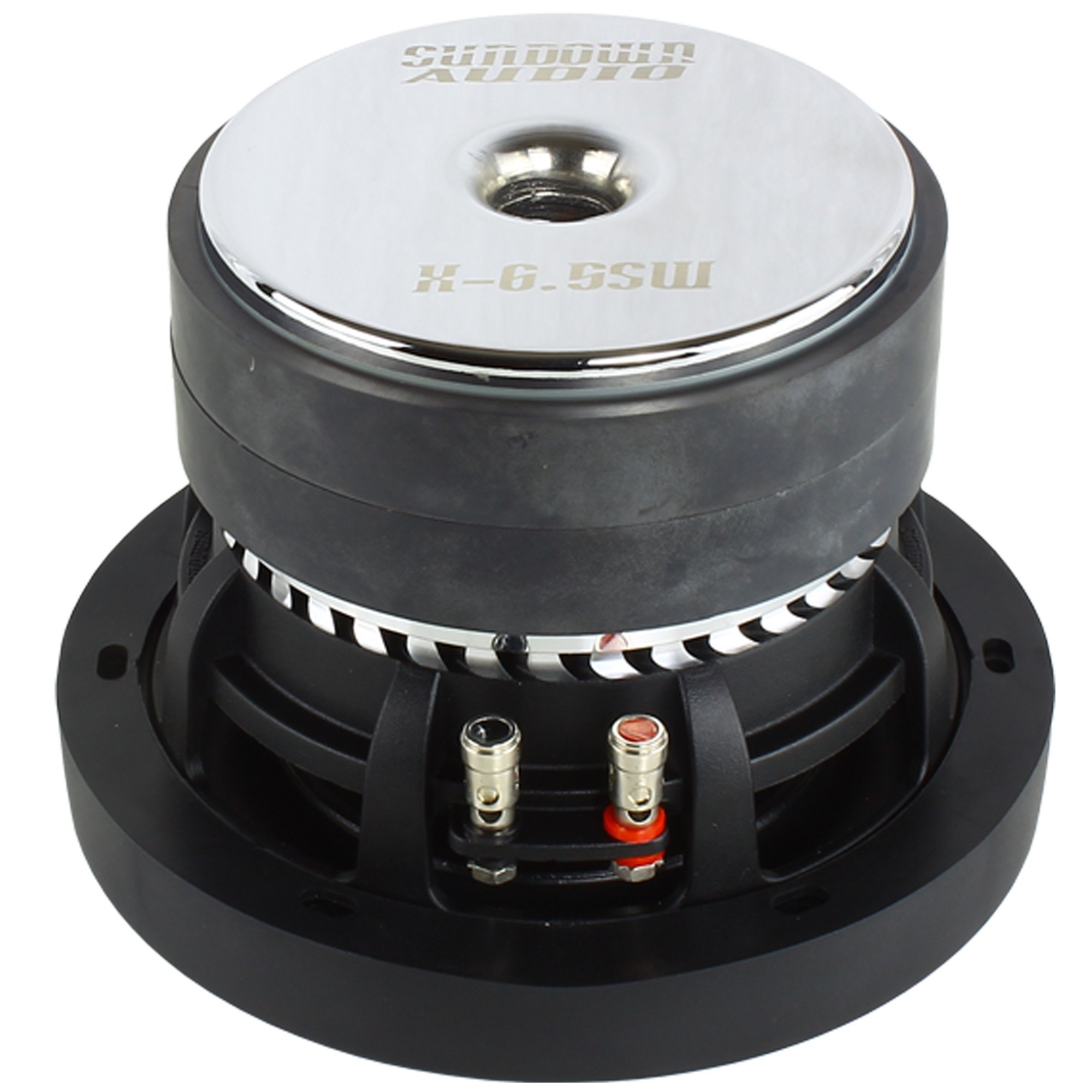

Sundown Audio X-Series v.2 6.5" Subwoofer
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%0A%0AExcursion%20%E2%80%94%20Xmax%2016mm%20one-way%20by%2070%25%20BL%0A%0ACone%20%E2%80%94%20Proprietary%20flat%20aluminum%20diaphragm%0A%0AEnclosur...
){kind=link}
- Power — 400 watts RMS
- Voice Coil — 2" diameter, 4-layer CCAW on Kapton former (1.4" winding height)
- Excursion — Xmax 16mm one-way by 70% BL
- Cone — Proprietary flat aluminum diaphragm
- Enclosure — Requires a small ported enclosure (mechanically limited)
This Listing Includes: (1) Sundown Audio X-Series v.2 6.5" Subwoofer
The X-6.5SW is Sundown Audio's first true subwoofer smaller than 8 inches. It uses a voice coil identical in winding dimensions to the SA-8 v.3 — a 2" diameter coil with a 1.4" winding height — for massive thermal power handling at 400 watts RMS. A copper pole cap reduces inductive distortion, integrated tinsel leads prevent lead slapping, and a proprietary flat aluminum diaphragm rides on a 2" 4-layer CCAW coil wound on a thick Kapton former. This woofer is mechanically limited and requires a small ported enclosure; a large or sealed box will substantially reduce mechanical power handling. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Large noise-free pole vent design
- Spiral-cut basket venting technique unique to this model
- Copper pole cap for reduced inductive distortion
- Integrated tinsel leads to prevent lead slapping
- Proprietary flat aluminum diaphragm
Specifications
| RMS Power | 400 watts |
| Voice Coil | 2" diameter, 4-layer CCAW on Kapton former |
| Xmax | 16mm one-way by 70% BL |
| Cone | Flat aluminum diaphragm |
| Sealed Enclosure | 0.15 ft³ |
| Ported Enclosure | 0.25–0.33 ft³ (0.3 ft³ recommended) |
| Recommended Tuning | 32Hz |
| Recommended Port Area | 4 in² |
| Displacement | 0.05 ft³ |

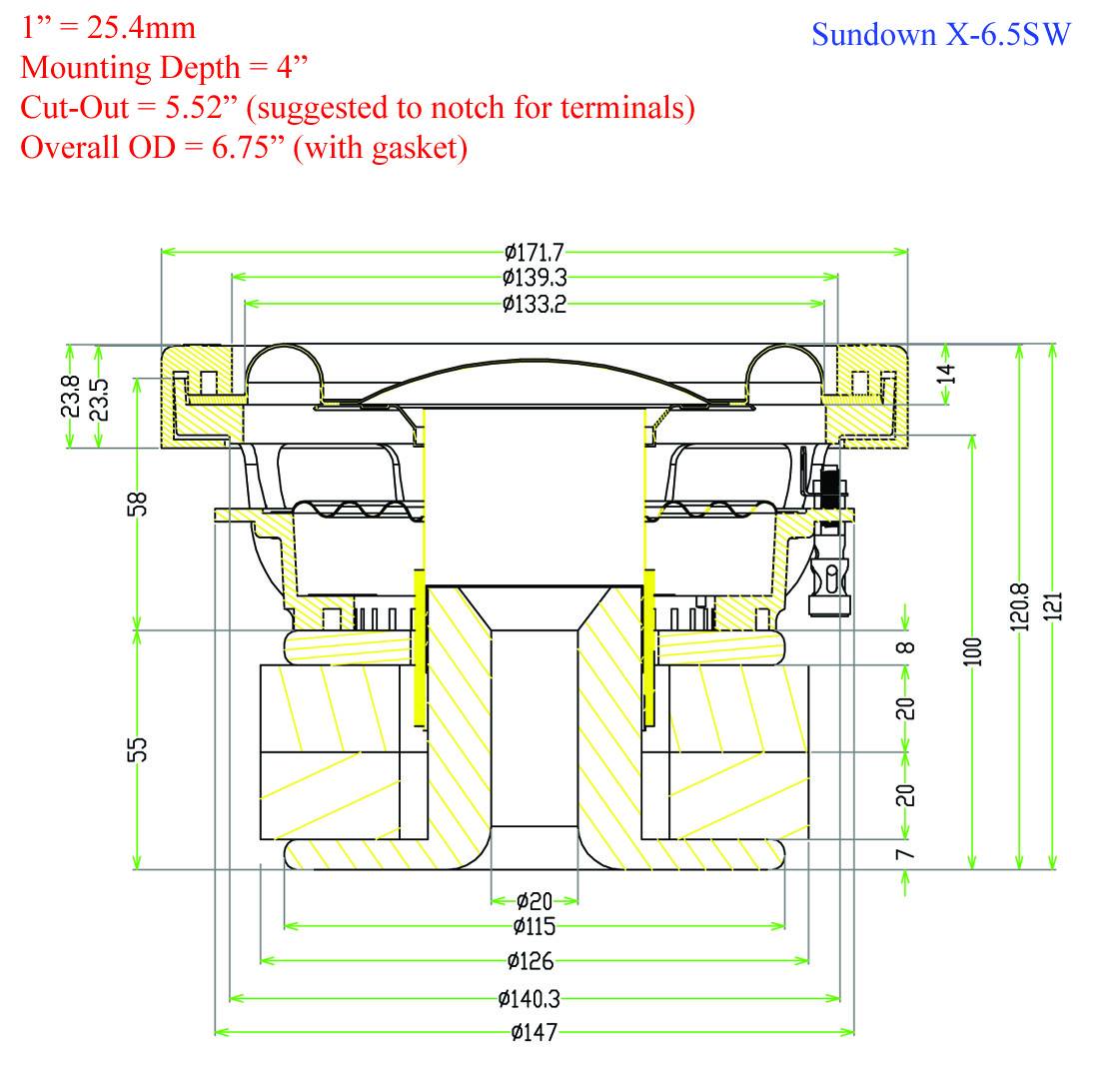

| Depth | 4.00" |
| Outside Diameter | 6.75" |
| Cut-Out | 5.52" |
