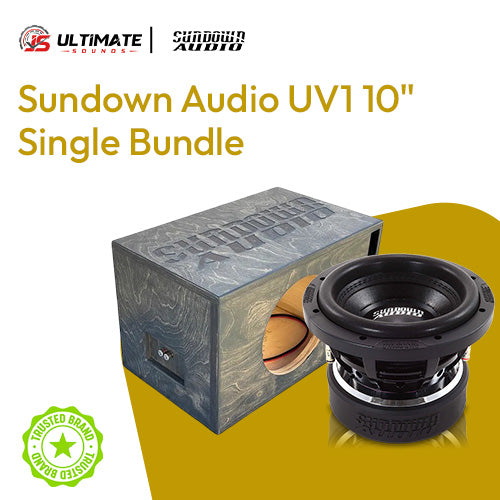

Sundown Audio UV1 10" Single Bundle (Baltic Birch)
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
How this package ships
- Two separate deliveries. Your subwoofer ships from JS Ultimate Sounds and usually arrives first.
- Separate tracking numbers. You will get one for each delivery, so a tracking link showing only part of your order is normal.
- The enclosure is built to order by Basshead Supply and ships direct from them in about 2 to 3 weeks.
- The subwoofer is not pre-installed. You mount it in the enclosure once both have arrived.
- The enclosure arrives finished in a gray stain, ready to install.
What is included
- (1) Sundown Audio U-Series v.1 10" Subwoofer
- (1) Sundown Audio UV1 10" Single Ported Subwoofer Enclosure, Baltic Birch
Priced 10% below buying the subwoofer and enclosure separately.
Choose your impedance below.

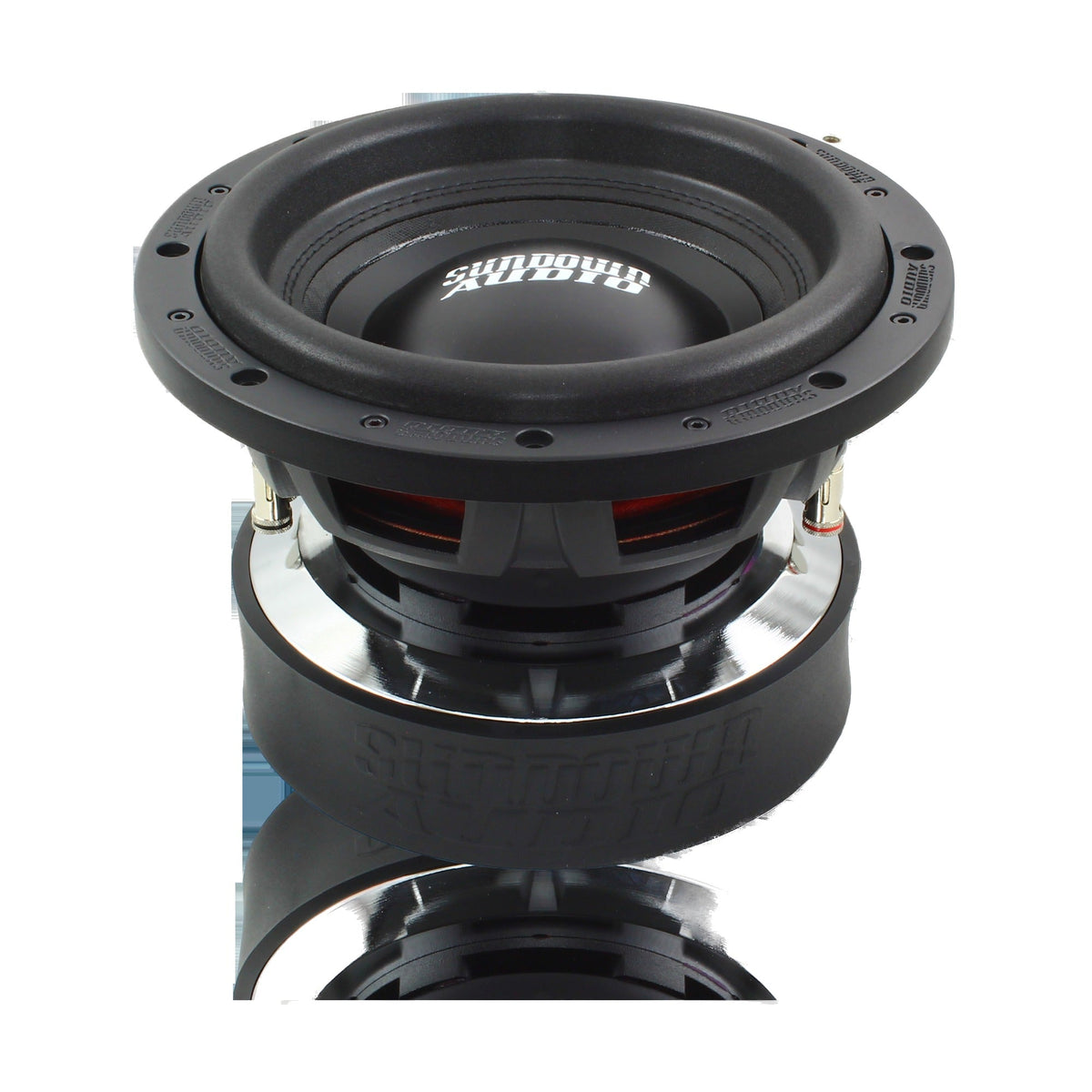

Sundown Audio U-Series v.1 10" Subwoofer
- RMS Power — 1,500W (same coil as the X v.2 series)
- Voice Coil — 3″ diameter, 4-layer aluminum winding on aluminum former, 2.36″ long
- Motor — Double-stacked 8.66″ Y35 ferrite, 0.6″ top-plate, 5mm aluminum shorting ring, 0.6″ pole extension
- Impedance — Dual 2-ohm or dual 4-ohm
This Listing Includes: (1) Sundown Audio U-Series v.1 10″ Subwoofer
The Sundown U-Series is the brand’s premier standard-suspension woofer and the most direct replacement for the famous Z v.3 line. It starts with a double-stacked 8.66″ Y35 ferrite motor on a one-piece bumped T-yoke with a 0.6″ top-plate, a 5mm aluminum magnet-ID shorting ring to level inductance over stroke, and a 0.6″ pole extension to keep the coil controlled at high excursion. The 3″ diameter, 2.36″ long 4-layer aluminum coil is the same unit used in the X v.2 series, giving the U the same 1,500-watt RMS rating. Cooling comes from a high-velocity pole vent, ten back-plate air-gap vents, and cast-aluminum vented frame spacer rings, while a new cast-aluminum frame allows taller, more excursion-capable cones than the Z v.3. Optimized for small ported or bandpass enclosures, the U-Series sounds like the SA series but handles significantly more power.
Features
- Black aluminum 3″ voice coil former for superior heat dissipation
- Double-stacked Y35 ferrite motor with magnet-ID shorting ring and rear pole/gap venting
- Heavy-duty cast aluminum basket with cast-aluminum vented frame spacer ring
- Double-stitched surround and stitched-on double-XL tinsel leads
- Spring-loaded terminals accept up to 8 gauge; optimized for small ported or bandpass enclosures
Specifications
| RMS Power | 1,500W |
| Impedance | Dual 2-ohm or Dual 4-ohm |
| Voice Coil | 3″ diameter, 4-layer aluminum, 2.36″ long |
| Motor | Double-stacked 8.66″ Y35 ferrite with 5mm magnet-ID shorting ring |

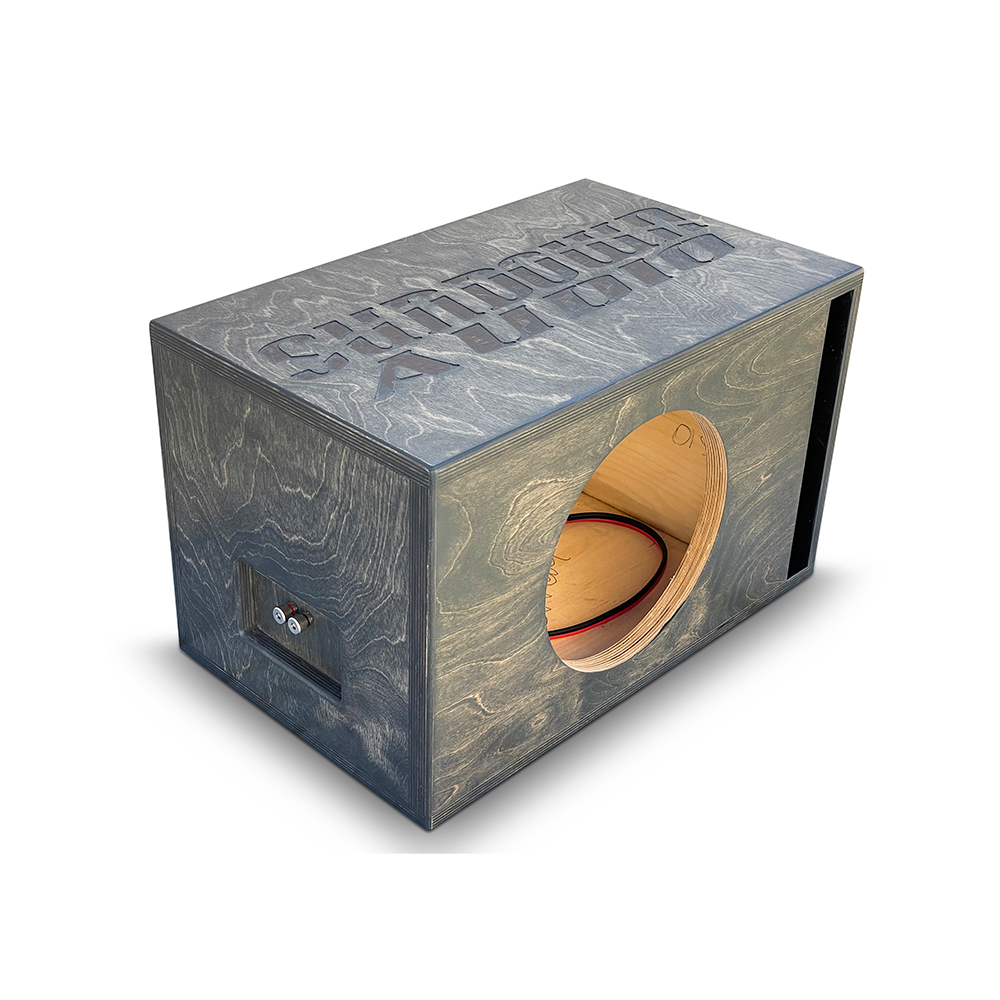

Sundown Audio UV1 10" Single Ported Subwoofer Enclosure
- Net Volume - 1.0 cu ft
- Tuning - 34.0 Hz
- Port Area - 14.38 sq in
- Sub Cutout - 9.17"
- Construction - 3/4" (18mm) birch plywood construction
This Listing Includes: (1) Basshead Supply ported enclosure for the Sundown Audio UV1 10" subwoofer
This enclosure is custom built specifically for the Sundown Audio UV1 10" subwoofer. Basshead Supply's Performance Series enclosures are subwoofer-specific boxes engineered for strong, clean output, built with a refined assembly process that leaves no visible screw holes. Every box is glued with Titebond III and internally braced, then pre-wired with a recessed satin-nickel binding post and OFC 10-gauge wire - built by hand in the USA. Custom built to order by Basshead Supply and shipped directly from them, about 2 to 3 weeks.
Features
- 3/4" (18mm) birch plywood construction
- 13 ply birch veneer construction (1" Baffle 17 ply)
- Gray stained finish
- Refined assembly - no visible screw holes
- Glued with Titebond III and internally braced
- Pre-wired recessed satin-nickel binding post with OFC 10-gauge wire
- Built by hand in the USA
Specifications
| Net Volume | 1.0 cu ft |
| Tuning | 34.0 Hz |
| Port Area | 14.38 sq in |
| Port Dimensions | 11.5" x 1.25" |
| Sub Cutout | 9.17" |
| Construction | 3/4" (18mm) birch plywood construction |
| Finish | Gray stained finish |
| Wiring | Pre-wired metal binding post with 10ga OFC wire |
| Dimensions (HxWxD) | 13.0" x 20.25" x 14.0" |
