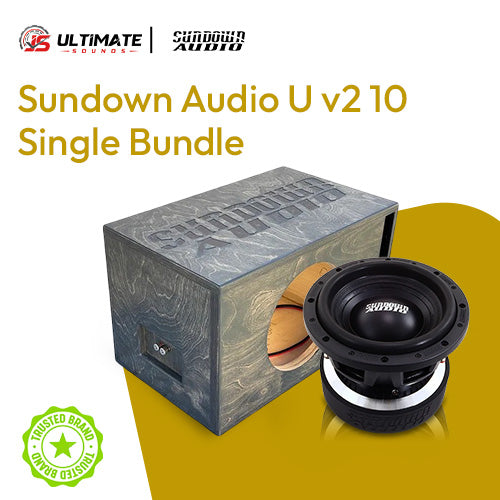

Sundown Audio U v2 10 Single Bundle (Baltic Birch)
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
How this package ships
- Two separate deliveries. Your subwoofer ships from JS Ultimate Sounds and usually arrives first.
- Separate tracking numbers. You will get one for each delivery, so a tracking link showing only part of your order is normal.
- The enclosure is built to order by Basshead Supply and ships direct from them in about 2 to 3 weeks.
- The subwoofer is not pre-installed. You mount it in the enclosure once both have arrived.
- The enclosure arrives finished in a gray stain, ready to install.
What is included
- (1) Sundown Audio U-Series v.2 10" Subwoofer 2000W RMS
- (1) Sundown Audio UV2 10" Single Ported Subwoofer Enclosure, Baltic Birch
Priced 10% below buying the subwoofer and enclosure separately.
Choose your impedance below.

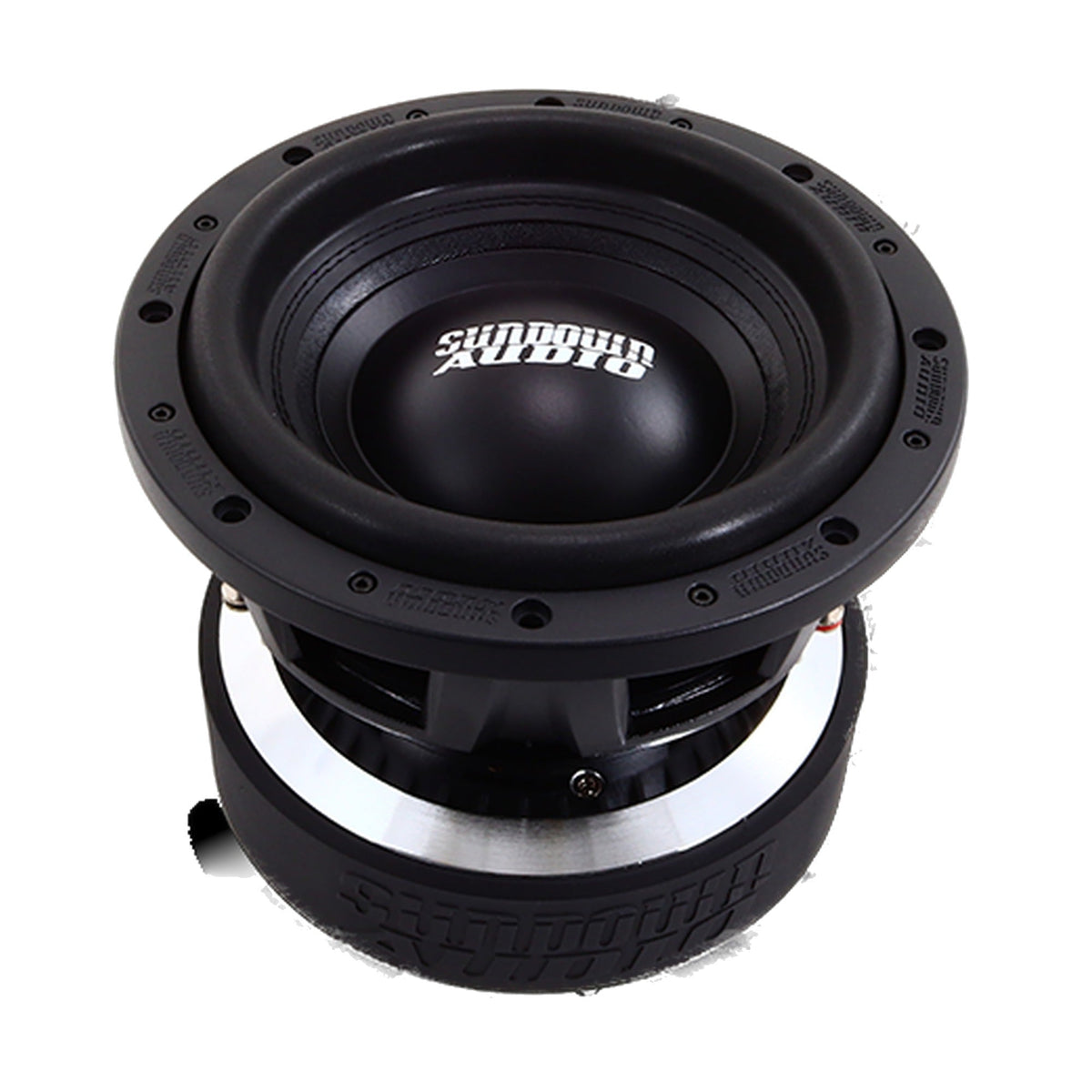

Sundown Audio U-Series v.2 10" Subwoofer 2000W RMS
- Power Handling — 2000 Watts RMS / 4000 Watts Peak
- Impedance — Dual 2 or Dual 4 ohm voice coils
- Voice Coil — Aluminum 3" former, high-temperature copper coil
- Motor — Double-stacked 9.4" ferrite, extended pole, aluminum shorting ring
- Cooling — 16 direct air-gap vents, pole channels
This Listing Includes: (1) Sundown Audio U-Series v.2 10" Subwoofer
The U Series is Sundown's premier standard-suspension woofer, and the v.2 10" handles 2000 watts RMS / 4000 watts peak. It is driven by a double-stacked 9.4-inch ferrite motor coupled to a thick top plate, with shorting rings inside the magnets and on the pole cap and an extended pole piece to keep the coil under control under high stress. Coil temperature is managed by a high-velocity solid pole with machined channels and 16 direct air-gap vents in the back plate. The aluminum 3" former and high-temperature copper coil sit in a custom, substantially thicker cast-aluminum frame with heat dissipation ribs, optimized for small ported enclosures.
Features
- Aluminum 3" voice coil former for superior heat dissipation
- Double-stacked 9.4" ferrite motor with shorting rings and extended pole
- 16 direct air-gap vents and rear gap-venting top-plate cooling channels
- Heavy-duty cast basket with heat dissipation ribs
- Spring-loaded terminals accept up to 8-gauge wire
Specifications
| Power Handling (RMS) | 2000 Watts |
| Power Handling (Peak) | 4000 Watts |
| Impedance Options | Dual 2 ohm (D2) / Dual 4 ohm (D4) |
| Voice Coil | Aluminum 3" former, high-temperature copper |

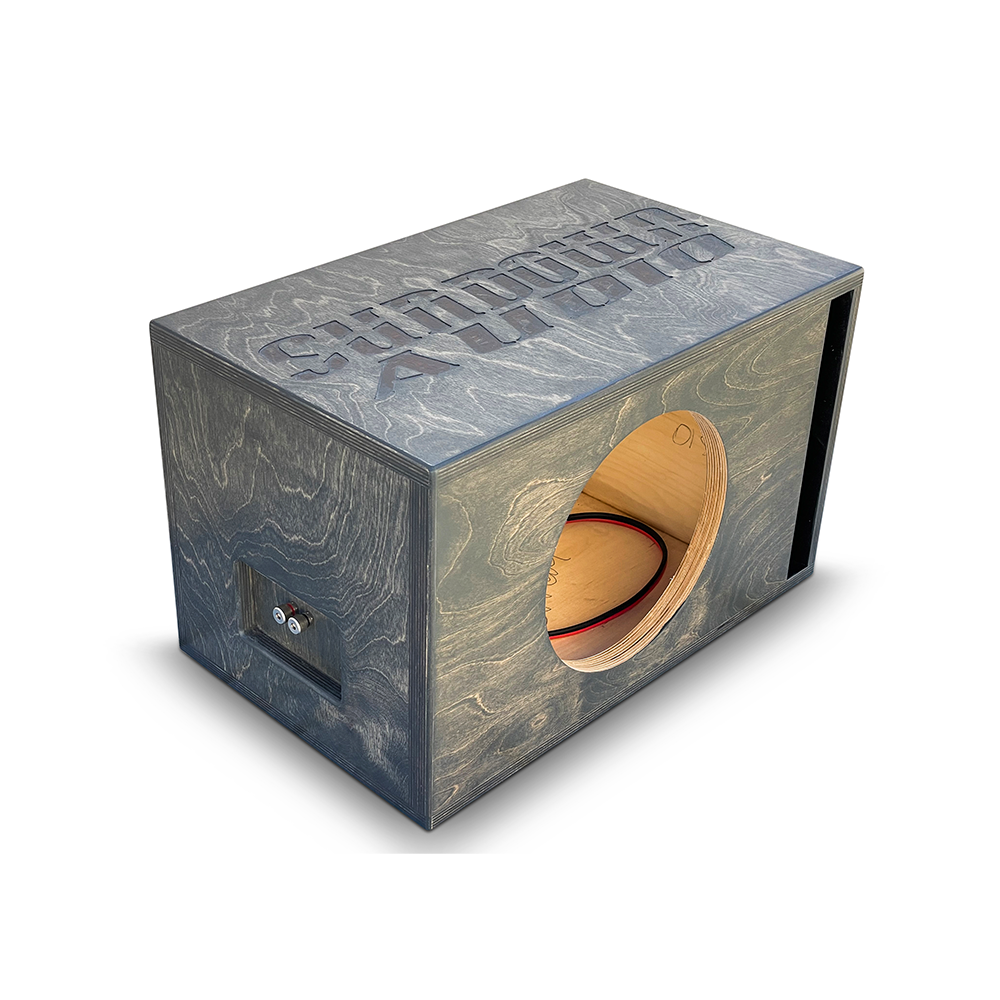

Sundown Audio UV2 10" Single Ported Subwoofer Enclosure
- Net Volume - 1.0 cu ft
- Tuning - 34.0 Hz
- Port Area - 14.38 sq in
- Sub Cutout - 9.75"
- Construction - 3/4" (18mm) birch plywood construction
This Listing Includes: (1) Basshead Supply ported enclosure for the Sundown Audio UV2 10" subwoofer
This enclosure is custom built specifically for the Sundown Audio UV2 10" subwoofer. Basshead Supply's Performance Series enclosures are subwoofer-specific boxes engineered for strong, clean output, built with a refined assembly process that leaves no visible screw holes. Every box is glued with Titebond III and internally braced, then pre-wired with a recessed satin-nickel binding post and OFC 10-gauge wire - built by hand in the USA. Custom built to order by Basshead Supply and shipped directly from them, about 2 to 3 weeks.
Features
- 3/4" (18mm) birch plywood construction
- 13 ply birch veneer construction (1" Baffle 17 ply)
- Gray stained finish
- Refined assembly - no visible screw holes
- Glued with Titebond III and internally braced
- Pre-wired recessed satin-nickel binding post with OFC 10-gauge wire
- Built by hand in the USA
Specifications
| Net Volume | 1.0 cu ft |
| Tuning | 34.0 Hz |
| Port Area | 14.38 sq in |
| Port Dimensions | 11.5" x 1.25" |
| Sub Cutout | 9.75" |
| Construction | 3/4" (18mm) birch plywood construction |
| Finish | Gray stained finish |
| Wiring | Pre-wired metal binding post with 10ga OFC wire |
| Dimensions (HxWxD) | 13.0" x 20.125" x 14.0" |
