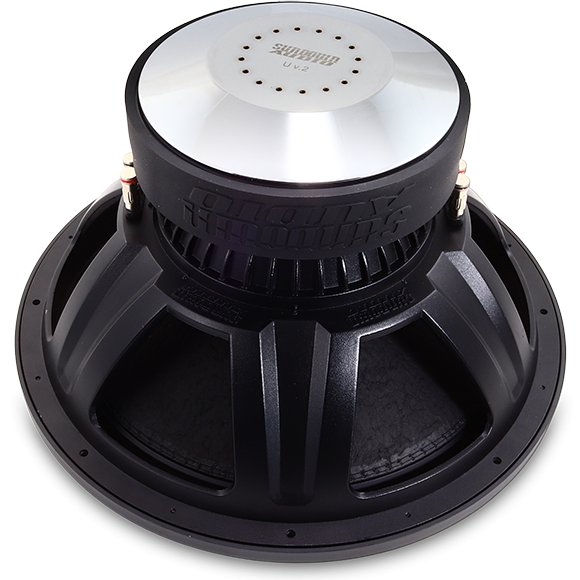

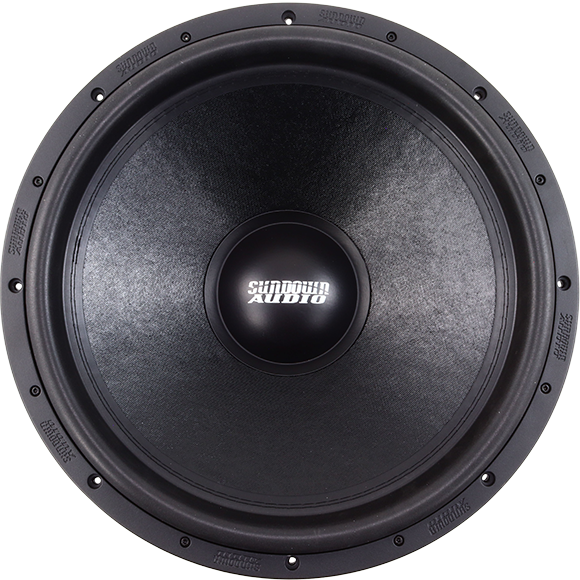

Sundown Audio U-Series v.2 18" Subwoofer 2000W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power — 2000W RMS / 4000W Peak
- Voice Coil — Dual 2 or 4 ohm, 3" aluminum former
- Motor — Double-stacked 9.4" ferrite magnet with shorting rings and extended pole
- Frame — Custom heavy-duty cast aluminum with heat-dissipation ribs
- Tuning — Optimized for small ported or bandpass enclosures
This Listing Includes: (1) Sundown Audio U-Series v.2 18" Subwoofer
The U Series is the premier standard-suspension woofer in the Sundown lineup, equally at home in the competition lanes or playing your favorite music. A double-stacked 9.4-inch ferrite magnet system is coupled to a thick top plate, with shorting rings inside the magnets and on the pole cap to smooth frequency response while doubling as a heat sink and airflow guide. The custom cast aluminum frame is substantially thicker with heat-dissipation ribs, and the extended pole piece keeps the coil under perfect control under high stress. Coil temperature is managed with machined high-velocity pole channels and 16 direct air-gap vents in the back plate. Rated at 2000W RMS (4000W peak) with dual 2 or 4 ohm coils. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Aluminum 3" voice coil former for superior heat dissipation
- Double-stacked 9.4" ferrite magnet with shorting rings
- Solid pole with vent channels and aluminum shorting ring cap
- 16 direct air-gap vents and top-plate cooling channels
- Spring-loaded terminals accept up to 8-gauge wire
Specifications
| RMS Power | 2000 Watts |
| Peak Power | 4000 Watts |
| Impedance | Dual 2 ohm or Dual 4 ohm |
| Voice Coil | 3" aluminum former |
| Magnet | Double-stacked 9.4" ferrite |
| Frame | Cast aluminum |
| Recommended Enclosure | Small ported or bandpass |
