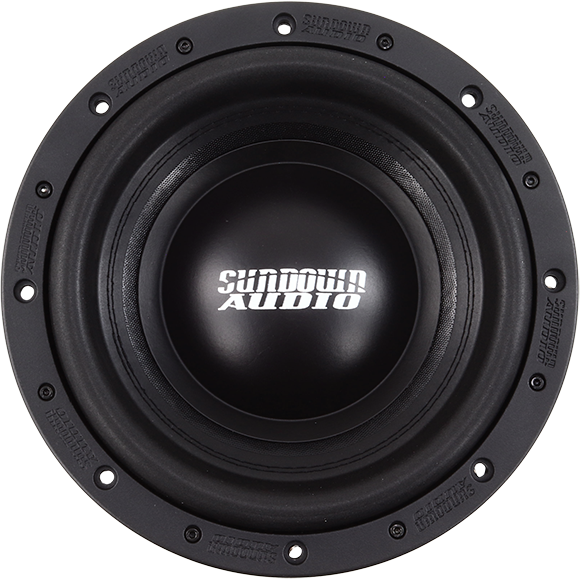

Sundown Audio U-Series v.2 10" Subwoofer 2000W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power Handling — 2000 Watts RMS / 4000 Watts Peak
- Impedance — Dual 2 or Dual 4 ohm voice coils
- Voice Coil — Aluminum 3" former, high-temperature copper coil
- Motor — Double-stacked 9.4" ferrite, extended pole, aluminum shorting ring
- Cooling — 16 direct air-gap vents, pole channels
This Listing Includes: (1) Sundown Audio U-Series v.2 10" Subwoofer

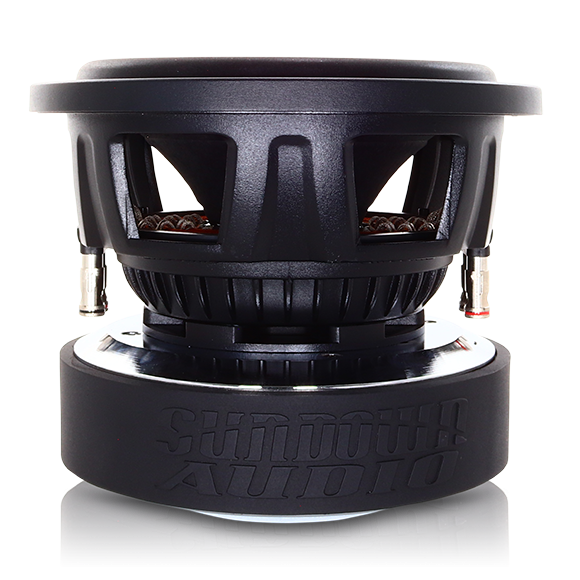

The U Series is Sundown's premier standard-suspension woofer, and the v.2 10" handles 2000 watts RMS / 4000 watts peak. It is driven by a double-stacked 9.4-inch ferrite motor coupled to a thick top plate, with shorting rings inside the magnets and on the pole cap and an extended pole piece to keep the coil under control under high stress. Coil temperature is managed by a high-velocity solid pole with machined channels and 16 direct air-gap vents in the back plate. The aluminum 3" former and high-temperature copper coil sit in a custom, substantially thicker cast-aluminum frame with heat dissipation ribs, optimized for small ported enclosures. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Aluminum 3" voice coil former for superior heat dissipation
- Double-stacked 9.4" ferrite motor with shorting rings and extended pole
- 16 direct air-gap vents and rear gap-venting top-plate cooling channels
- Heavy-duty cast basket with heat dissipation ribs
- Spring-loaded terminals accept up to 8-gauge wire
Specifications
| Power Handling (RMS) | 2000 Watts |
| Power Handling (Peak) | 4000 Watts |
| Impedance Options | Dual 2 ohm (D2) / Dual 4 ohm (D4) |
| Voice Coil | Aluminum 3" former, high-temperature copper |
