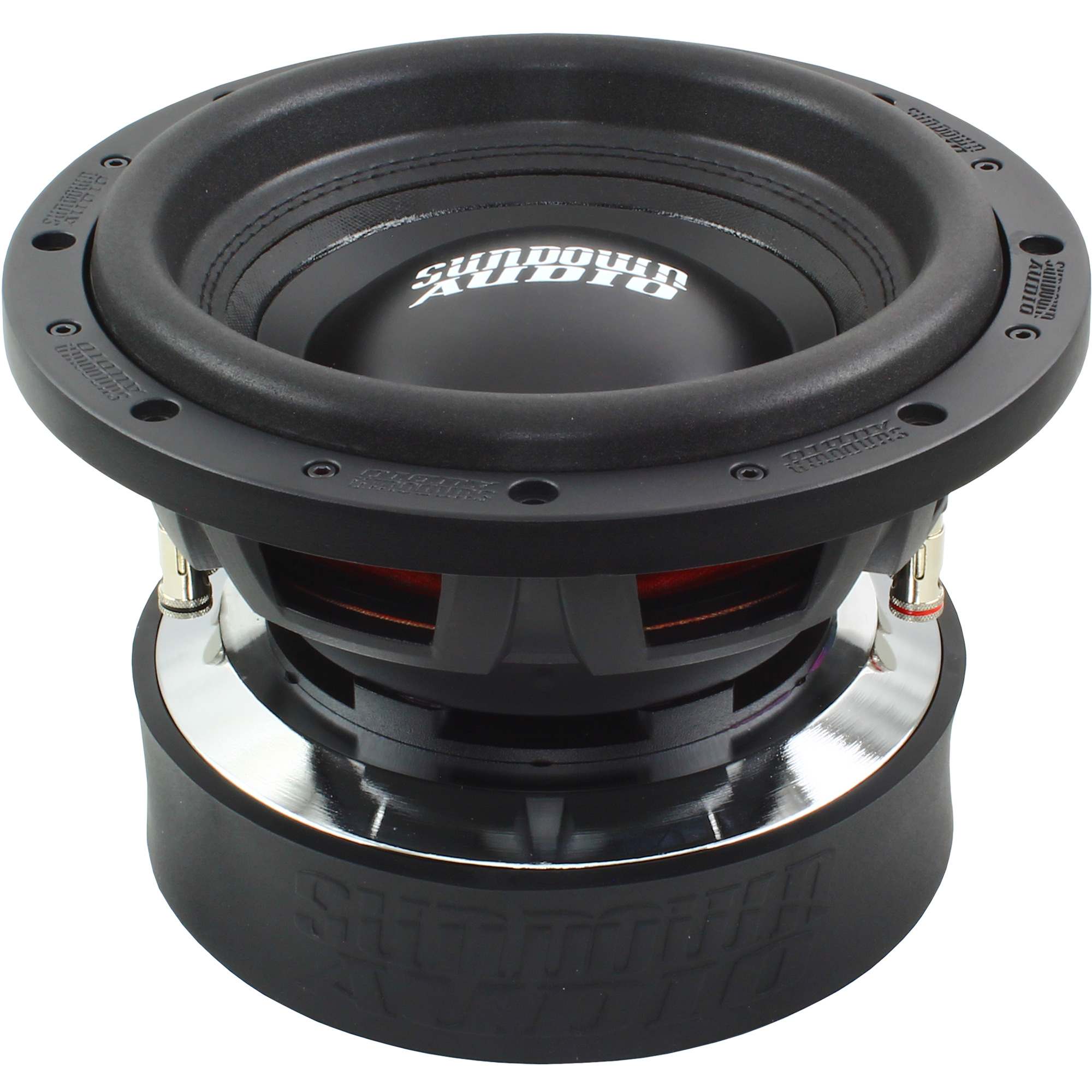

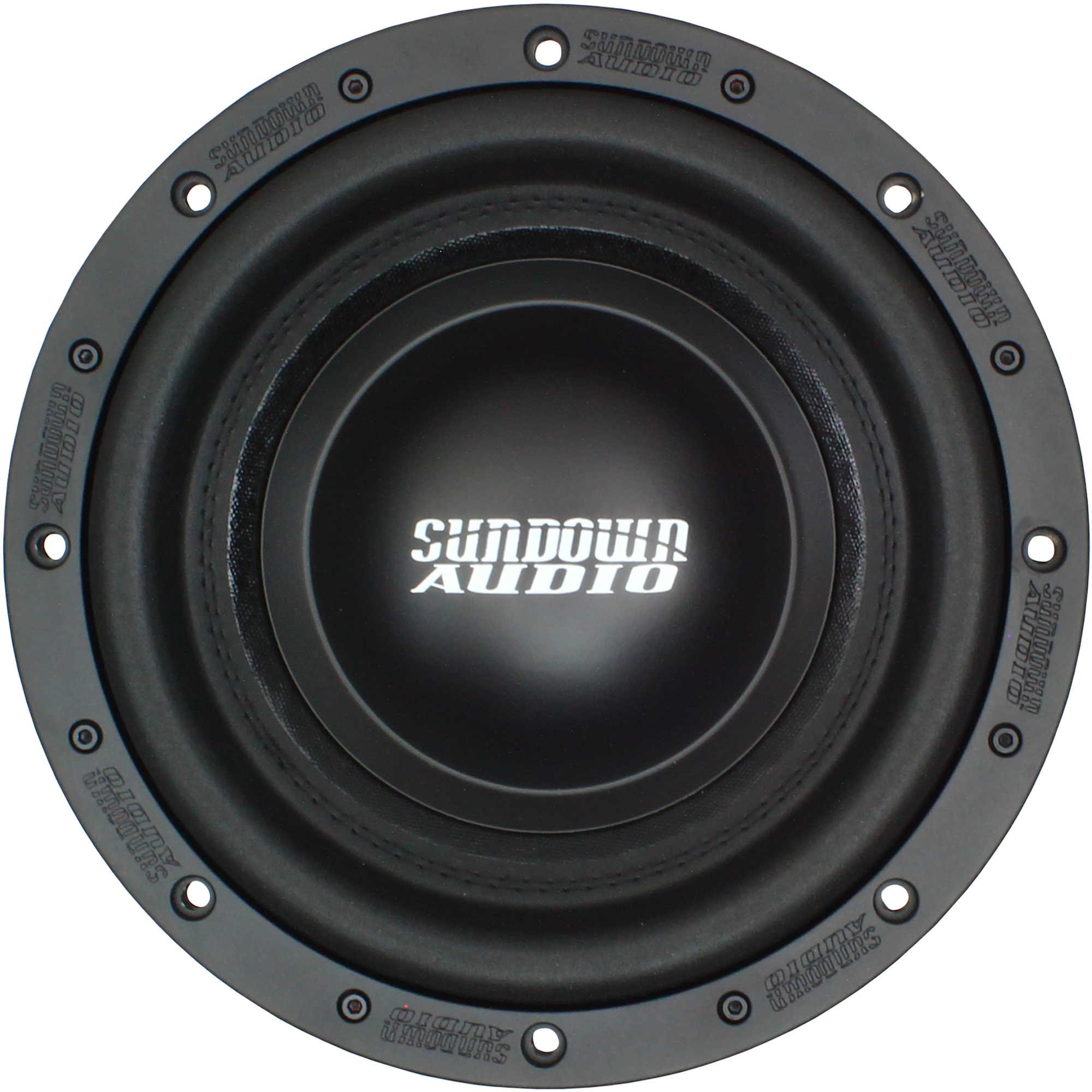

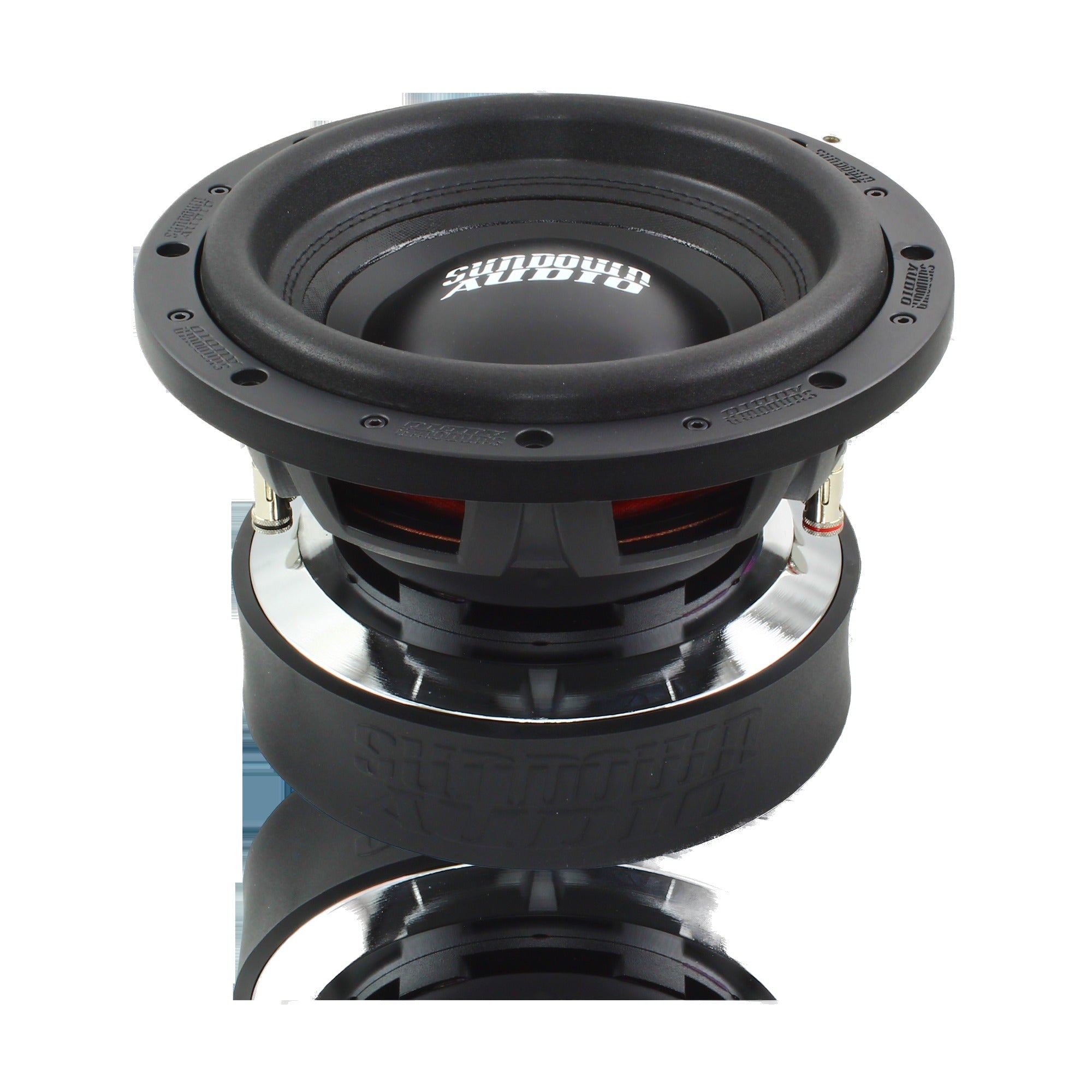

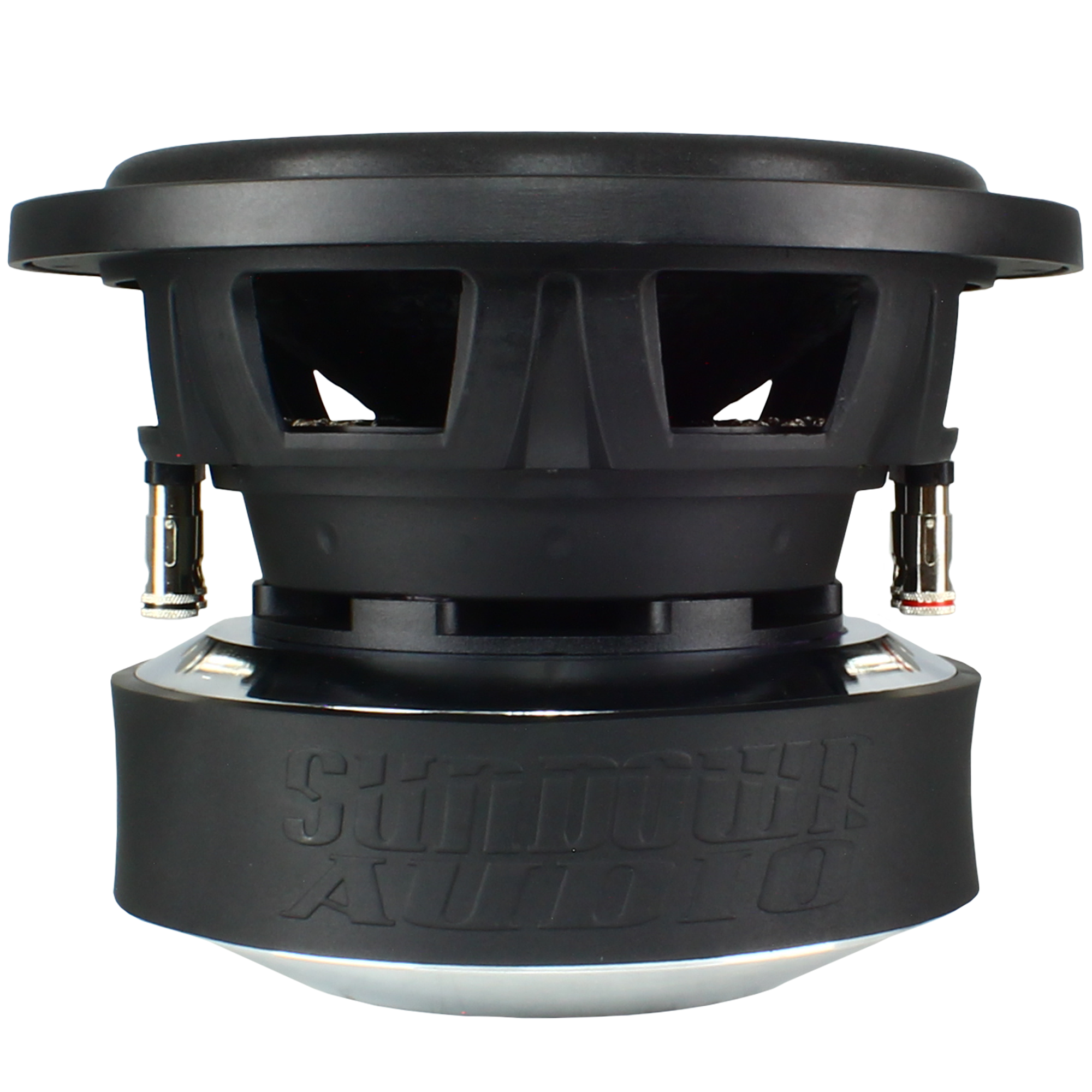

Sundown Audio U-Series v.1 10" Subwoofer
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%0A%0AVoice%20Coil%20%E2%80%94%203%E2%80%B3%20diameter,%204-layer%20aluminum%20winding%20on%20aluminum%20former,%202.36%E2%80%B3%20long%0A%0AMotor%20%E2%80%94%20Double-stacked%208.66%E2%80%B3%20Y35%20ferrite,%200.6%E2%80%B3%20top-plate,%205m...
){kind=link}
- RMS Power — 1,500W (same coil as the X v.2 series)
- Voice Coil — 3″ diameter, 4-layer aluminum winding on aluminum former, 2.36″ long
- Motor — Double-stacked 8.66″ Y35 ferrite, 0.6″ top-plate, 5mm aluminum shorting ring, 0.6″ pole extension
- Impedance — Dual 2-ohm or dual 4-ohm
This Listing Includes: (1) Sundown Audio U-Series v.1 10″ Subwoofer

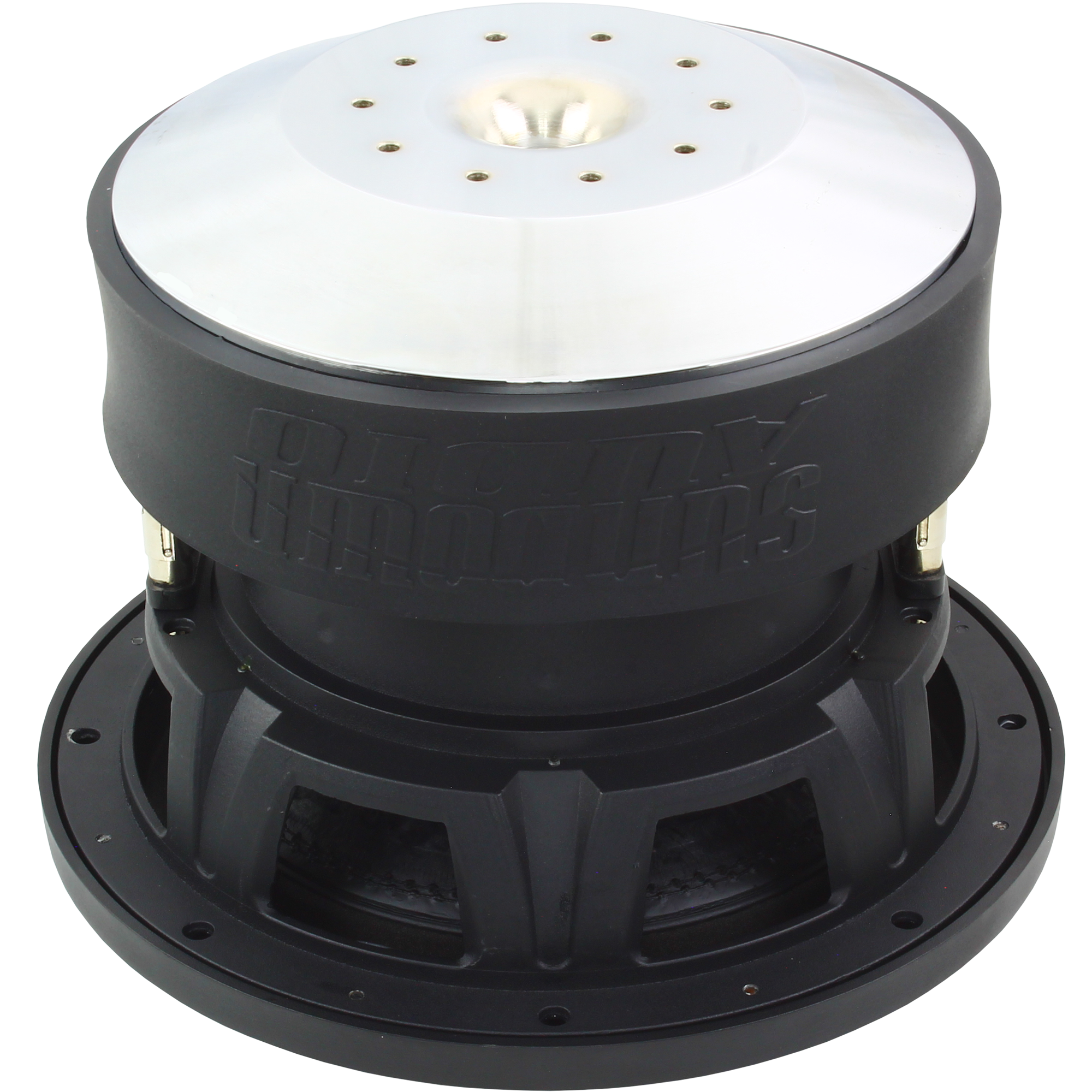

The Sundown U-Series is the brand’s premier standard-suspension woofer and the most direct replacement for the famous Z v.3 line. It starts with a double-stacked 8.66″ Y35 ferrite motor on a one-piece bumped T-yoke with a 0.6″ top-plate, a 5mm aluminum magnet-ID shorting ring to level inductance over stroke, and a 0.6″ pole extension to keep the coil controlled at high excursion. The 3″ diameter, 2.36″ long 4-layer aluminum coil is the same unit used in the X v.2 series, giving the U the same 1,500-watt RMS rating. Cooling comes from a high-velocity pole vent, ten back-plate air-gap vents, and cast-aluminum vented frame spacer rings, while a new cast-aluminum frame allows taller, more excursion-capable cones than the Z v.3. Optimized for small ported or bandpass enclosures, the U-Series sounds like the SA series but handles significantly more power. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Black aluminum 3″ voice coil former for superior heat dissipation
- Double-stacked Y35 ferrite motor with magnet-ID shorting ring and rear pole/gap venting
- Heavy-duty cast aluminum basket with cast-aluminum vented frame spacer ring
- Double-stitched surround and stitched-on double-XL tinsel leads
- Spring-loaded terminals accept up to 8 gauge; optimized for small ported or bandpass enclosures
Specifications
| RMS Power | 1,500W |
| Impedance | Dual 2-ohm or Dual 4-ohm |
| Voice Coil | 3″ diameter, 4-layer aluminum, 2.36″ long |
| Motor | Double-stacked 8.66″ Y35 ferrite with 5mm magnet-ID shorting ring |
