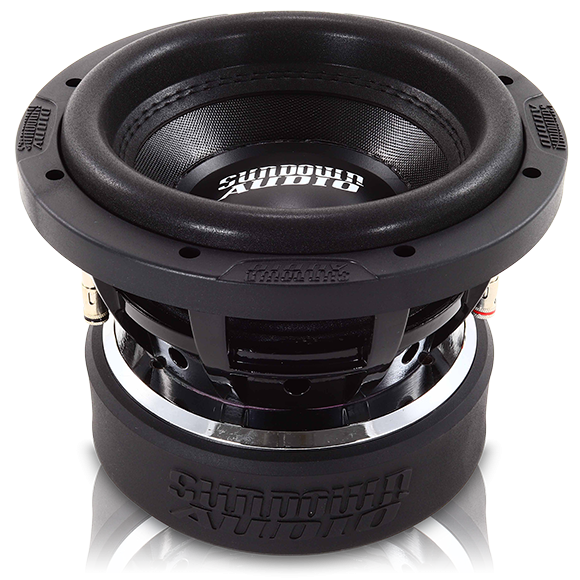

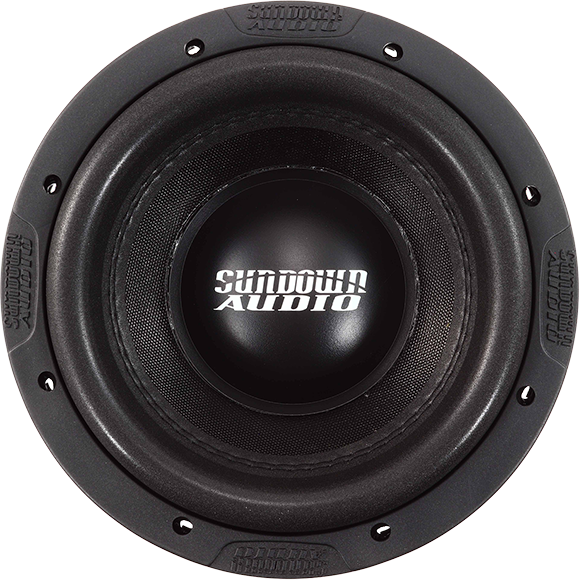

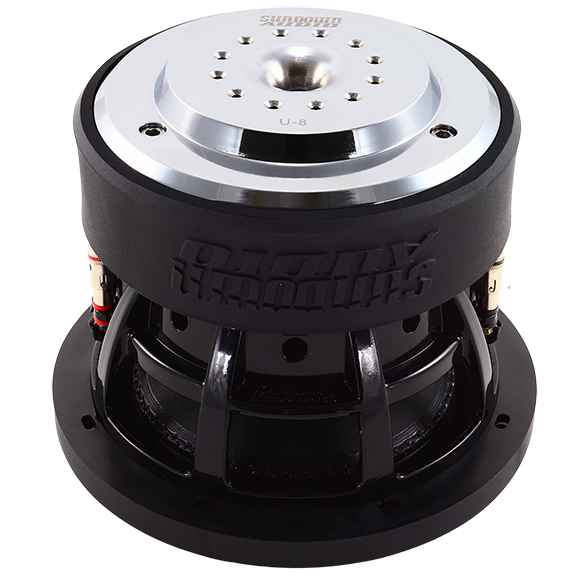

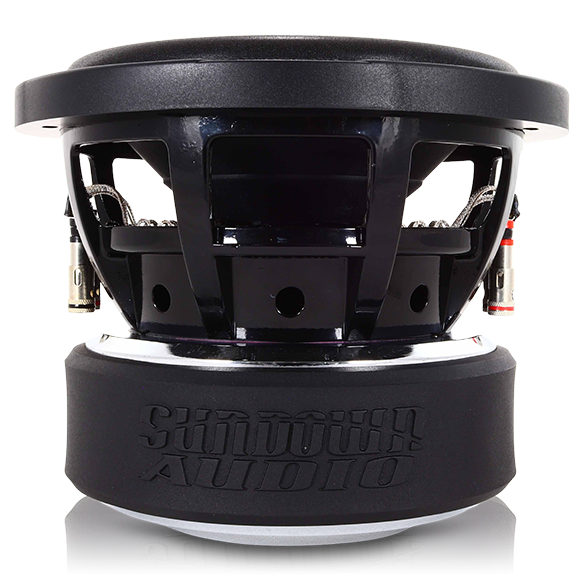

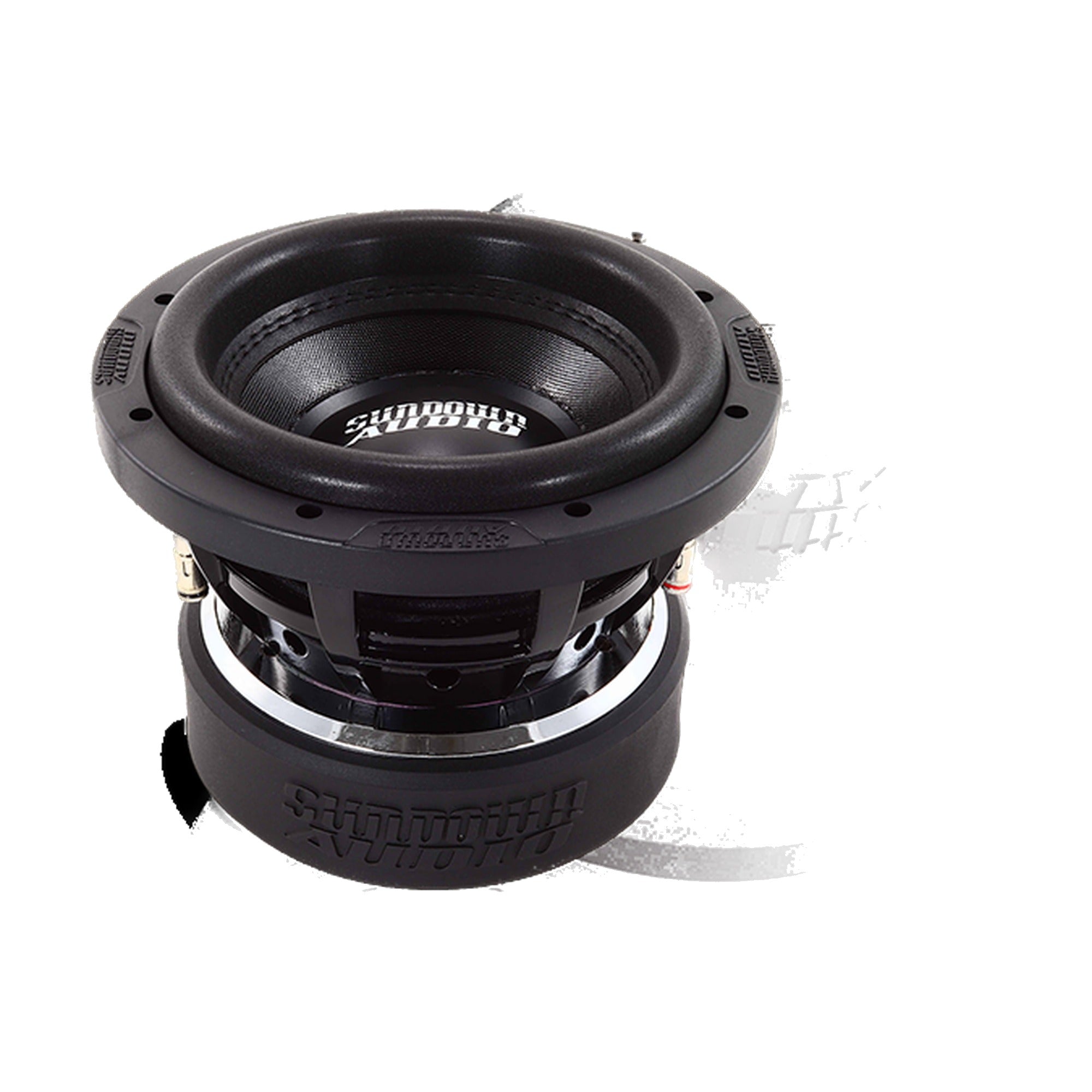

Sundown Audio U-Series 8" v.1 Subwoofer 1500W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power — 750W RMS / 1,500W Peak
- Voice Coil — Dual 2-ohm or Dual 4-ohm, high-temperature copper
- Former — 2.25” aluminum voice coil former
- Excursion — 18mm one-way linear excursion
- Basket — Heavy-duty cast basket (US Patent D691595)
This Listing Includes: (1) Sundown Audio U-Series 8" v.1 Subwoofer
The U-8 is built for serious output from a compact 8-inch frame, handling 750W RMS and 1,500W peak on dual 2-ohm or dual 4-ohm coils. A 2.25” aluminum voice coil former and high-temperature copper coil maximize heat dissipation, while the solid pole with vent channels, aluminum shorting ring cap, rear gap-venting, and top-plate cooling channels keep the motor running cool. A full 18mm of one-way linear excursion (with mechanical capacity in excess of double the linear limits) paired with a Mega-Roll-style surround delivers incredible linearity. Optimized for small ported enclosures, the U-8 plays like an SA-8 v3 with more power handling, more x-max, and more output potential. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Optimized for small ported enclosures
- Aluminum 2.25” voice coil former for superior heat dissipation
- Double-stitched surround with stitched-on heavy-duty tinsel leads
- Solid pole with vent channels, aluminum shorting ring cap, and rear gap-venting
- Spring-loaded terminals accept up to 8-gauge wire
Specifications
| RMS Power | 750W |
| Peak Power | 1,500W |
| Impedance Options | Dual 2-ohm (D2), Dual 4-ohm (D4) |
| Voice Coil Former | 2.25” aluminum |
| Linear Excursion | 18mm one-way |
| Basket | Heavy-duty cast (US Patent D691595) |
