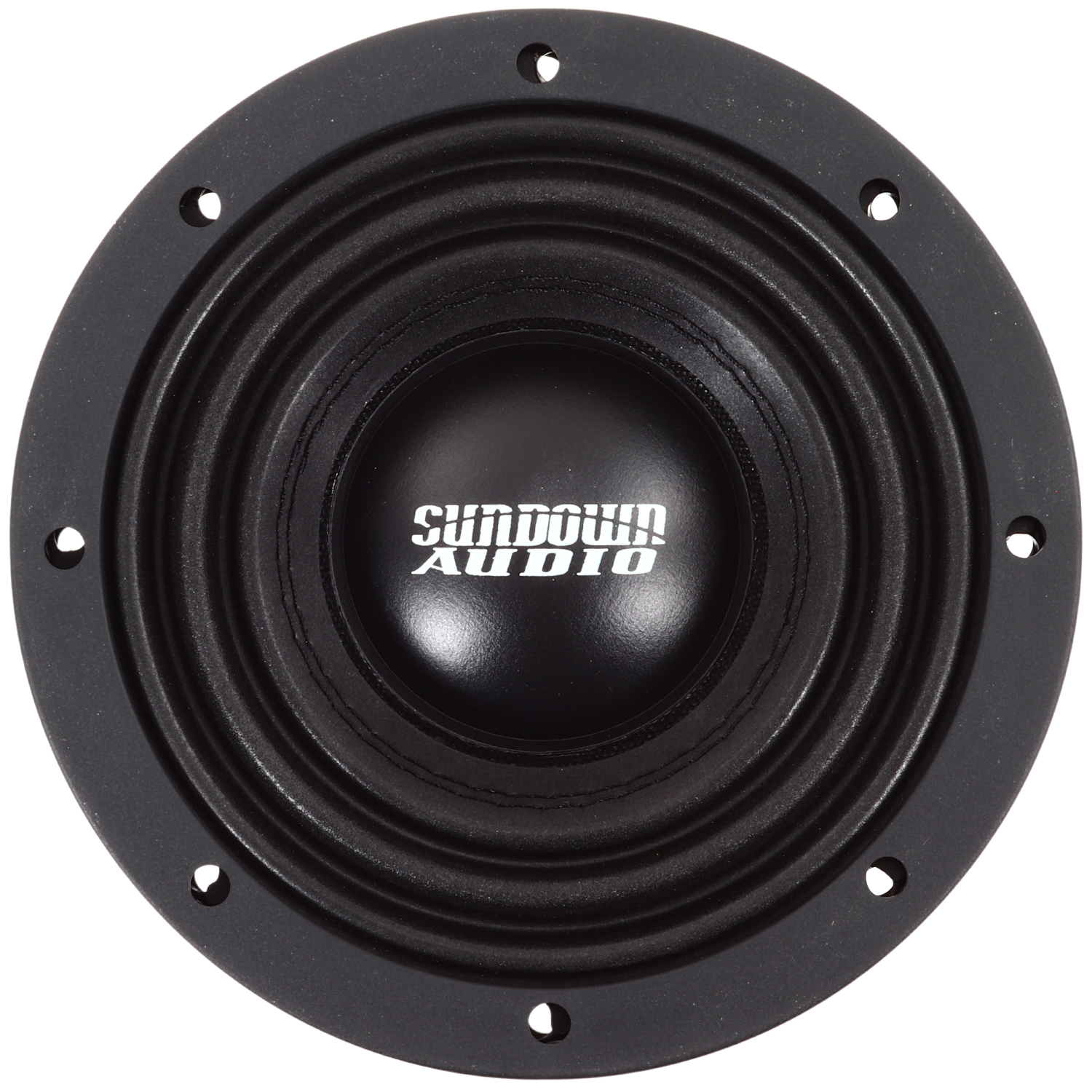

Sundown Audio U-Series 6.5" v.1 Subwoofer 500W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power — 500W RMS / 1,000W peak
- Voice Coil — Dual 2-ohm or dual 4-ohm
- Coil Former — Aluminum 1.75" voice coil former for superior heat dissipation
- Winding — High-temperature copper voice coil
- Basket — Heavy-duty cast basket
This Listing Includes: (1) Sundown Audio U-Series 6.5" v.1 Subwoofer
The U-Series 6.5" handles 500 watts RMS and 1,000 watts peak, and is optimized for small ported enclosures. Its aluminum 1.75" voice coil former and high-temperature copper voice coil work together for superior heat dissipation, while a heavy-duty cast basket and double-stitched surround keep it composed under load. The solid pole carries vent channels and an aluminum shorting ring cap, and rear gap-venting plus top-plate cooling channels help manage heat. Spring-loaded terminals accept up to 8-gauge wire and feed stitched-on heavy-duty tinsel leads. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Optimized for small ported enclosures
- Double-stitched surround
- Solid pole with vent channels and aluminum shorting ring cap
- Rear gap-venting and top-plate cooling channels
- Spring-loaded terminals accept up to 8-gauge wire with stitched-on tinsel leads
Specifications
| RMS Power | 500 watts |
| Peak Power | 1,000 watts |
| Voice Coil | Dual 2-ohm or Dual 4-ohm |
| Coil Former | Aluminum 1.75" |
