- RMS Power — 10,000W @ 1Ω, 7,000W @ 2Ω, 4,000W @ 4Ω
- Strapped — Up to 20,000W RMS @ 2Ω (Master/Slave linked)
- Class — Class D digital monoblock, dual MOSFET PWM power supply
- Filters — Low pass (35Hz–250Hz), subsonic (10Hz–50Hz), bass boost 0–9dB @ 45Hz, phase 0–180°
- Remote — Wired remote with voltage, temperature, and clipping display
This Listing Includes: (1) Sundown Audio TEAM-10K Class D Monoblock Amplifier

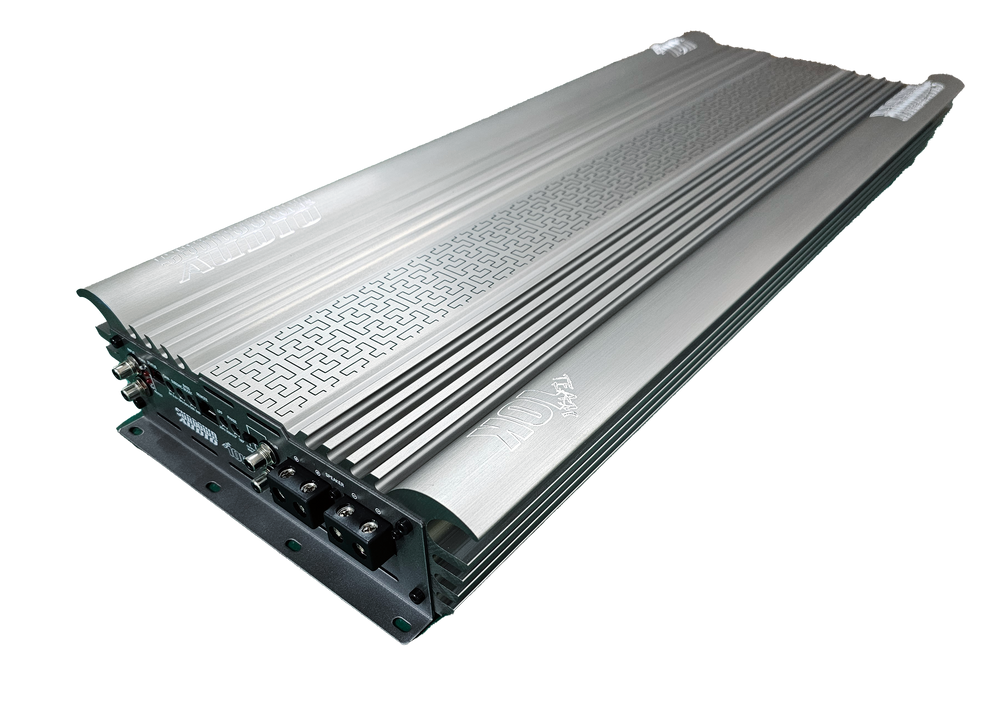

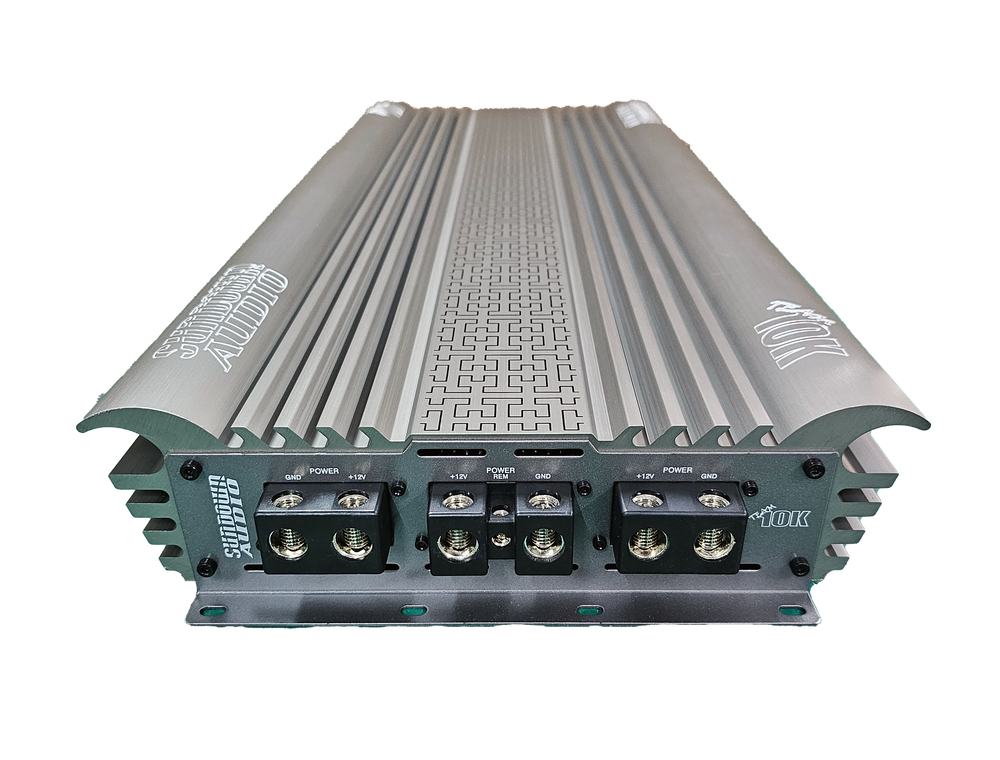

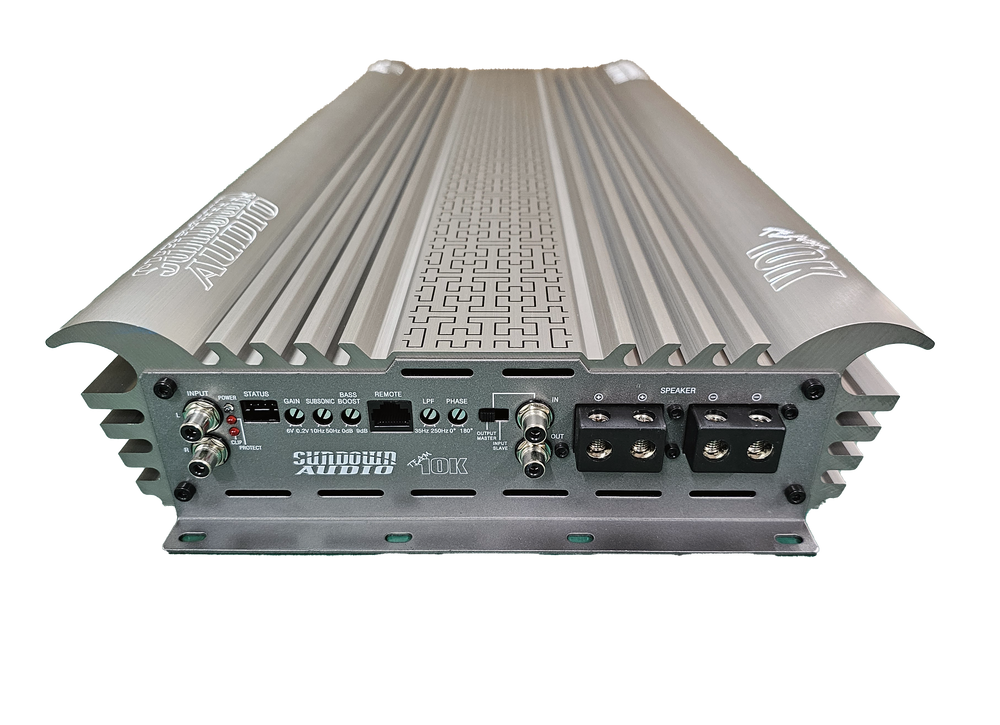

The TEAM-10K is the pinnacle of Sundown's amplifier engineering, built for SPL competitors and high-output demo builds with 10,000 watts RMS at 1 ohm, 7,000W at 2 ohms, and 4,000W at 4 ohms. It can be strapped to produce up to 20,000 watts RMS at 2 ohms. Its Class D platform pairs with a dual MOSFET PWM power supply for greater than 97% efficiency at 4 ohms, a frequency response of 15Hz–264Hz, and a damping factor over 400. Onboard controls include a low pass filter (35Hz–250Hz, 24dB/oct), subsonic filter (10Hz–50Hz, 24dB/oct), bass boost (0–9dB @ 45Hz), and phase shift (0–180°), plus RCA inputs/outputs for master/slave linking. The wired remote displays voltage, temperature, and clipping. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Class D digital monoblock with dual MOSFET PWM power supply
- Strappable to 20,000W RMS via master/slave linking
- Greater than 97% efficiency at 4 ohms
- Wired remote with voltage, temperature, and clipping display
- Thermal, voltage, speaker short, and DC offset protection
Specifications
| RMS Power (1Ω) | 10,000W |
| RMS Power (2Ω) | 7,000W |
| RMS Power (4Ω) | 4,000W |
| RMS Power (2Ω Strapped) | 20,000W |
| Design | Class D Digital Monoblock, Dual MOSFET PWM Power Supply |
| Efficiency | > 97% (at 4Ω) |
| Input Sensitivity | 6V – 0.2V |
| Frequency Response | 15Hz – 264Hz |
| Signal-to-Noise Ratio | 91 dB |
| Damping Factor | > 400 |
| THD | < 0.1% |
| Working Voltage | 9V – 16.5V |
| Low Pass Filter | 35Hz – 250Hz (24dB/Oct) |
| Subsonic Filter | 10Hz – 50Hz (24dB/Oct) |
| Bass Boost | 0 – 9 dB @ 45Hz |
| Phase Shift | 0 – 180° |
| Fuse Rating | 1000A (External) |
| Dimensions | 27.55" L x 11.82" W x 3.06" H |
