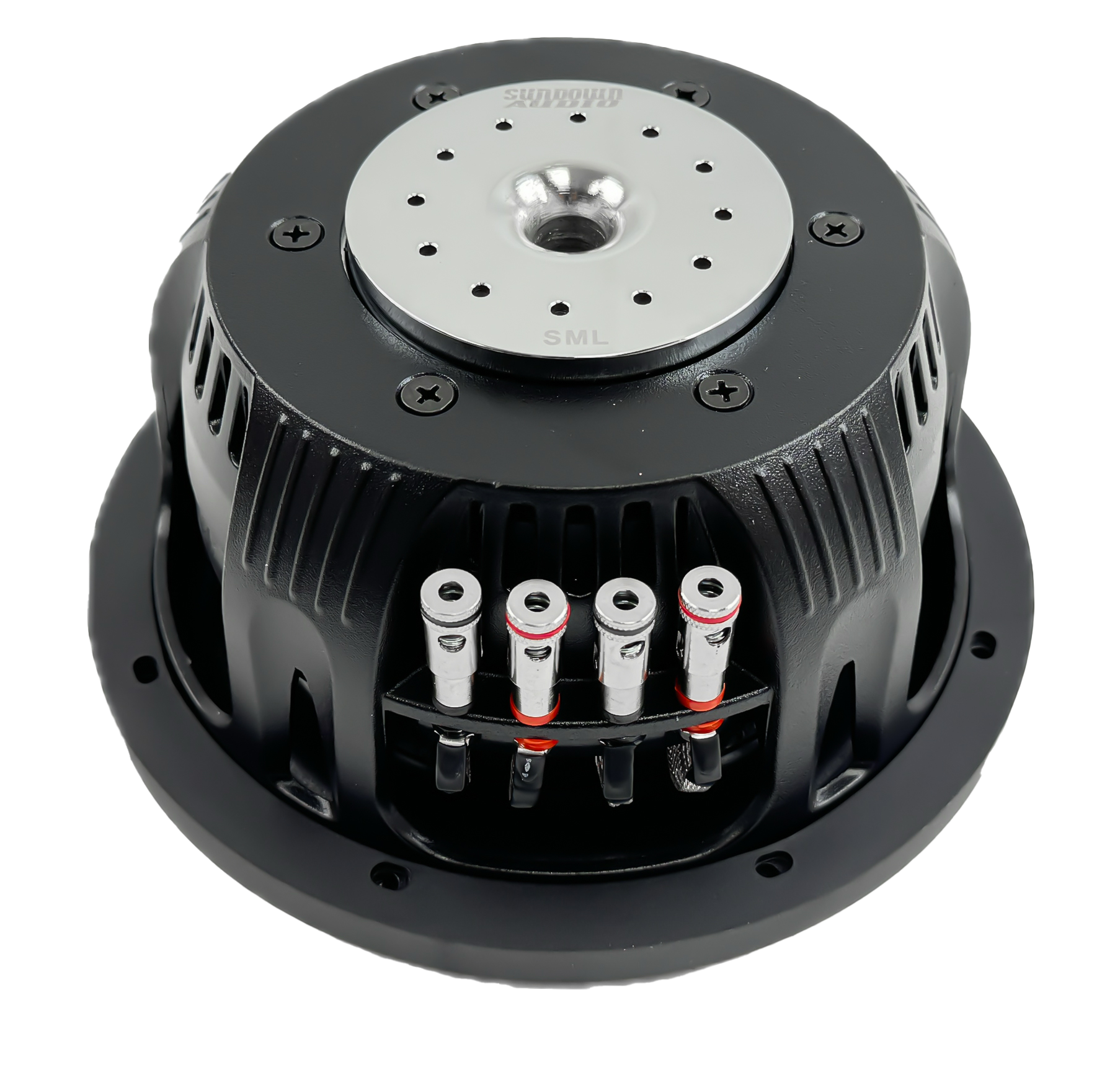

Sundown Audio SML-Series 8" Thin Subwoofer 400W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power — 400 Watts RMS / 800 Watts Peak
- Impedance — Dual 2-ohm or Dual 4-ohm voice coils
- Voice Coil — 2.25" black aluminum former, 4-layer high-temp copper wire
- Motor — Dual-magnet design, vented pole-piece and vented magnetic gap
- Design — Shallow-mount, bolt-through motor for under/behind-seat fitment
This Listing Includes: (1) Sundown Audio SML-Series 8" Thin Subwoofer
The SML 8" is a shallow-mount subwoofer rated at 400 watts RMS and 800 watts peak, available with dual 2-ohm or dual 4-ohm voice coils. It uses a 2.25" black aluminum voice coil former with 4-layer high-temperature copper wire for superior heat dissipation, a dual-magnet motor with vented pole-piece and vented magnetic gap, and a custom-tooled cone for reduced mechanical noise at high excursion. An inch shallower than the SLD series while delivering nearly the same excursion, it is designed to fit under or behind your seat and performs exceptionally well in small enclosures. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 2.25" black aluminum voice coil former for superior heat dissipation
- High-temperature 4-layer copper voice coil wire

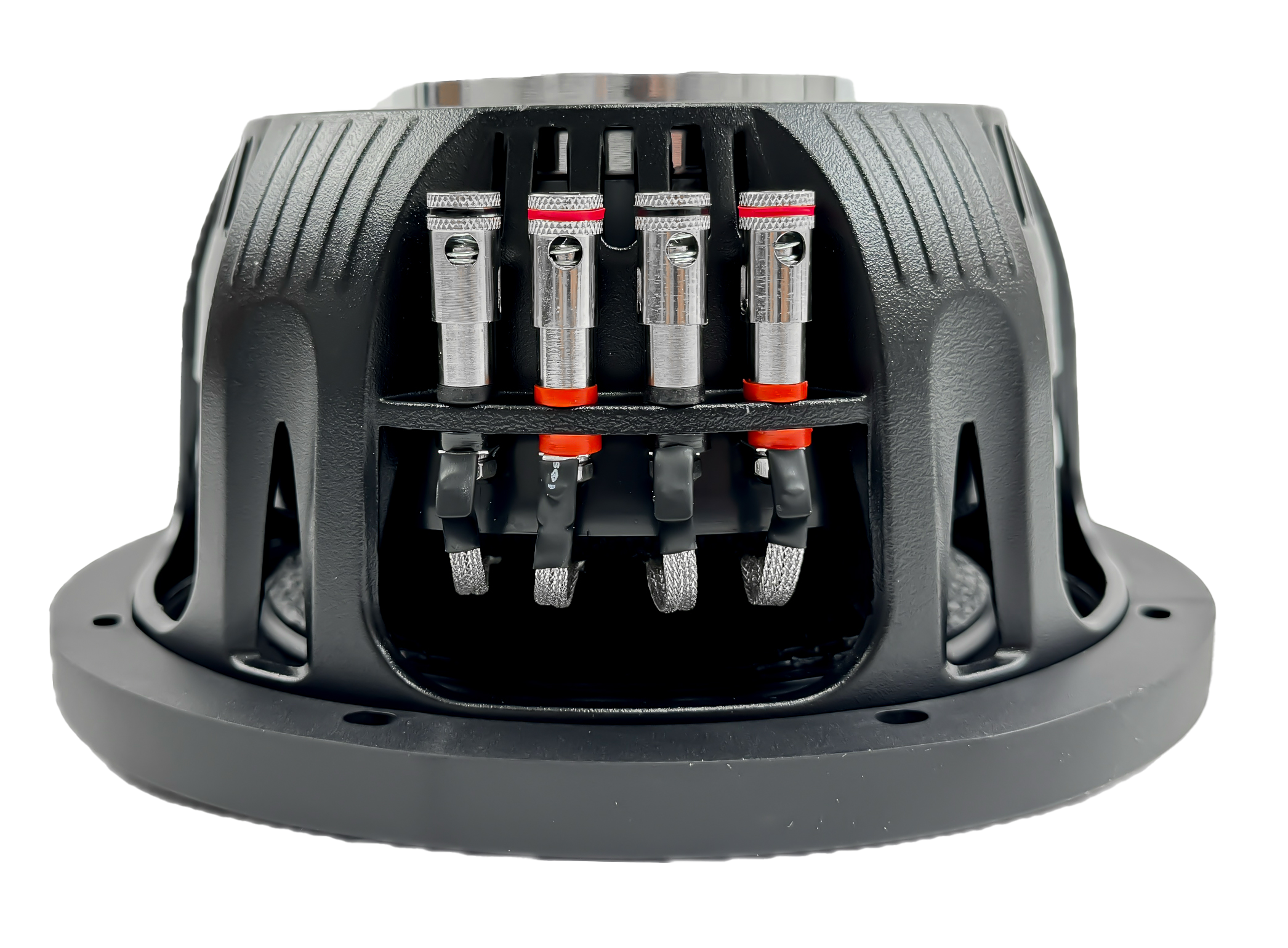

- Stitched-on "Mini-XL" tinsel leads to prevent fatigue and failure
- Vented pole-piece and vented magnetic gap with dual-magnet design
- Bolt-through motor design for maximum longevity and ruggedness
Specifications
| RMS Power | 400 Watts |
| Peak Power | 800 Watts |
| Impedance | Dual 2-ohm or Dual 4-ohm |
| Voice Coil Former | 2.25" black aluminum |
| Voice Coil Wire | 4-layer high-temp copper |
| Tinsel Leads | Stitched-on Mini-XL |
