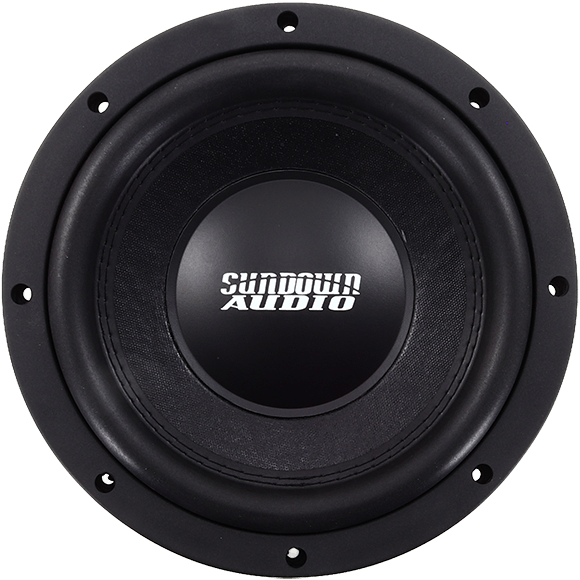

Sundown Audio SML-Series 10" Thin Subwoofer 600W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power — 600W RMS / 1200W peak
- Voice Coils — Dual 2-ohm or dual 4-ohm
- Voice Coil — Black aluminum 2.5" former, 4-layer copper
- Motor — Dual-magnet, bolt-through design with vented pole-piece
- Profile — Ultra-shallow, an inch slimmer than the SLD line
This Listing Includes: (1) Sundown Audio SML-Series 10" Thin Subwoofer
The SML-Series 10" handles 600 watts RMS (1200 watts peak) and is built an inch shallower than the SLD line while delivering nearly the same excursion. A black aluminum 2.5" voice coil former with high-temperature 4-layer copper wire dissipates heat, and a dual-magnet design with vented pole-piece and vented magnetic gap smooths acoustic response. A custom-tooled cone shape reduces mechanical noise over high excursion, and the bolt-through motor adds longevity. Designed to fit under or behind a seat, the SML performs exceptionally well in small enclosures and ships in dual 2-ohm or dual 4-ohm. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Black aluminum 2.5" voice coil former for superior heat dissipation
- Vented pole-piece and vented magnetic gap
- Dual-magnet design for smooth acoustic response
- Custom-tooled cone shape for reduced mechanical noise
- Bolt-through motor design for maximum longevity
Specifications
| RMS Power | 600W |
| Peak Power | 1200W |
| Impedance Options | Dual 2-ohm (D2), Dual 4-ohm (D4) |
| Voice Coil | 2.5" black aluminum, 4-layer copper |
