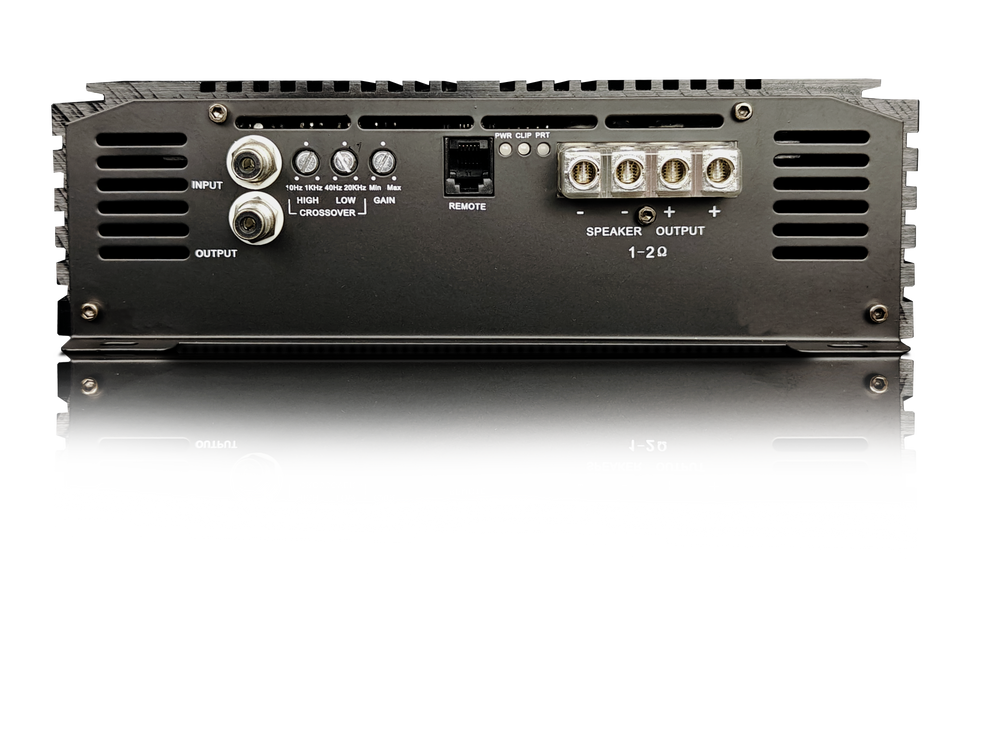

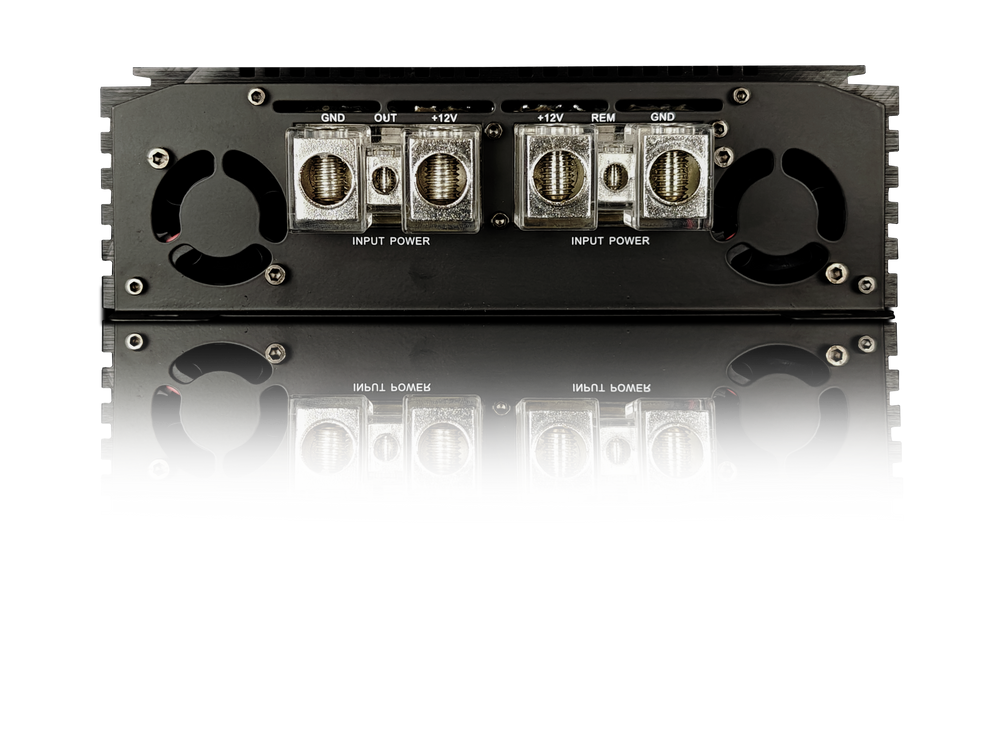

Sundown Audio SIA-5000D Full-Range Mono Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power — 5,000W @ 1Ω, 4,950W @ 2Ω, 3,400W @ 4Ω RMS
- Design — Intelligent full bridge, full-range mono
- Low Pass Filter — Variable 12dB, 40Hz–20kHz
- High Pass Filter — Variable 12dB, 10Hz–1kHz
- Bass Boost — Variable 12dB @ 50Hz
This Listing Includes: (1) Sundown Audio SIA-5000D Full-Range Mono Amplifier
The Sundown SIA-5000D delivers 5,000 watts RMS at 1 ohm, 4,950 watts at 2 ohms, and 3,400 watts at 4 ohms from a full-bridge mono design built around power and stability. A heavy heatsink and advanced three-speed Smart Cooling fan manage thermal output, while thermal, voltage, speaker short, and DC-offset protection circuitry guards against failure. Variable low pass, high pass, subsonic, and bass boost filters give full tuning control, and a wired remote with clipping indicator is included. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Advanced 3-speed Smart Cooling fan design
- Subsonic filter
- Power, protection & clipping indicators included
- Thermal, voltage, speaker short, and DC-offset protection circuitry
- Wired remote control with clipping indicator included
Specifications
| RMS Power @ 1Ω | 5,000 watts |
| RMS Power @ 2Ω | 4,950 watts |
| RMS Power @ 4Ω | 3,400 watts |
| Low Pass Filter | Variable 12dB, 40Hz–20kHz |
| High Pass Filter | Variable 12dB, 10Hz–1kHz |
| Bass Boost | Variable 12dB @ 50Hz |
| Protection | Thermal, voltage, speaker short, DC-offset |
