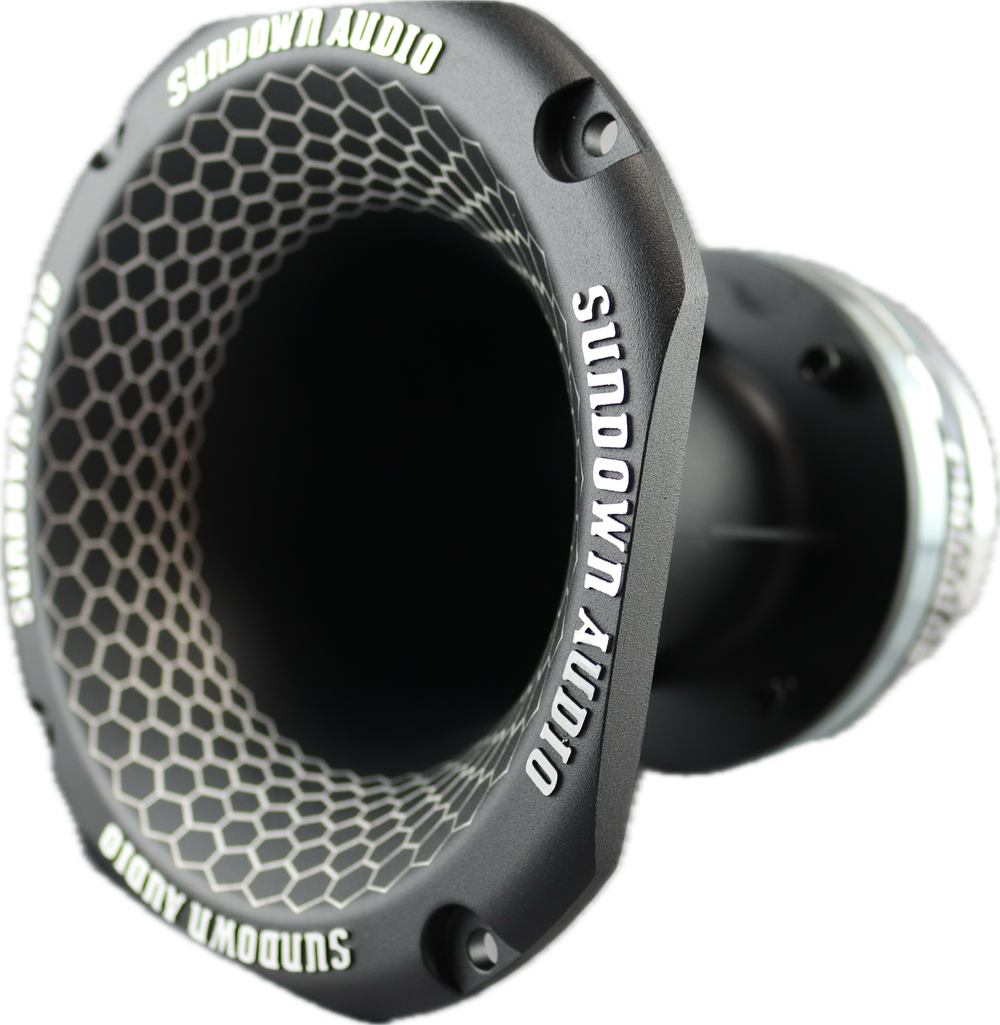

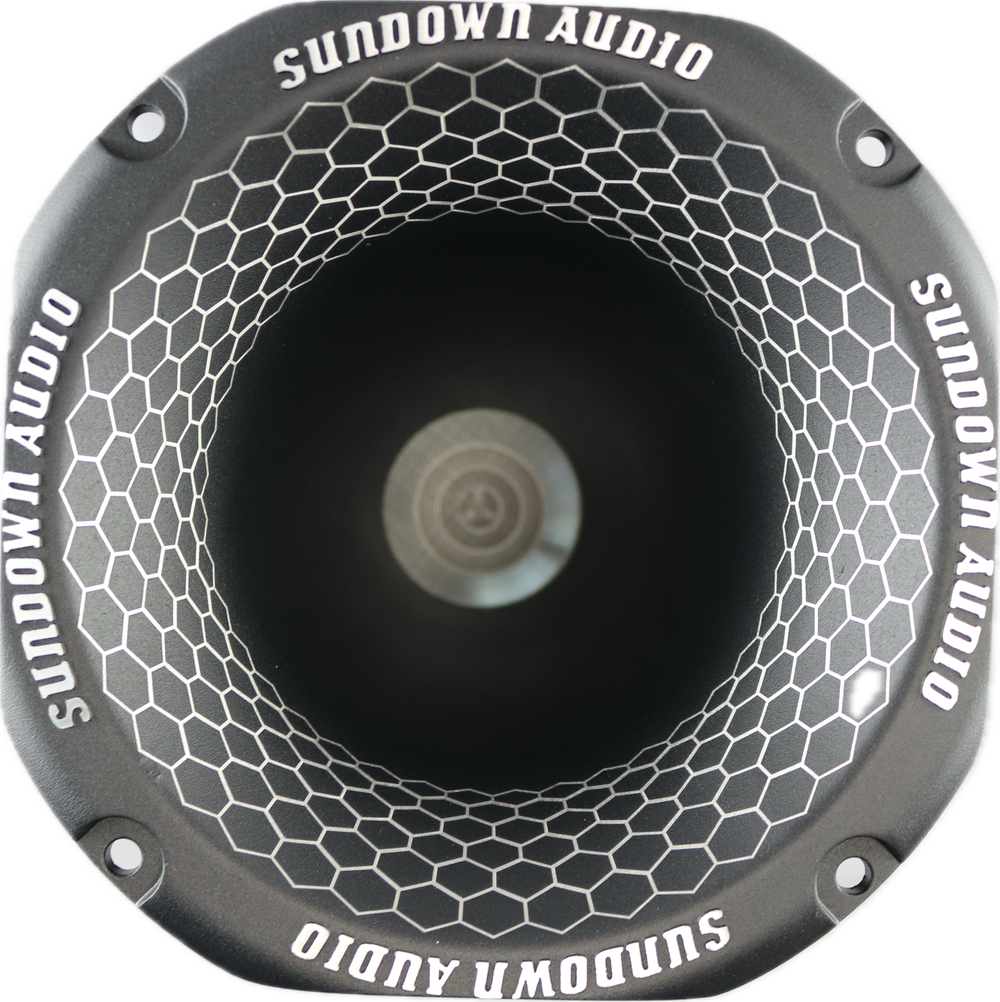

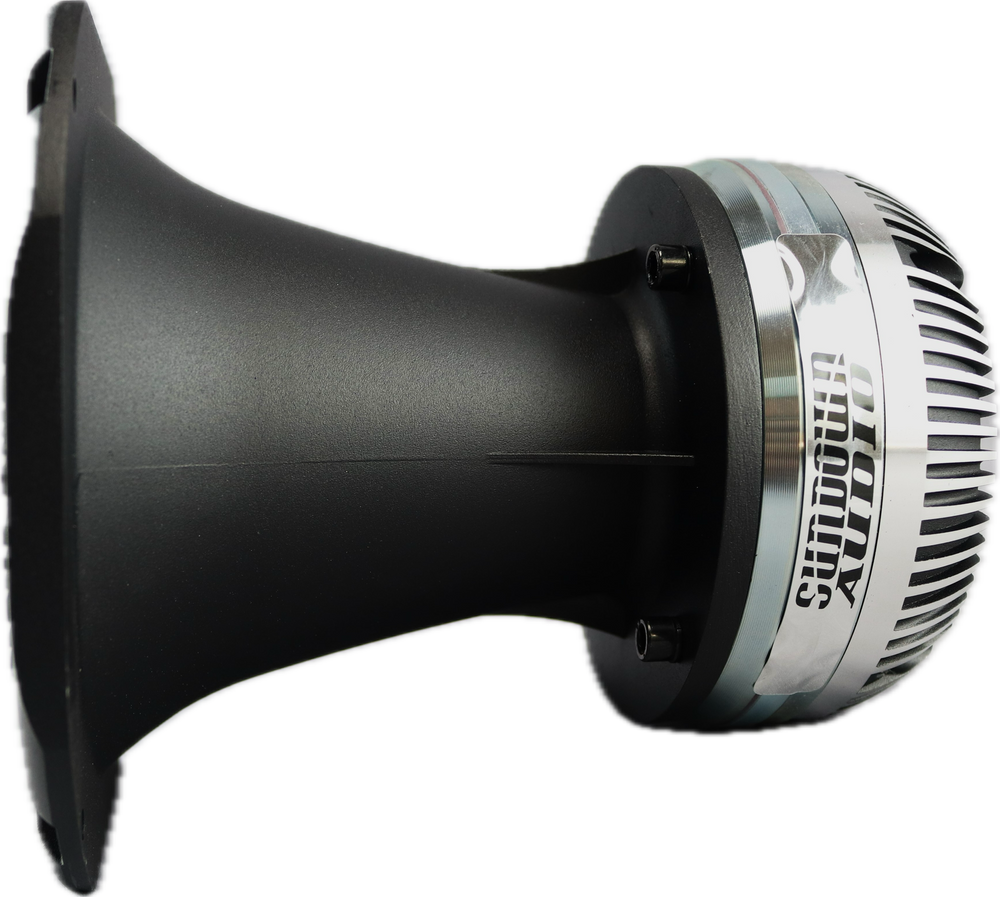

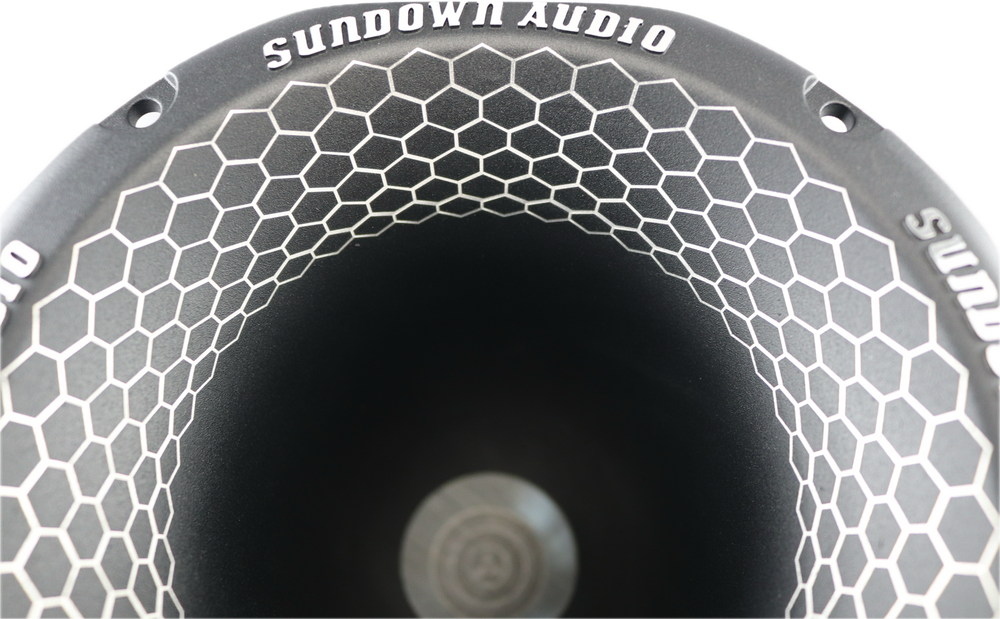

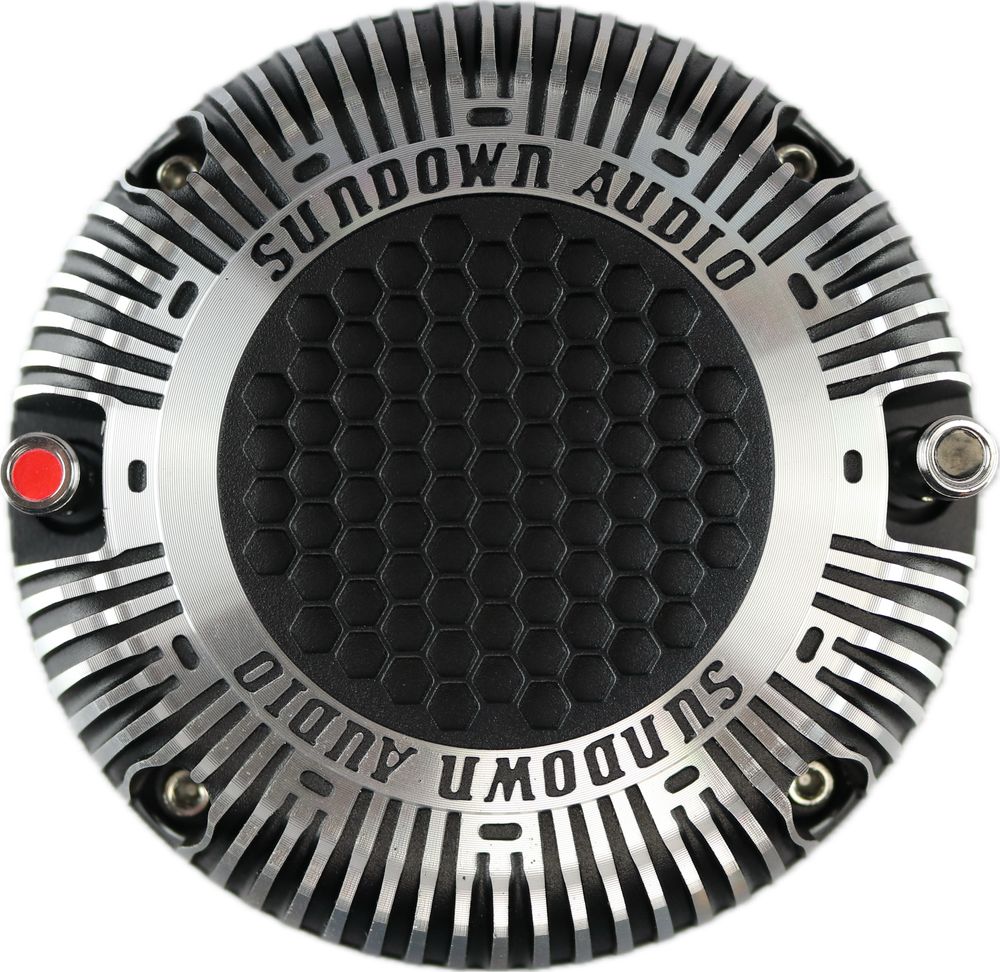

Sundown Audio Shnmd 2" Throat NEO Super Horn Speaker 110W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
%0A%0AFrequency%20Range%20%E2%80%94%20600Hz%20%E2%80%93%2020,000Hz%0A%0AVoice%20Coil%20%E2%80%94%203%22%20CCAR%20on%20Kapton%20former%0A%0AThis%20Listing%20Includes:%20(1)%20Sundown%20Au...
){kind=link}
- Power — 110W RMS / 220W Program
- Impedance — 4 ohms
- Sensitivity — 120 dB (1W/1m)
- Frequency Range — 600Hz – 20,000Hz
- Voice Coil — 3" CCAR on Kapton former
This Listing Includes: (1) Sundown Audio SHNMD 2" Throat NEO Super Horn
The SHNMD is a 2" throat super horn built around a titanium diaphragm and a 3" CCAR voice coil on a Kapton former for thermal and mechanical stability. Rated at 110W RMS and 220W program power, it operates across 600Hz to 20,000Hz with a high 120 dB sensitivity for maximum output at minimal power. A neodymium magnet drives the assembly for high magnetic flux with reduced weight, and die-cast aluminum is used for the horn and back cover. The unit measures 7.25 x 7.25 x 7.19 inches with a 6" cutout and 6.8" mounting depth. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Titanium diaphragm for durability and accurate sound reproduction
- 3" CCAR voice coil on Kapton former for thermal and mechanical stability
- Neodymium magnet for high magnetic flux and reduced weight
- Die-cast aluminum horn and back cover
- 120 dB sensitivity for maximum sound output
Specifications
| Power (RMS) | 110W |
| Program Power | 220W |
| Impedance | 4 ohms |
| Sensitivity (1W/1m) | 120 dB |
| Frequency Range | 600Hz – 20,000Hz |
| Exit Throat Diameter | 2 in |
| Voice Coil Diameter | 3 in |
| Voice Coil Material | CCAR |
| Voice Coil Former | Kapton |
| Voice Coil Winding Depth | 3 mm |
| Gap Height | 3.5 mm |
| Magnet | Neodymium |
| Diaphragm | Titanium |
| Cutout | 6 in |
| Mounting Depth | 6.8 in |
| Driver Size | 4.9 x 2.18 in |
| Product Dimensions | 7.25 x 7.25 x 7.19 in (L x W x H) |
