- Power — 110W RMS / 220W Program
- Impedance — 4 ohms
- Sensitivity — 118 dB (1W/1m)
- Frequency Range — 600Hz – 20,000Hz
- Voice Coil — 3" CCAW on Kapton former
This Listing Includes: (1) Sundown Audio SHFTL 2" Throat Super Horn With Ferrite Magnet

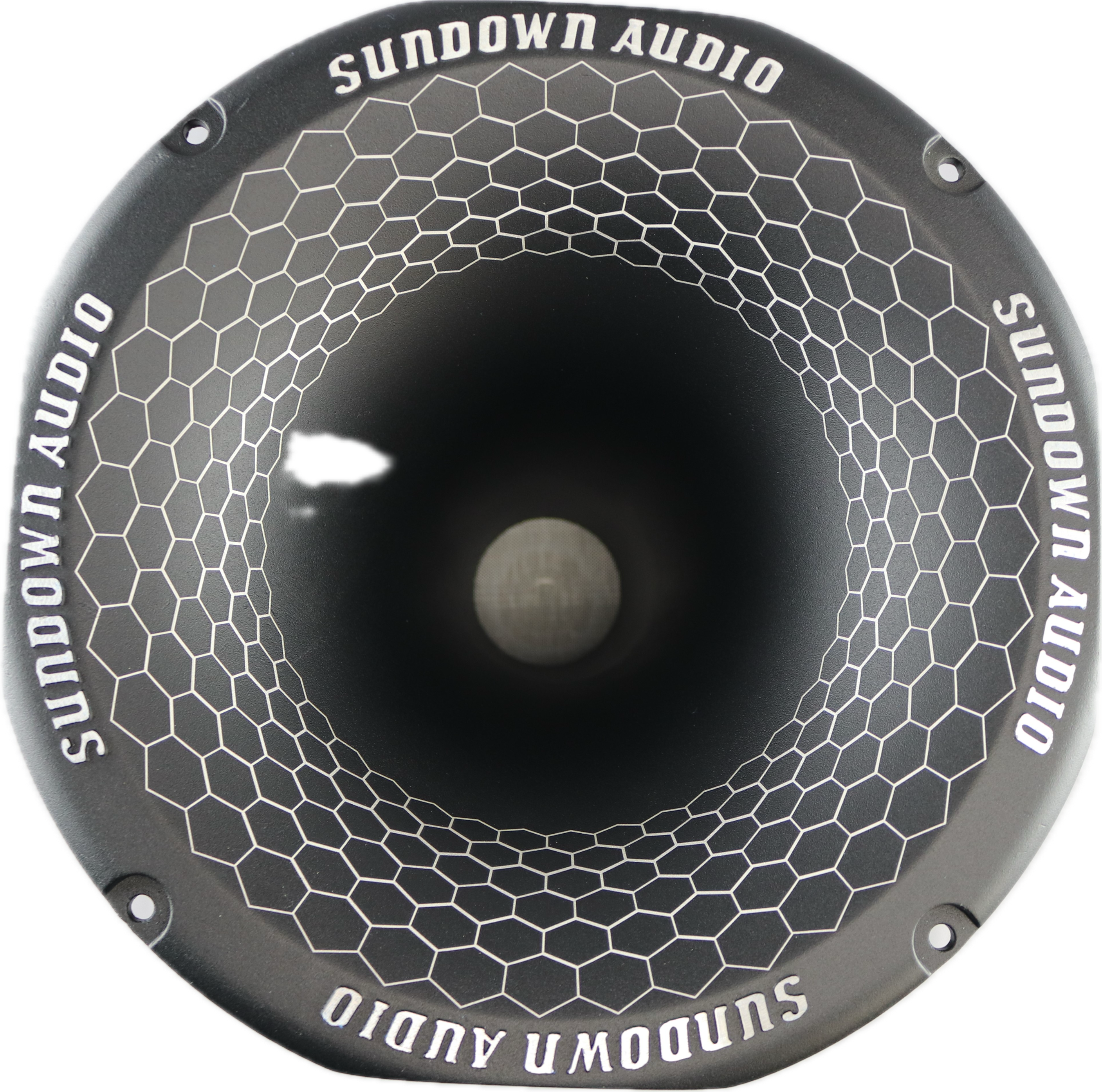

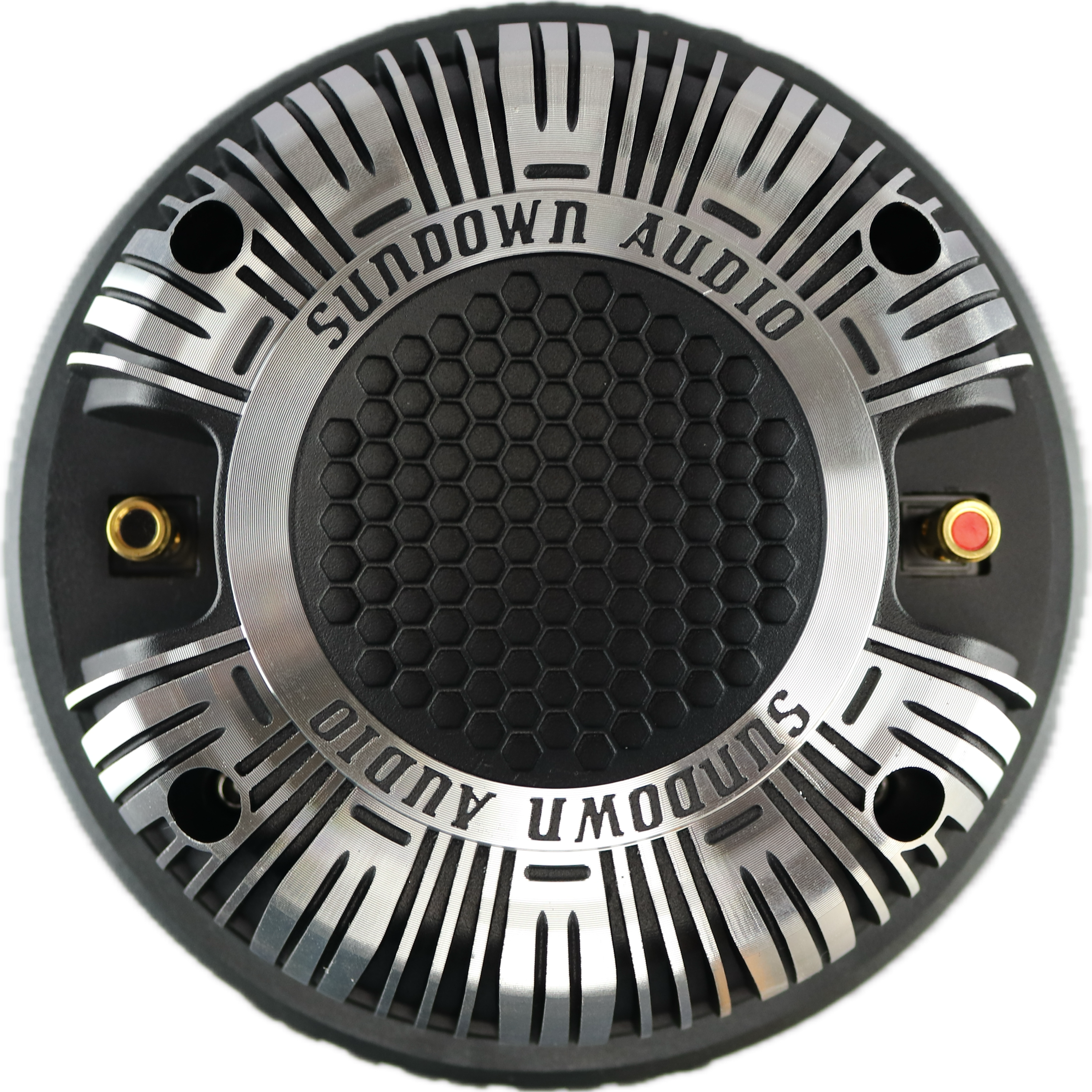

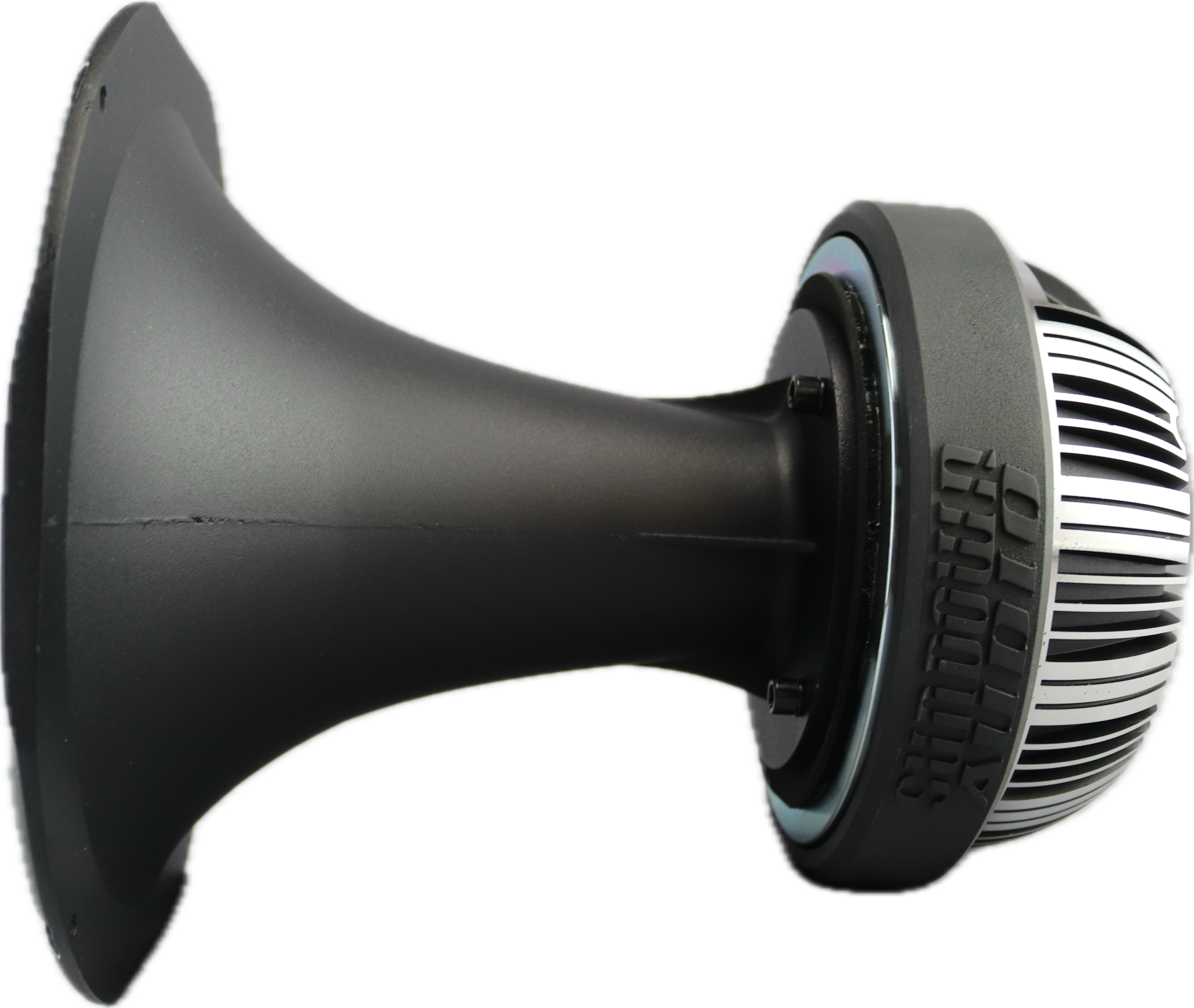

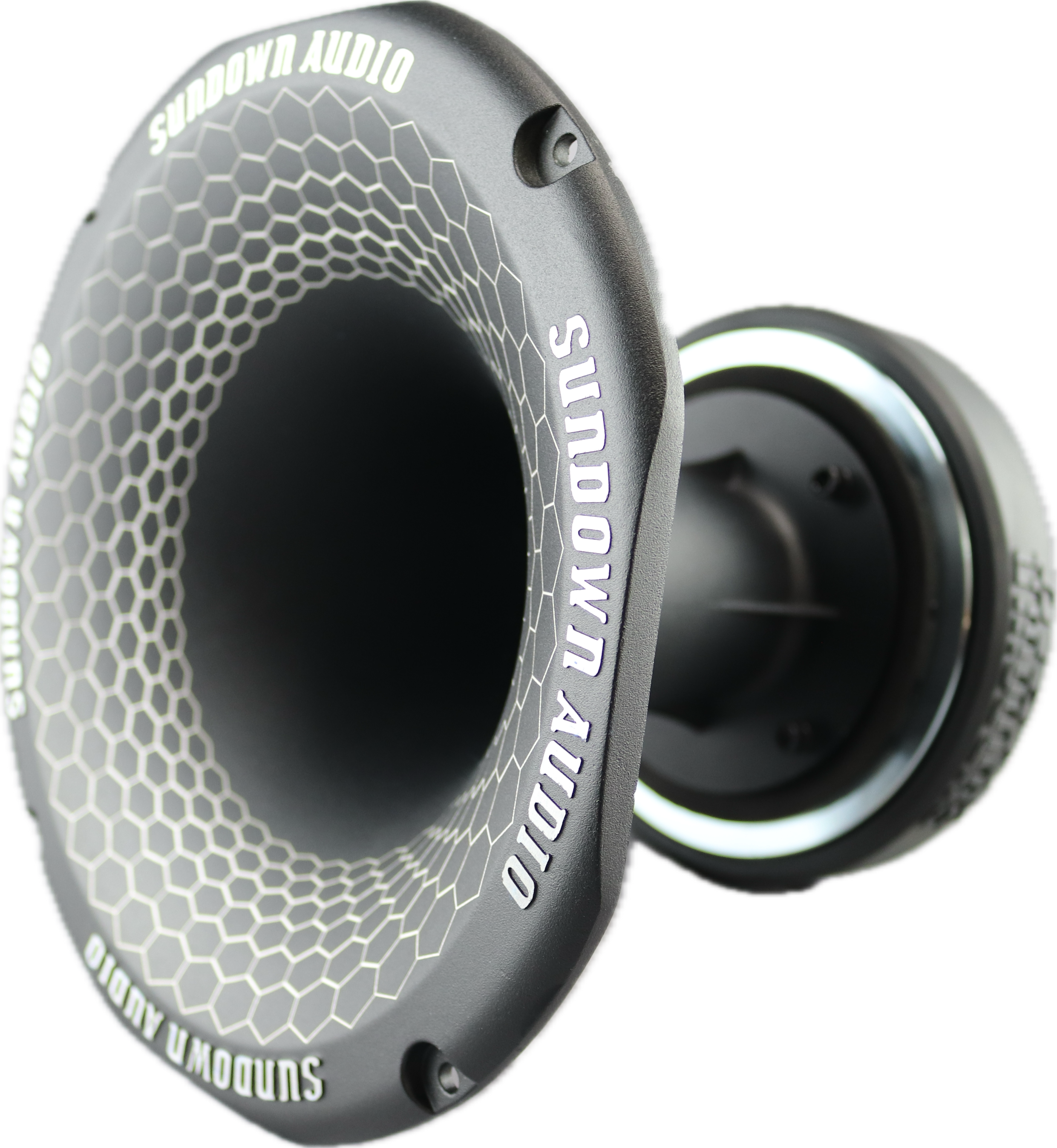

The SHFTL is a 2" throat super horn built around a titanium diaphragm and a 3" CCAW voice coil on a Kapton former for thermal resistance and durability. Rated at 110W RMS and 220W program power, it covers 600Hz to 20,000Hz with a high 118 dB sensitivity for efficient output. A strontium ferrite magnet drives the assembly, and die-cast aluminum is used for both the horn and back cover. The unit measures 9.5 x 9.5 x 10 inches with a 6.75" cutout and 9.65" mounting depth. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Titanium diaphragm for precision and long-lasting performance
- 3" CCAW voice coil on Kapton former for thermal resistance
- Strontium ferrite magnet for strong magnetic flux
- Die-cast aluminum horn and back cover
- 118 dB sensitivity for efficient sound output
Specifications
| Power (RMS) | 110W |
| Program Power | 220W |
| Impedance | 4 ohms |
| Sensitivity (1W/1m) | 118 dB |
| Frequency Range | 600Hz – 20,000Hz |
| Exit Throat Diameter | 2 in |
| Voice Coil Diameter | 3 in |
| Voice Coil Material | CCAW |
| Voice Coil Former | Kapton |
| Voice Coil Winding Depth | 3 mm |
| Gap Height | 3.5 mm |
| Magnet | Strontium ferrite |
| Diaphragm | Titanium |
| Cutout | 6.75 in |
| Mounting Depth | 9.65 in |
| Driver Size | 6.7 x 3 in |
| Product Dimensions | 9.5 x 9.5 x 10 in (L x W x H) |
