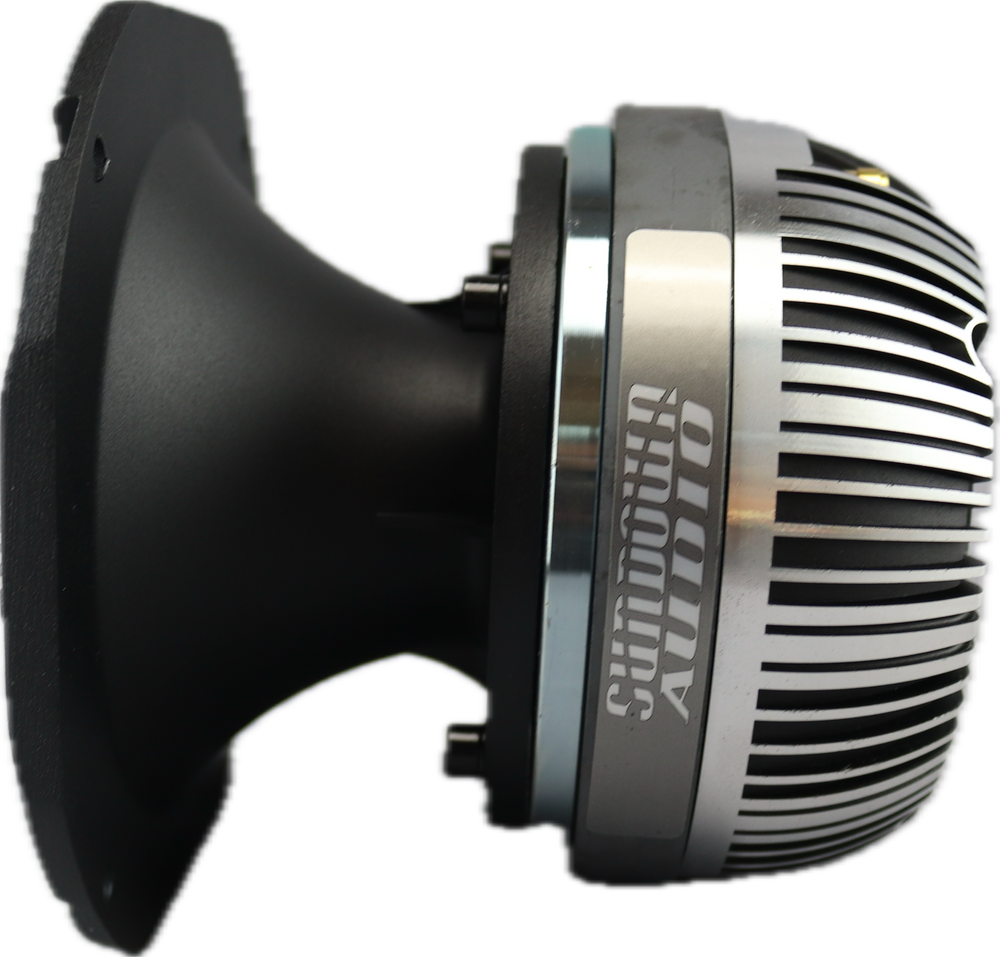

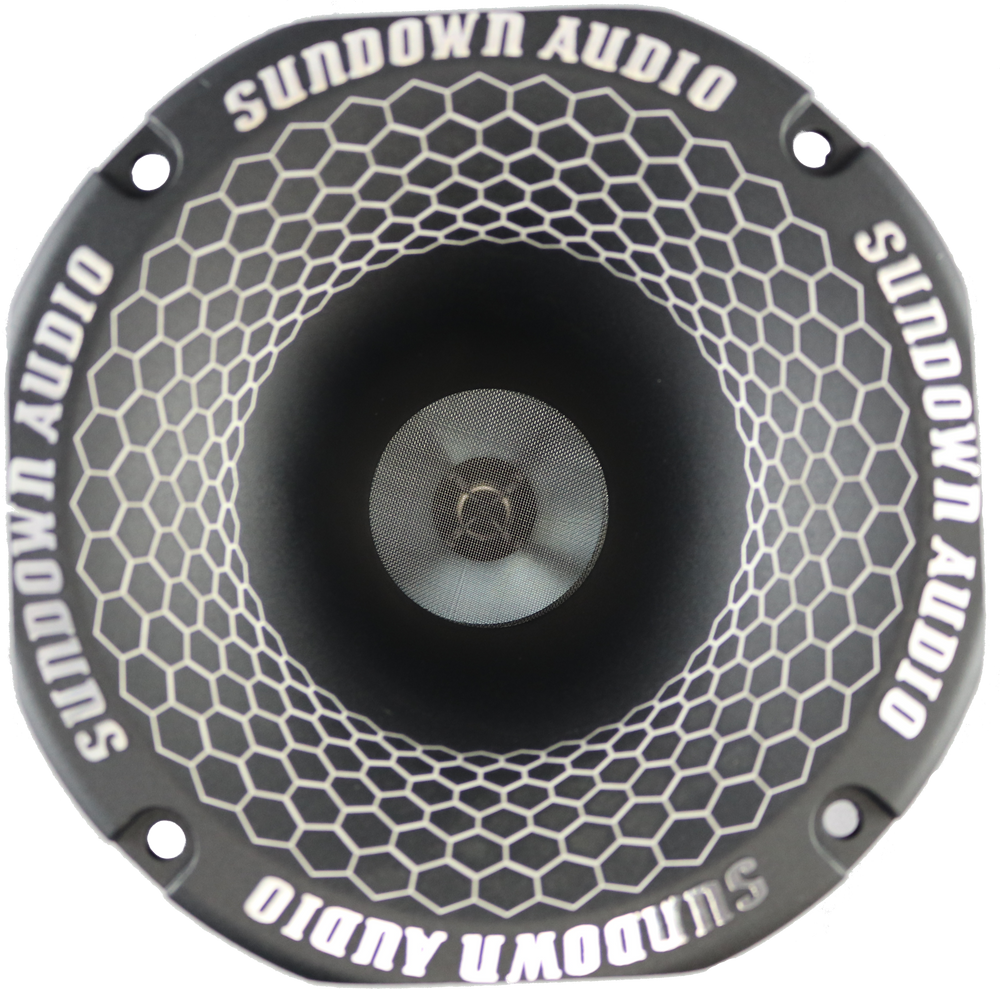

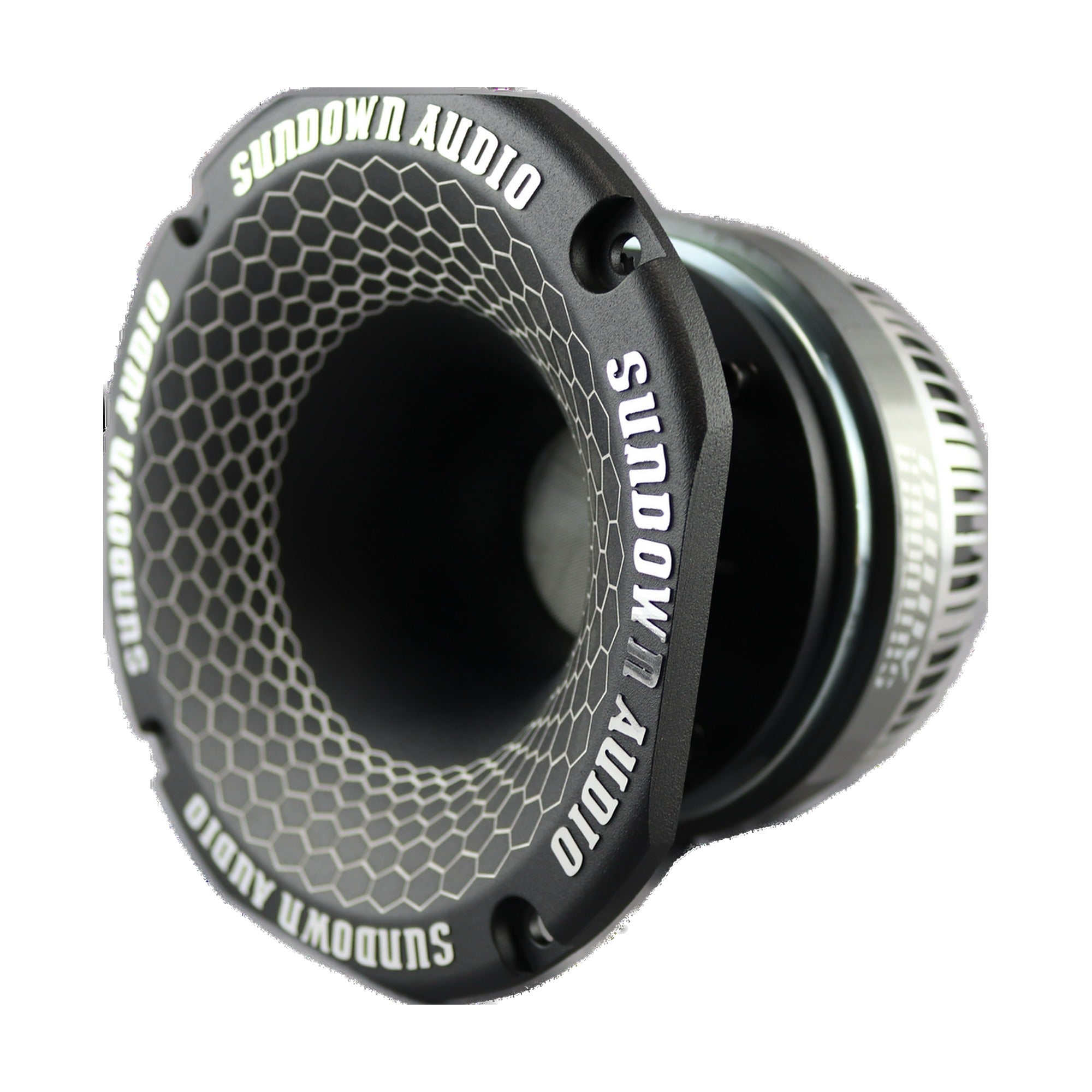

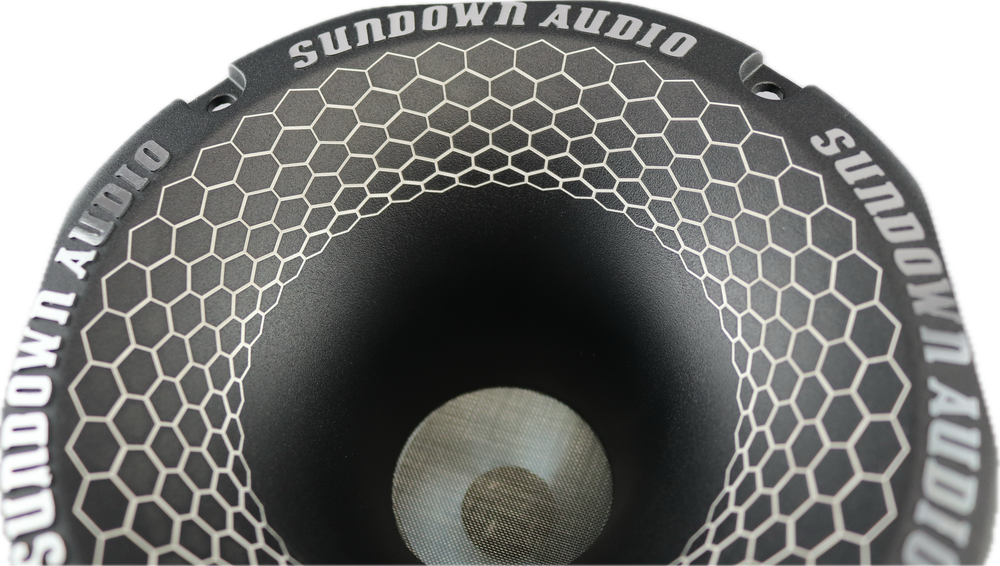

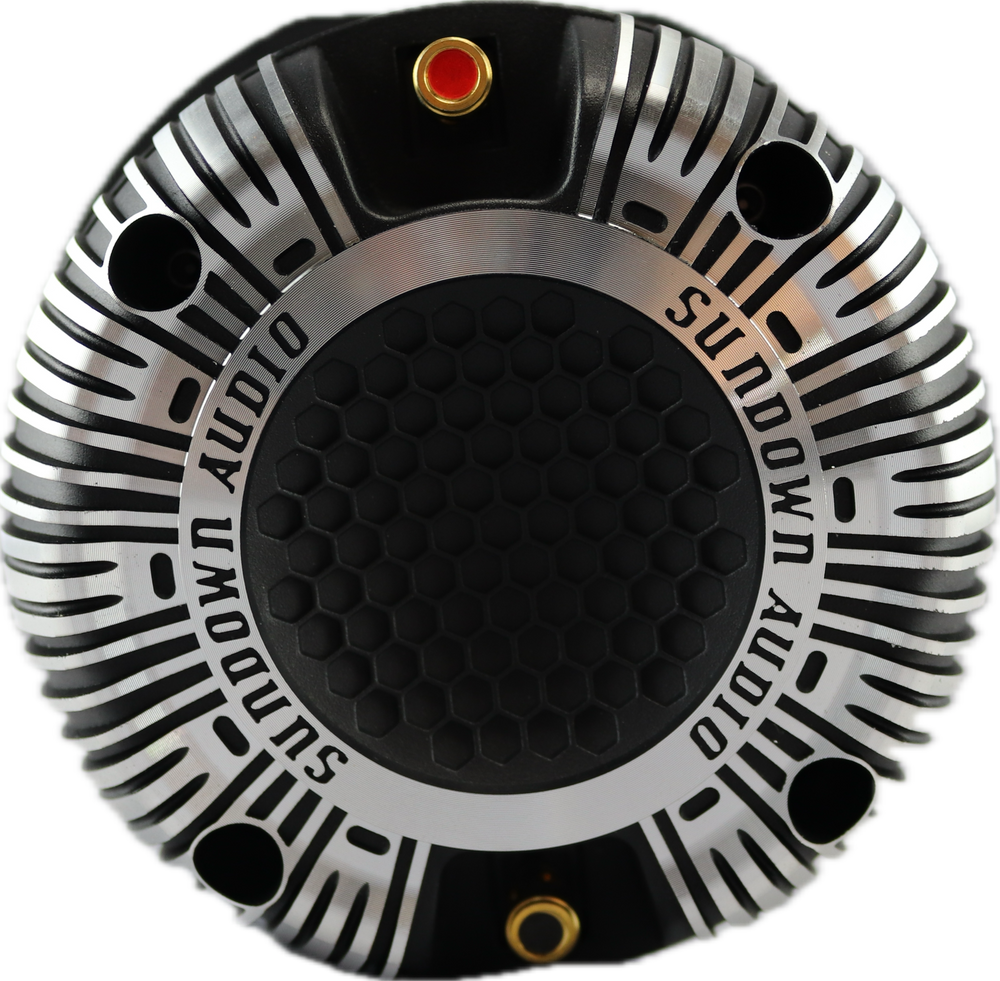

Sundown Audio Shfst 2" Throat Super Horn With Ferrite Magnet Speaker 80W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
%0A%0AFrequency%20Range%20%E2%80%94%201,000Hz%20%E2%80%93%2020,000Hz%0A%0AVoice%20Coil%20%E2%80%94%202%22%20CCAW%20on%20Kapton%20former%0A%0AThis%20Listing%20Includes:%20(1)%20Sundown%20A...
){kind=link}
- Power — 80W RMS / 160W Program
- Impedance — 4 ohms
- Sensitivity — 115 dB (1W/1m)
- Frequency Range — 1,000Hz – 20,000Hz
- Voice Coil — 2" CCAW on Kapton former
This Listing Includes: (1) Sundown Audio SHFST 2" Throat Super Horn With Ferrite Magnet
The SHFST is a 2" throat super horn built around a titanium diaphragm and a 2" CCAW voice coil on a Kapton former for thermal stability and durability. Rated at 80W RMS and 160W program power, it covers 1,000Hz to 20,000Hz with a 115 dB sensitivity for excellent output with minimal power. A strontium ferrite magnet drives the assembly, and die-cast aluminum is used for both the horn and back cover. The unit measures 6.75 x 6.75 x 5.5 inches with a 5.5" cutout and 5.15" mounting depth. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Titanium diaphragm for reliable, precise audio reproduction
- 2" CCAW voice coil on Kapton former for thermal stability
- Strontium ferrite magnet for high magnetic flux
- Die-cast aluminum horn and back cover
- 115 dB sensitivity for efficient sound output
Specifications
| Power (RMS) | 80W |
| Program Power | 160W |
| Impedance | 4 ohms |
| Sensitivity (1W/1m) | 115 dB |
| Frequency Range | 1,000Hz – 20,000Hz |
| Exit Throat Diameter | 2 in |
| Voice Coil Diameter | 2 in |
| Voice Coil Material | CCAW |
| Voice Coil Former | Kapton |
| Voice Coil Winding Depth | 2 mm |
| Gap Height | 2.5 mm |
| Magnet | Strontium ferrite |
| Diaphragm | Titanium |
| Cutout | 5.5 in |
| Mounting Depth | 5.15 in |
| Driver Size | 5.28 x 2.5 in |
| Product Dimensions | 6.75 x 6.75 x 5.5 in (L x W x H) |
