Sundown Audio SFB-600D 600W Full Range Mono Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power — 600W @ 1Ω, 350W @ 2Ω, 250W @ 4Ω RMS
- Design — Full-range mono, stable down to 1 ohm
- Low Pass Filter — Variable 12dB, 80Hz – 20kHz
- High Pass Filter — Variable 12dB, 15Hz – 1kHz
- Bass Boost — Variable 12dB @ 50Hz, 0–9dB
This Listing Includes: (1) Sundown Audio SFB-600D 600W Full Range Mono Amplifier

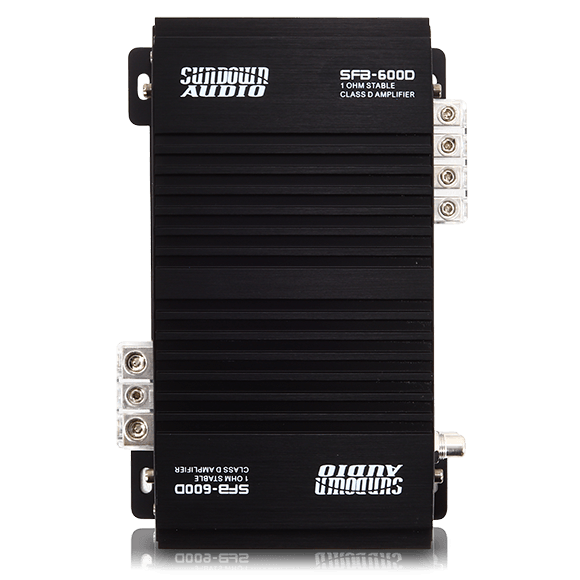

The flexible SFB-600D (Sundown Full Bridge) packs a powerful punch in a compact size, delivering 600 watts at 1 ohm, 350 watts at 2 ohms, and 250 watts at 4 ohms RMS. Stable down to 1 ohm, this full-range mono amp can serve as a subwoofer amp or as an ideal power source for an array of P.A. speakers. Variable 12dB low pass (80Hz – 20kHz) and high pass (15Hz – 1kHz) filters plus a variable 12dB bass boost at 50Hz give you full tuning control, with power, protection, and clipping indicators included. A wired remote control with clipping indicator is included. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Full-range mono, stable down to 1 ohm
- Variable 12dB low pass (80Hz – 20kHz) and high pass (15Hz – 1kHz) filters
- Variable 12dB bass boost @ 50Hz (0–9dB)
- Thermal, voltage, speaker short, and DC-offset protection circuitry
- Wired remote control with clipping indicator included
Specifications
| RMS @ 1Ω | 600W |
| RMS @ 2Ω | 350W |
| RMS @ 4Ω | 250W |
| Low Pass Filter | 80Hz – 20kHz, variable 12dB |
| High Pass Filter | 15Hz – 1kHz, variable 12dB |
| Bass Boost | 0–9dB @ 50Hz, variable 12dB |
