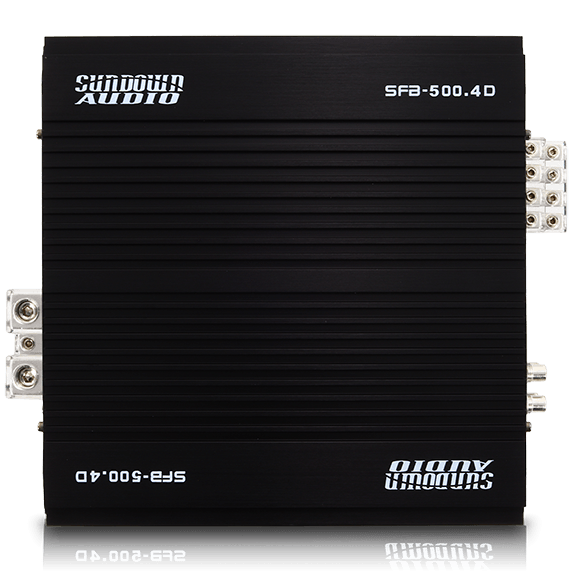

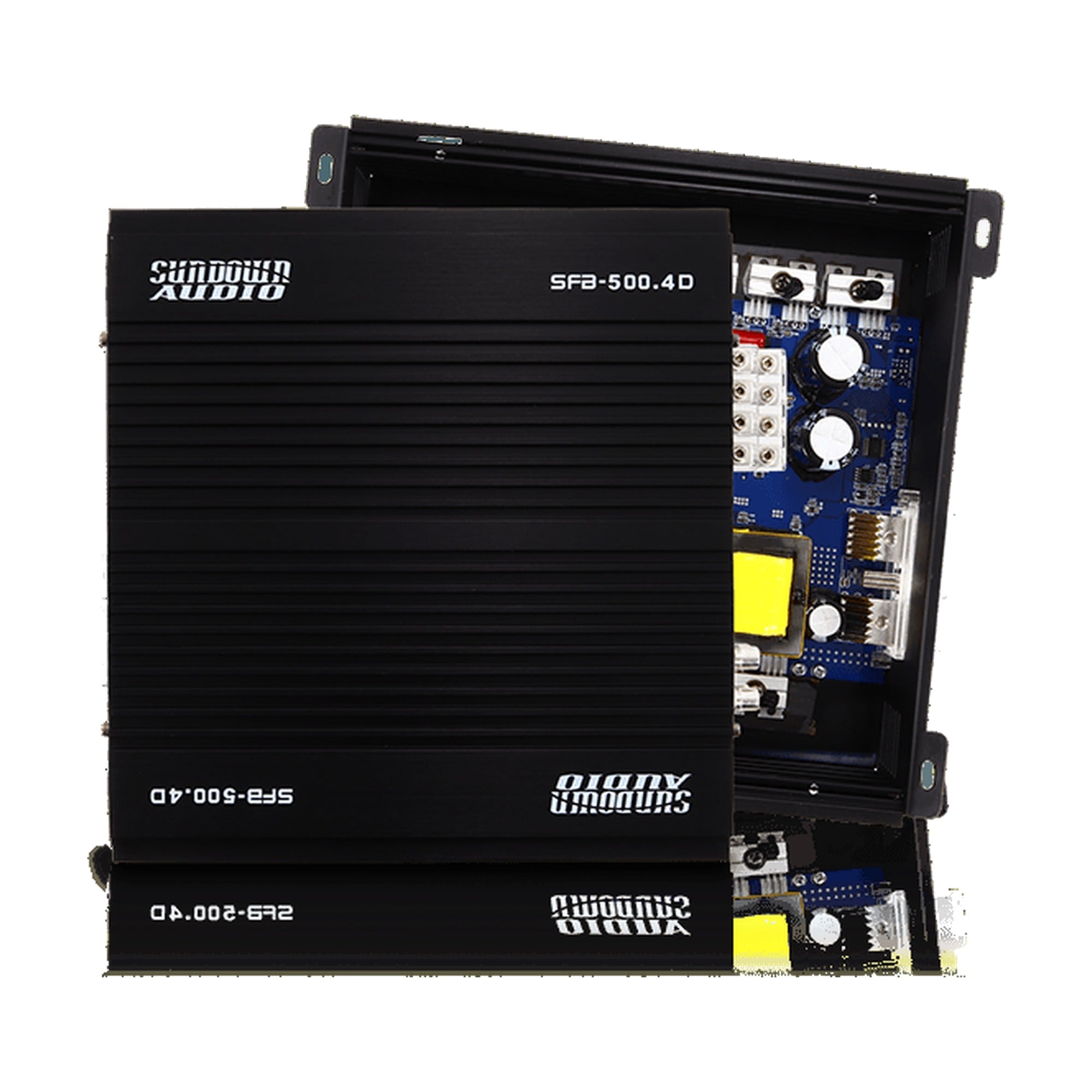

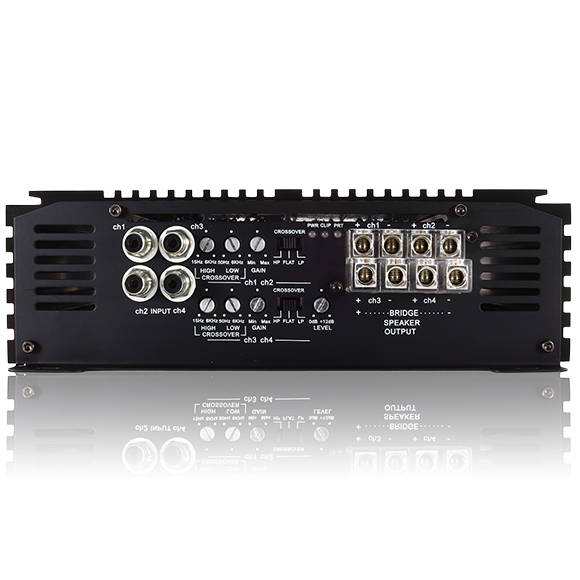

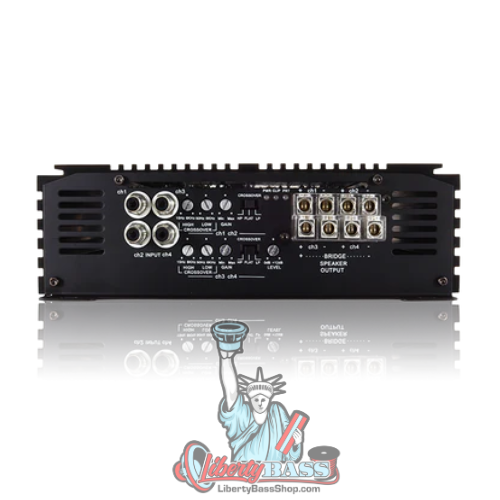

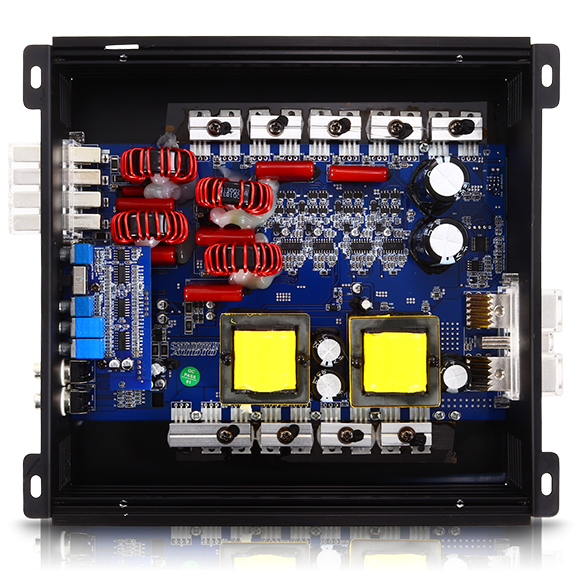

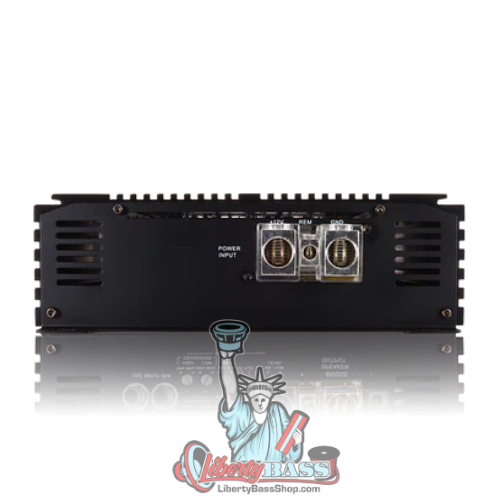

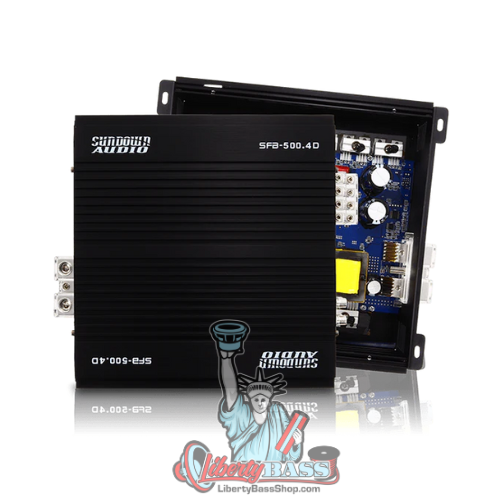

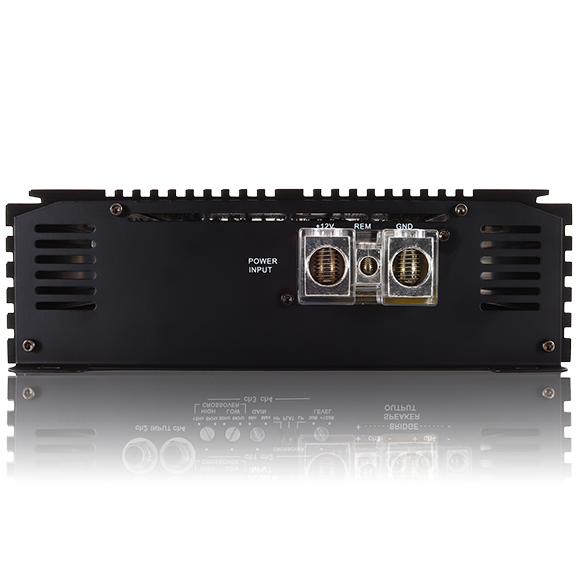

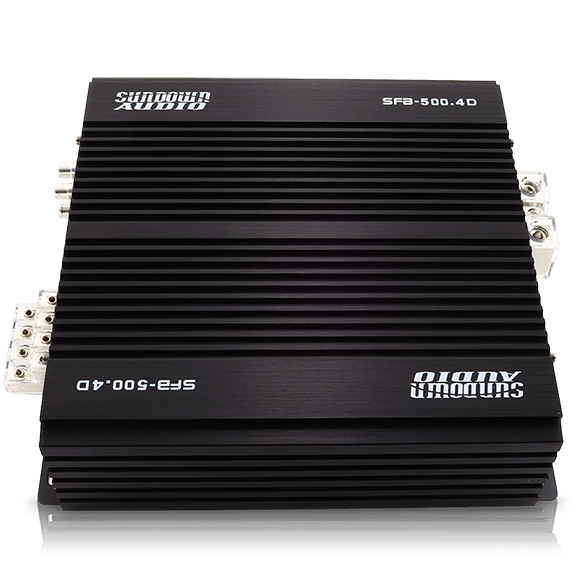

Sundown Audio SFB-500.4 4-Channel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20%26amp;%2012dB%20HPF%20(15Hz%E2%80%936kHz)%0A%0ABass%20Boost%20%E2%80%94...
){kind=link}
- Power — 500W x 4 @ 1Ω, 300W x 4 @ 2Ω, 200W x 4 @ 4Ω RMS
- Type — 4-channel full-range, stable to 1 ohm per channel
- Filters — Variable 12dB LPF (50Hz–6kHz) & 12dB HPF (15Hz–6kHz)
- Bass Boost — Variable 12dB @ 50Hz
- Protection — Thermal, voltage, speaker short & DC-offset
This Listing Includes: (1) Sundown Audio SFB-500.4 4-Channel Amplifier
The Sundown Full Bridge SFB-500.4 packs a powerful punch in a compact, Brazilian-style chassis that is stable down to 1 ohm per channel. That stability lets you wire several speakers together on every channel, making it an ideal amp for a PA mid/high array, a large marine system, or your favorite set of separates. Variable 12dB low-pass and high-pass filters plus a 12dB bass boost at 50Hz let you tune each channel, while full thermal, voltage, speaker-short, and DC-offset protection keep it safe. Rated at 500W x 4 at 1 ohm, it delivers raw power on a budget. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 4-channel full-range, stable to 1 ohm per channel
- Variable 12dB low-pass filter: 50Hz – 6kHz
- Variable 12dB high-pass filter: 15Hz – 6kHz
- Variable 12dB bass boost @ 50Hz
- Optional wired remote control with clipping indicator
Specifications
| RMS Power @ 1Ω | 500 Watts x 4 |
| RMS Power @ 2Ω | 300 Watts x 4 |
| RMS Power @ 4Ω | 200 Watts x 4 |
| Channels | 4 (full-range) |
| Low-Pass Filter | Variable 12dB, 50Hz – 6kHz |
| High-Pass Filter | Variable 12dB, 15Hz – 6kHz |
| Bass Boost | Variable 12dB @ 50Hz |
