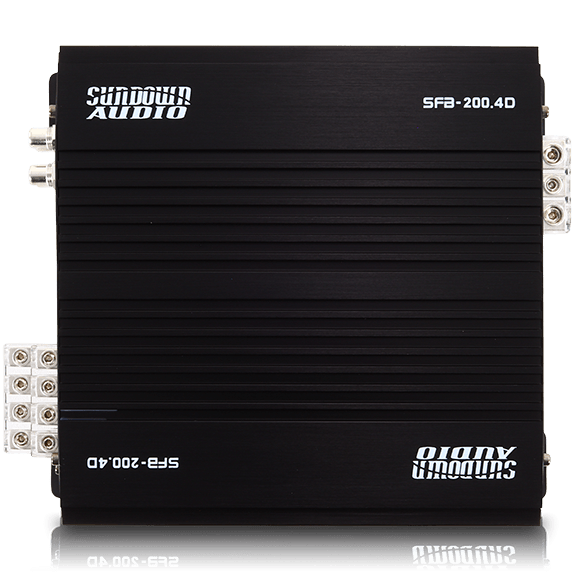

Sundown Audio SFB-200.4 4-Channel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power — 200W x 4 @ 1Ω, 125W x 4 @ 2Ω, 75W x 4 @ 4Ω RMS
- Channels — 4-channel full-range, stable to 1 ohm per channel
- Low Pass Filter — Variable 12dB, 50Hz – 6kHz
- High Pass Filter — Variable 12dB, 15Hz – 6kHz
- Bass Boost — Variable 12dB @ 50Hz
This Listing Includes: (1) Sundown Audio SFB-200.4 4-Channel Amplifier
The "Brazilian Style" SFB-200.4 packs a powerful punch in a compact size, delivering 200 watts x 4 at 1 ohm, 125 watts x 4 at 2 ohms, and 75 watts x 4 at 4 ohms RMS. Stable down to 1 ohm per channel, it lets you wire several speakers together on every channel — ideal for a PA mid/high speaker array, a large marine system, or a set of separates. Variable 12dB low pass (50Hz – 6kHz) and high pass (15Hz – 6kHz) filters plus a variable 12dB bass boost at 50Hz provide full tuning control, with power, protection, and clipping indicators included. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 4-channel full-range, stable to 1 ohm per channel
- Variable 12dB low pass (50Hz – 6kHz) and high pass (15Hz – 6kHz) filters
- Variable 12dB bass boost @ 50Hz
- Thermal, voltage, speaker short, and DC-offset protection circuitry
- Optional wired remote control with clipping indicator
Specifications
| RMS @ 1Ω | 200W x 4 |
| RMS @ 2Ω | 125W x 4 |
| RMS @ 4Ω | 75W x 4 |
| Low Pass Filter | 50Hz – 6kHz, variable 12dB |
| High Pass Filter | 15Hz – 6kHz, variable 12dB |
| Bass Boost | 12dB @ 50Hz, variable |
