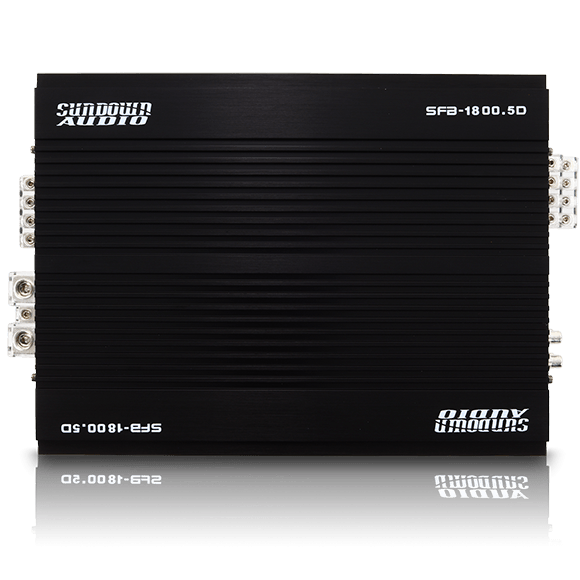

Sundown Audio SFB-1800.5 5-Channel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20%E2%80%94%20250W%20@%204%CE%A9,%20500W%20@%202%CE%A9,%201,000W%20@%201%CE%A9%0A%0AClass%20%E2%80%94%205-channel%20full-range,%20bass%20channel%20stable%20to%201%20ohm%0A%0AFilters%20%E2%80%94%20Variable%2012dB%20LPF/HPF%20per%20channel,%20b...
){kind=link}
- Ch. 1–4 — 200W x 4 @ 4Ω, 300W x 4 @ 2Ω
- Ch. 5 (Sub) — 250W @ 4Ω, 500W @ 2Ω, 1,000W @ 1Ω
- Class — 5-channel full-range, bass channel stable to 1 ohm
- Filters — Variable 12dB LPF/HPF per channel, bass boost @ 50Hz
- Protection — Thermal, voltage, speaker short, DC-offset
This Listing Includes: (1) Sundown Audio SFB-1800.5 5-Channel Amplifier
The "Brazilian Style" SFB-1800.5 powers a full system from one compact chassis, with four full-range channels rated 200 watts x 4 (4 ohms) or 300 watts x 4 (2 ohms) plus a bass channel rated 250 watts (4 ohms), 500 watts (2 ohms), or 1,000 watts (1 ohm) and stable down to 1 ohm. The full-range channels offer variable 12dB low-pass (50Hz–6kHz) and high-pass (15Hz–6kHz) filters, while channel 5 adds variable 12dB low-pass (50Hz–20kHz) and high-pass (50Hz–1kHz) filters and a bass boost at 50Hz. Power, protection, and clipping indicators and full protection circuitry keep it running, with an optional wired remote. Wire several speakers per channel for a PA array, marine system, or separates plus a dedicated sub. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- "Brazilian Style" full-bridge design with bass channel stable to 1 ohm
- Ch. 1–4 variable 12dB low-pass (50Hz–6kHz) and high-pass (15Hz–6kHz)
- Ch. 5 variable 12dB low-pass (50Hz–20kHz) and high-pass (50Hz–1kHz)
- Variable 12dB bass boost @ 50Hz
- Power, protection and clipping indicators with optional wired remote
Specifications
| Ch. 1–4 @ 4Ω / 2Ω | 200W / 300W x 4 |
| Ch. 5 @ 4Ω / 2Ω / 1Ω | 250W / 500W / 1,000W |
| Low-Pass Filter (Ch. 1–4) | 50Hz–6kHz (12dB) |
| Low-Pass Filter (Ch. 5) | 50Hz–20kHz (12dB) |
| High-Pass Filter (Ch. 1–4) | 15Hz–6kHz (12dB) |
| High-Pass Filter (Ch. 5) | 50Hz–1kHz (12dB) |
| Bass Boost | 12dB @ 50Hz |
| Protection | Thermal, voltage, speaker short, DC-offset |
