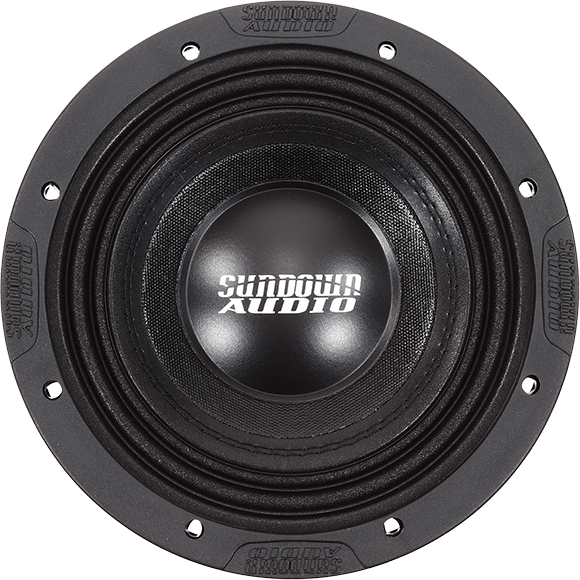

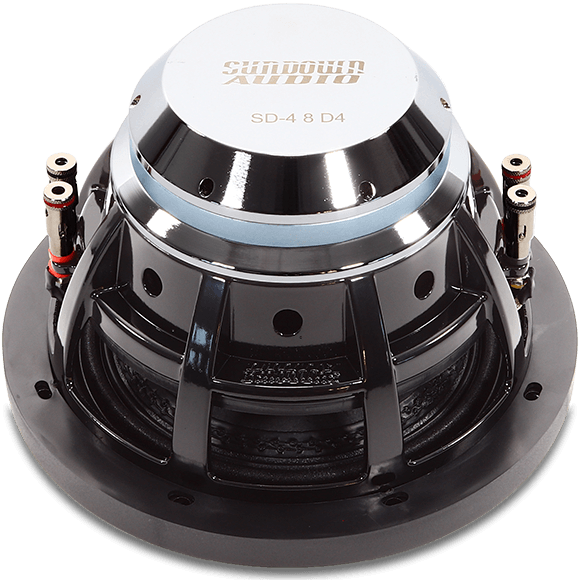

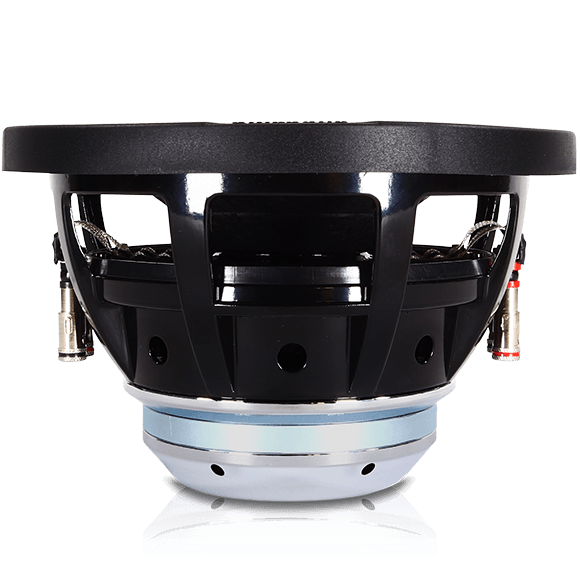

Sundown Audio SD-Series v.4 8" Neo Subwoofer 400W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power — 400W RMS
- Voice Coils — Dual 2-ohm or dual 4-ohm
- Voice Coil — Two-inch 8-layer copper
- Motor — Lightweight neodymium with large aluminum Faraday ring
- Frame — Patented high-strength cast aluminum
This Listing Includes: (1) Sundown Audio SD-Series v.4 8" Neo Subwoofer
The SD-Series v.4 8" Neo handles 400 watts RMS and is optimized for small, sealed enclosures with a low mounting depth. A lightweight neodymium motor pairs with a two-inch 8-layer copper voice coil and a computer-optimized foam "w" surround for high power handling from a compact 8-inch driver. A large aluminum Faraday ring smooths acoustic response, while low-distortion motor construction and high-temperature voice coil wire manage distortion and heat. Spring-loaded terminals and stitched-on tinsel leads finish a world-class sound-quality woofer in dual 2-ohm or dual 4-ohm. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Optimized for small, sealed enclosures
- Lightweight neodymium motor
- Computer-optimized foam "w" surround
- Two-inch 8-layer copper voice coil
- Large aluminum Faraday ring with low-distortion motor construction
Specifications
| RMS Power | 400W |
| Impedance Options | Dual 2-ohm (D2), Dual 4-ohm (D4) |
| Voice Coil | 2-inch, 8-layer copper |
| Motor | Neodymium |
| Frame | Cast aluminum |
