- Power — 750W @ 4Ω, 1,500W @ 2Ω, 3,000W @ 1Ω mono; 6,000W @ 2Ω linked
- Class — Digital Class-D linkable mono block
- Filters — 24dB subsonic (10–50Hz), 24dB LPF (35–250Hz), bass boost @ 45Hz (0–9dB)
- Phase — Phase shift control 0–180 degrees
- Protection — Thermal, voltage, speaker short, DC-offset
This Listing Includes: (1) Sundown Audio SALT-3 Class D Amplifier

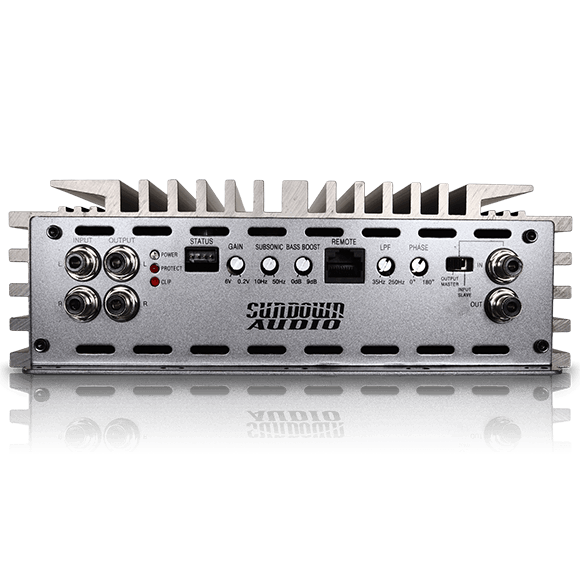

The SALT-3 is a strappable digital Class-D mono block that delivers 750 watts at 4 ohms, 1,500 watts at 2 ohms, or 3,000 watts at 1 ohm on its own, and a massive 6,000 watts at 2 ohms when linked to a second SALT-3, across a 10Hz–250Hz response. SALT — Sundown Audio Low-Voltage Technology — produces optimum power at realistic voltages in the 12s rather than needing 14+ volts. A 24dB variable subsonic filter (10Hz–50Hz), 24dB variable low-pass filter (35Hz–250Hz), variable bass boost at 45Hz (0–9dB), and 0–180 degree phase shift control dial in the bass, while onboard power, clipping, and protection indicators and full protection circuitry keep it safe. An included wired remote displays voltage, temperature, and clipping. It runs on 9–15.5VDC with a 300A recommended fuse. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Linkable mono block, strappable to 6,000W @ 2Ω with a second SALT-3
- 24dB variable subsonic filter: 10Hz–50Hz
- 24dB variable low-pass filter: 35Hz–250Hz
- Variable bass boost @ 45Hz (0–9dB) with 0–180 degree phase shift control

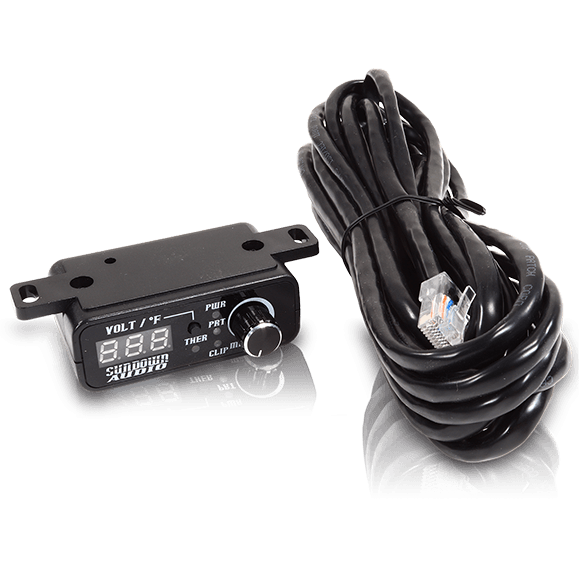

- Included wired remote displays voltage, temperature, and clipping
Specifications
| RMS @ 4Ω Mono | 750W x 1 |
| RMS @ 2Ω Mono | 1,500W x 1 |
| RMS @ 1Ω Mono | 3,000W x 1 |
| RMS @ 2Ω Linked | 6,000W x 1 |
| Class | D |
| Frequency Response | 10Hz–250Hz |
| Subsonic Filter | 10Hz–50Hz (24dB) |
| Low-Pass Filter | 35Hz–250Hz (24dB) |
| Bass Boost | 0–9dB @ 45Hz |
| Phase Shift | 0–180 degrees |
| Input Sensitivity | 6V–0.2V |
| Efficiency | 90% |
| S/N Ratio | 90dB |
| Operating Voltage | 9V–15.5VDC |
| Recommended Fuse | 300A |
| Dimensions | 19.68" L x 8.67" W x 2.80" H |
