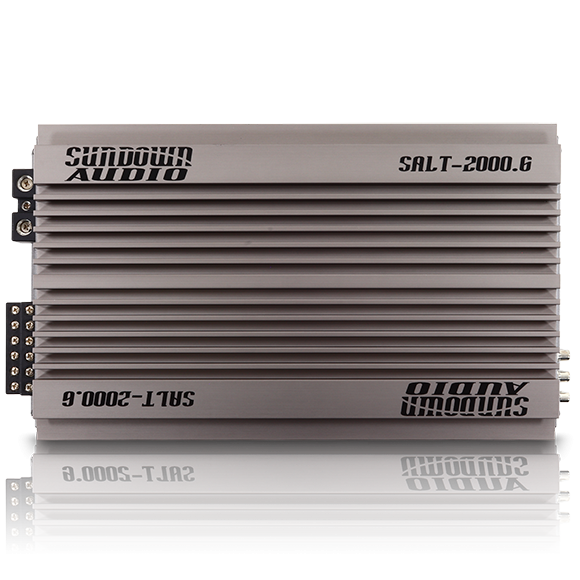

Sundown Audio SALT-2000.6 6-Channel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%0A%0A...
){kind=link}
- Ch. 1–2 — 100W x 2 @ 4Ω, 200W x 2 @ 2Ω
- Ch. 3–4 — 150W x 2 @ 4Ω, 250W x 2 @ 2Ω
- Ch. 5–6 — 200W x 2 @ 4Ω, 350W x 2 @ 2Ω, 550W x 2 @ 1Ω
- Class — Class-D, 6-channel full-range digital (10Hz–25kHz)
- Filters — Variable 12dB subsonic (10–100Hz), HPF/LPF (50–500Hz)
This Listing Includes: (1) Sundown Audio SALT-2000.6 6-Channel Amplifier

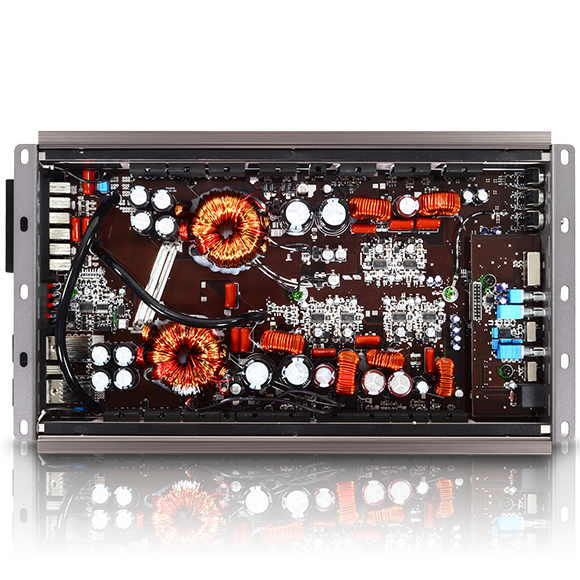

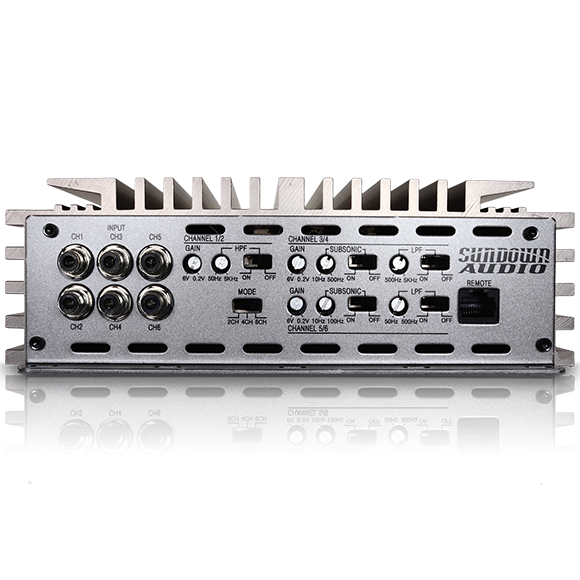

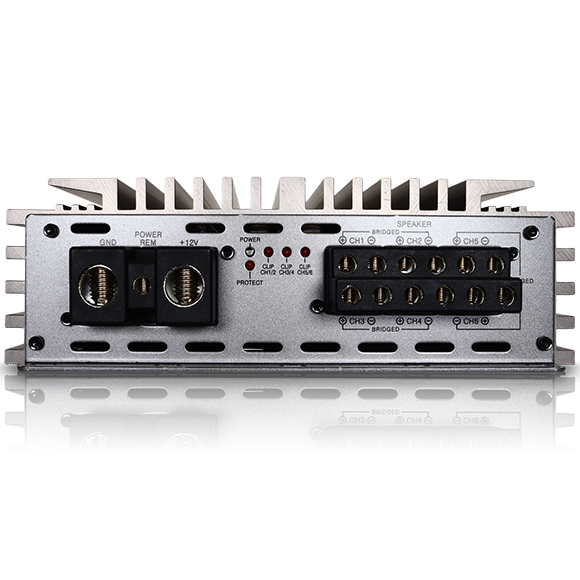

The SALT-2000.6 is a 6-channel full-range digital Class-D amplifier with channels scaled for a full system: 100/200 watts x 2 on channels 1–2, 150/250 watts x 2 on channels 3–4, and 200/350/550 watts x 2 on channels 5–6 down to 1 ohm, across a 10Hz–25kHz response. SALT — Sundown Audio Low-Voltage Technology — produces optimum power at realistic voltages in the 12s rather than needing 14+ volts. Variable 12dB subsonic (10Hz–100Hz), high-pass (50Hz–500Hz), and low-pass (50Hz–500Hz) filters plus an X1/X10 crossover multiplier dial in each channel, with onboard power, clipping, and protection indicators and full protection circuitry. An optional wired remote displays voltage, temperature, and clipping. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Full-range digital 6-channel amplifier, 10Hz–25kHz
- Variable 12dB subsonic crossover filter: 10Hz–100Hz
- Variable 12dB high-pass and low-pass filters: 50Hz–500Hz
- X1/X10 crossover multiplier with power, clipping and protection indicators

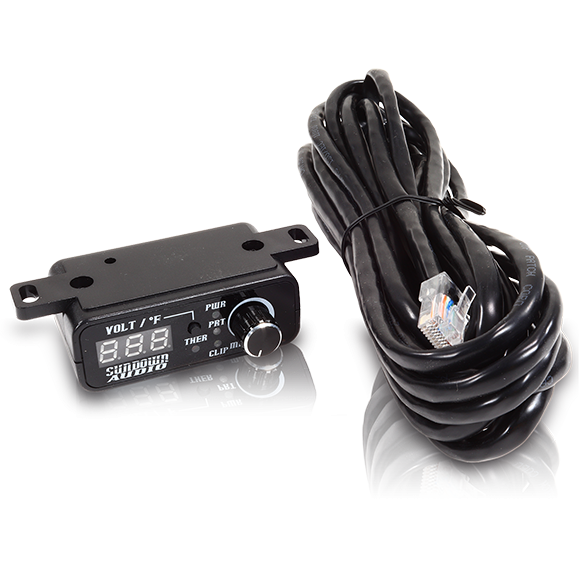

- Optional wired remote displays voltage, temperature, and clipping
Specifications
| Ch. 1–2 @ 4Ω / 2Ω | 100W / 200W x 2 |
| Ch. 3–4 @ 4Ω / 2Ω | 150W / 250W x 2 |
| Ch. 5–6 @ 4Ω / 2Ω / 1Ω | 200W / 350W / 550W x 2 |
| Class | D |
| Frequency Response | 10Hz–25kHz |
| Subsonic Filter | 10Hz–100Hz (12dB) |
| High-Pass Filter | 50Hz–500Hz (12dB) |
| Low-Pass Filter | 50Hz–500Hz (12dB) |
| Crossover Multiplier | X1/X10 |
| Protection | Thermal, voltage, speaker short, DC-offset |
