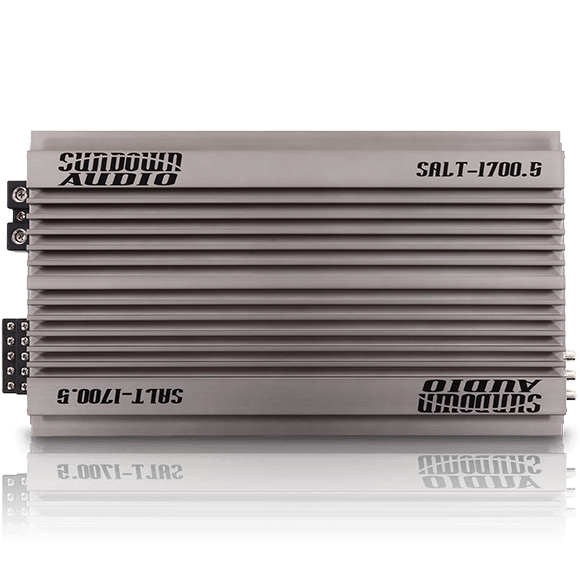

Sundown Audio SALT-1700.5 5-Channel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%0A%0AFull-Range%20%E2%80%94%20125W%20x%204%20@%204%CE%A9,%20220W%20x%204%20@%202%CE%A9%20(ch.%201%E2%80%934)%0A%0AClass%20%E2%80%94%20Class-D,%205-channel%20full-range%20digital%0A%0AFilters%20%E2%80%94%20Variable%20high/low-pass%20(...
){kind=link}
- Sub Channel — 1,300W x 1 @ 1Ω, 800W @ 2Ω, 480W @ 4Ω (ch. 5)
- Full-Range — 125W x 4 @ 4Ω, 220W x 4 @ 2Ω (ch. 1–4)
- Class — Class-D, 5-channel full-range digital
- Filters — Variable high/low-pass (50Hz–500Hz), subsonic (10Hz–100Hz)
- Protection — Thermal, voltage, speaker short, DC-offset
This Listing Includes: (1) Sundown Audio SALT-1700.5 5-Channel Amplifier
The SALT-1700.5 is a 5-channel full-range digital Class-D amplifier that drives four full-range channels at 125 watts x 4 (4 ohms) or 220 watts x 4 (2 ohms) plus a dedicated sub channel rated 480 watts (4 ohms), 800 watts (2 ohms), or 1,300 watts (1 ohm). It is 2-ohm stereo stable and 4-ohm bridged stable. SALT — Sundown Audio Low-Voltage Technology — produces optimum power at realistic voltages in the 12s rather than needing 14+ volts. A variable subsonic filter (10Hz–100Hz), variable high and low-pass filters (50Hz–500Hz), and X1/X10 crossover multiplier shape the output, with onboard power, clipping, and protection indicators and full protection circuitry. A wired remote displays voltage and temperature. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Full-range digital 5-channel amplifier, 2Ω stereo / 4Ω bridged stable
- Variable subsonic crossover filter: 10Hz–100Hz
- Variable high and low-pass filter: 50Hz–500Hz

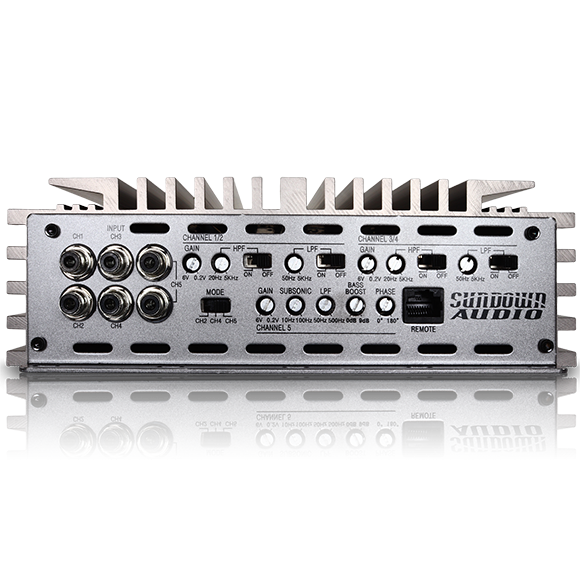

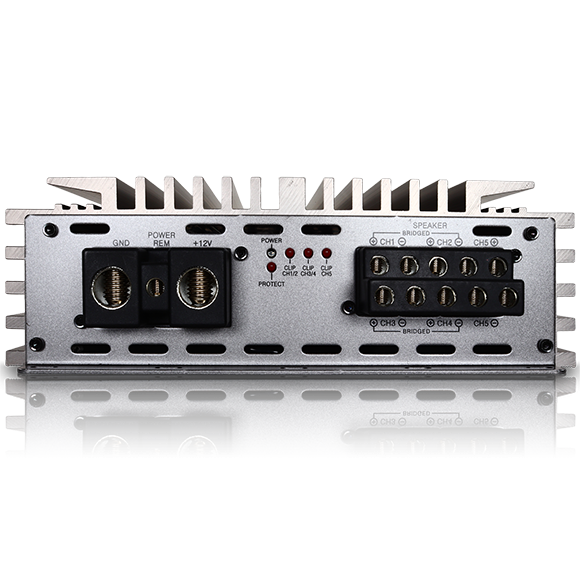

- X1/X10 crossover multiplier with power, clipping and protection indicators

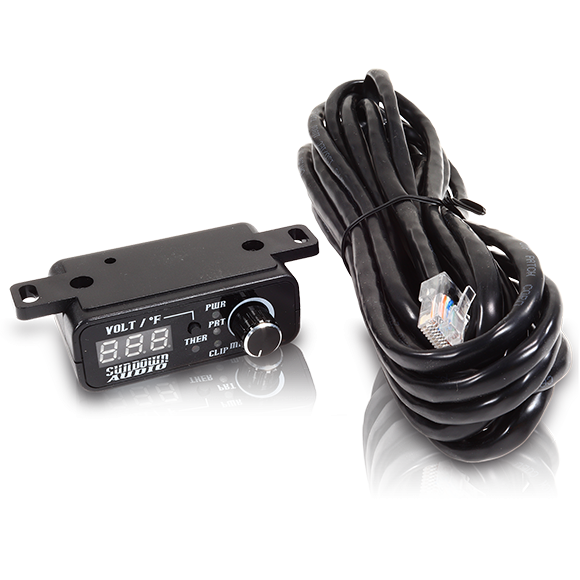

- Wired remote control displays voltage and temperature
Specifications
| Sub Channel @ 1Ω | 1,300W x 1 |
| Sub Channel @ 2Ω | 800W x 1 |
| Sub Channel @ 4Ω | 480W x 1 |
| Ch. 1–4 @ 2Ω | 220W x 4 |
| Ch. 1–4 @ 4Ω | 125W x 4 |
| Class | D |
| Subsonic Filter | 10Hz–100Hz |
| High/Low-Pass Filters | 50Hz–500Hz |
| Crossover Multiplier | X1/X10 |
| Protection | Thermal, voltage, speaker short, DC-offset |
