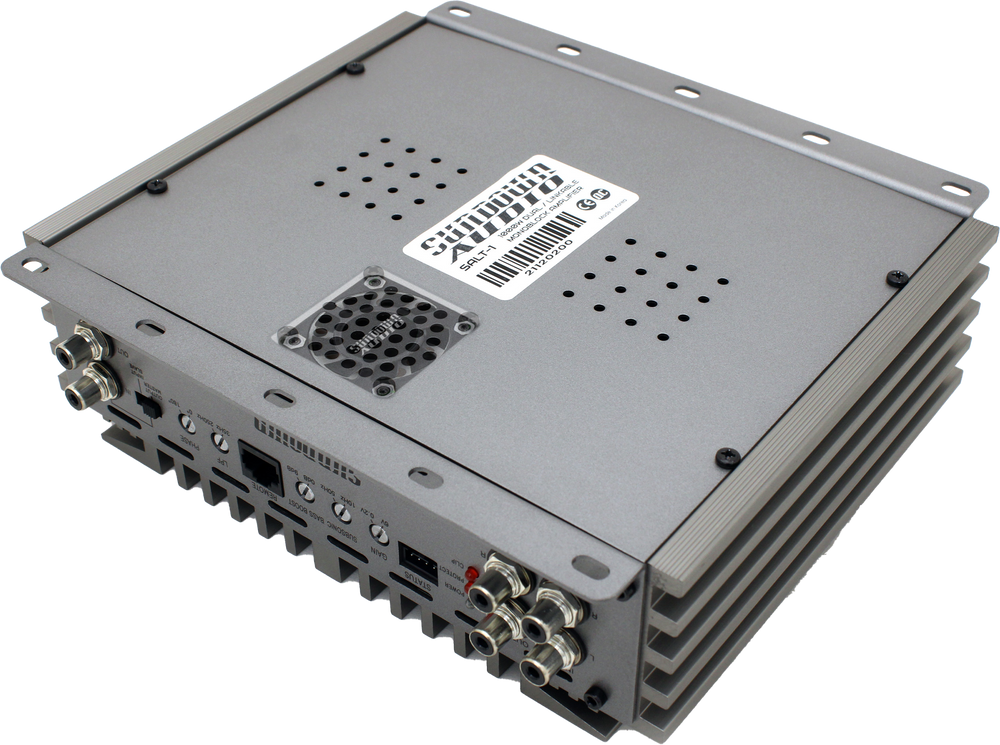

Sundown Audio SALT-1 Class D Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%0A%0AClass%20%E2%80%94%20Strappable%20Class%20D%20monoblock%0A%0ALow-Pass%20Filter%20%E2%80%94%2024dB%20variable,%2035Hz%E2%80%93250Hz%0A%0ASubsonic%20Filter%20%E2%80%94%2024dB%20variable,%201...
){kind=link}
- RMS Power — 1,000W @ 1Ω, 500W @ 2Ω, 250W @ 4Ω mono (2,000W @ 2Ω when linked)
- Class — Strappable Class D monoblock
- Low-Pass Filter — 24dB variable, 35Hz–250Hz
- Subsonic Filter — 24dB variable, 10Hz–50Hz
- Bass Boost — Variable 0–9dB @ 45Hz
This Listing Includes: (1) Sundown Audio SALT-1 Class D Amplifier
The SALT-1 is a strappable Class D monoblock delivering 1,000W at 1 ohm, 500W at 2 ohms, and 250W at 4 ohms on its own, or a massive 2,000W at 2 ohms when linked to a second SALT-1. Built on Sundown Audio Low-Voltage Technology, it produces optimum power at realistic charging voltages rather than needing 14+ volts. A 24dB variable subsonic filter (10Hz–50Hz), 24dB variable low-pass filter (35Hz–250Hz), variable bass boost at 45Hz, and 0–180 degree phase control let you dial in your perfect sound. The included wired remote displays voltage, temperature, and clipping at a glance. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Strappable monoblock for 2,000W @ 2Ω when linked
- Sundown Audio Low-Voltage Technology for power at realistic voltages
- 24dB variable subsonic and low-pass filters plus bass boost @ 45Hz
- Wired remote displays voltage, temperature, and clipping
- Thermal, voltage, speaker short, and DC-offset protection circuitry
Specifications
| RMS Power @ 1Ω (mono) | 1,000W x 1 |
| RMS Power @ 2Ω (mono) | 500W x 1 |
| RMS Power @ 4Ω (mono) | 250W x 1 |
| RMS Power @ 2Ω (linked) | 2,000W x 1 |
| Low-Pass Filter | 24dB variable, 35Hz–250Hz |
| Subsonic Filter | 24dB variable, 10Hz–50Hz |
| Bass Boost | 0–9dB @ 45Hz |
| Phase Shift | 0–180 degrees |
| Frequency Response | 10Hz – 250Hz |
| Input Sensitivity | 6V – 0.2V |
| Efficiency | >90% |
| Signal / Noise Ratio | >90dB |
| Damping Factor | >400 |
| Tested Voltage & THD | 12.8V & <1% THD |
| Operating Voltage | DC 9V – 15.5V |
| Recommended Fuse | 120 Amps |
| Dimensions | 6.69” L x 8.67” W x 2.80” H |
