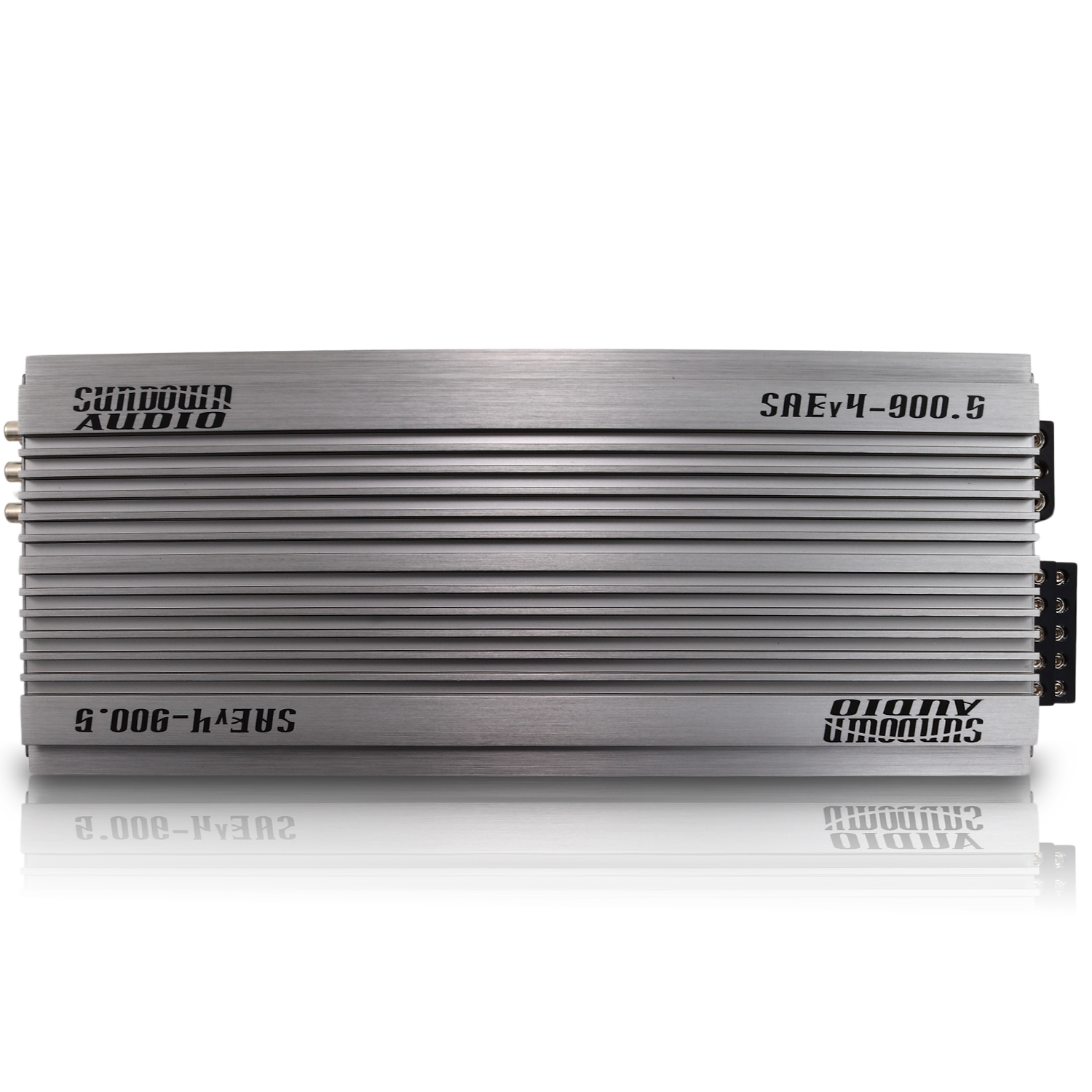

Sundown Audio SAEv4-900.5 5-Channel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20%E2%80%94%20120W%20x%204%20@%202%CE%A9,%2080W%20x%204%20@%204%CE%A9%20RMS%0A%0APower%20(Ch.%205)%20%E2%80%94%20500W%20@%201%CE%A9,%20325W%20@%202%CE%A9,%20225W%20@%204%CE%A9%20RMS%0A%0ADesign%20%E2%80%94%20Hi-fidelity%20Class%20A/B+D%0A%0ACrossovers%20%E2%80%94%20Variable%2012dB%20LPF/HPF%2040Hz%E2%80%935kHz%20(Ch.%201-4)%0A%0AS...
){kind=link}
- Power (Ch. 1-4) — 120W x 4 @ 2Ω, 80W x 4 @ 4Ω RMS
- Power (Ch. 5) — 500W @ 1Ω, 325W @ 2Ω, 225W @ 4Ω RMS
- Design — Hi-fidelity Class A/B+D
- Crossovers — Variable 12dB LPF/HPF 40Hz–5kHz (Ch. 1-4)
- Subsonic Filter — Variable 12dB, 10Hz–40Hz (Ch. 5)
This Listing Includes: (1) Sundown Audio SAEv4-900.5 5-Channel Amplifier
The SAEv4-900.5 is a high-fidelity Class A/B+D five-channel amplifier designed to drive an entire system from a single chassis, with 980 watts of RMS power and a 6V max input sensitivity. Channels 1-4 deliver 120W x 4 at 2 ohms and 80W x 4 at 4 ohms, while channel 5 puts out 500W at 1 ohm for a subwoofer. The all-new chassis and heatsink carry 33% more aluminum to keep the amp cool, and variable subsonic, high pass, and low pass filters are paired with a 4-way protection circuit covering thermal, voltage, speaker short, and DC offset. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Latest half-bridge technology in a compact design
- All-new chassis and heatsink with 33% more aluminum

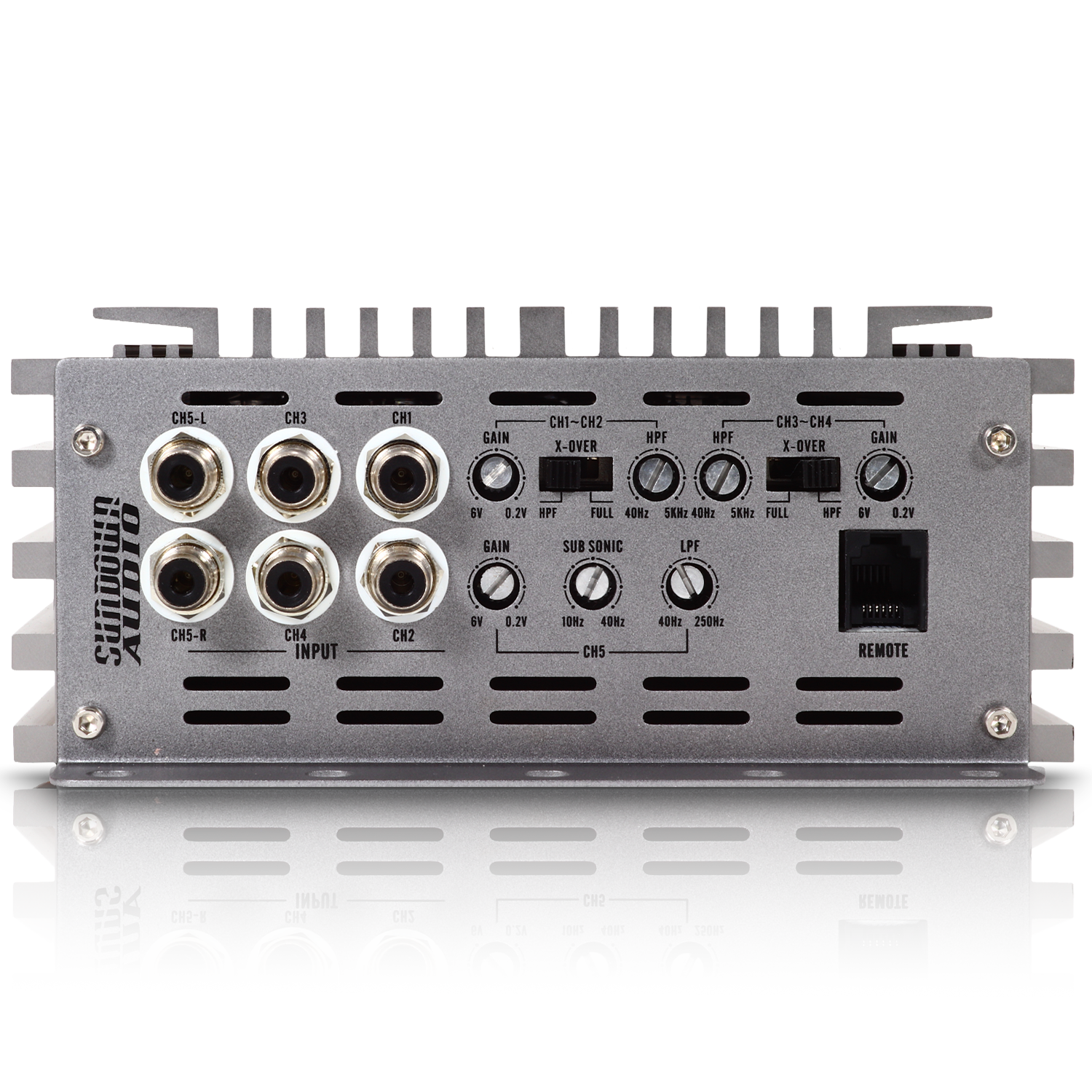

- Variable subsonic, high pass, and low pass filters
- 4-way protection: thermal, voltage, speaker short, DC offset
- Optional wired remote control with clipping indicator
Specifications
| Power Ch. 1-4 @ 2Ω | 120W x 4 |
| Power Ch. 1-4 @ 4Ω | 80W x 4 |
| Power Ch. 5 @ 1Ω | 500W x 1 |
| Power Ch. 5 @ 2Ω | 325W x 1 |
| Power Ch. 5 @ 4Ω | 225W x 1 |
| Design | Hi-fidelity Class A/B+D |
| LPF/HPF (Ch. 1-4) | Variable 12dB, 40Hz–5kHz |
| LPF (Ch. 5) | Variable 12dB, 40Hz–250Hz |
| Subsonic Filter (Ch. 5) | Variable 12dB, 10Hz–40Hz |
| Input Sensitivity | 6V max |
| Protection | Thermal, voltage, speaker short, DC-offset |
