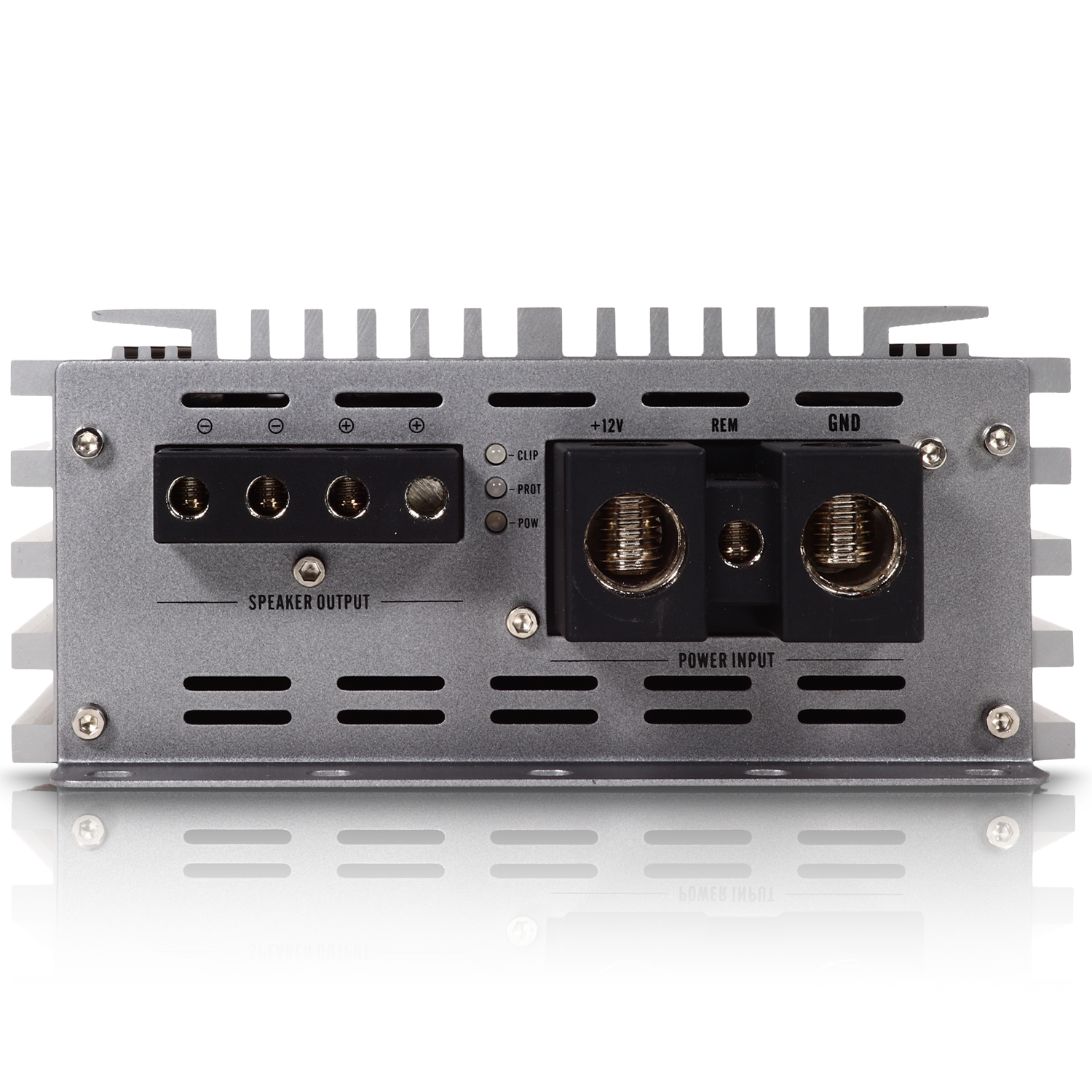

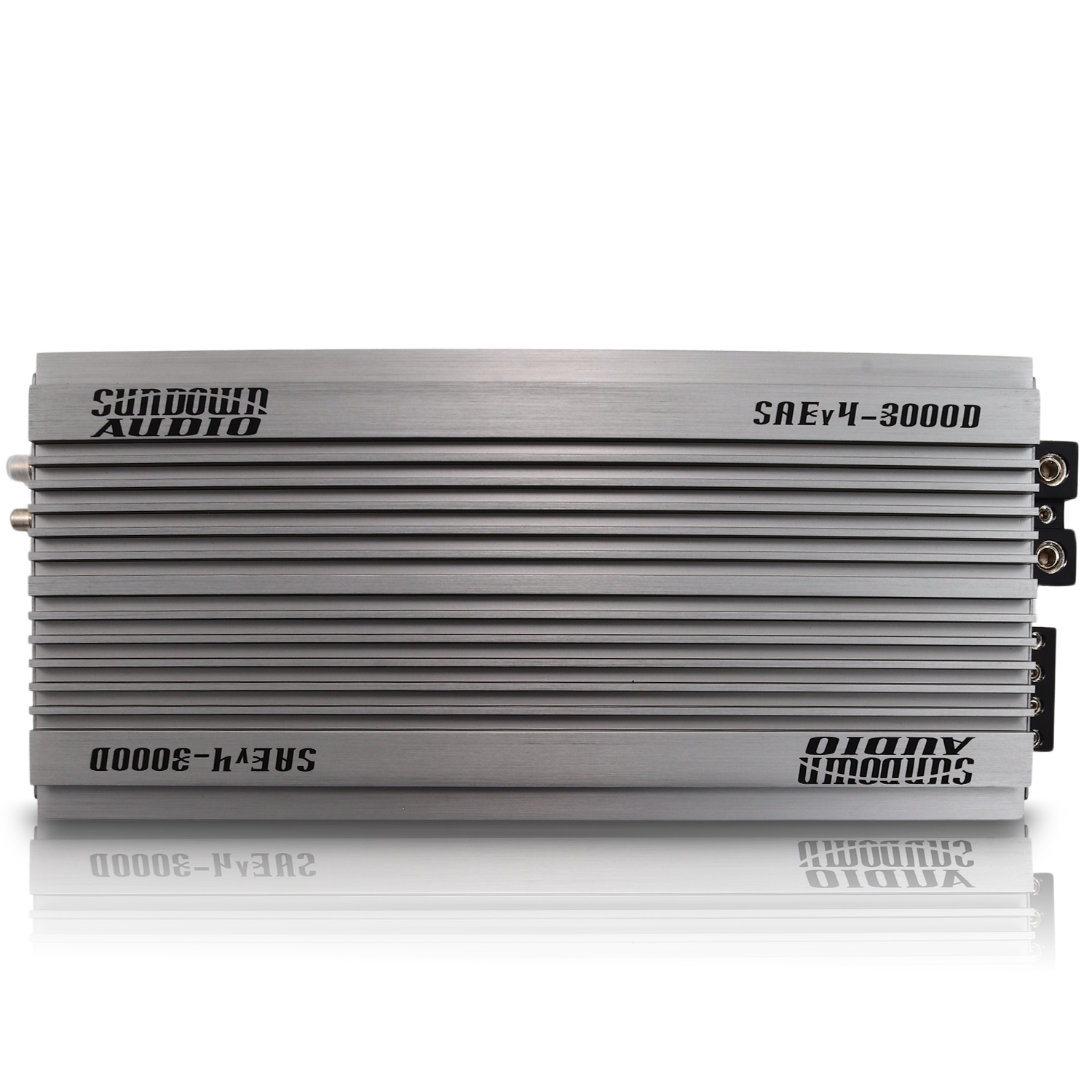

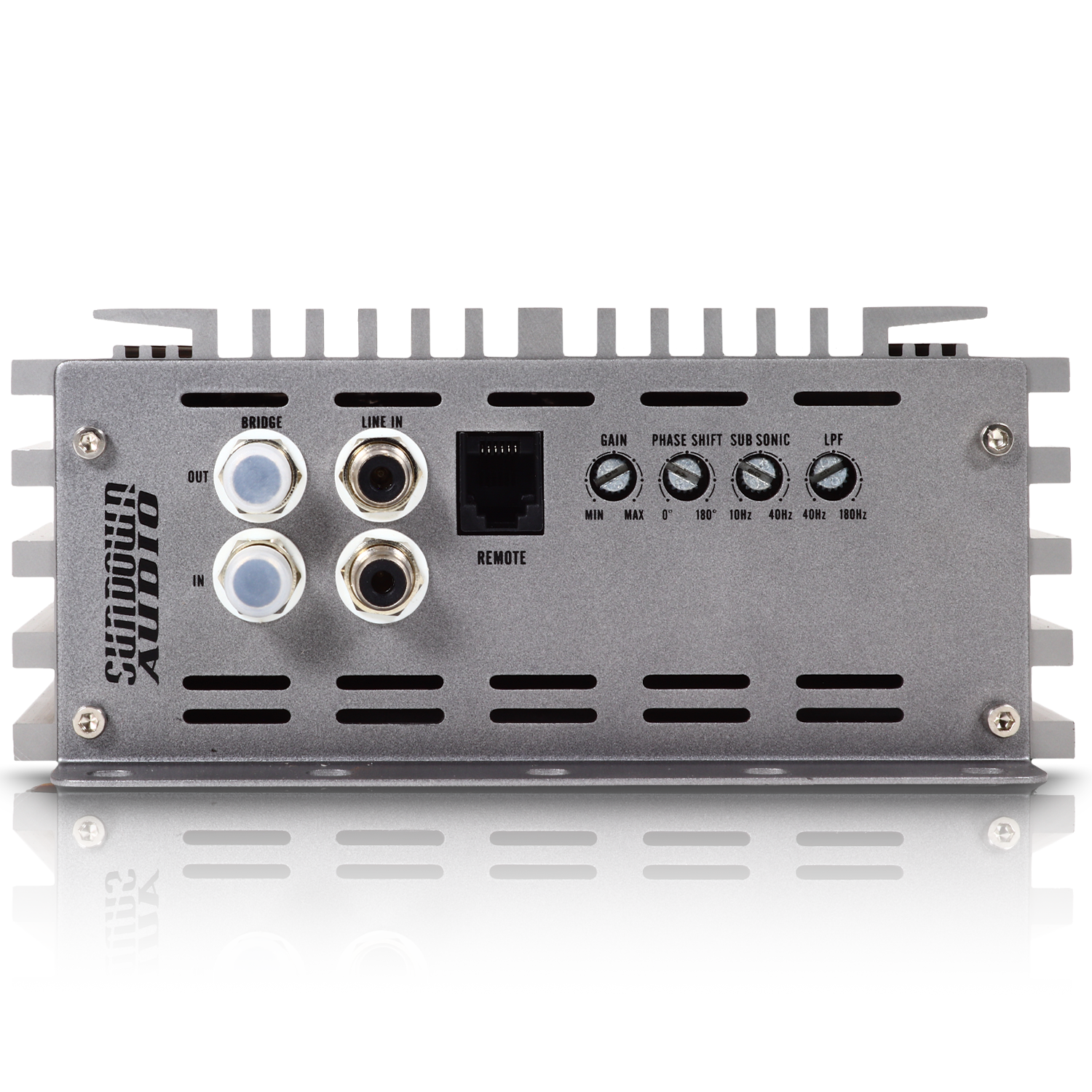

Sundown Audio SAEv4-3000.1D Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power — 3,000W @ 1Ω, 2,000W @ 2Ω, 1,300W @ 4Ω RMS
- Class — Class D half-bridge monoblock
- Low Pass Filter — Variable 12dB, 40Hz–180Hz
- Subsonic Filter — 12dB, 10Hz–40Hz
- Phase — Phase shift control 0–180 degrees
This Listing Includes: (1) Sundown Audio SAEv4-3000.1D Amplifier
The SAEv4-3000.1D is a half-bridge Class D monoblock delivering 3,000 watts RMS at 1 ohm, 2,000 watts at 2 ohms, and 1,300 watts at 4 ohms. Variable phase, low pass, and subsonic filters provide tuning control, while a heavy aluminum heat sink improves thermal management to prevent overheating during extended use. Protection circuitry guards against thermal, voltage, speaker short, and DC-offset issues, and the included wired remote with clipping indicator offers real-time monitoring and output control. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Phase shift control 0-180 degrees
- Heavy aluminum heat sink for improved thermal control
- Power, clipping & protection indicators included
- Thermal, voltage, speaker short, and DC-offset protection circuitry
- Wired remote control with clipping indicator
Specifications
| RMS Power @ 1Ω | 3,000 watts |
| RMS Power @ 2Ω | 2,000 watts |
| RMS Power @ 4Ω | 1,300 watts |
| Class | Class D (half-bridge) |
| Low Pass Filter | Variable 12dB, 40Hz–180Hz |
| Subsonic Filter | 12dB, 10Hz–40Hz |
| Phase Control | 0–180 degrees |
| Protection | Thermal, voltage, speaker short, DC-offset |
