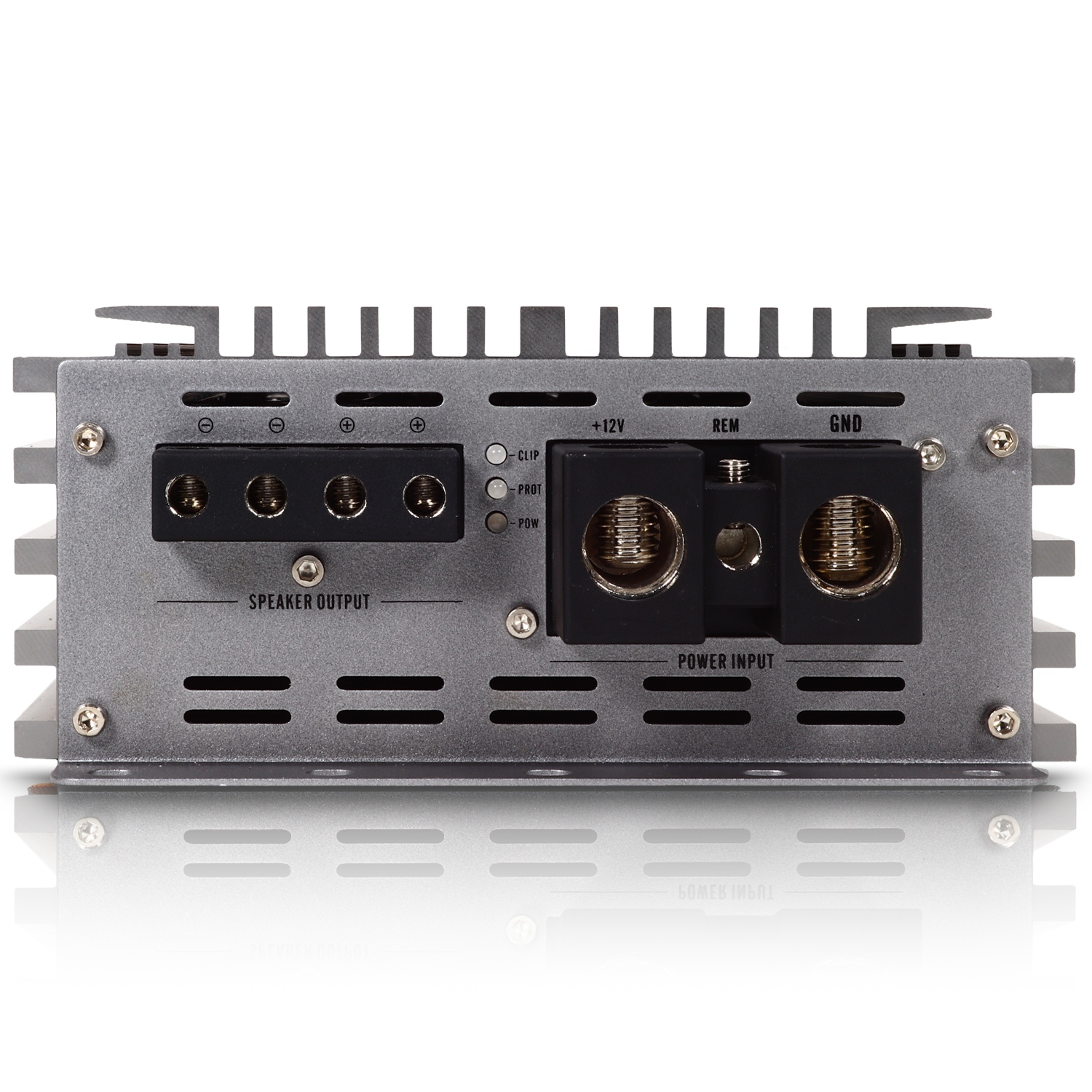

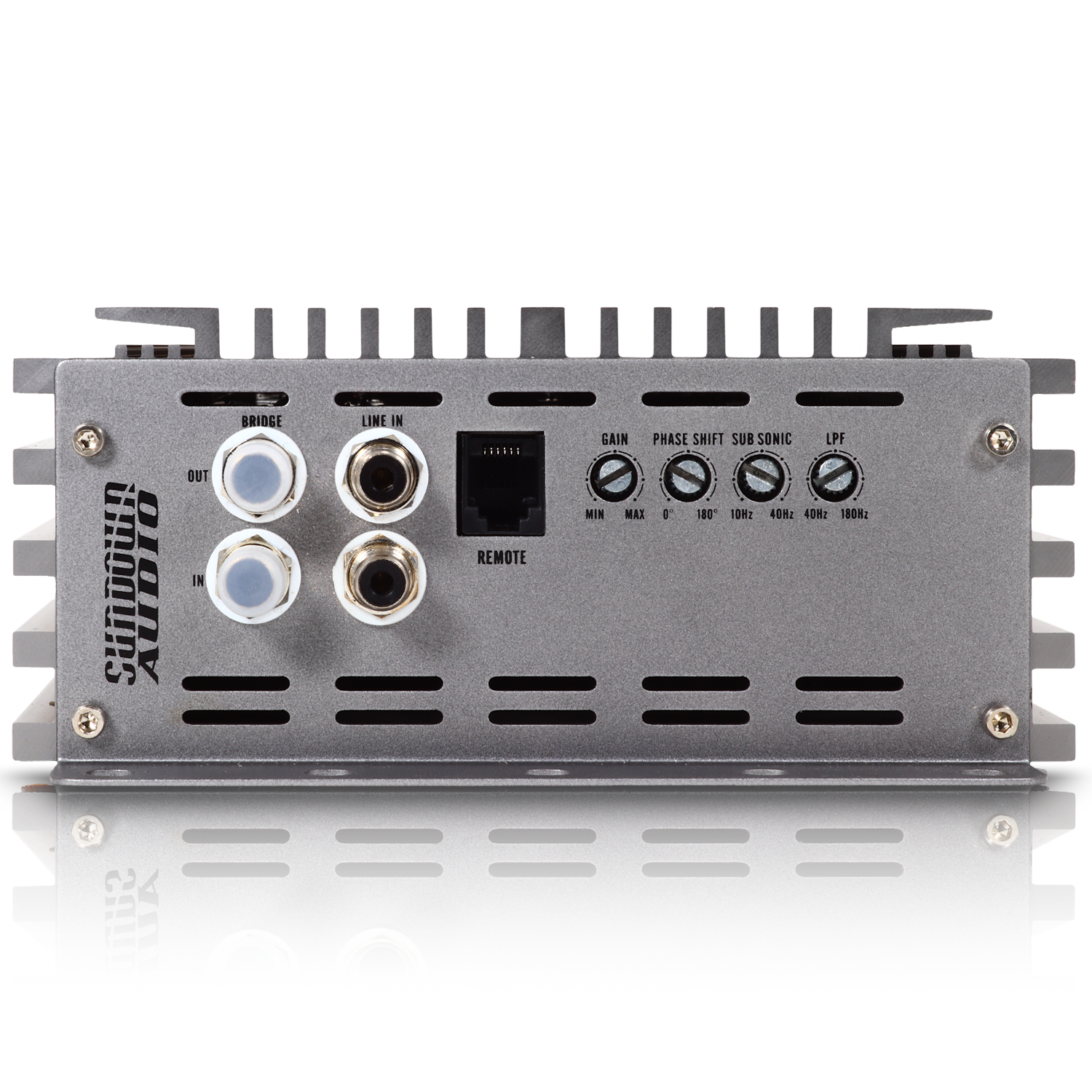

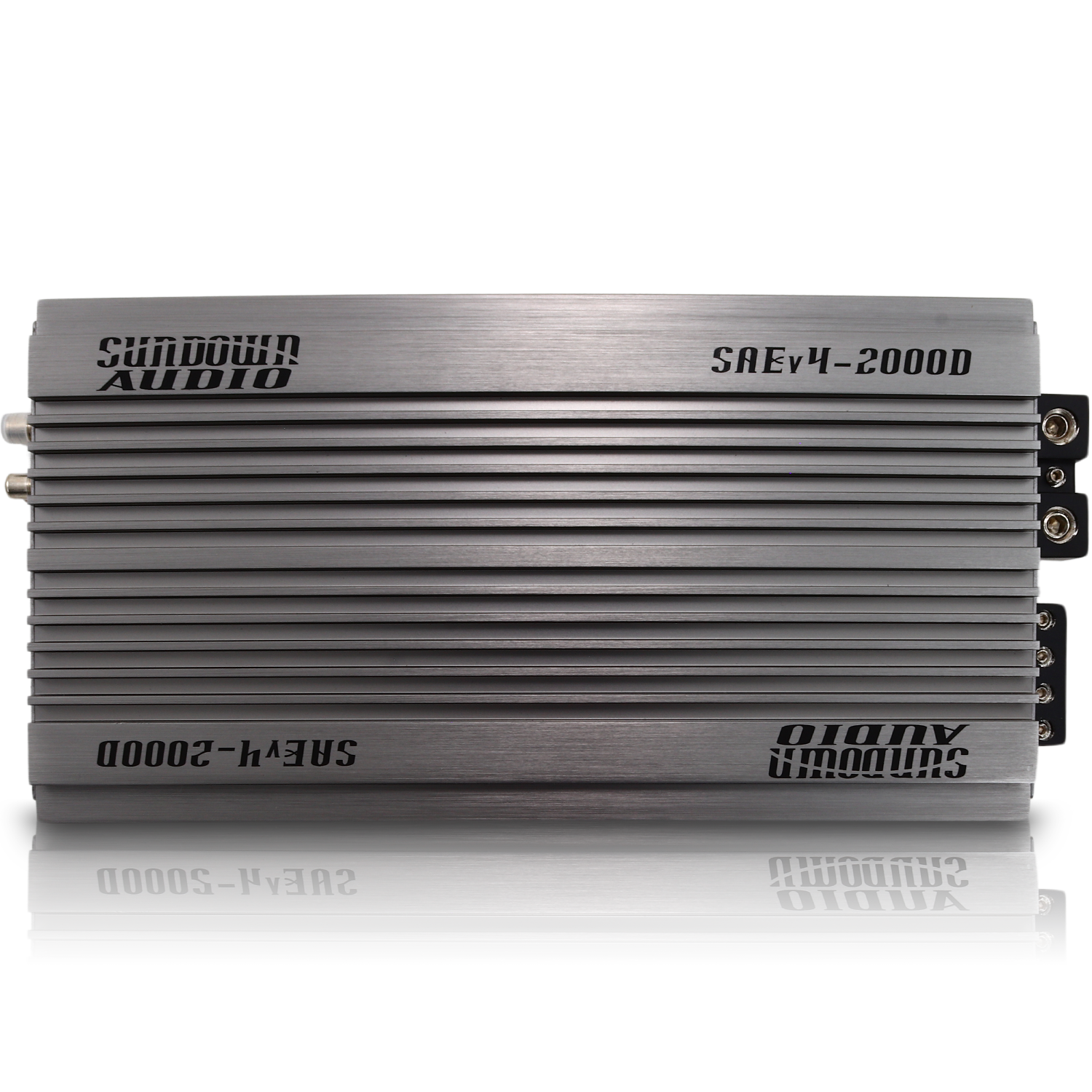

Sundown Audio SAEv4-2000.1D Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%0A%0ALow-Pass%20Filter%20%E2%80%94%2012dB%20variable,%2040Hz%E2%80%93180Hz%0A%0ASubsonic%20Filter%20%E2%80%94%2012dB,%2010Hz%E2%80%9340Hz%0A%0APhase%20Control...
){kind=link}
- RMS Power — 2,000W x 1 @ 1Ω, 1,300W x 1 @ 2Ω, 875W x 1 @ 4Ω
- Class — Class D monoblock (half-bridge)
- Low-Pass Filter — 12dB variable, 40Hz–180Hz
- Subsonic Filter — 12dB, 10Hz–40Hz
- Phase Control — Variable phase shift 0–180 degrees
This Listing Includes: (1) Sundown Audio SAEv4-2000.1D Amplifier
The SAEv4-2000.1D is a high-performance half-bridge Class D monoblock delivering 2,000W RMS at 1 ohm, 1,300W at 2 ohms, and 875W at 4 ohms. Its variable phase, 12dB low-pass (40Hz–180Hz) and 12dB subsonic (10Hz–40Hz) filters let you dial in the exact response you want. Protection circuitry guards against thermal, voltage, speaker short, and DC-offset faults, while a heavy aluminum heat sink keeps temperatures in check during extended use. The included wired remote with clipping indicator provides real-time monitoring and output control. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Class D half-bridge design for powerful, detailed bass
- Variable low-pass, subsonic, and phase-shift controls
- Power, clipping & protection indicators
- Heavy aluminum heat sink for improved thermal control
- Thermal, voltage, speaker short, and DC-offset protection circuitry
Specifications
| RMS Power @ 1Ω | 2,000W x 1 |
| RMS Power @ 2Ω | 1,300W x 1 |
| RMS Power @ 4Ω | 875W x 1 |
| Amplifier Class | Class D |
| Low-Pass Filter | 12dB variable, 40Hz–180Hz |
| Subsonic Filter | 12dB, 10Hz–40Hz |
| Phase Shift | 0–180 degrees |
