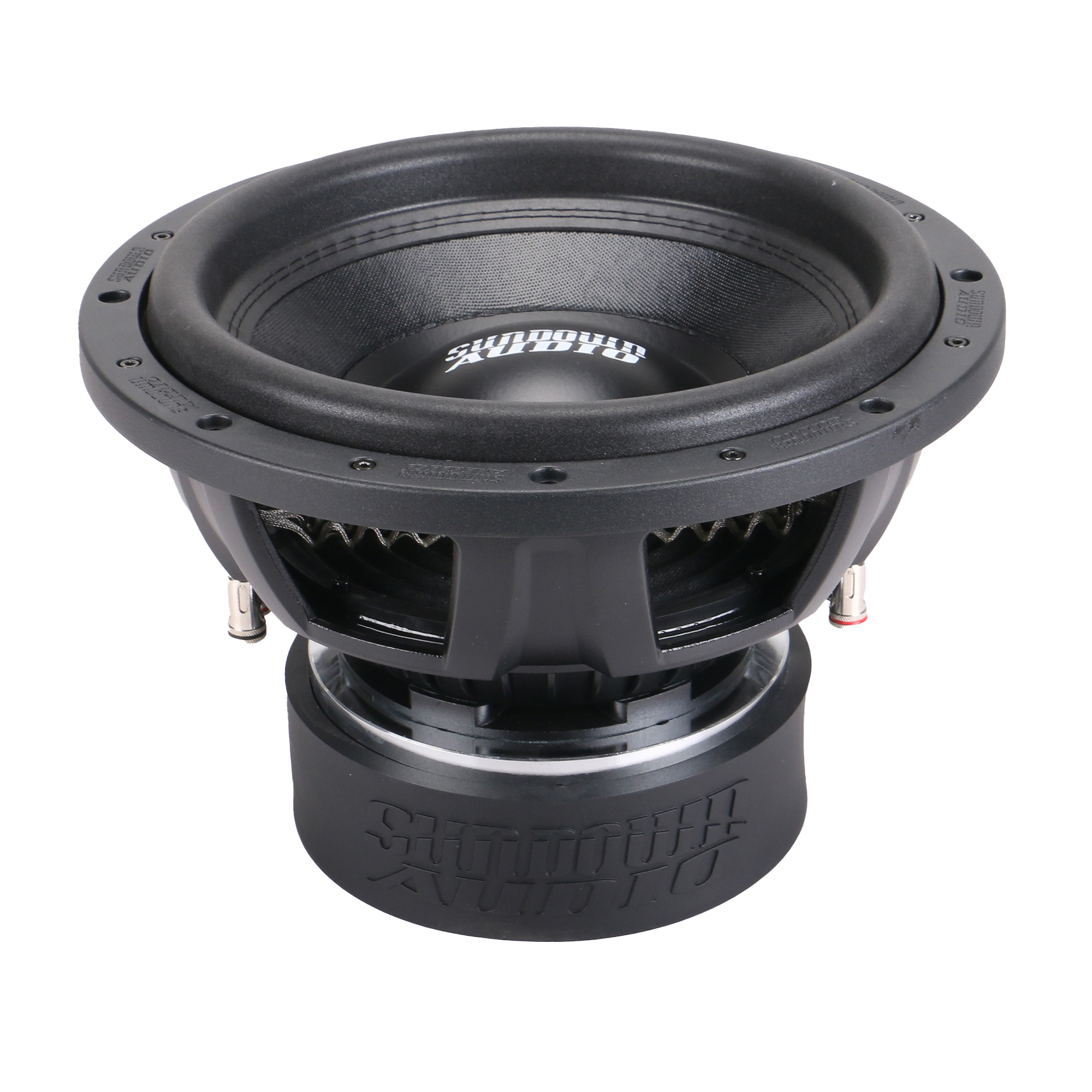

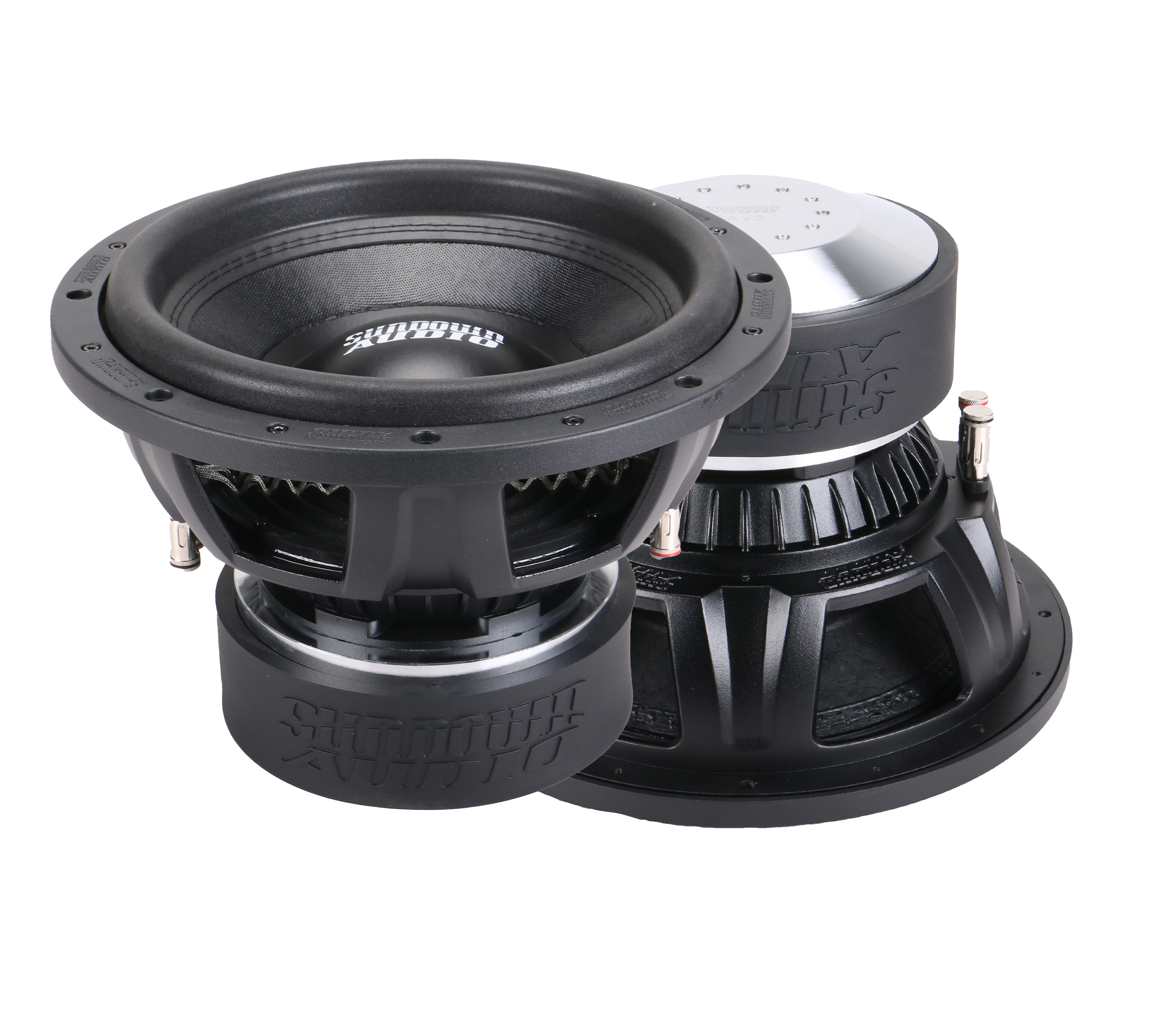

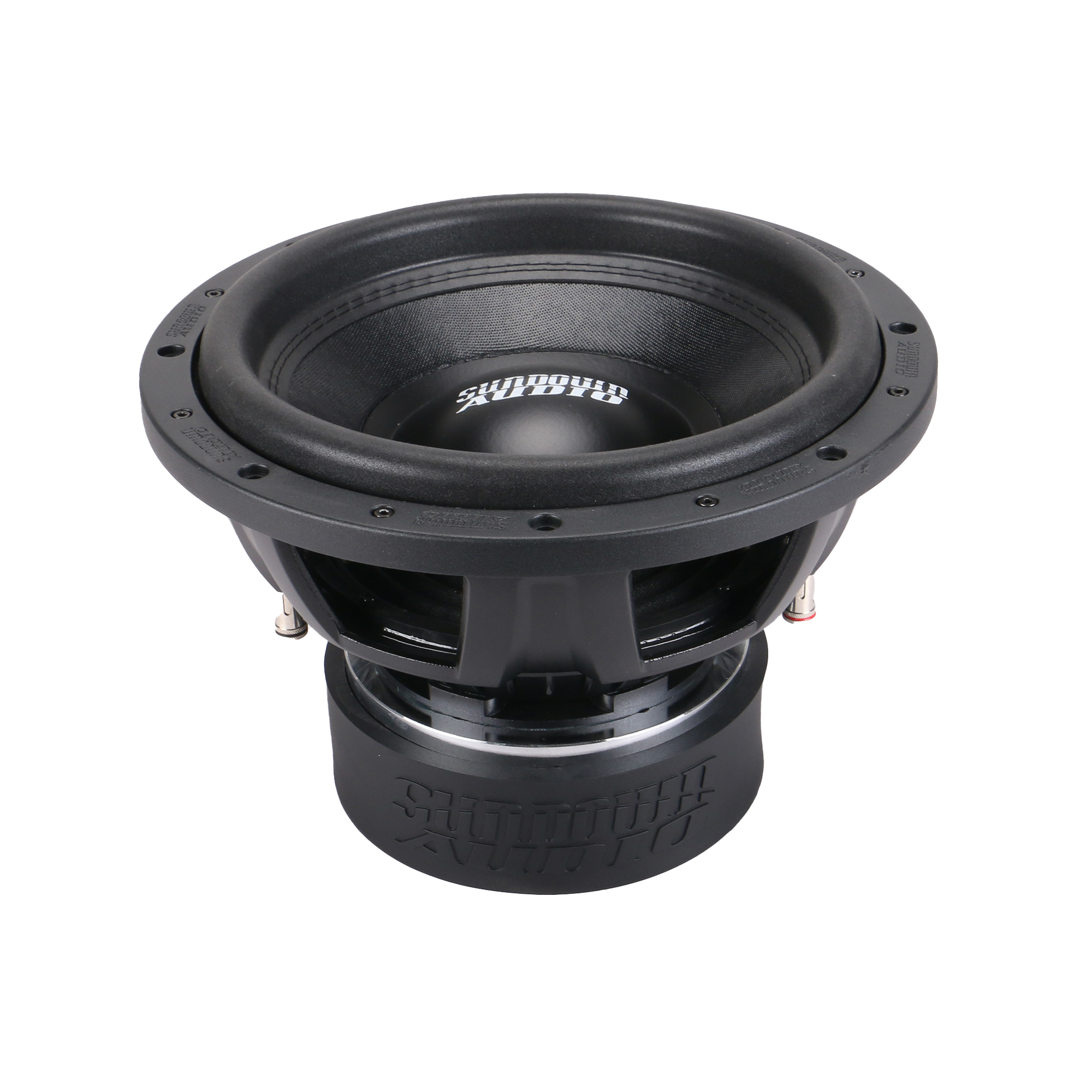

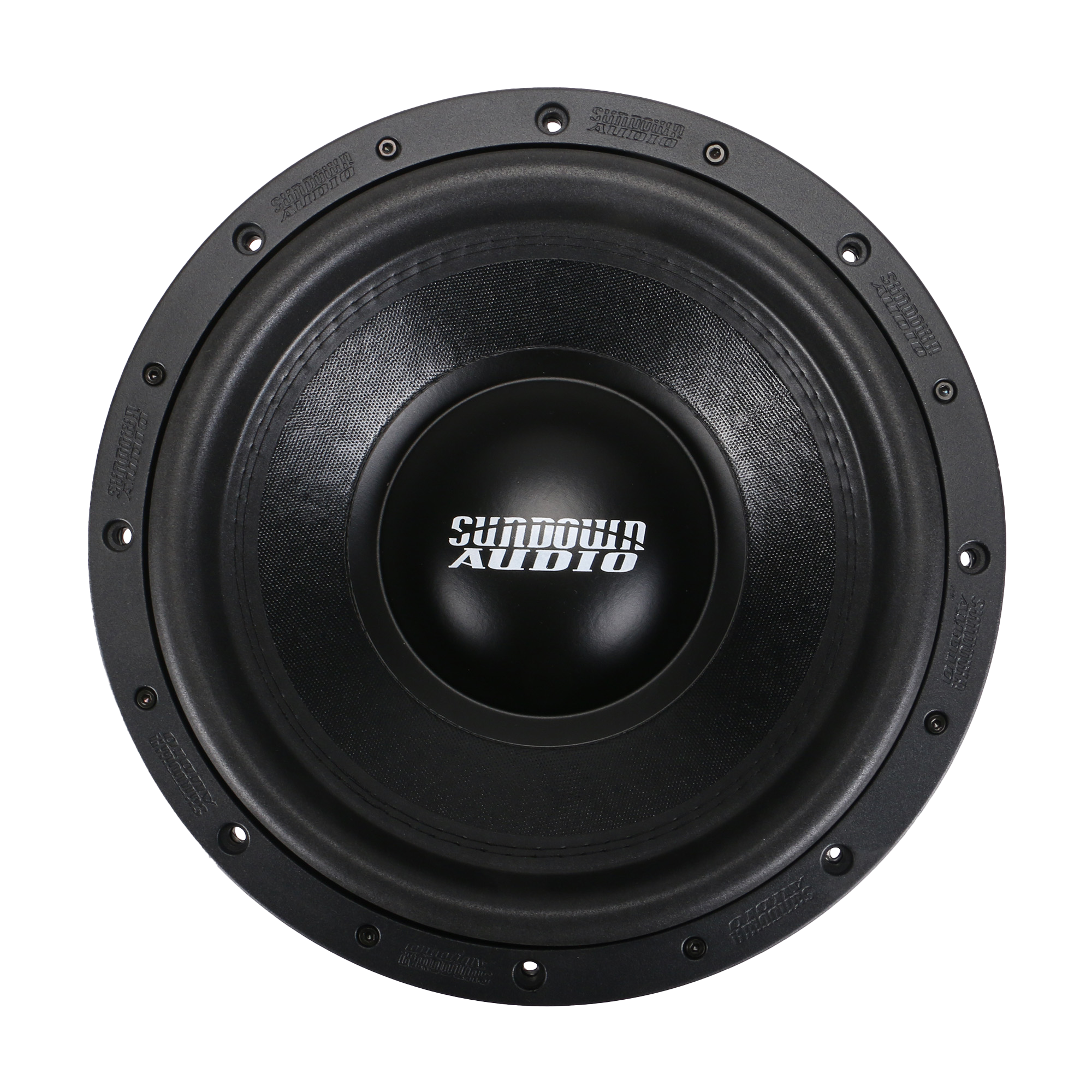

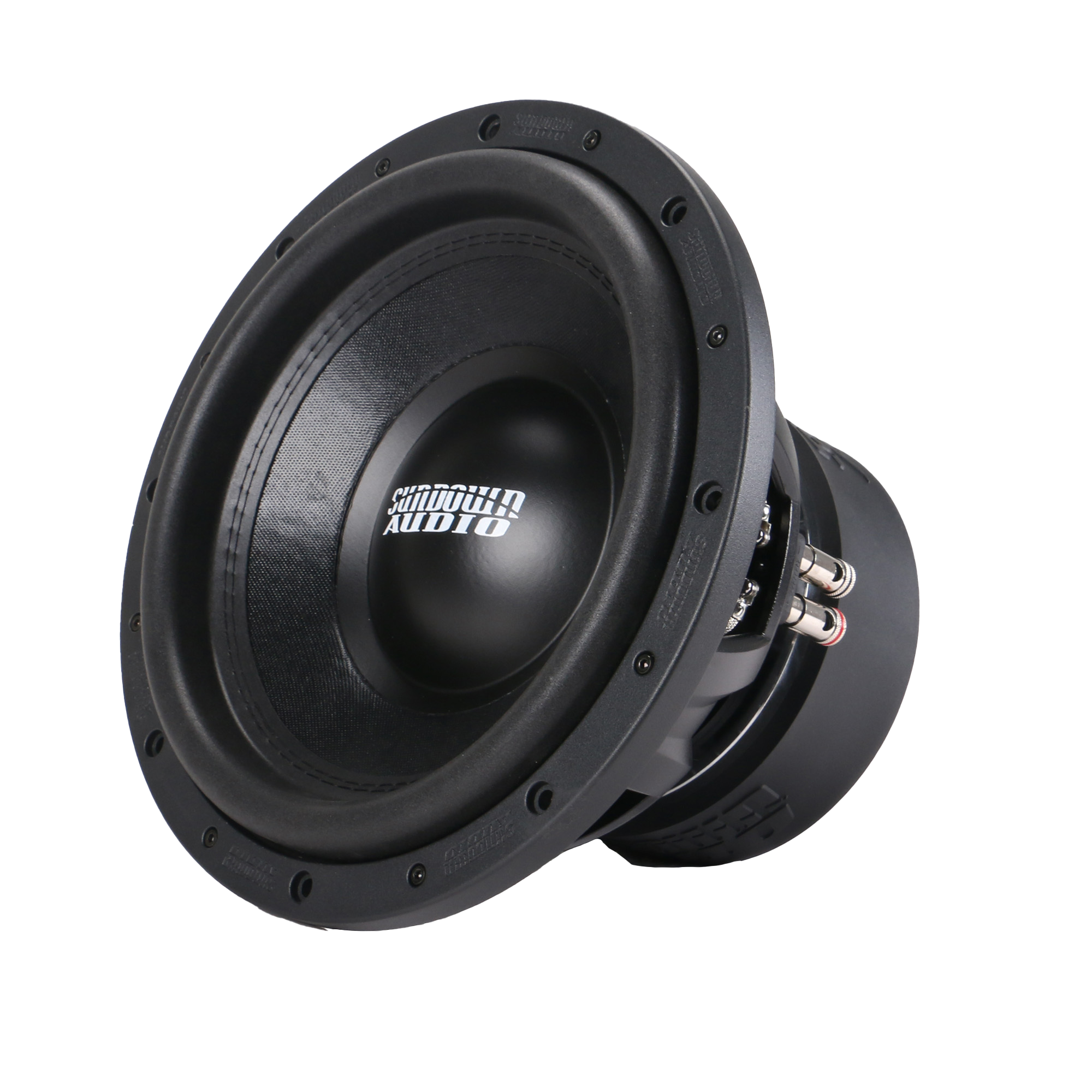

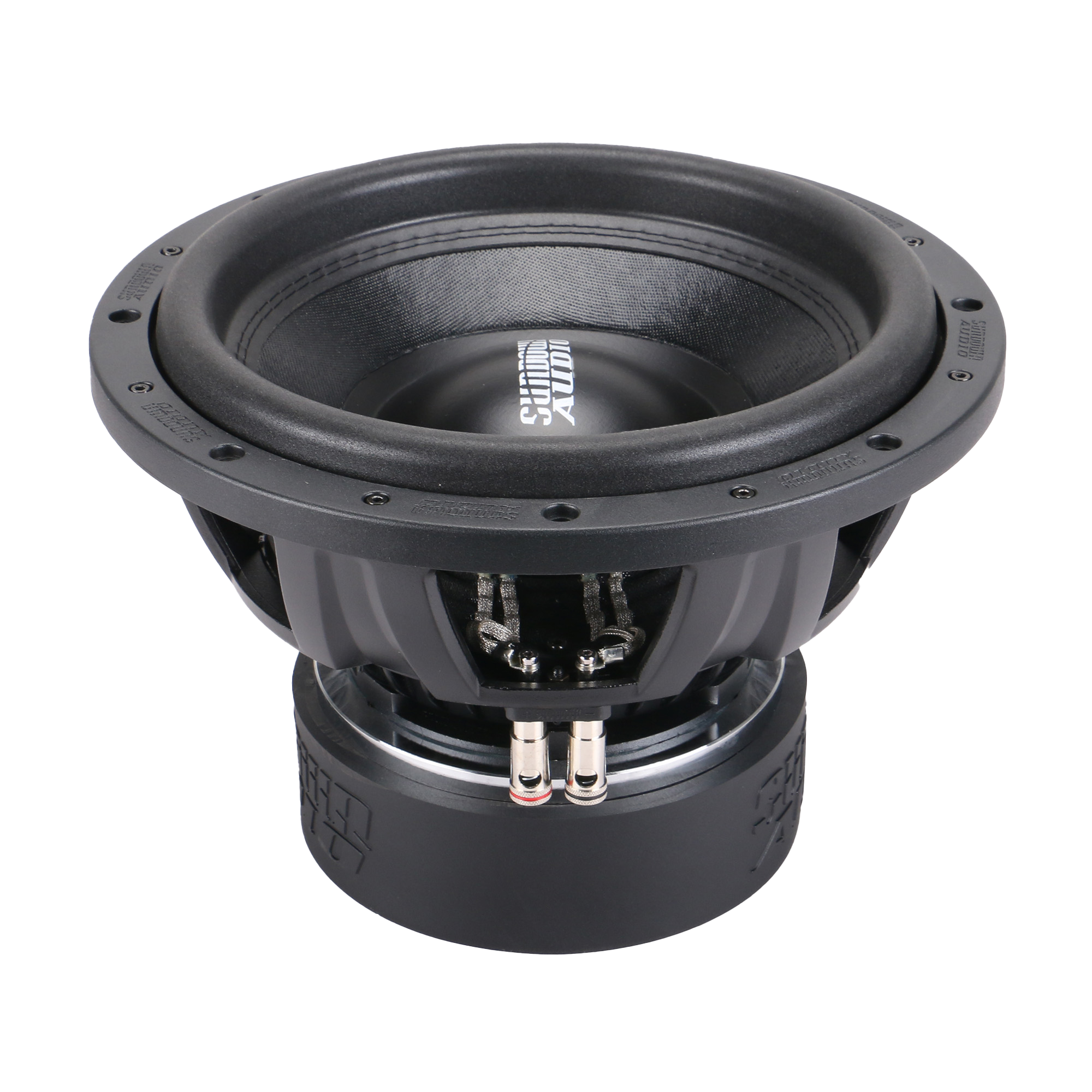

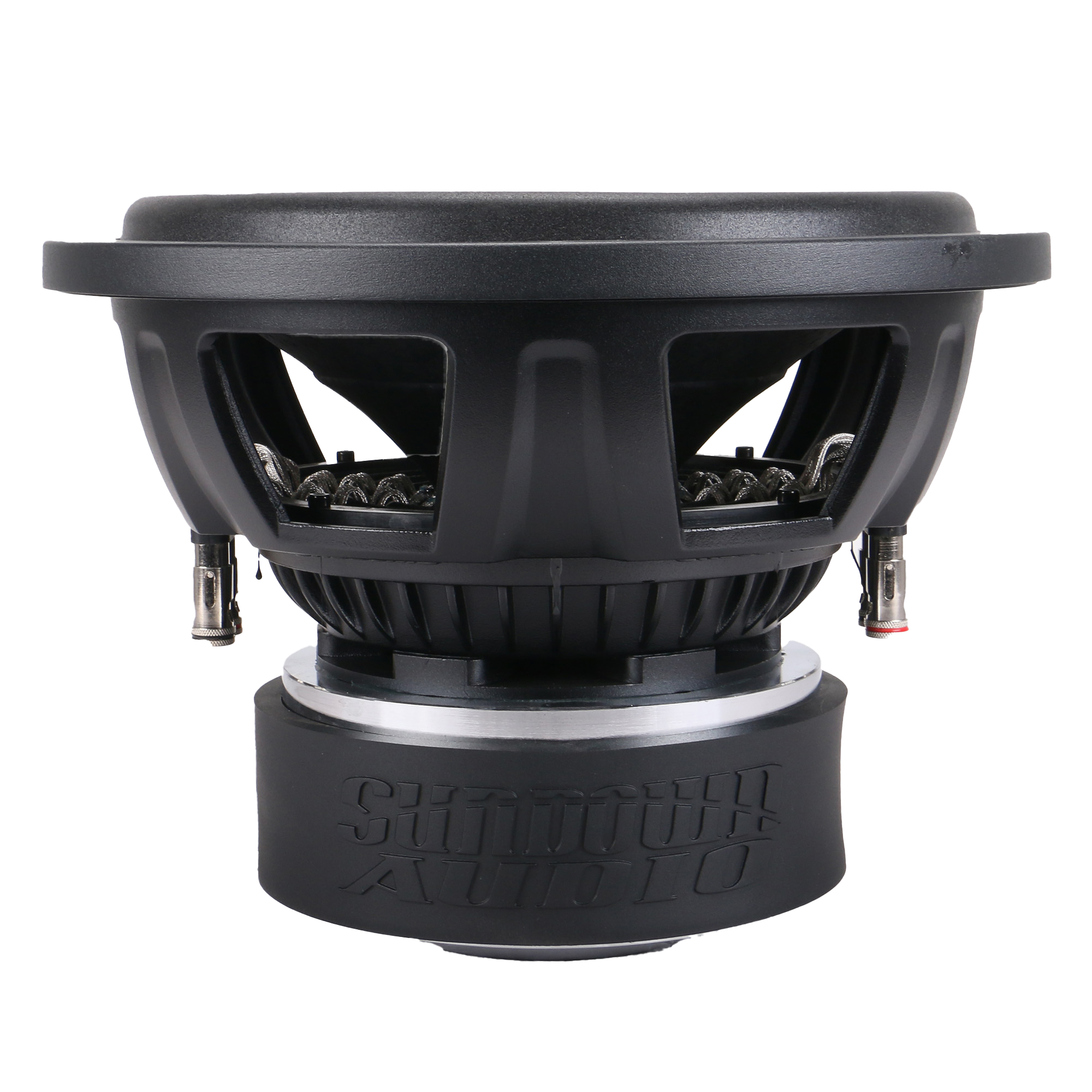

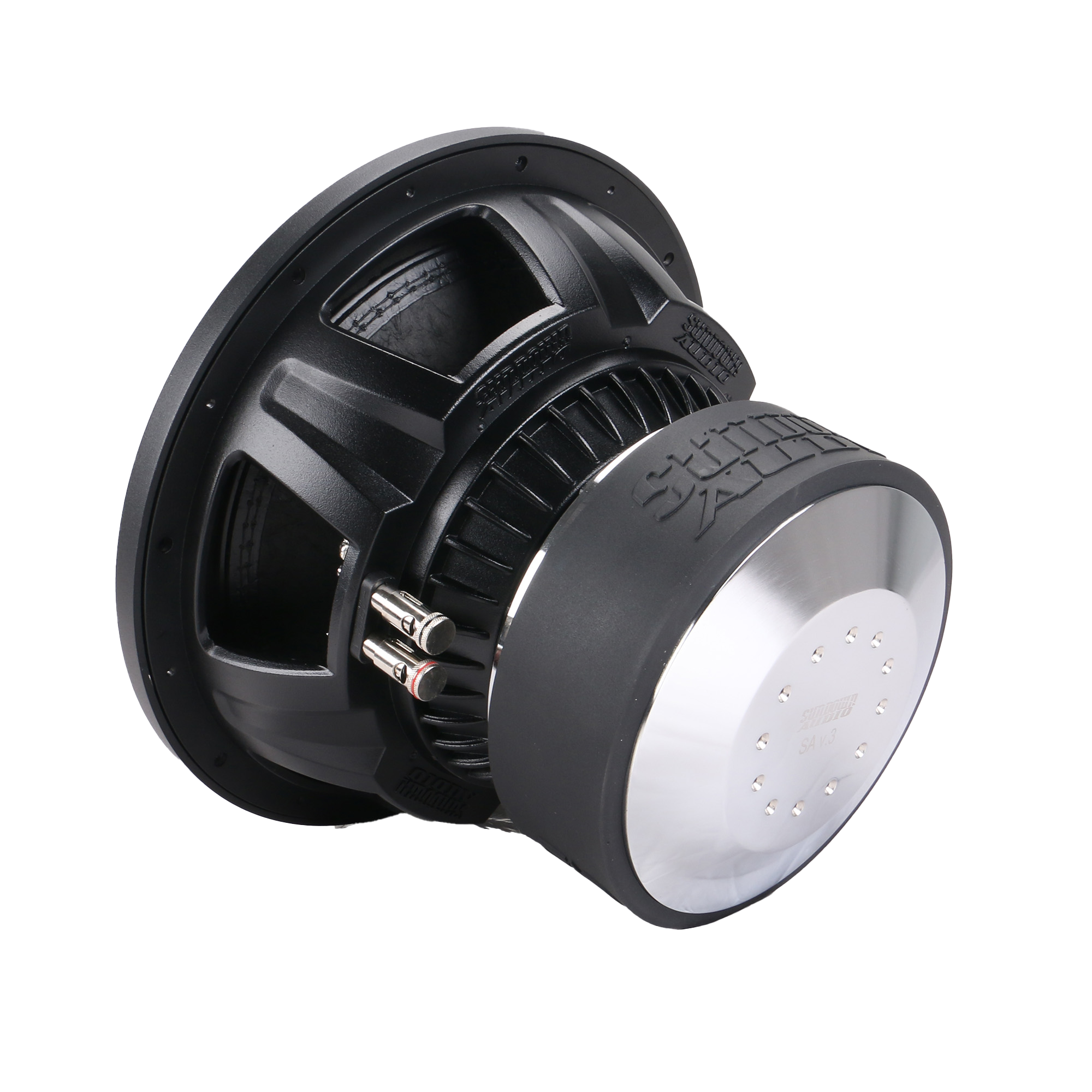

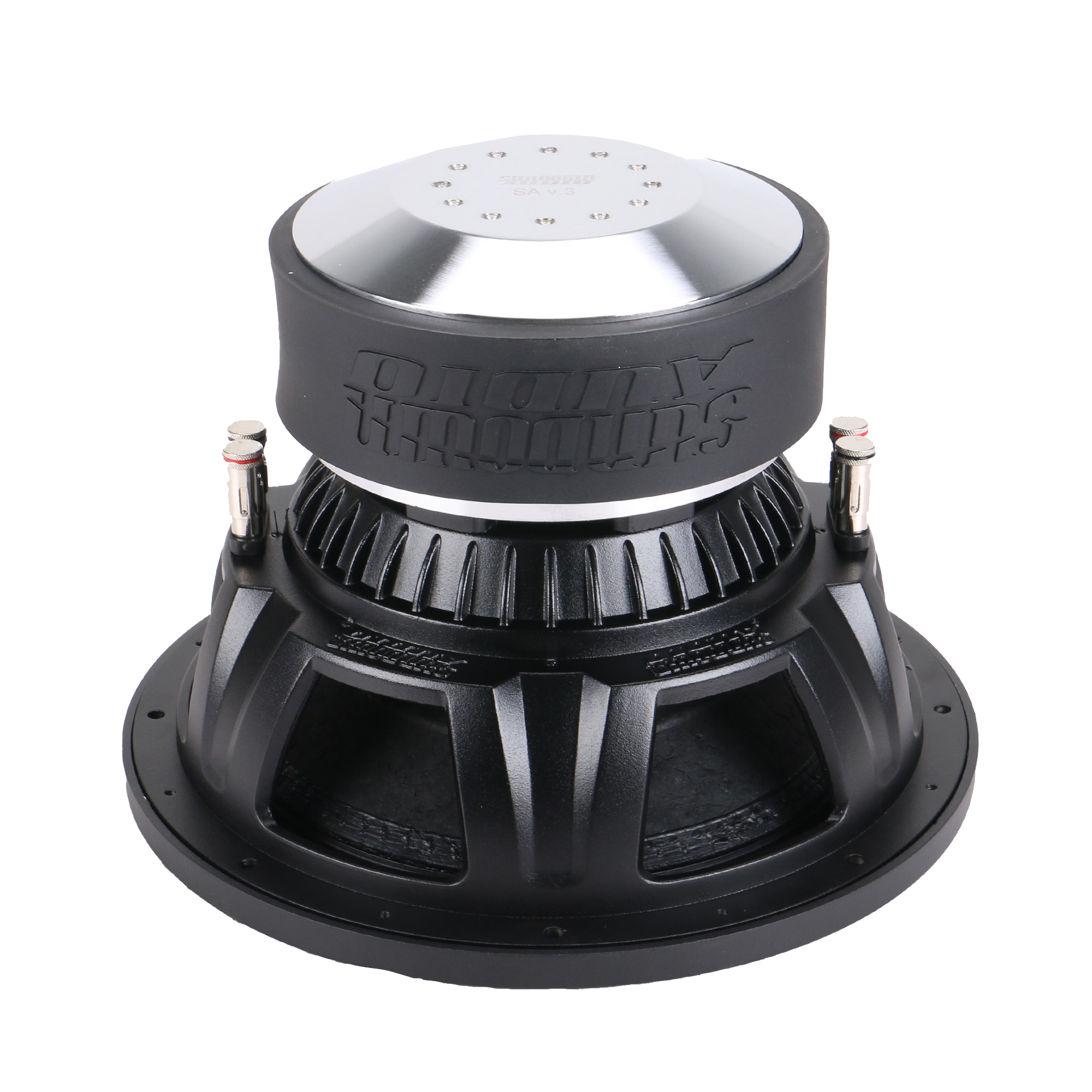

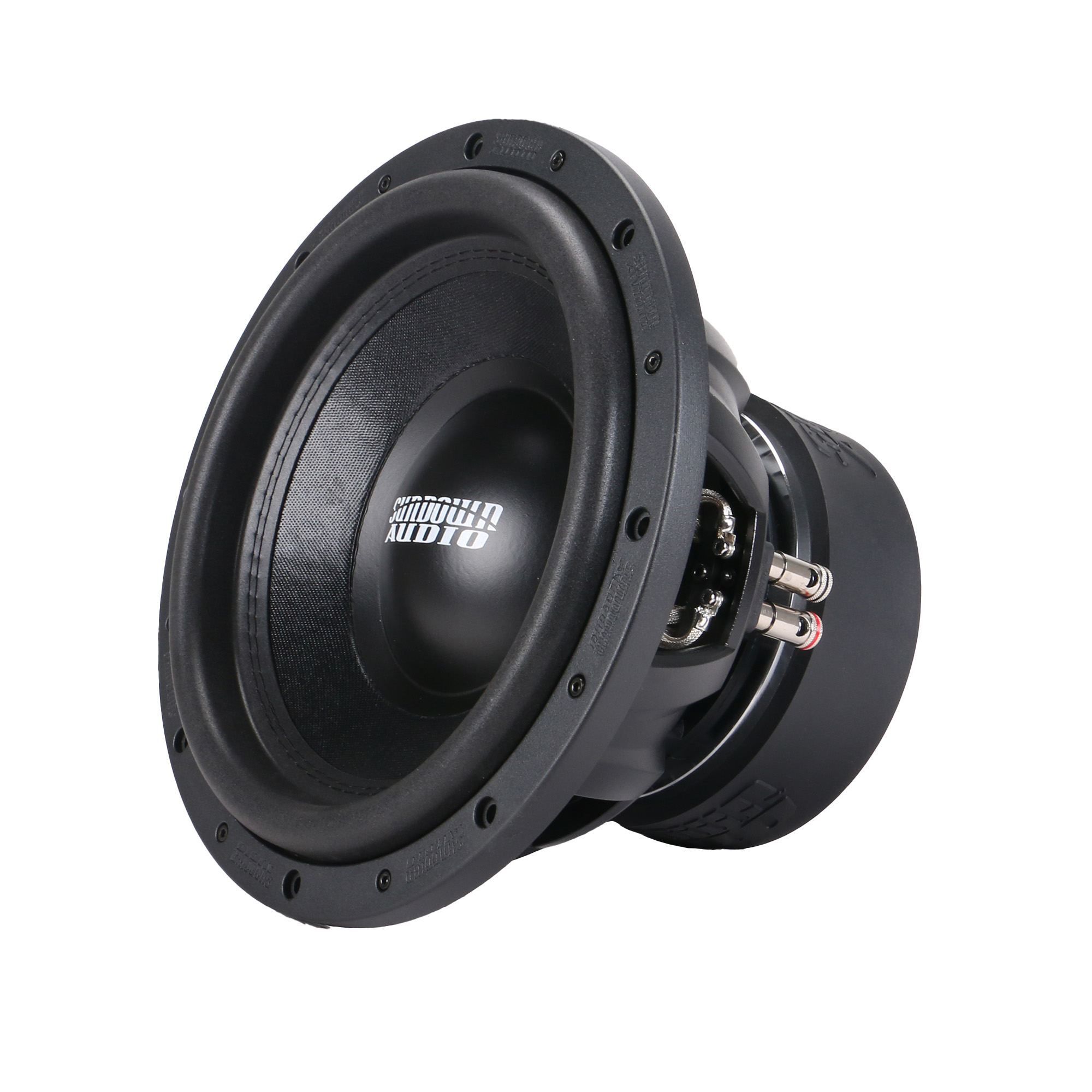

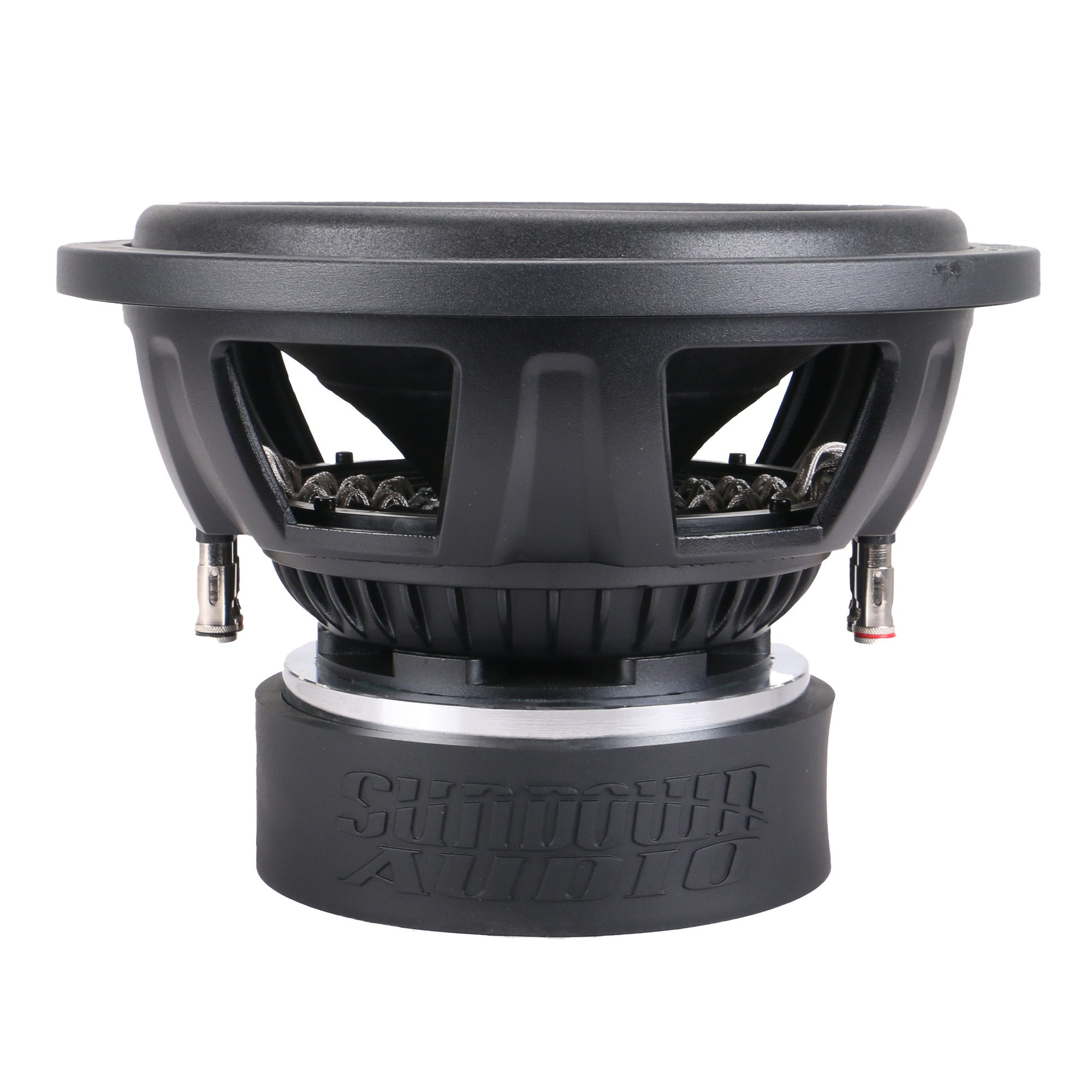

Sundown Audio SA-Series v.3 12" Subwoofer 1500W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power — 1,500W RMS / 3,000W Peak
- Impedance — Dual 2-ohm or Dual 4-ohm voice coils
- Voice Coil — 2.75" aluminum former, high-temperature copper wire
- Excursion — ~22mm one-way linear x-max, 41mm x-mech limit
- Cone — Competition-grade paper with foam surround, cast aluminum frame
This Listing Includes: (1) Sundown Audio SA-Series v.3 12" Subwoofer
The SA-12 v.3 is the next-generation upgrade to the v.2, retaining the 2.75" coil diameter while adding 5mm of length for ~22mm of one-way linear excursion. A vented magnetic gap and solid pole piece with vent channels keep the aluminum voice coil former cool under its 1,500W RMS / 3,000W peak rating, and an x-mech limit of 41mm one-way before coil bottom makes it nearly bottomless. A locked-in magnet ID Faraday ring and pole cap Faraday ring reduce distortion for smooth response across the acoustic spectrum, while the multi-layer spider and doubled-up XL tinsel leads keep the coil stable. Available in Dual 2-ohm or Dual 4-ohm configurations. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Vented magnetic gap and solid pole piece with vent channels
- 2.75" aluminum voice coil former for superior heat dissipation
- Magnet ID Faraday ring and pole cap Faraday ring for smooth acoustic response
- Cast aluminum vented frame spacer ring and spring-loaded terminals
- Stitched-on double XL tinsel leads
Specifications
| Power (RMS) | 1,500W |
| Power (Peak) | 3,000W |
| Impedance | Dual 2-ohm or Dual 4-ohm |
| Voice Coil | 2.75" aluminum former, high-temp copper wire |
| Linear Excursion (x-max) | ~22mm one-way |
| Mechanical Limit (x-mech) | 41mm one-way |
| Cone | Competition-grade paper, foam surround |
| Frame | Custom-tooled cast aluminum |
