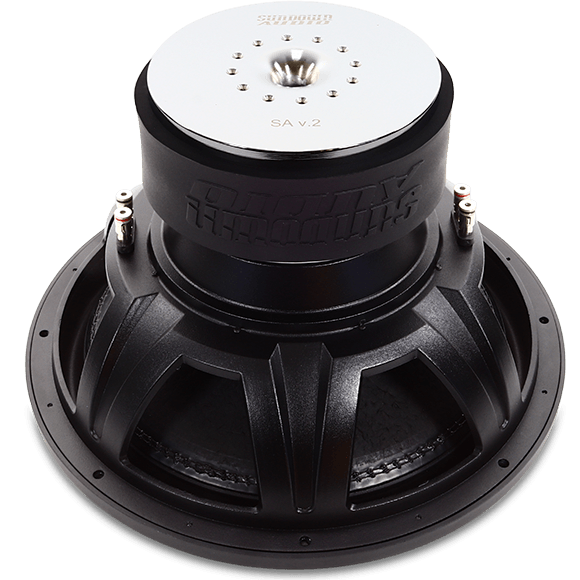

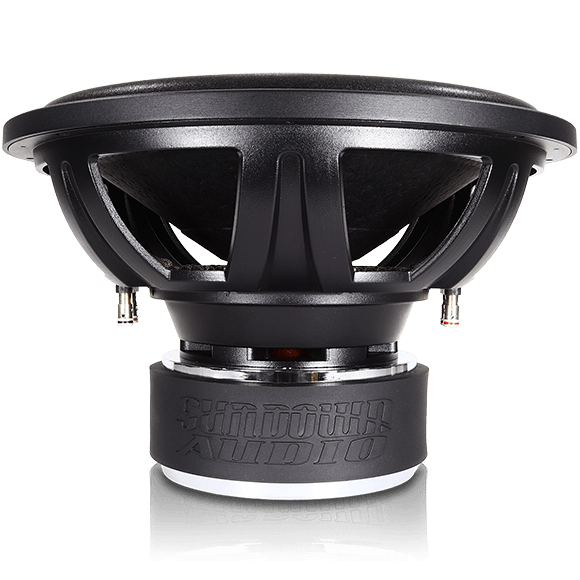

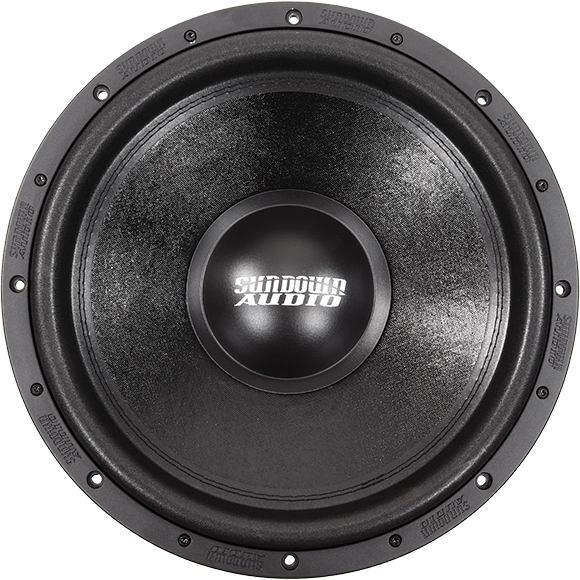

Sundown Audio SA-Series v.2 15" Subwoofer 1250W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power Handling — 1250 Watts RMS / 2500 Watts Peak
- Impedance — Dual 2 or Dual 4 ohm voice coils
- Voice Coil — Aluminum 2.75" former, high-temperature copper wire
- Motor — Magnet ID Faraday ring, vented magnetic gap & pole
- Excursion — ~19mm one-way linear, 37mm one-way x-mech
This Listing Includes: (1) Sundown Audio SA-Series v.2 15" Subwoofer
The SA v.2 15" is a top-down upgrade of the original SA series, handling 1250 watts RMS / 2500 watts peak. Its 2.75" aluminum-former coil punches above its weight, outperforming many 3" coils without the added mass while allowing a wider spider. A large magnet shorting (Faraday) ring reduces distortion for smoother response across the spectrum, and a vented magnetic gap and pole piece keep the coil cool. The motor and coil mate to a robust multi-layer spider with doubled-up XL tinsel leads, a competition-grade paper cone, strong foam surround, and cast-aluminum frame. It delivers ~19mm of one-way linear excursion with a 37mm x-mech limit before coil bottom. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Aluminum 2.75" voice coil former for superior heat dissipation
- Vented magnetic gap and pole piece
- Magnet ID Faraday ring for smooth acoustic response
- High-velocity cast-aluminum vented frame spacer ring

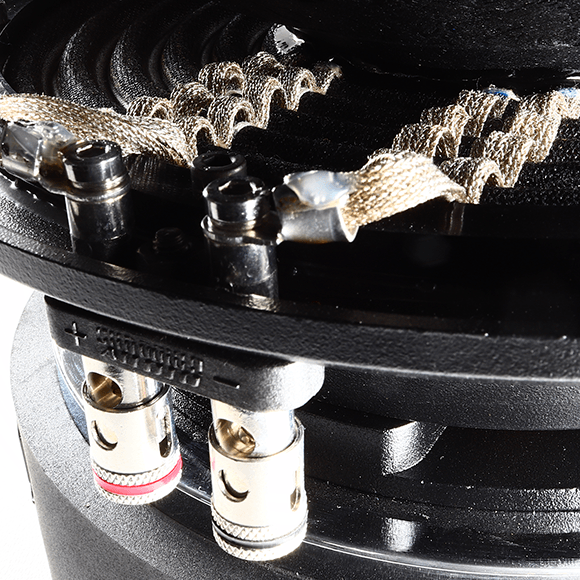

- Spring-loaded terminals with stitched-on double XL tinsel leads
Specifications
| Power Handling (RMS) | 1250 Watts |
| Power Handling (Peak) | 2500 Watts |
| Impedance Options | Dual 2 ohm (D2) / Dual 4 ohm (D4) |
| Voice Coil | Aluminum 2.75" former, high-temperature copper |
| Linear Excursion | ~19mm one-way |
| X-Mech Limit | 37mm one-way |
