Sundown Audio SA-Series v.2 10" Subwoofer 1250W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power — 1250W RMS / 2500W Peak
- Voice Coil — Dual 2 or 4 ohm, 2.75" aluminum former
- Excursion — ~19mm one-way linear, 37mm x-mech limit
- Motor — Vented magnetic gap & pole piece with magnet shorting (faraday) ring
- Frame — Cast aluminum with vented spacer ring
This Listing Includes: (1) Sundown Audio SA-Series v.2 10" Subwoofer

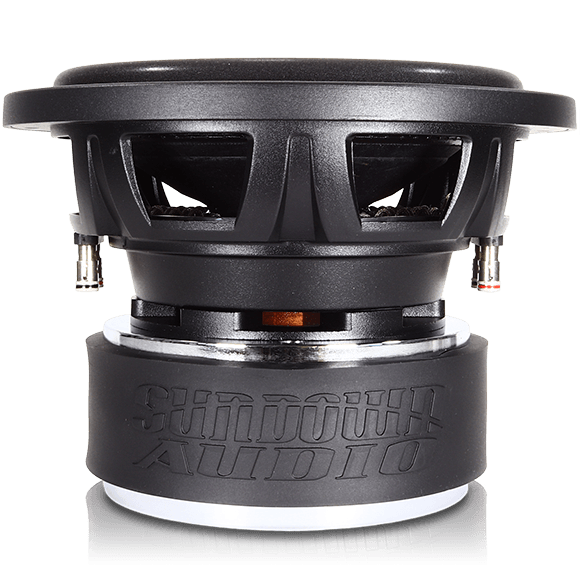

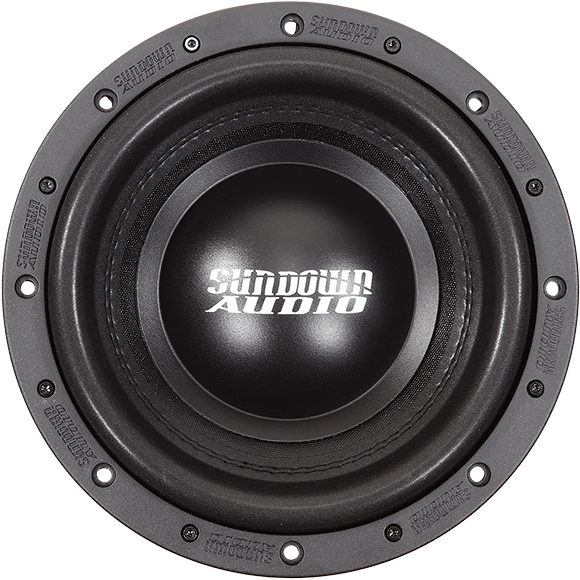

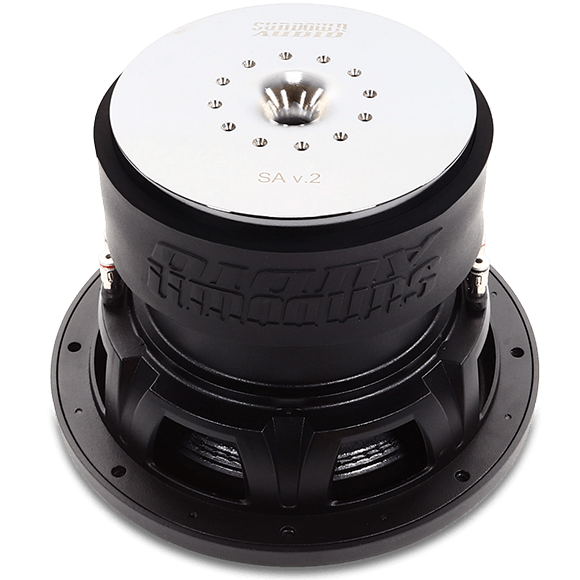

The SA v.2 is a top-down upgrade from the original SA series, built around a 2.75" aluminum-former coil that punches above its weight and outperforms many 3" coils without the added mass. Sundown balanced the moving mass, motor force, and suspension stiffness for the intended power level, and added a large magnet shorting (faraday) ring to reduce distortion and smooth response across the acoustic spectrum. The coil mates to a robust multi-layer spider with fully tied-on, doubled-up XL tinsel leads, while a competition-grade paper cone, foam surround, and cast aluminum frame complete the build. With ~19mm of one-way linear excursion and a 37mm x-mech limit before coil bottom, it is nearly bottomless at 1250W RMS (2500W peak). Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Aluminum 2.75" voice coil former for superior heat dissipation
- Magnet ID faraday ring for smooth acoustic response
- High-velocity cast aluminum vented frame spacer ring

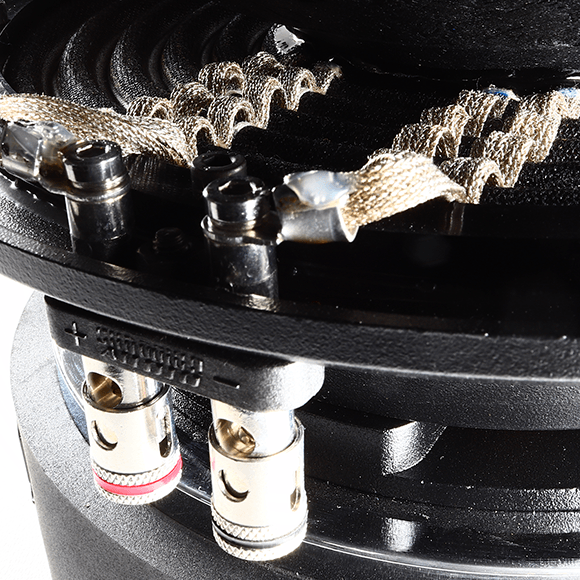

- High-temperature copper voice coil wire with spring-loaded terminals
- Stitched-on double XL tinsel leads
Specifications
| RMS Power | 1250 Watts |
| Peak Power | 2500 Watts |
| Impedance | Dual 2 ohm or Dual 4 ohm |
| Voice Coil | 2.75" aluminum former |
| Linear Excursion | ~19mm one-way |
| Mechanical Limit | 37mm one-way before coil bottom |
| Frame | Cast aluminum |
