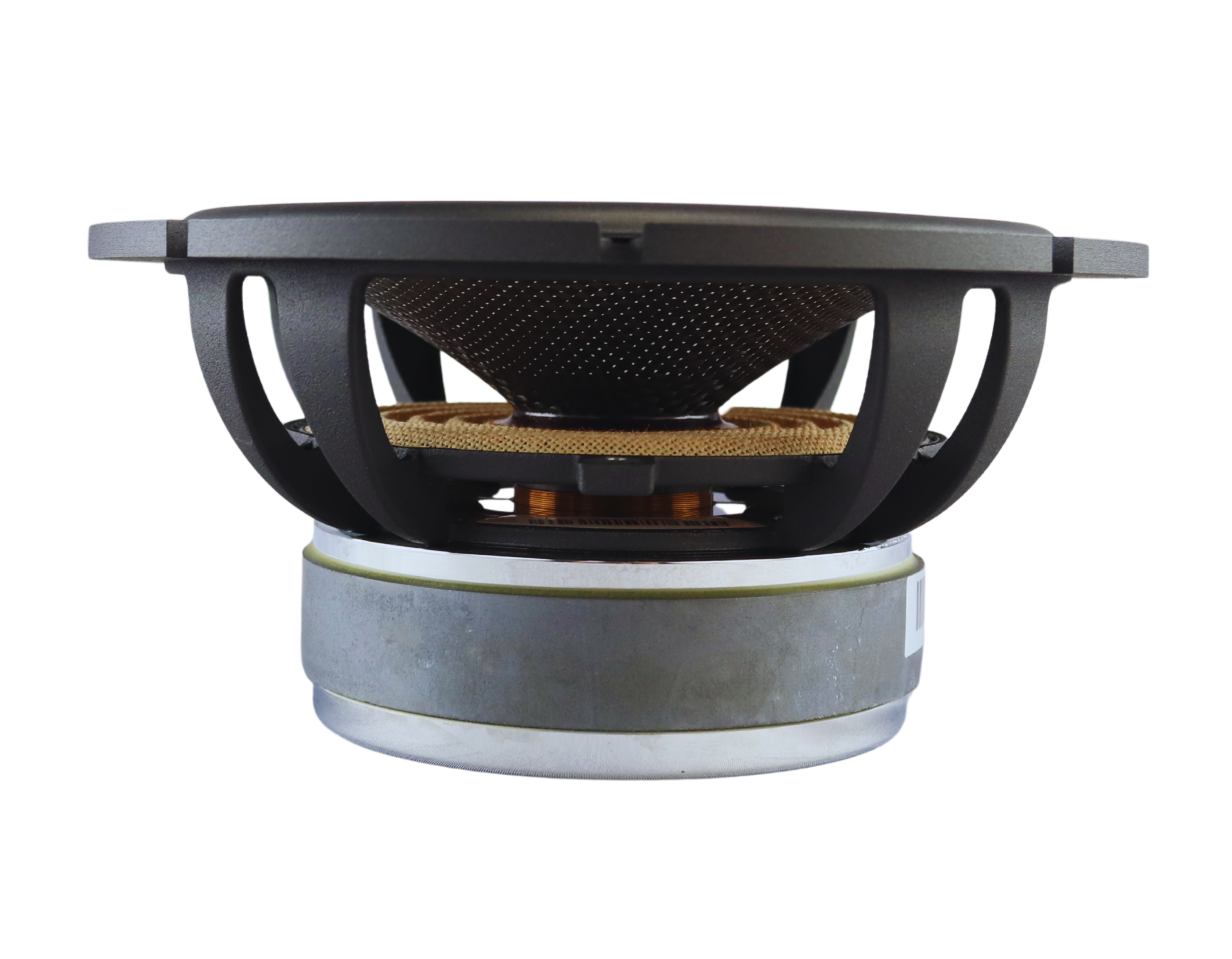

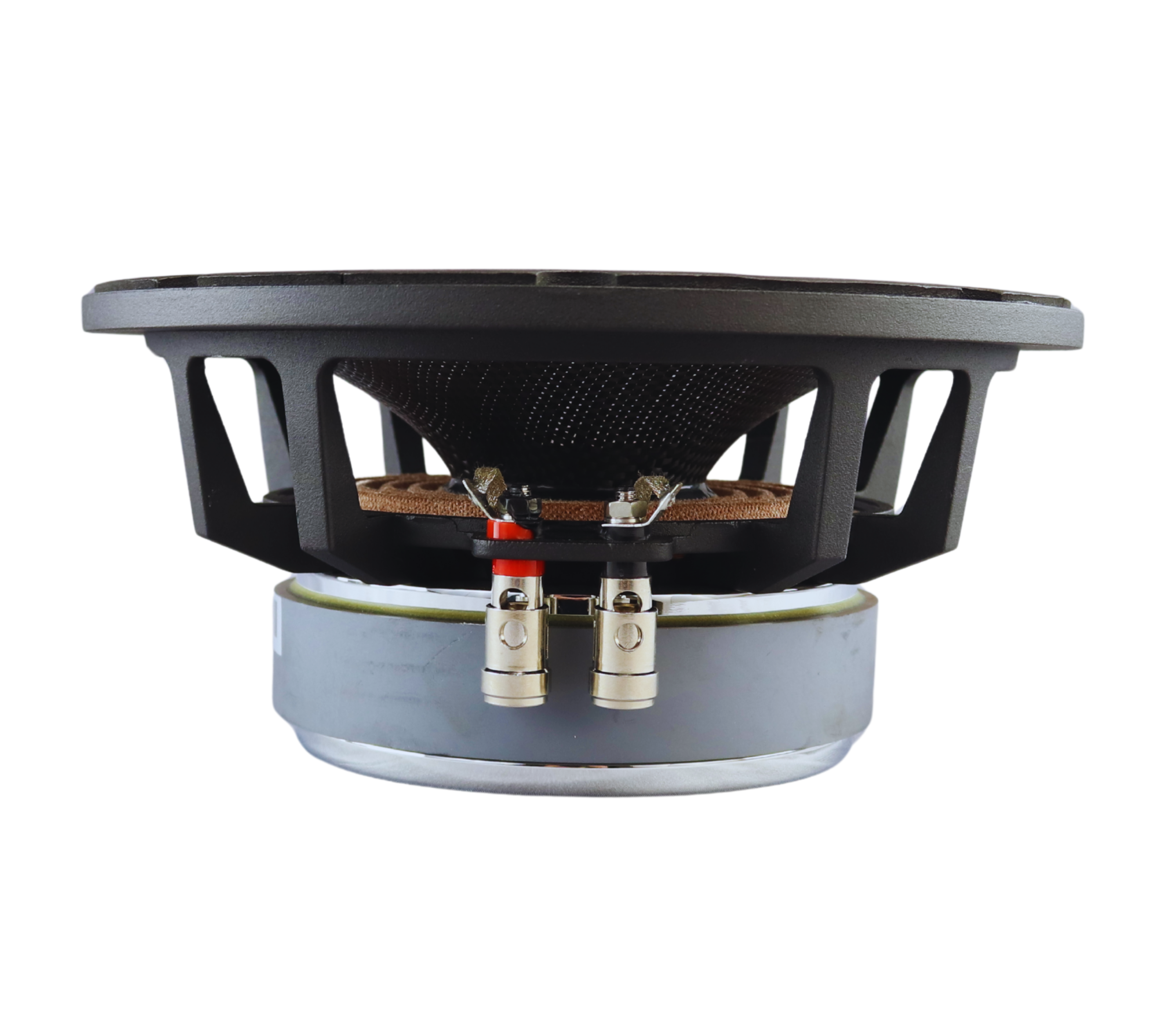

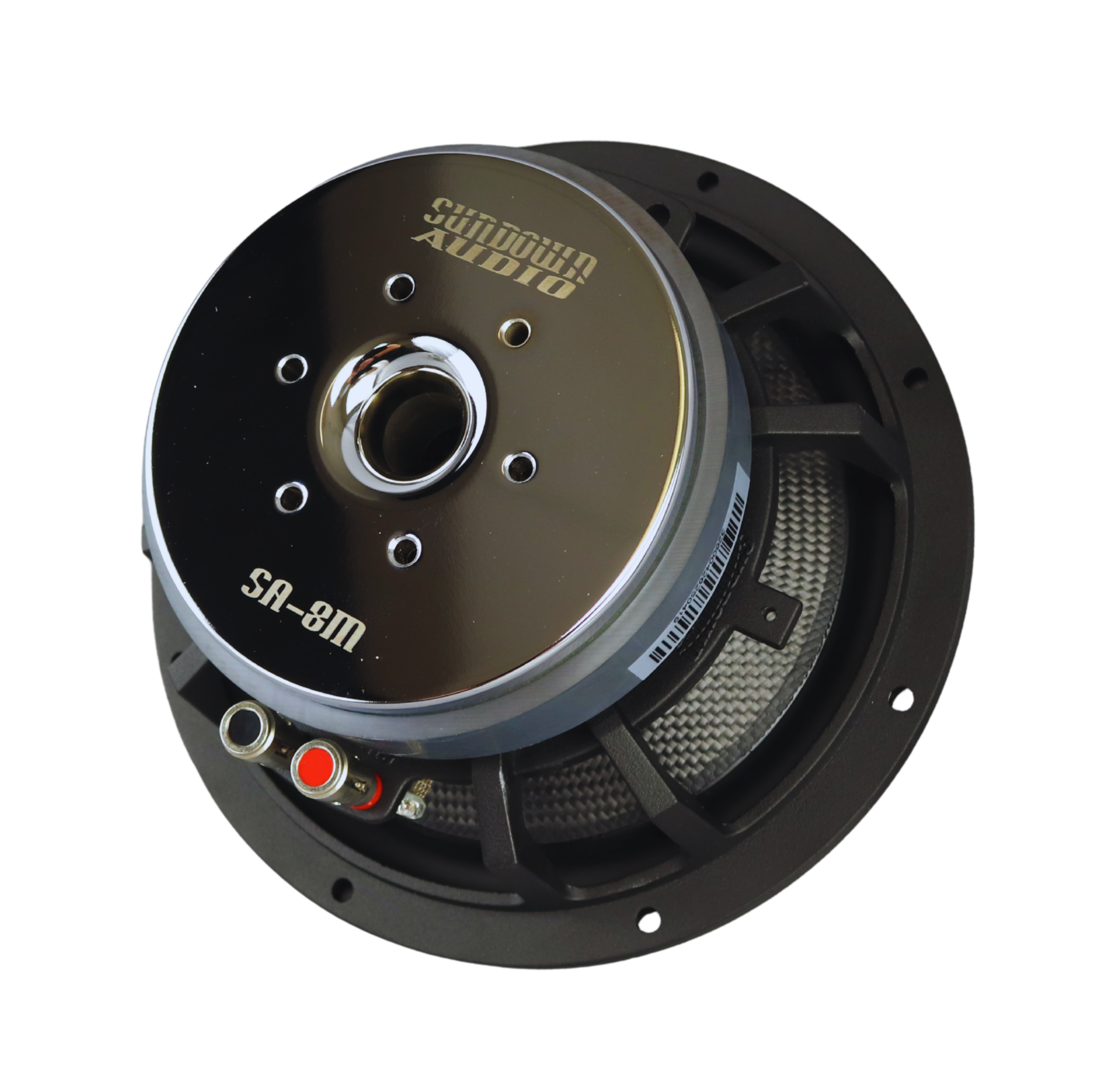

Sundown Audio SA-Series SA8M 8" Speakers
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
- Power — 130W RMS full-range / 250W max with a 70Hz HPF
- Impedance — 4 ohm
- Voice Coil — 2″ coil; 9mm one-way linear excursion by 70% BL
- Frequency Range — 70Hz – 20kHz
- Build — Carbon-fiber cone, ferrite motor with pole sleeve and magnet-ID Faraday ring
This Listing Includes: (1) Sundown Audio SA-Series SA8M 8″ Speaker
The SA-8M is the flagship mid-bass driver of Sundown’s 2025 SA speaker series, taking linear stroke to another level with 9mm of one-way linear excursion by 70% BL (nearly 10mm by CMS and LE standards). A copper pole sleeve and magnet-ID Faraday ring treat inductance, while the huge 2″ coil and efficient motor venting allow 130 watts full-range or 250 watts with a 70Hz high-pass filter. With a 91.5dB sensitivity, a Klippel-verified carbon-fiber cone and dust cap, and a custom-tooled aluminum basket, the SA-8M is built all-in on sound quality and output. It can serve as a mid-bass or mid-range driver depending on your application. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 9mm one-way linear excursion by 70% BL (nearly 10mm by CMS/LE)
- 2″ voice coil with efficient motor venting
- Copper pole sleeve and magnet-ID Faraday ring for LE treatment
- Klippel-verified carbon-fiber cone and dust cap
- Usable as a mid-bass or mid-range driver
Specifications
| RMS Power | 130W (full-range) |
| Max Power | 250W (with 70Hz HPF) |
| Impedance | 4 ohm |
| Frequency Range | 70Hz – 20kHz |
| Xmax | 9mm |
| RE | 3.2 ohms |
| Qts | 0.318 |
| Qes | 0.334 |
| Qms | 6.696 |
| VAS | 21.892 L |
| Outer Diameter | 8.26″ |
| Cutout Diameter | 7.28″ |
| Mounting Depth | 3.4″ |
| Magnet / Surround / Basket | Ferrite / Rubber / Aluminum |
