Sundown Audio SA-Classic 15" Subwoofer 1000W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power — 1,000W RMS / 2,000W Peak
- Impedance — Dual 2-ohm or dual 4-ohm voice coils
- Voice Coil — Custom 2.5-inch high-temperature coil
- Frame — High-strength cast aluminum
- Enclosure — Optimized for small ported, sealed & band-pass
This Listing Includes: (1) Sundown Audio SA-Classic 15" Subwoofer

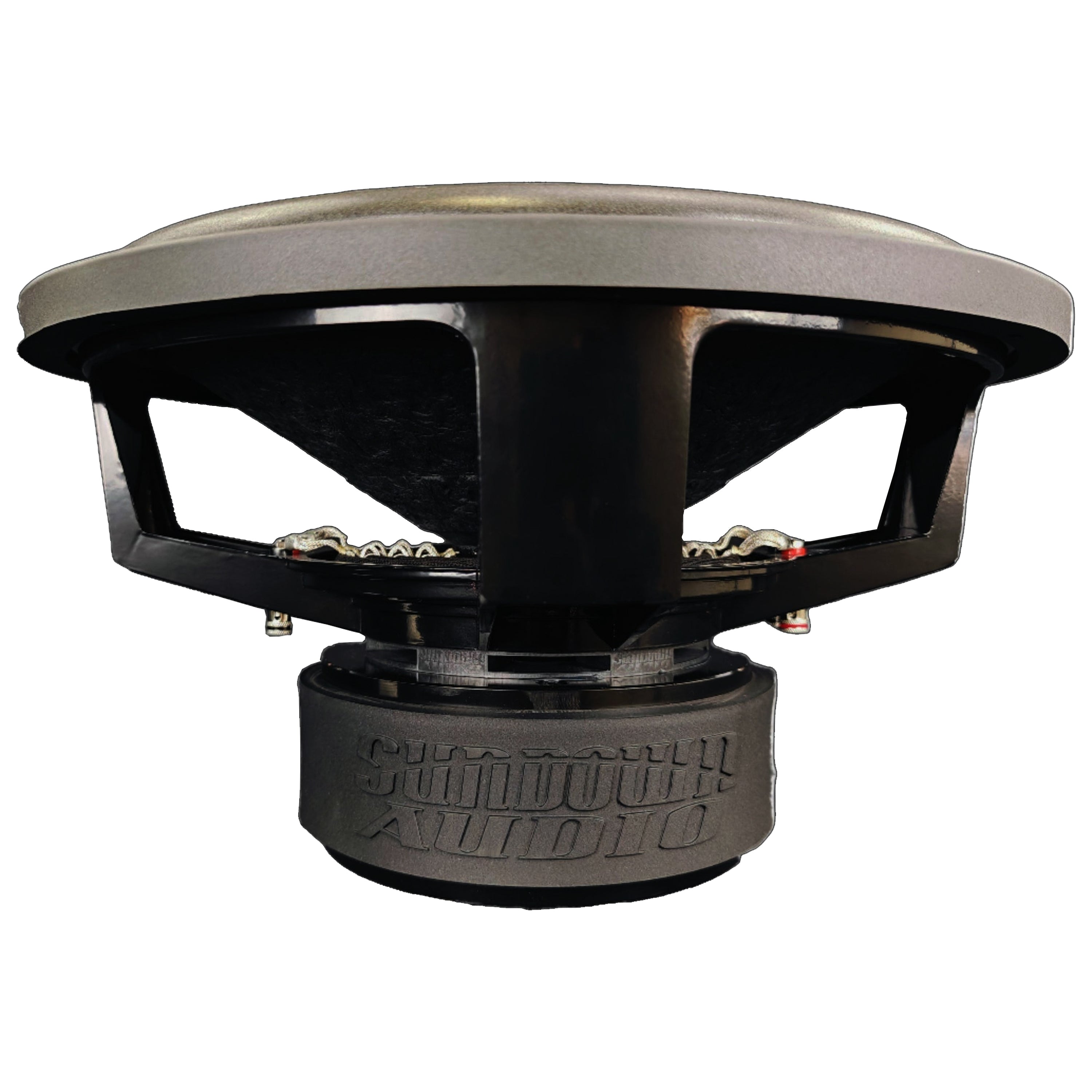

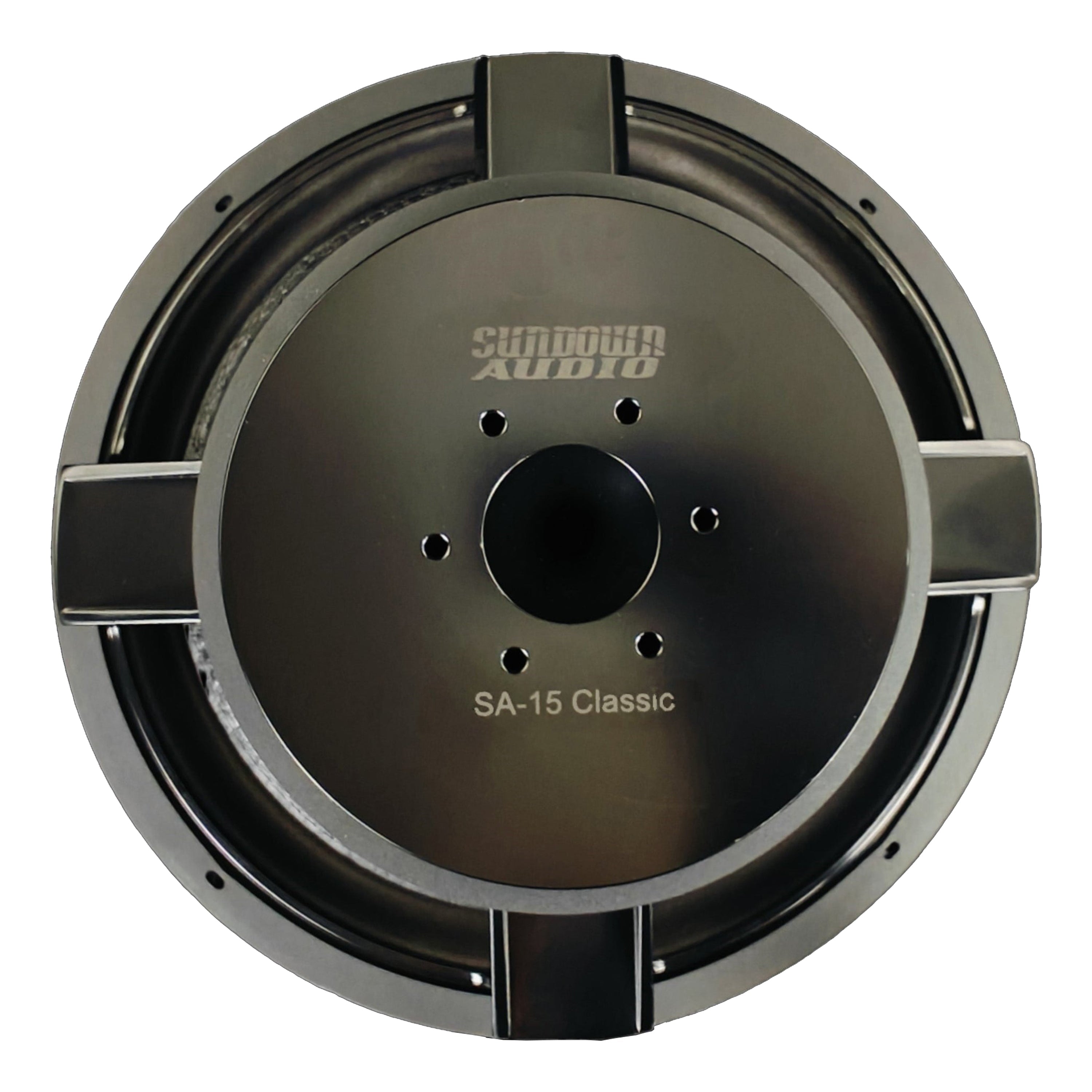

The SA-Classic is a combination of value, power handling, and deep excursion rated at 1,000 watts RMS and 2,000 watts peak. A high-strength cast aluminum frame houses a custom 2.5-inch voice coil, a double-layered Nomex spider, and an SPL competition-grade paper cone. A large aluminum Faraday ring smooths the acoustic response while low-distortion motor construction and high-temperature voice coil wire keep it composed under power. Available with dual 2-ohm or dual 4-ohm voice coils, it works well in small ported, sealed, and band-pass enclosures. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Large aluminum Faraday ring for smooth acoustic response
- High-strength cast aluminum frame
- Low distortion motor construction
- High-temperature voice coil wire

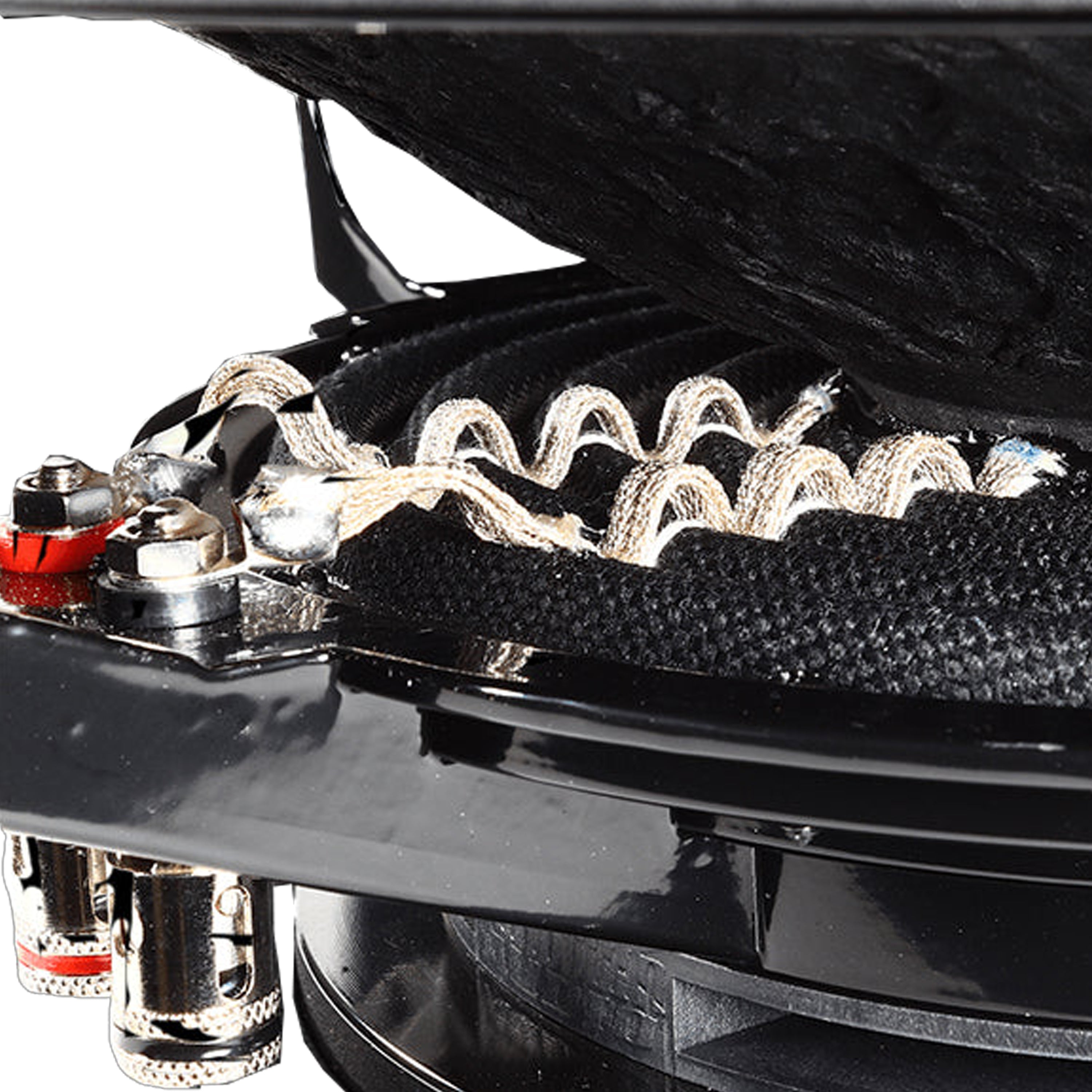

- Spring-loaded terminals with stitched-on "XL" tinsel lead wires
Specifications
| RMS Power | 1,000 watts |
| Peak Power | 2,000 watts |
| Impedance | Dual 2-ohm or Dual 4-ohm |
| Voice Coil | Custom 2.5-inch |
| Frame | Cast aluminum |
| Spider | Double-layered Nomex |
| Cone | SPL competition-grade paper |
| Recommended Enclosure | Small ported, sealed, or band-pass |
