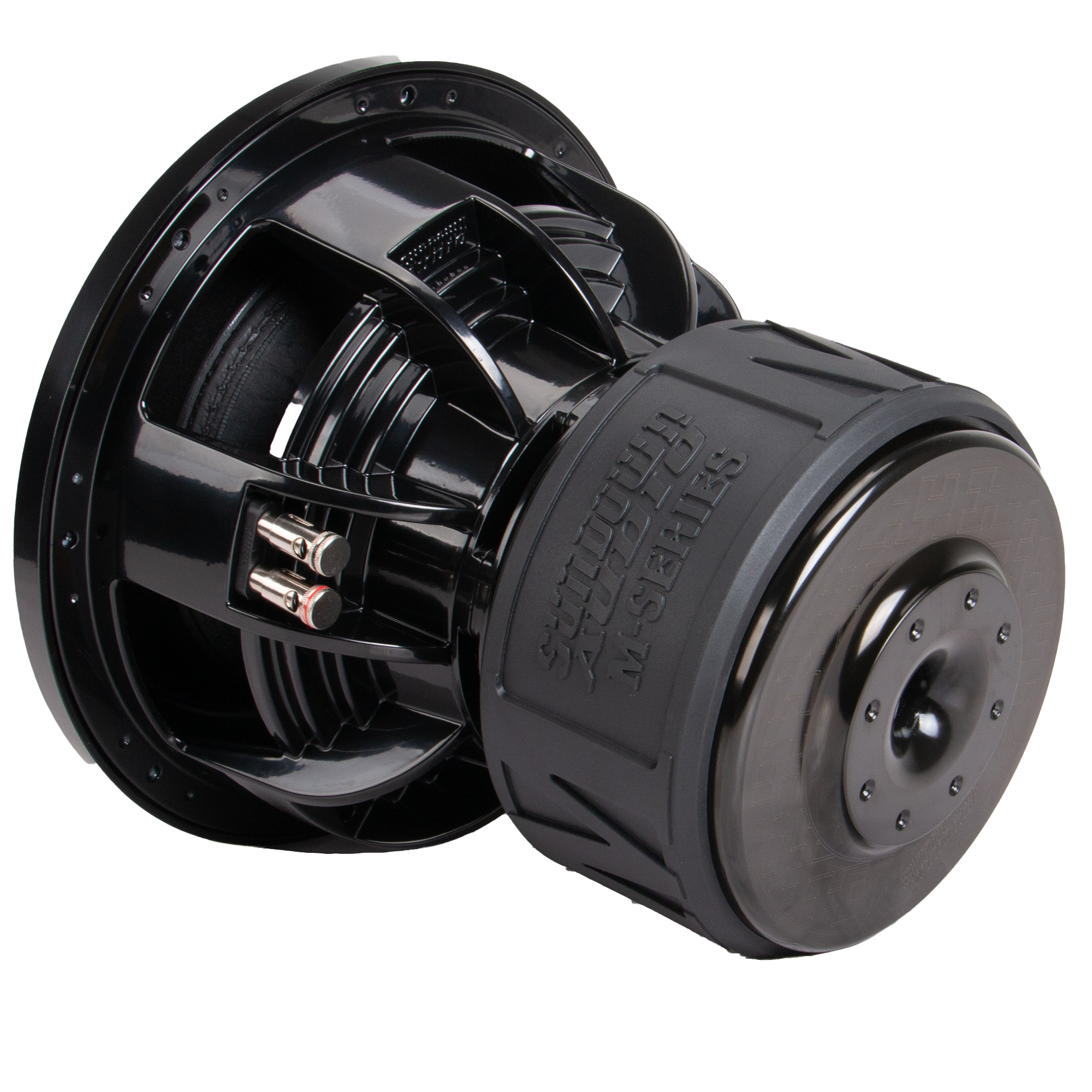

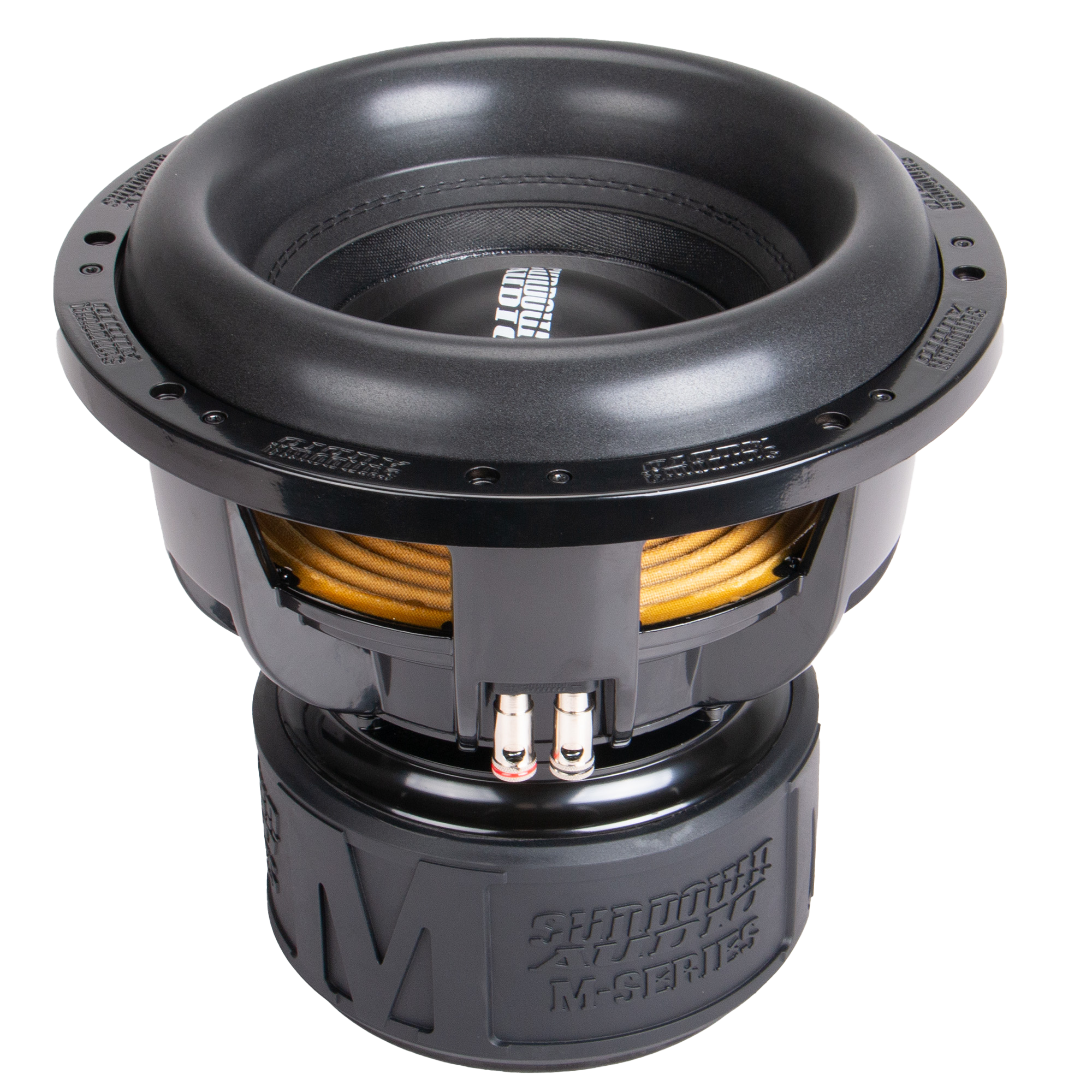

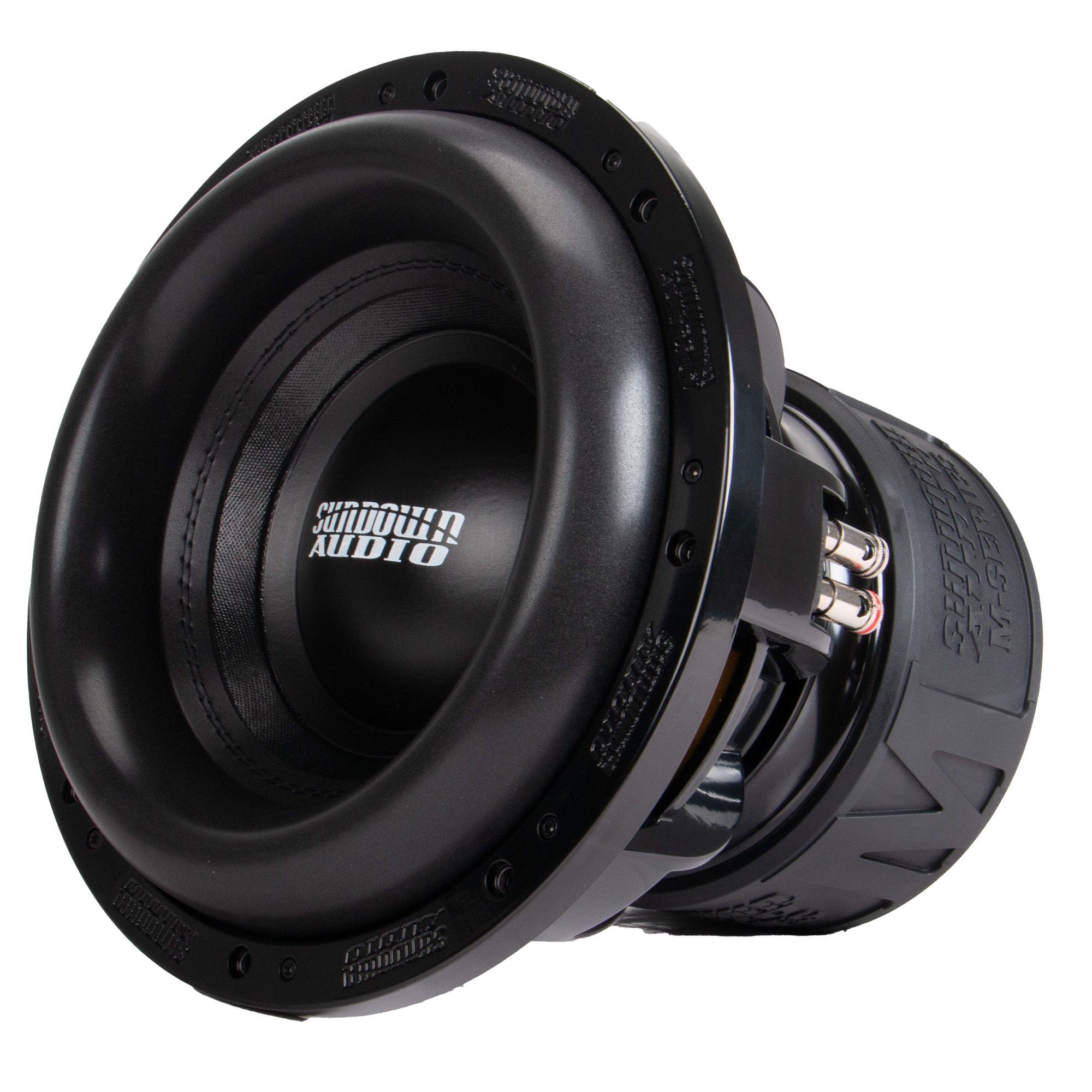

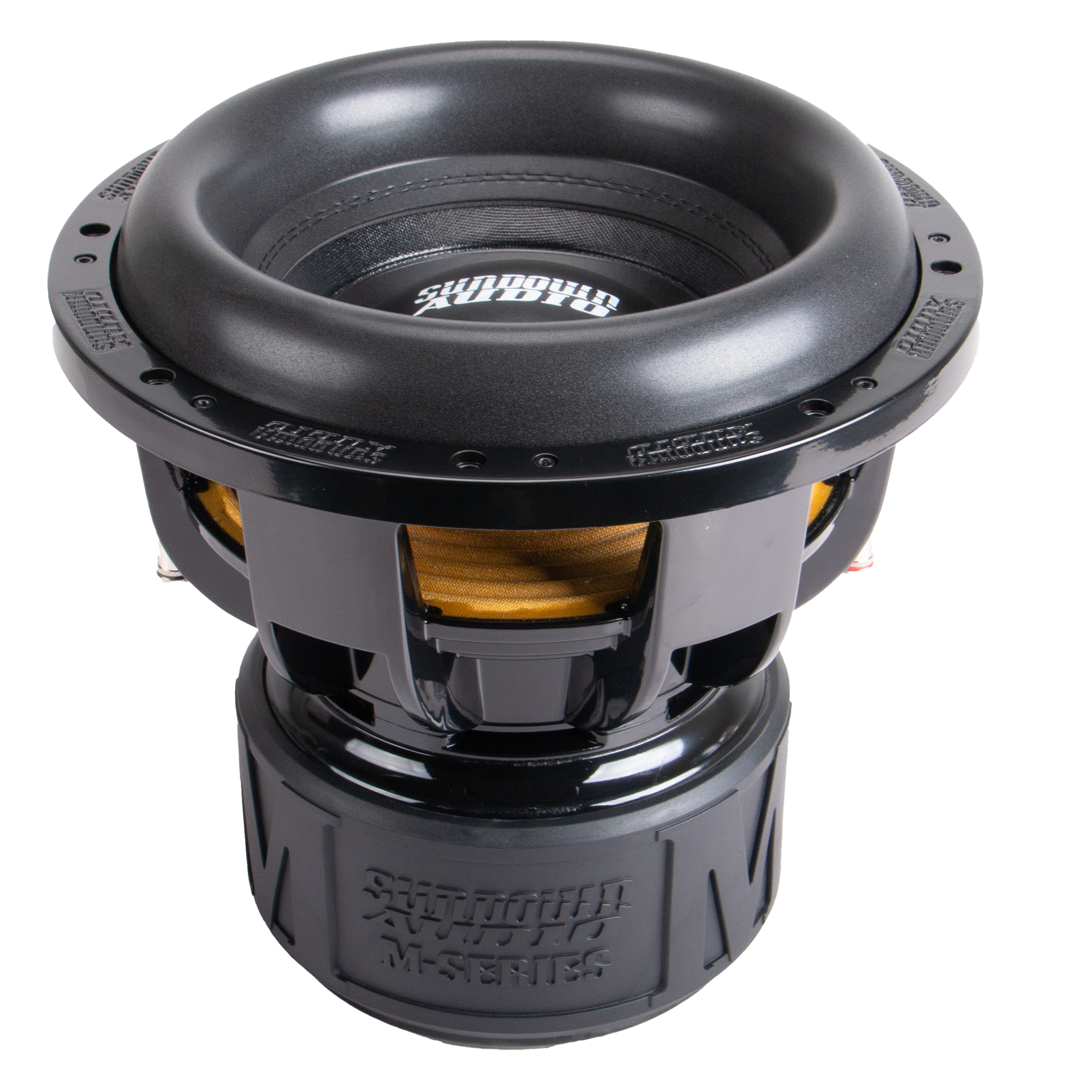

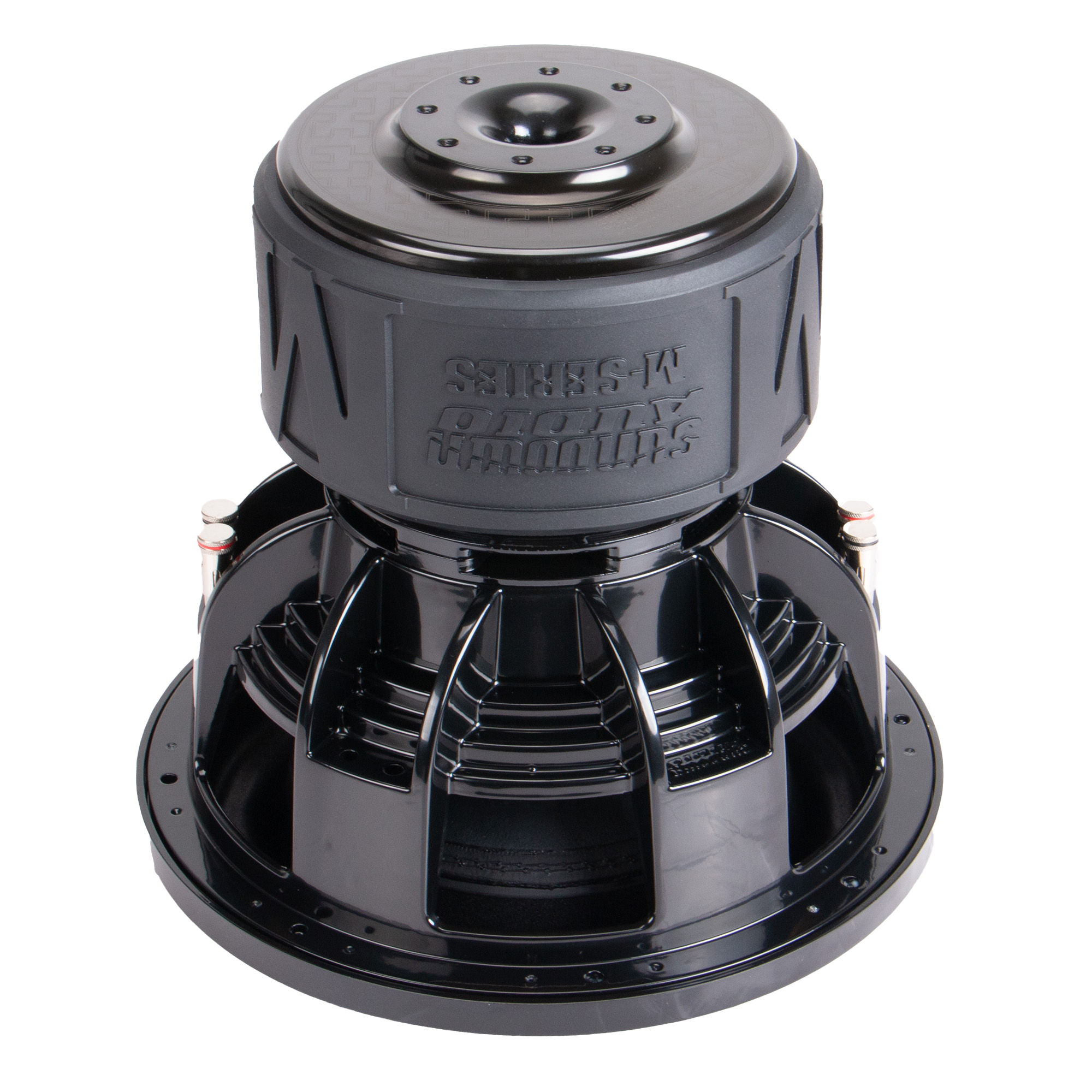

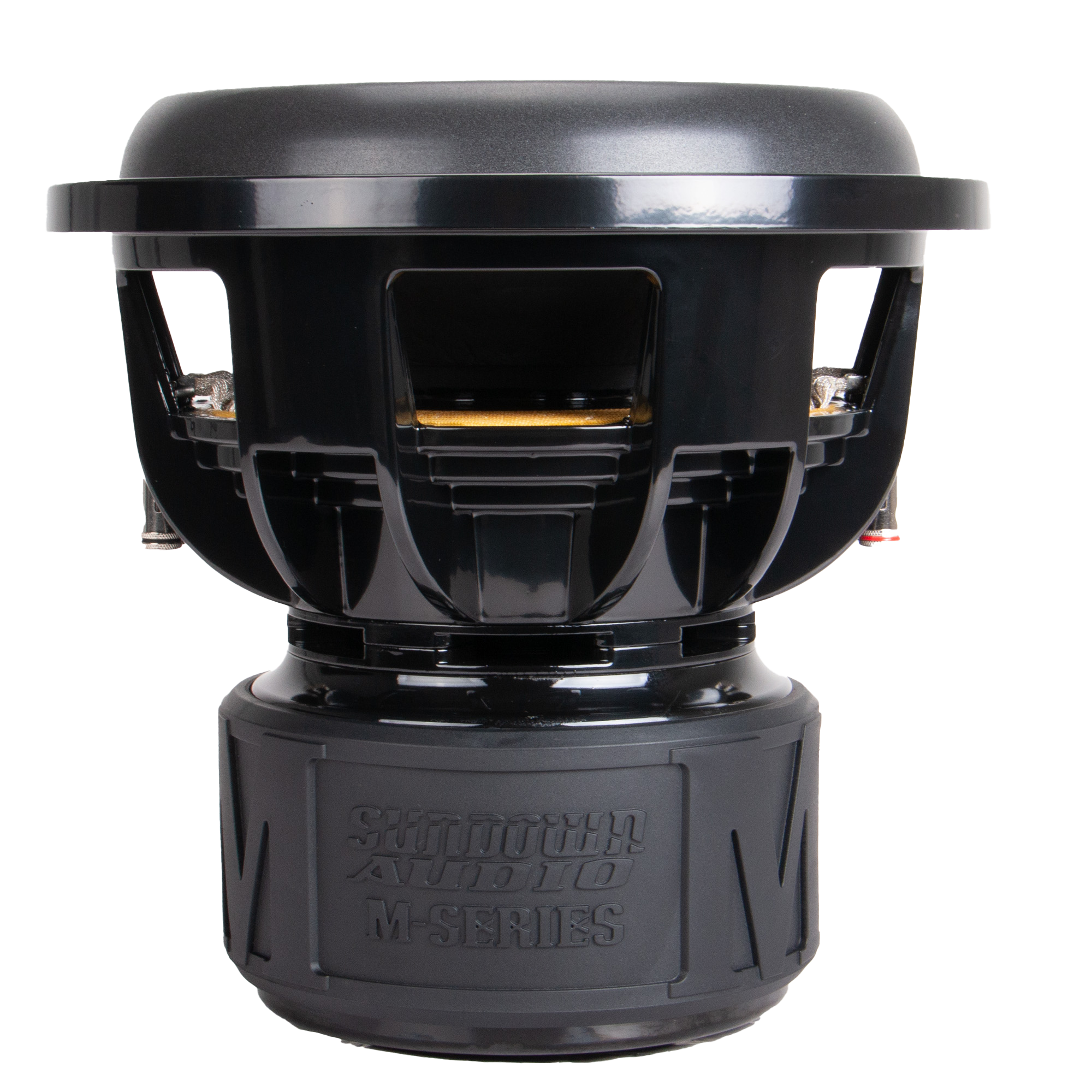

Sundown Audio M-Series M12 2000W Subwoofer
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power Handling — 2,000W RMS / 4,000W Peak
- Voice Coil — 3" 4-layer round wire aluminum on aluminum former
- Excursion — 35mm one-way linear excursion
- Impedance — Available in Dual 1 Ohm and Dual 2 Ohm
- Motor — Quad-stacked 200mm (7.87") motor, 88mm magnet stack, 20mm top-plate
This Listing Includes: (1) Sundown Audio M-Series M12 12" Subwoofer
The M12 is the entry point into Sundown's Mega series, handling 2,000 watts RMS and 4,000 watts peak in Dual 1 or Dual 2 Ohm configurations. It mates a patented Mega series frame to a quad-stacked 200mm (7.87") motor structure with an 88mm magnet stack height, a hyper-extended pole, and a full 20mm thick top-plate. A 3" 4-layer round wire aluminum voice coil wound on a thick aluminum former drives a full 35mm one-way linear excursion. Sundown's high-stroke cooling system uses a high-velocity pole vent, a heavily vented magnetic gap, and a cast-aluminum frame-base venting system, while the Mega-Roll surround and PG linear suspension keep distortion low. Unlike other Mega platform woofers, the M-series also suits sealed and IB applications. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 2,000W RMS / 4,000W peak in Dual 1 or Dual 2 Ohm
- 3" 4-layer round wire aluminum voice coil, 35mm one-way linear excursion
- Quad-stacked 200mm motor with hyper-extended pole and 20mm top-plate
- Mega-Roll surround and computer-optimized PG linear suspension
- Magnet inner-diameter aluminum shorting ring for low inductive distortion
Specifications
| RMS Power | 2,000W |
| Peak Power | 4,000W |
| Impedance Options | Dual 1 Ohm, Dual 2 Ohm |
| Voice Coil | 3" 4-Layer Round Wire Aluminum |
| Linear Excursion | 35mm one-way |
| Motor | Quad-Stacked 200mm (7.87"), 88mm Magnet Stack |
| Top Plate | 20mm thick |
