Sundown Audio M 12 Single Bundle
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Bundle Includes: Sundown Audio M-Series M12 2000W Subwoofer + Sundown Audio M Series MDF 12" Single Ported Subwoofer Enclosure
Priced at 10% off the combined retail price of the subwoofer and enclosure bought separately. Select your impedance below.

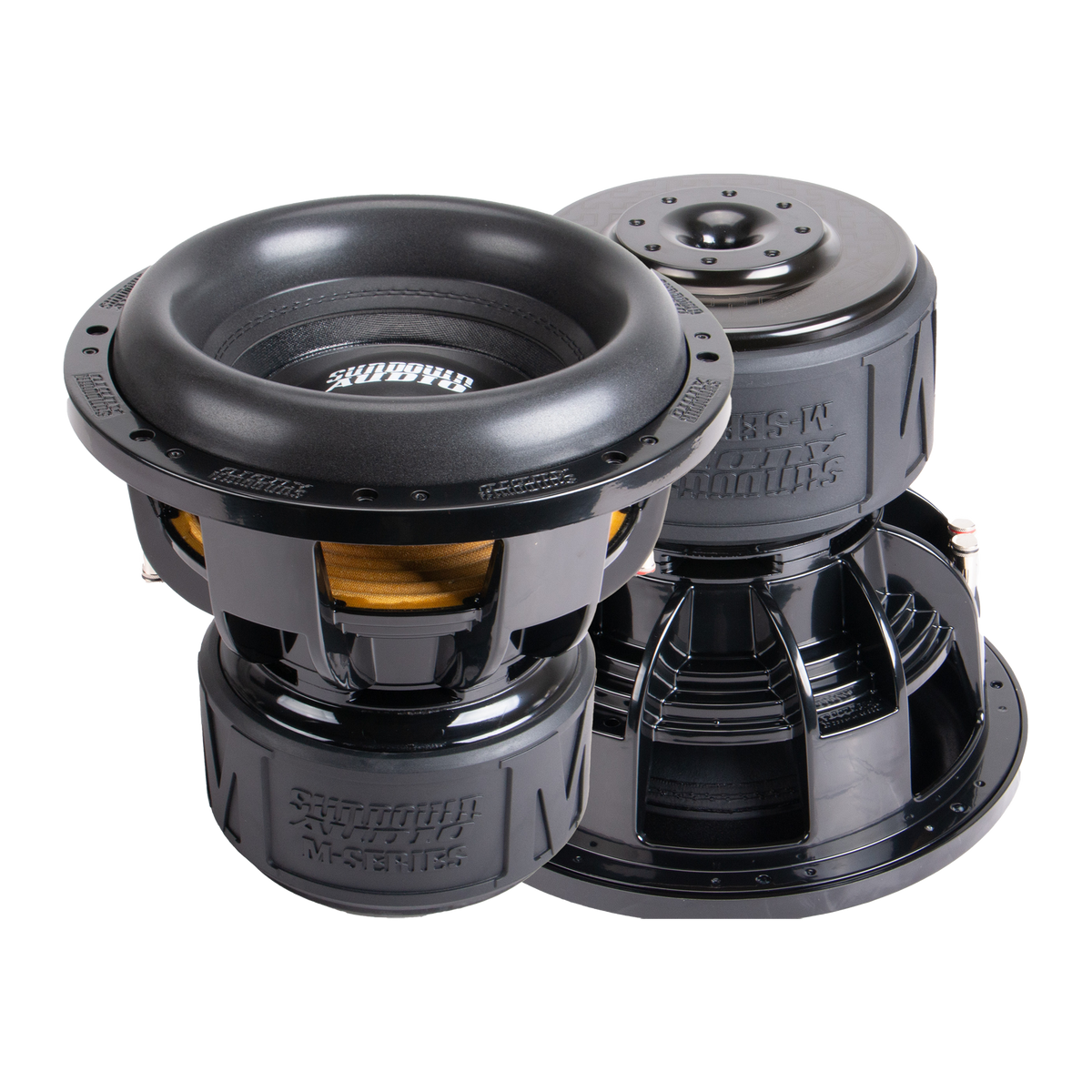

Sundown Audio M-Series M12 2000W Subwoofer
- Power Handling — 2,000W RMS / 4,000W Peak
- Voice Coil — 3" 4-layer round wire aluminum on aluminum former
- Excursion — 35mm one-way linear excursion
- Impedance — Available in Dual 1 Ohm and Dual 2 Ohm
- Motor — Quad-stacked 200mm (7.87") motor, 88mm magnet stack, 20mm top-plate
This Listing Includes: (1) Sundown Audio M-Series M12 12" Subwoofer
The M12 is the entry point into Sundown's Mega series, handling 2,000 watts RMS and 4,000 watts peak in Dual 1 or Dual 2 Ohm configurations. It mates a patented Mega series frame to a quad-stacked 200mm (7.87") motor structure with an 88mm magnet stack height, a hyper-extended pole, and a full 20mm thick top-plate. A 3" 4-layer round wire aluminum voice coil wound on a thick aluminum former drives a full 35mm one-way linear excursion. Sundown's high-stroke cooling system uses a high-velocity pole vent, a heavily vented magnetic gap, and a cast-aluminum frame-base venting system, while the Mega-Roll surround and PG linear suspension keep distortion low. Unlike other Mega platform woofers, the M-series also suits sealed and IB applications. In stock and shipping free from JS Ultimate Sounds — your authorized Sundown Audio dealer.
Features
- 2,000W RMS / 4,000W peak in Dual 1 or Dual 2 Ohm
- 3" 4-layer round wire aluminum voice coil, 35mm one-way linear excursion
- Quad-stacked 200mm motor with hyper-extended pole and 20mm top-plate
- Mega-Roll surround and computer-optimized PG linear suspension
- Magnet inner-diameter aluminum shorting ring for low inductive distortion
Specifications
| RMS Power | 2,000W |
| Peak Power | 4,000W |
| Impedance Options | Dual 1 Ohm, Dual 2 Ohm |
| Voice Coil | 3" 4-Layer Round Wire Aluminum |
| Linear Excursion | 35mm one-way |
| Motor | Quad-Stacked 200mm (7.87"), 88mm Magnet Stack |
| Top Plate | 20mm thick |

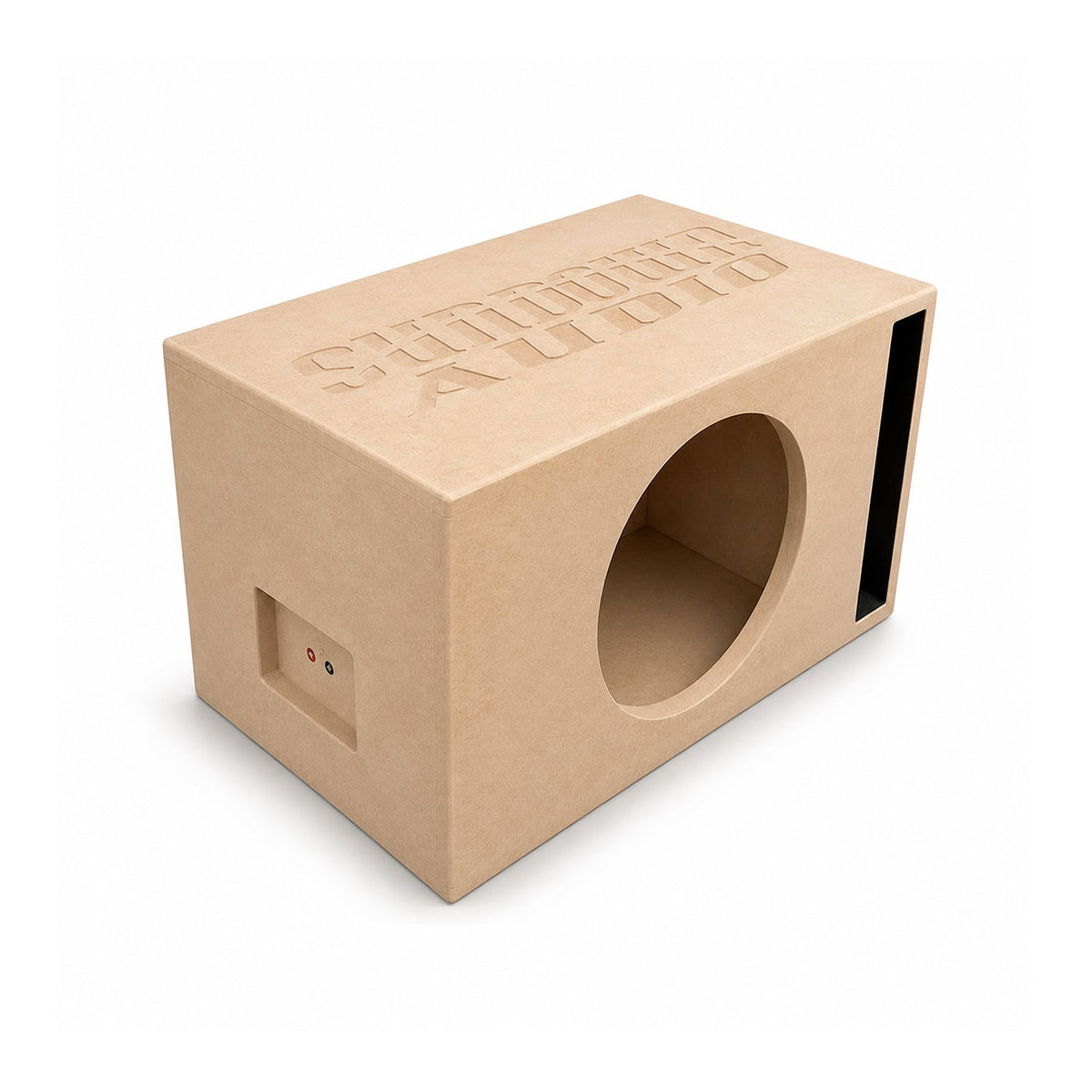

Sundown Audio M Series MDF 12" Single Ported Subwoofer Enclosure
- Net Volume - 2.5 cu ft
- Tuning - 31.0 Hz
- Port Area - 36.68 sq in
- Sub Cutout - 11.19"
- Construction - Dense, uniform, void-free triple refined MDF panel
This Listing Includes: (1) Basshead Supply ported enclosure for the Sundown Audio M Series MDF 12" subwoofer
This enclosure is custom built specifically for the Sundown Audio M Series MDF 12" subwoofer. Basshead Supply's Performance Series enclosures are subwoofer-specific boxes engineered for strong, clean output, built with a refined assembly process that leaves no visible screw holes. Every box is glued with Titebond III and internally braced, then pre-wired with a recessed satin-nickel binding post and OFC 10-gauge wire - built by hand in the USA. Made to order (2-3 week lead time) and shipping from JS Ultimate Sounds, your Basshead Supply dealer.
Features
- Dense, uniform, void-free triple refined MDF panel
- Ships bare / unfinished - sanded and ready to finish your way
- Refined assembly - no visible screw holes
- Glued with Titebond III and internally braced
- Pre-wired recessed satin-nickel binding post with OFC 10-gauge wire
- Built by hand in the USA
Specifications
| Net Volume | 2.5 cu ft |
| Tuning | 31.0 Hz |
| Port Area | 36.68 sq in |
| Port Dimensions | 14.0" x 2.62" |
| Sub Cutout | 11.19" |
| Construction | Dense, uniform, void-free triple refined MDF panel |
| Finish | Ships bare / unfinished - sanded and ready to finish your way |
| Wiring | Pre-wired metal binding post with 10ga OFC wire |
| Dimensions (HxWxD) | 16.0" x 26.875" x 19.75" |
