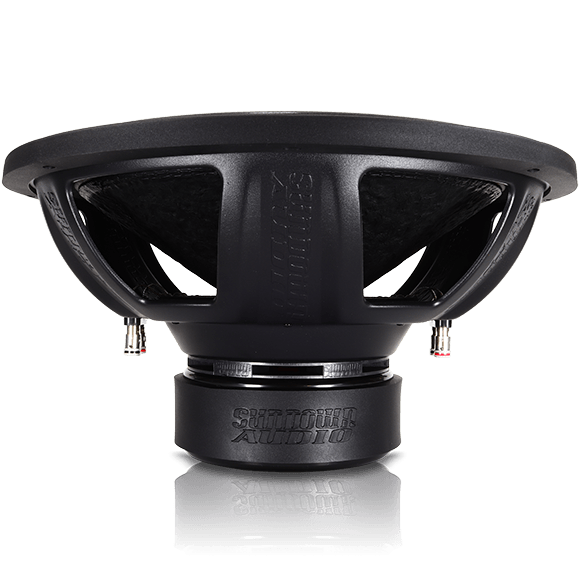

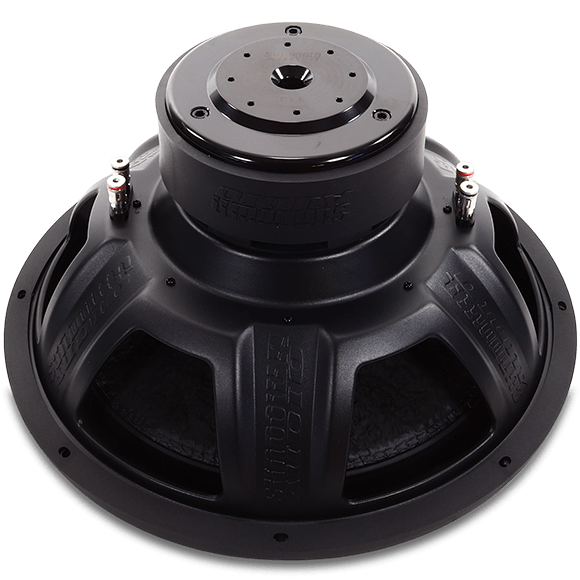

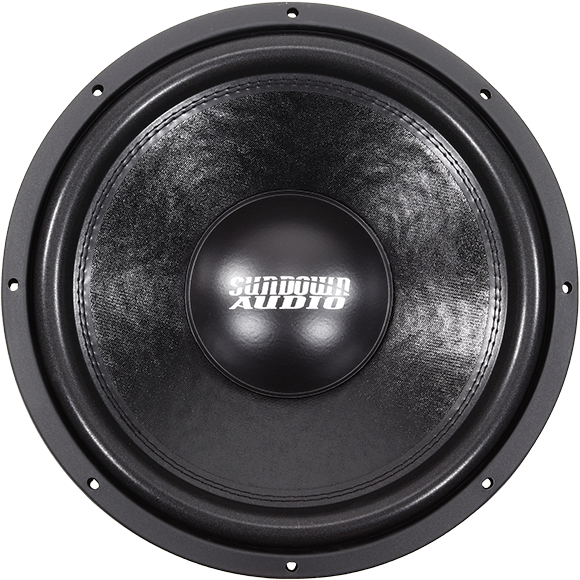

Sundown Audio E-Series v.4 15" Subwoofer 750W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- RMS Power — 750W RMS / 1,500W peak
- Voice Coil — Dual 2-ohm or dual 4-ohm, 2.5" high-temp 4-layer copper
- Xmax — Class-leading 14mm one-way linear excursion
- Motor — Double-stacked magnet with vented magnetic gap and pole piece for superior cooling
- Enclosure — Optimized for ported enclosures
This Listing Includes: (1) Sundown Audio E-Series v.4 15" Subwoofer
The E-Series v.4 15" handles 750 watts RMS and 1,500 watts peak on dual 2-ohm or dual 4-ohm voice coils wound with high-temp 4-layer copper wire. A double-stacked magnet with a heavily vented magnetic gap and solid pole piece delivers exceptional thermal power handling, while a high-strength stamped steel frame and a poly-cotton spider bolted and glued to the frame add ruggedness. Sundown optimized a 2.5" voice coil and a unique motor design to pull the deepest possible bass response out of a 15" cone, with motor geometry that allows a remarkable 14mm one-way linear Xmax. It is optimized for ported enclosures and finished with high-quality push terminals and stitched-on Mini-XL tinsel leads. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 2.5" high-temp 4-layer copper voice coil
- Double-stacked magnet with vented magnetic gap and pole piece
- High-strength poly-cotton spider, bolted and glued to the frame
- High-strength stamped steel frame

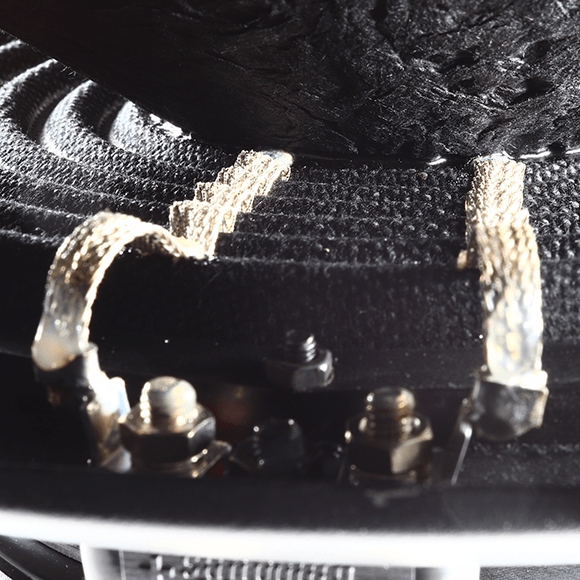

- High-quality push terminals and stitched-on Mini-XL tinsel leads
Specifications
| RMS Power | 750W |
| Peak Power | 1,500W |
| Impedance Options | Dual 2-ohm (D2) or Dual 4-ohm (D4) |
| Voice Coil | 2.5", 4-layer copper |
| Xmax | 14mm one-way linear |
| Recommended Enclosure | Ported |
