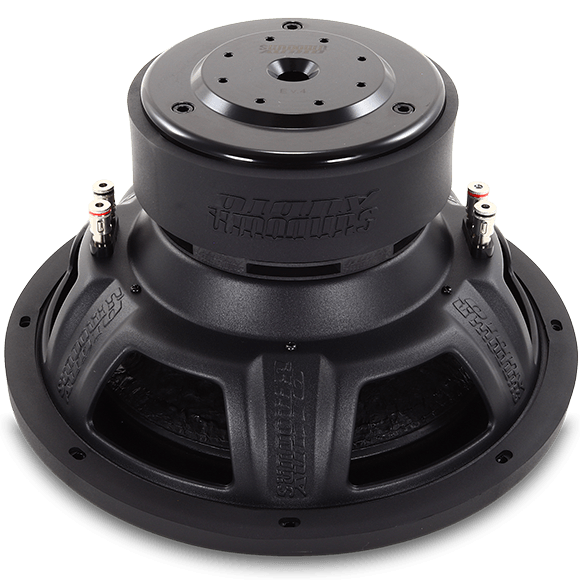

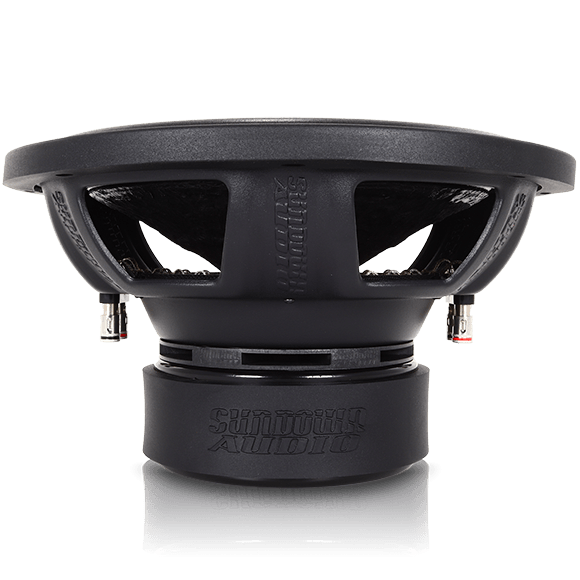

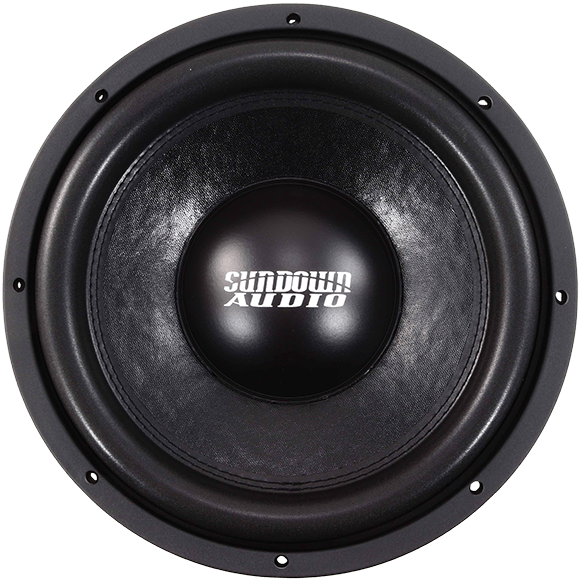

Sundown Audio E-Series V.4 12" Subwoofer 750W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power — 750W RMS / 1500W Peak
- Voice Coil — Dual 2 or 4 ohm, 2.5" 4-layer copper
- Excursion — Class-leading 14mm one-way linear Xmax
- Motor — Double-stacked magnet with vented magnetic gap & pole piece
- Tuning — Optimized for ported enclosures
This Listing Includes: (1) Sundown Audio E-Series V.4 12" Subwoofer
Developed through relentless research at Sundown's North Carolina headquarters, the E-Series V.4 12" pairs a 2.5" voice coil with a unique motor design to extract the deepest possible bass from a 12" cone. The motor's heavily vented magnetic gap and solid pole piece enable exceptional thermal power handling, while the high-strength poly-cotton spider is bolted down and glued to the frame for added ruggedness. Its motor geometry delivers a remarkable 14mm one-way linear Xmax, giving excursion equivalent to far larger cones. Rated at 750W RMS (1500W peak) with dual 2 or 4 ohm coils and optimized for ported enclosures. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- High-temp 4-layer copper voice coil wire
- Vented magnetic gap and solid pole piece for superior cooling
- High-strength stamped steel frame
- High-quality push terminals

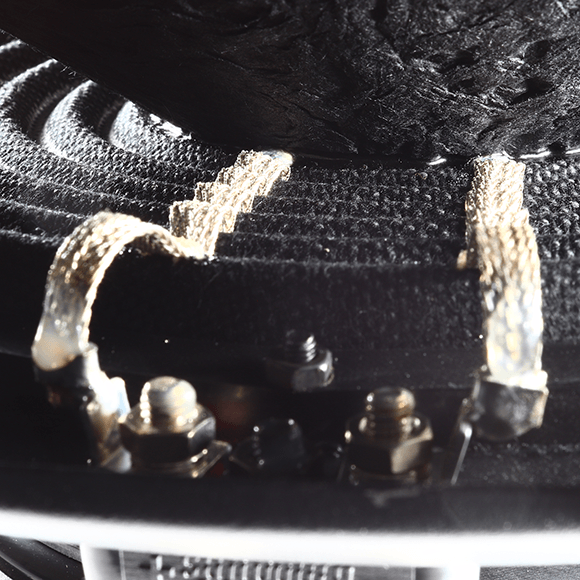

- Stitched-on Mini-XL tinsel leads
Specifications
| RMS Power | 750 Watts |
| Peak Power | 1500 Watts |
| Impedance | Dual 2 ohm or Dual 4 ohm |
| Voice Coil | 2.5" 4-layer copper |
| Xmax | 14mm one-way linear |
| Magnet | Double-stacked |
| Frame | Stamped steel |
| Recommended Enclosure | Ported |
