Sundown Audio XV4 12" Dual Ported Subwoofer Enclosure
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20plywood%20construction%0AThis%20Listing%20Includes:%20(1)%20Basshead%20Supply%20ported%20enclosure%20fo...
){kind=link}
- Net Volume - 5.0 cu ft
- Tuning - 31.0 Hz
- Port Area - 72.8 sq in
- Sub Cutout - 11.19"
- Construction - 1" (24mm) plywood construction

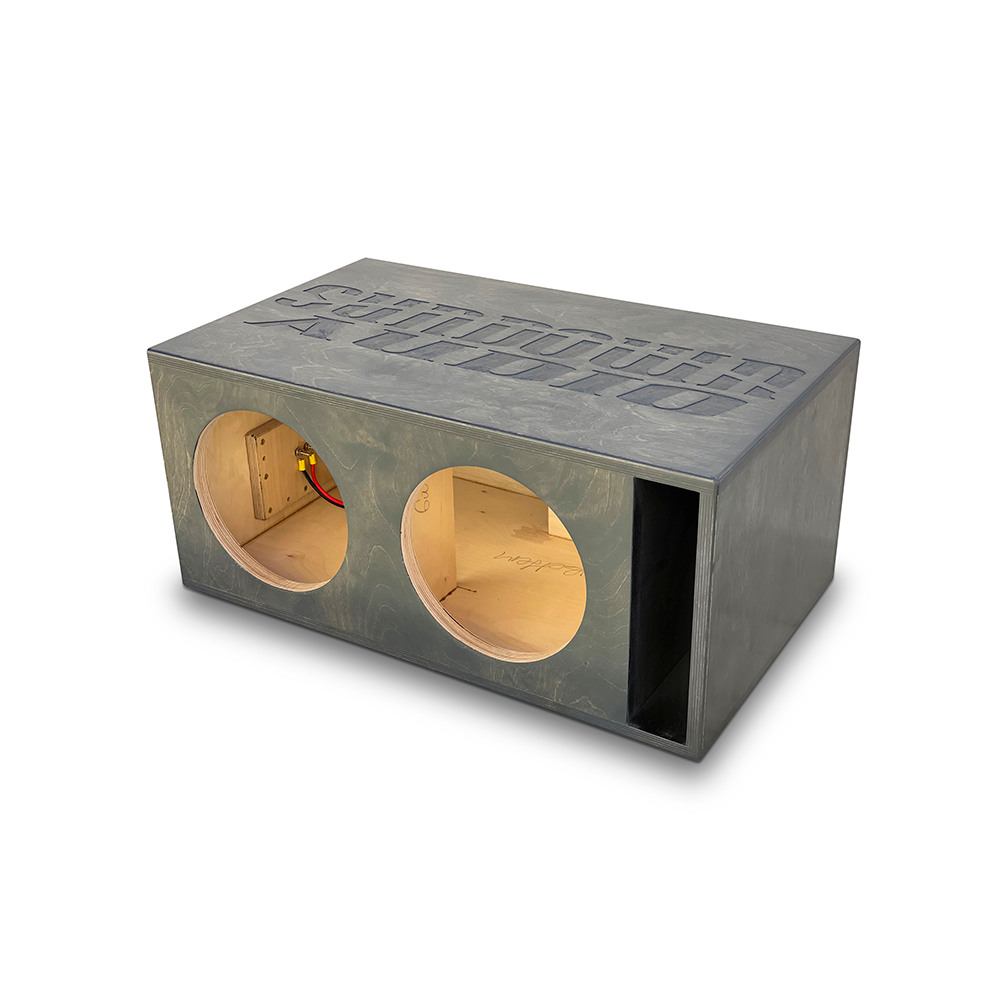

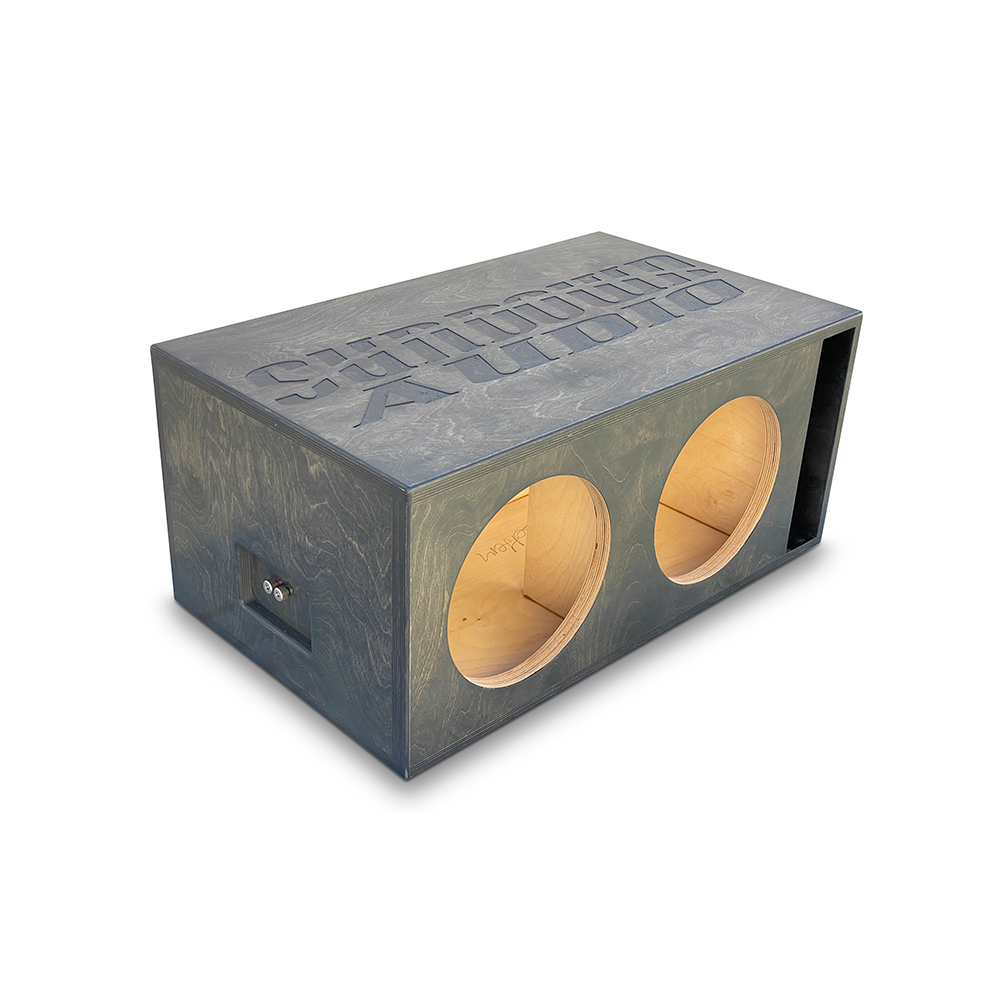

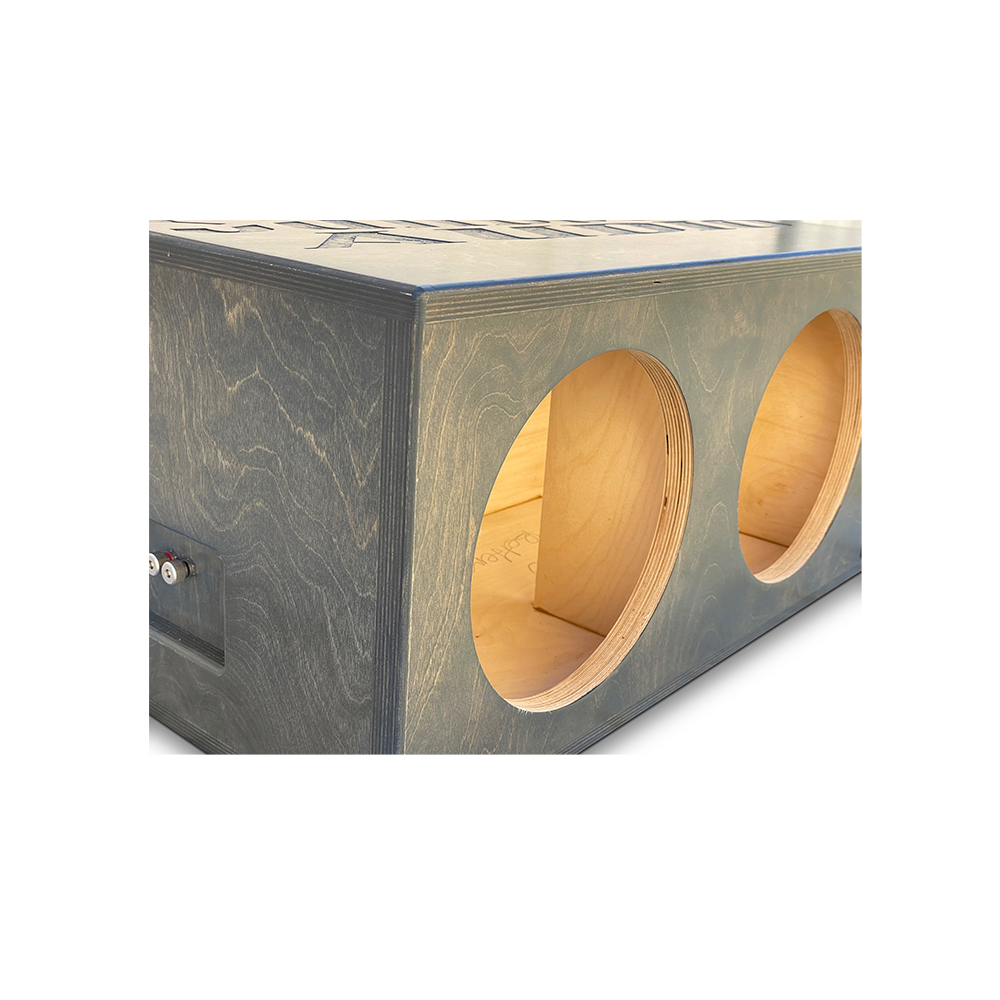

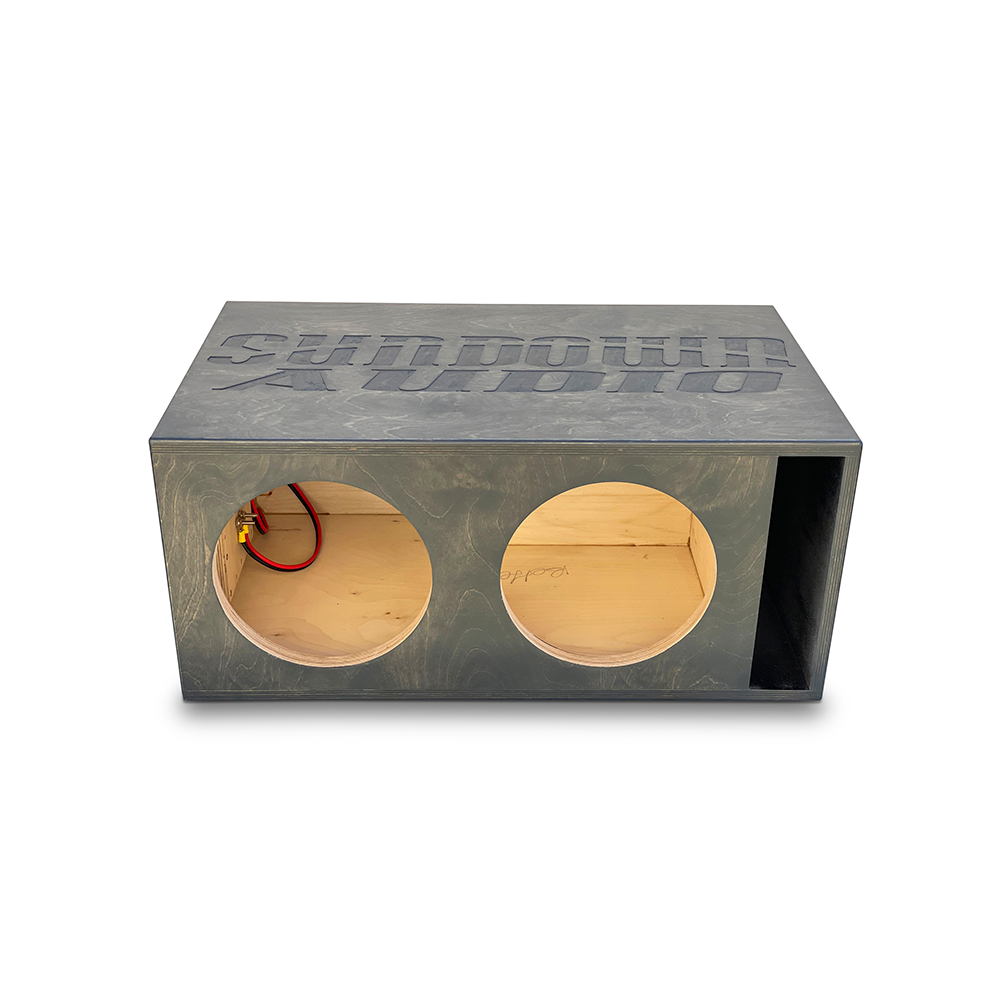

This Listing Includes: (1) Basshead Supply ported enclosure for the Sundown Audio XV4 12" subwoofer
This enclosure is custom built specifically for the Sundown Audio XV4 12" subwoofer. Basshead Supply's Performance Series enclosures are subwoofer-specific boxes engineered for strong, clean output, built with a refined assembly process that leaves no visible screw holes. Every box is glued with Titebond III and internally braced, then pre-wired with a recessed satin-nickel binding post and OFC 10-gauge wire - built by hand in the USA. Made to order (2-3 week lead time) and shipping from JS Ultimate Sounds, your Basshead Supply dealer.
Features
- 1" (24mm) plywood construction
- 17 ply birch veneer construction
- Gray stained finish
- Refined assembly - no visible screw holes
- Glued with Titebond III and internally braced

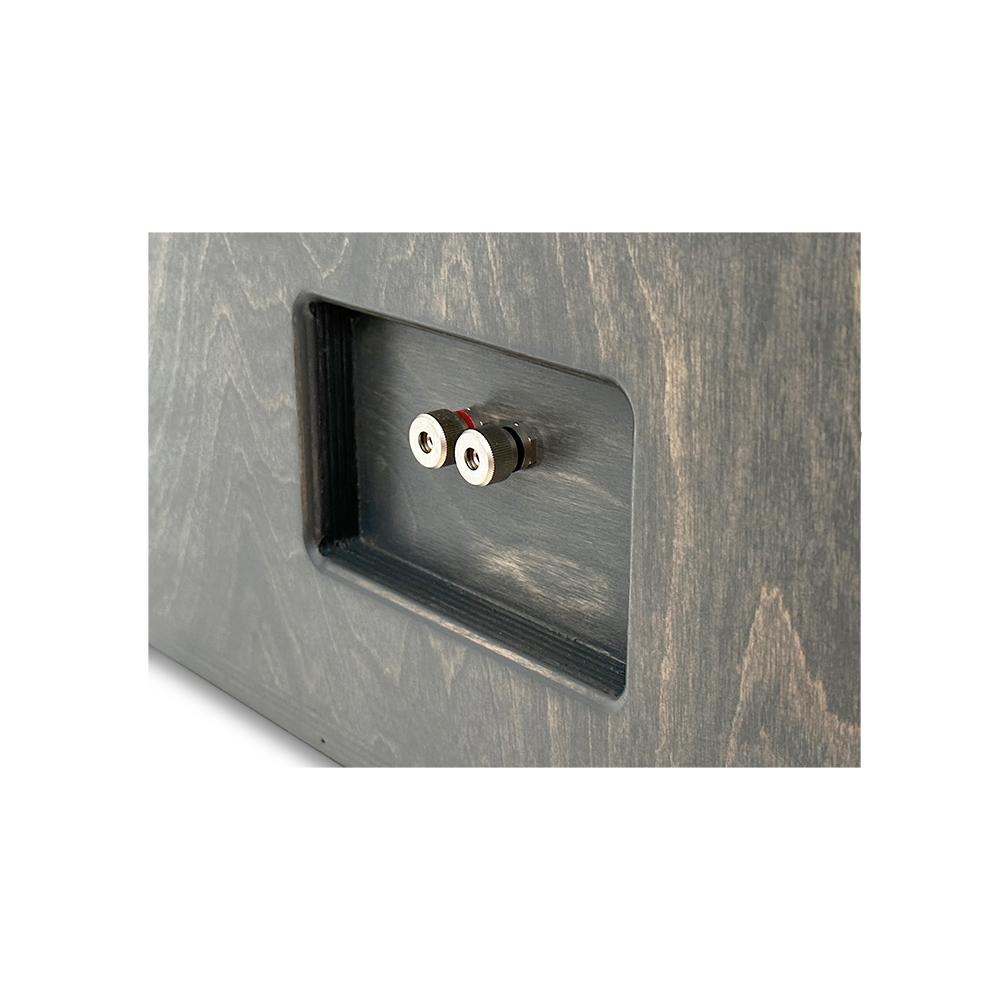

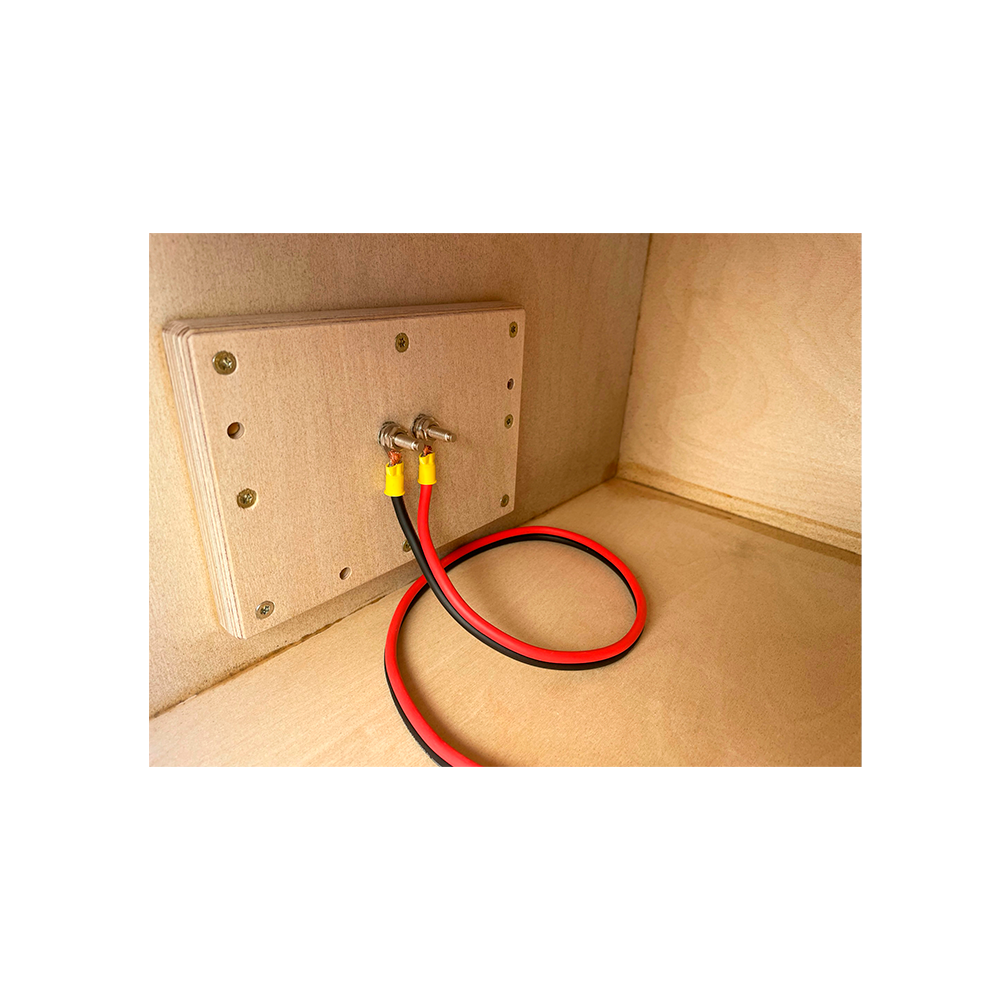

- Pre-wired recessed satin-nickel binding post with OFC 10-gauge wire
- Built by hand in the USA
Specifications
| Net Volume | 5.0 cu ft |
| Tuning | 31.0 Hz |
| Port Area | 72.8 sq in |
| Port Dimensions | 16.0" x 4.55" |
| Sub Cutout | 11.19" |
| Construction | 1" (24mm) plywood construction |
| Finish | Gray stained finish |
| Wiring | Pre-wired metal binding post with 10ga OFC wire |
| Dimensions (HxWxD) | 18.0" x 39.375" x 21.875" |
