Sundown Audio Compact Neo V3 18" Subwoofer
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%0A%0AMotor%20%E2%80%94%20Neodymium,%20Sundown's%20highest%20motor%20force%20%E2%80%94%20as%20strong%20as%20a%202,000%20oz.%20ferrite%20motor%0A%0AImpedance%20%E2%80%94%20Dual%201-ohm%20/%20Dual%202-ohm%20(Music%20%26amp;%20Musi...
){kind=link}
- Recommended Power — 3,500 watts (standard rating)

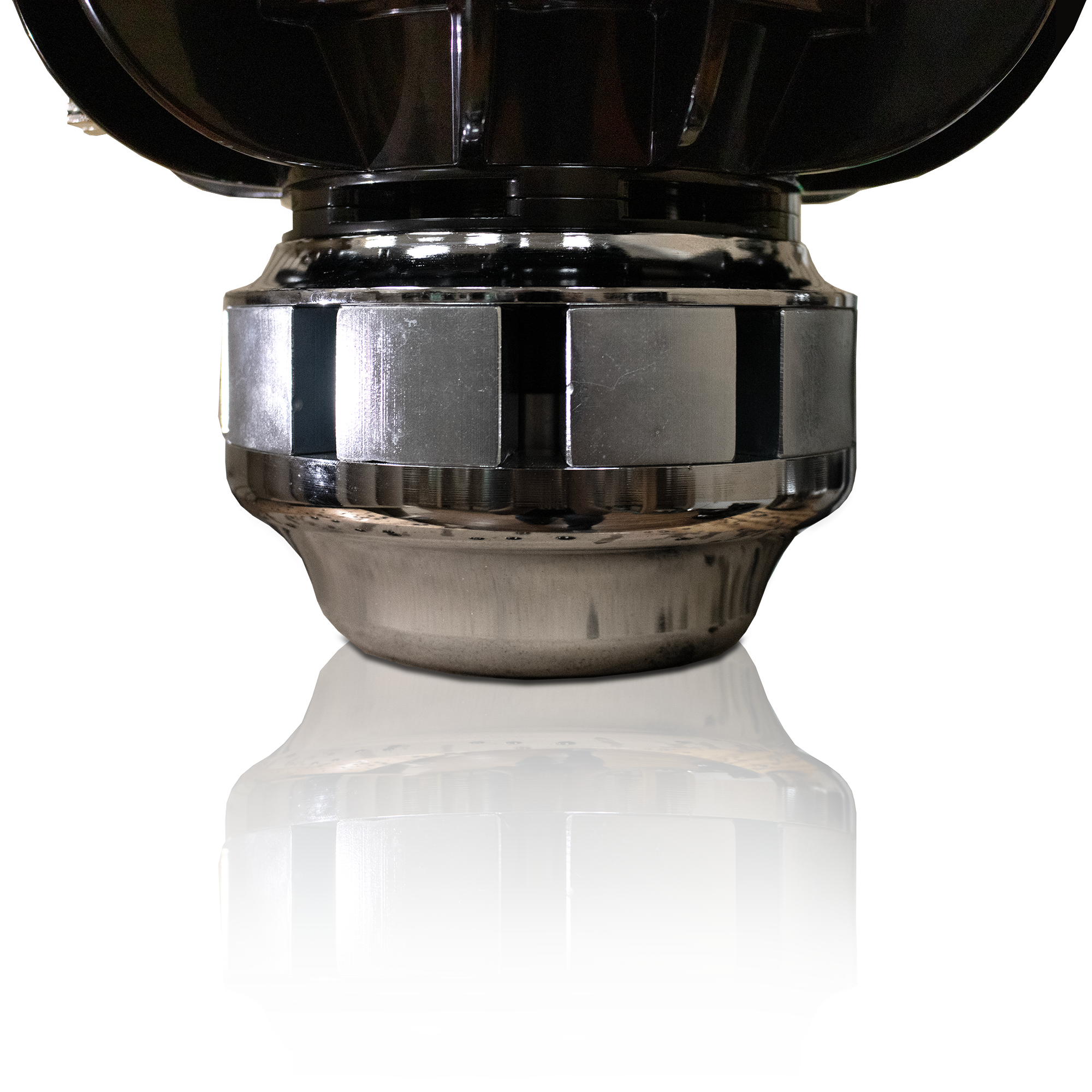

- Motor — Neodymium, Sundown's highest motor force — as strong as a 2,000 oz. ferrite motor
- Impedance — Dual 1-ohm / Dual 2-ohm (Music & Musical SPL); Dual .25/.35/.5/.7-ohm (SPL burp)
- Pole — Cross-cut pole with Neodymium cap for lowered distortion and thermal control
- Suspension — Megaroll technology for linear cone travel and low-end extension
This Listing Includes: (1) Sundown Audio Compact Neo V3 18" Subwoofer

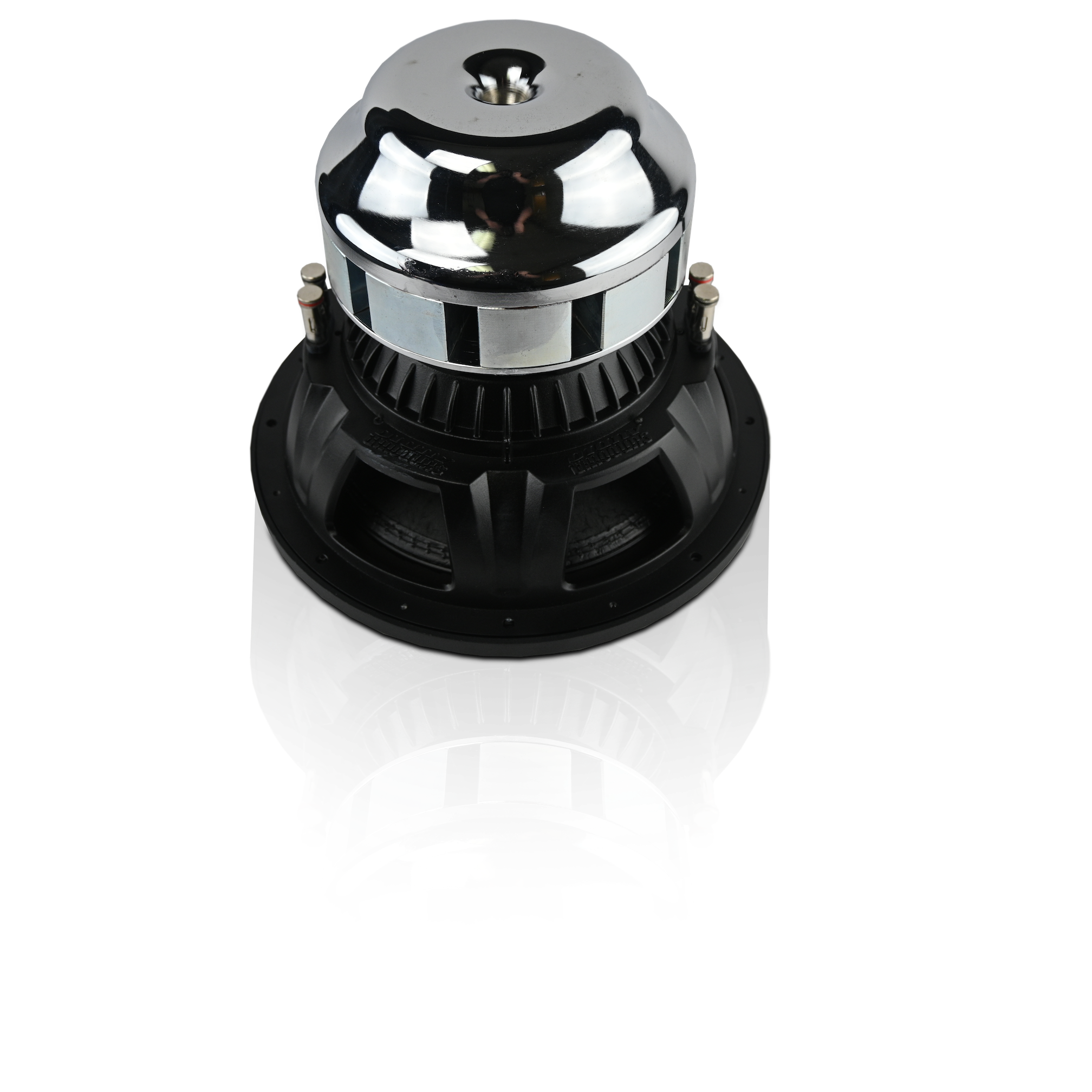

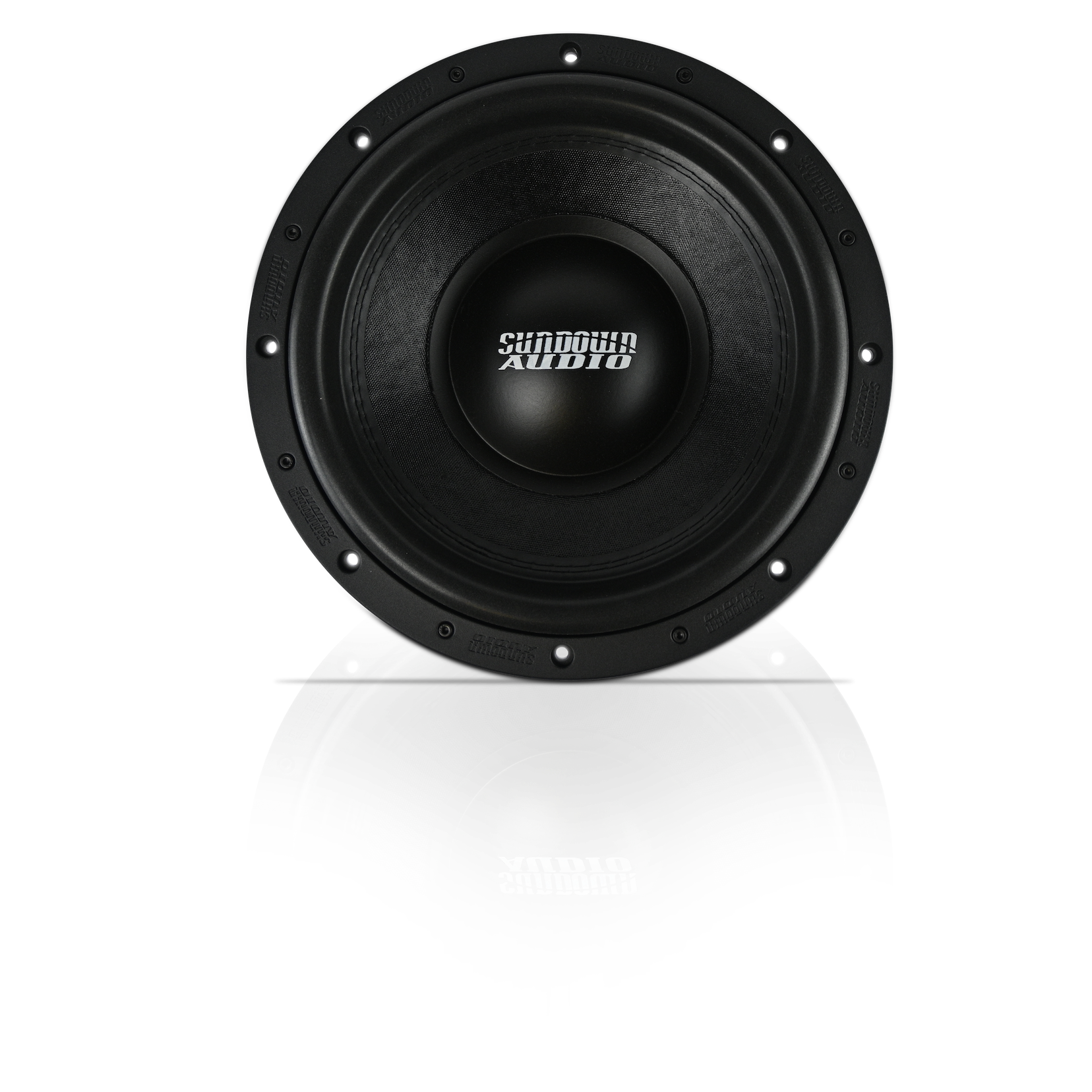

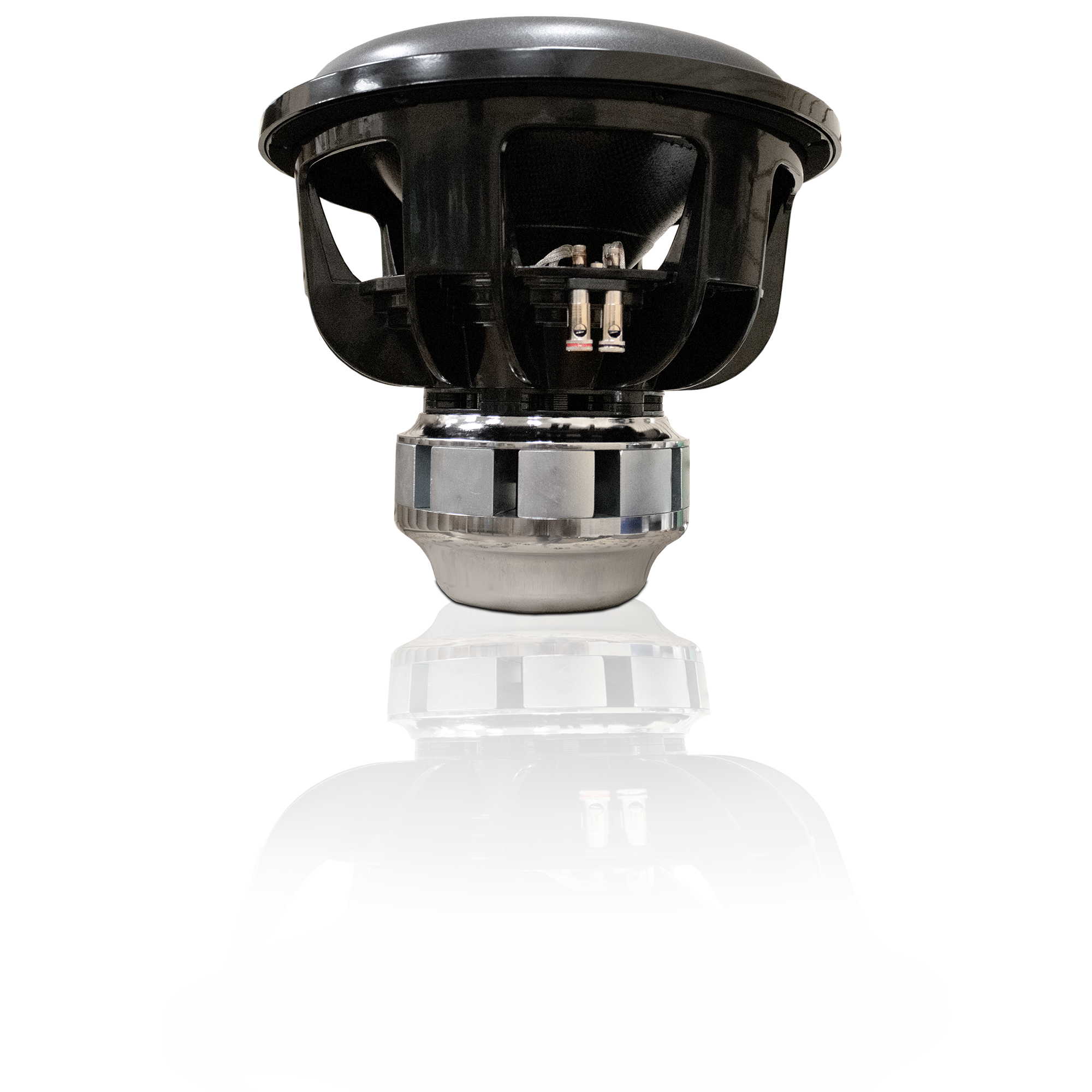

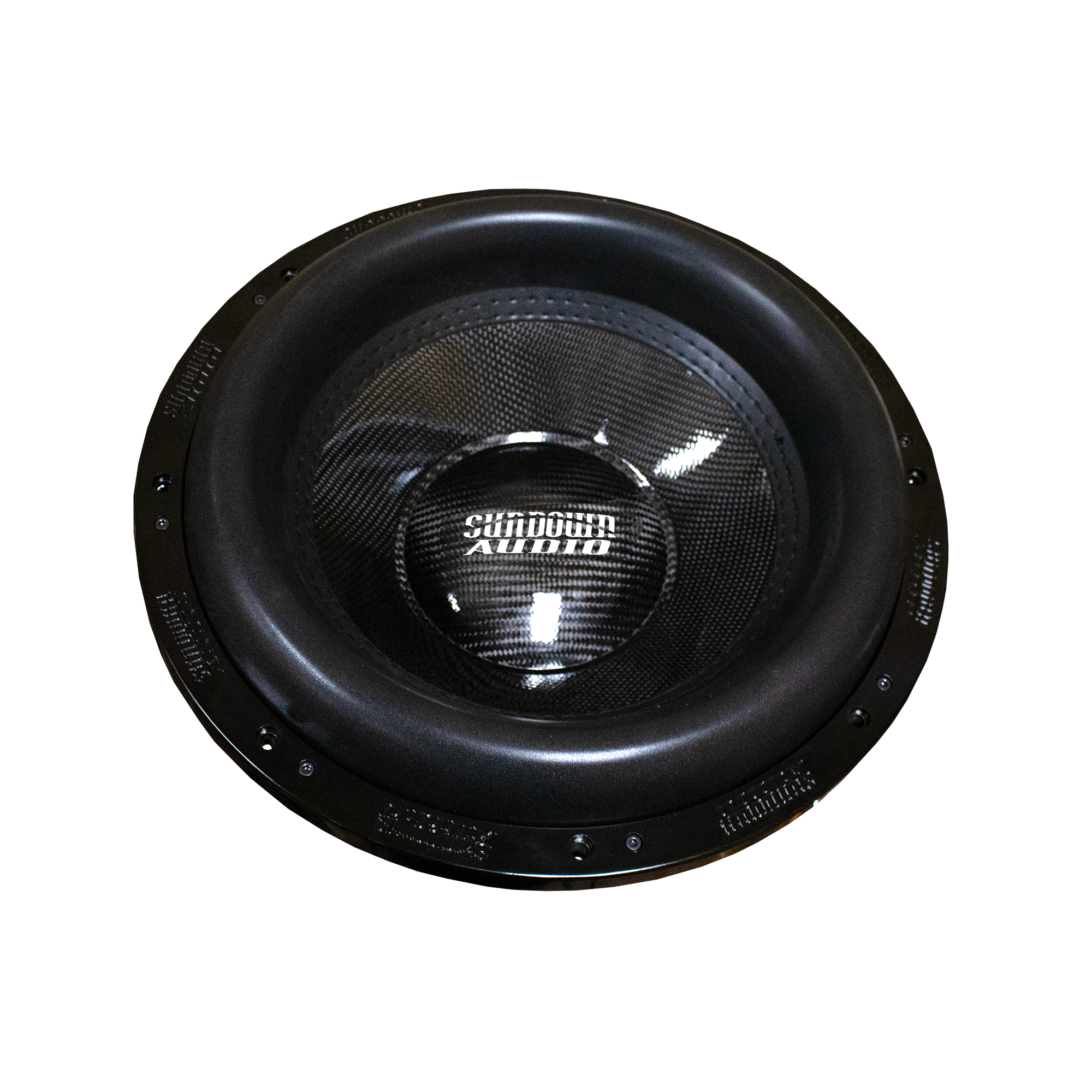

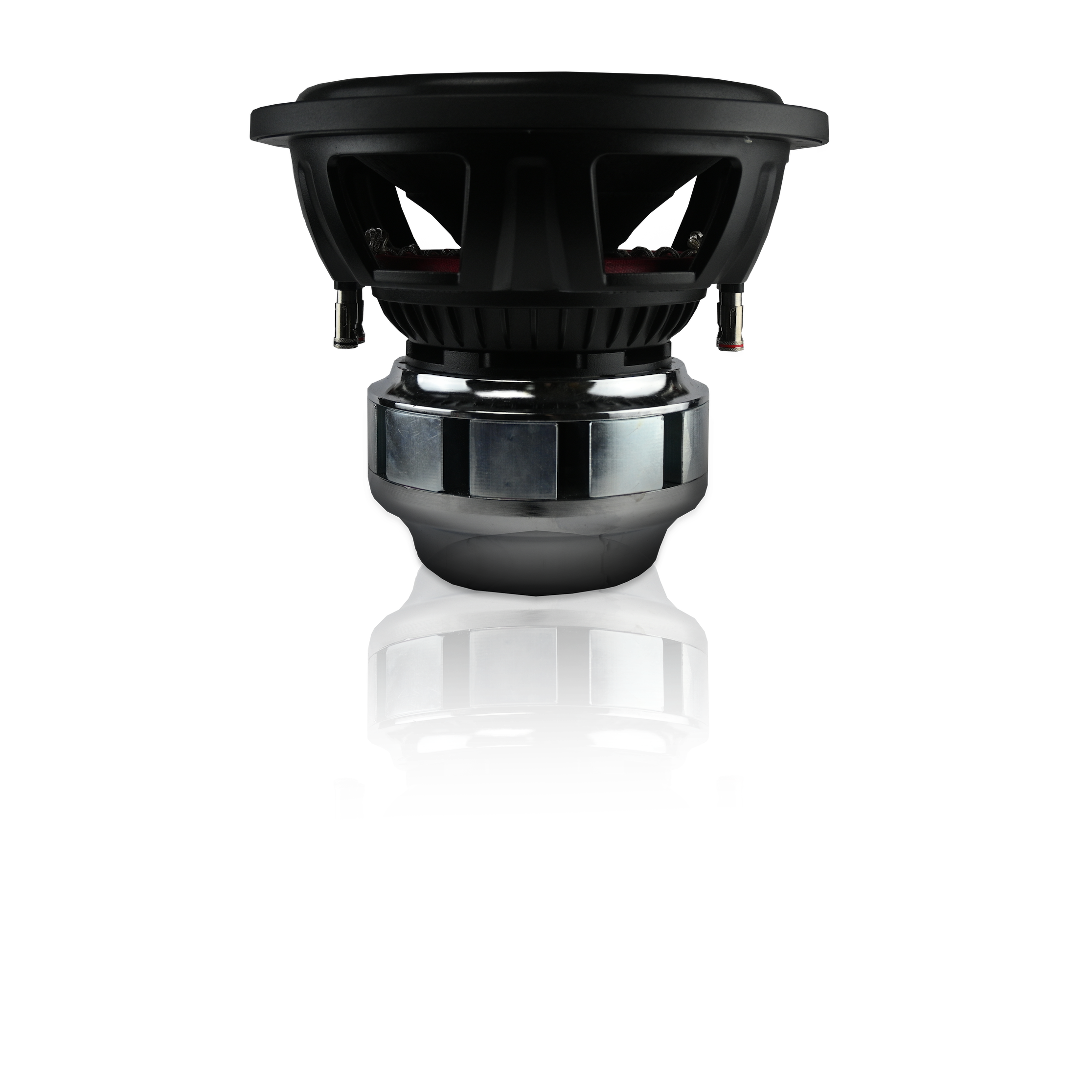

The Compact Neo V.3 pairs a lightweight neodymium motor that develops Sundown's highest motor force — as strong as a 2,000 oz. ferrite motor — with a standard 3,500-watt RMS rating. Its solid, high-velocity pole piece uses CNC cross-cut channel cooling, a series of 16 direct air-gap vents in the back plate, and a vented top plate to keep the motor cool, while large shorting rings and Megaroll technology deliver smooth, linear cone travel. It is offered in three configurations — Music (all-around, patented Sundown frame, most throw/Xmax), Musical SPL (higher musical output, U-series frame, direct compression cooling), and SPL (extreme burp output) — and ships on a heavy-duty cast basket with spring-loaded terminals accepting up to 4-gauge wire. Custom cone, coil and progressive suspension configurations are available, and RMS may change with a custom build. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Neodymium motor with Sundown's highest motor force
- Cross-cut pole piece with Neodymium cap for lowered distortion and improved thermal control
- Solid pole with vent channels, 16 back-plate air-gap vents and aluminum shorting ring cap
- Megaroll surround and large shorting rings for smooth, linear response
- Heavy-duty cast basket with spring-loaded terminals (up to 4-gauge) and stitched-on tinsel leads
Specifications
| Recommended Power | 3,500 watts (standard rating) |
| Motor | Neodymium (equivalent to ~2,000 oz. ferrite) |
| Impedance — Music / Musical SPL | Dual 1-ohm or Dual 2-ohm |
| Impedance — SPL (burp) | Dual .25 / .35 / .5 / .7-ohm |
| Voice Coil Lead | Stitched-on heavy-duty tinsel leads |
| Terminals | Spring-loaded, accept up to 4-gauge wire |
| Basket | Heavy-duty cast |
