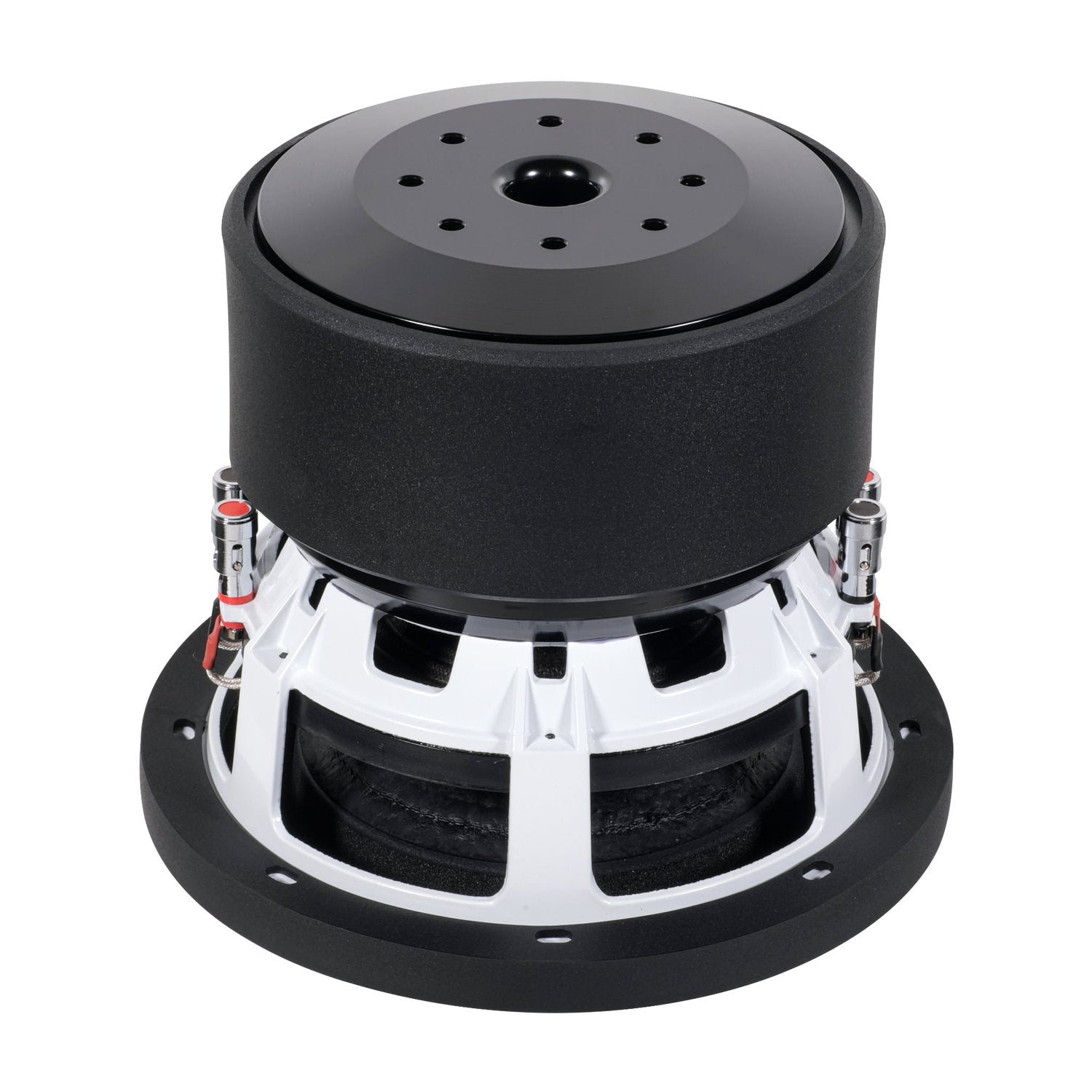

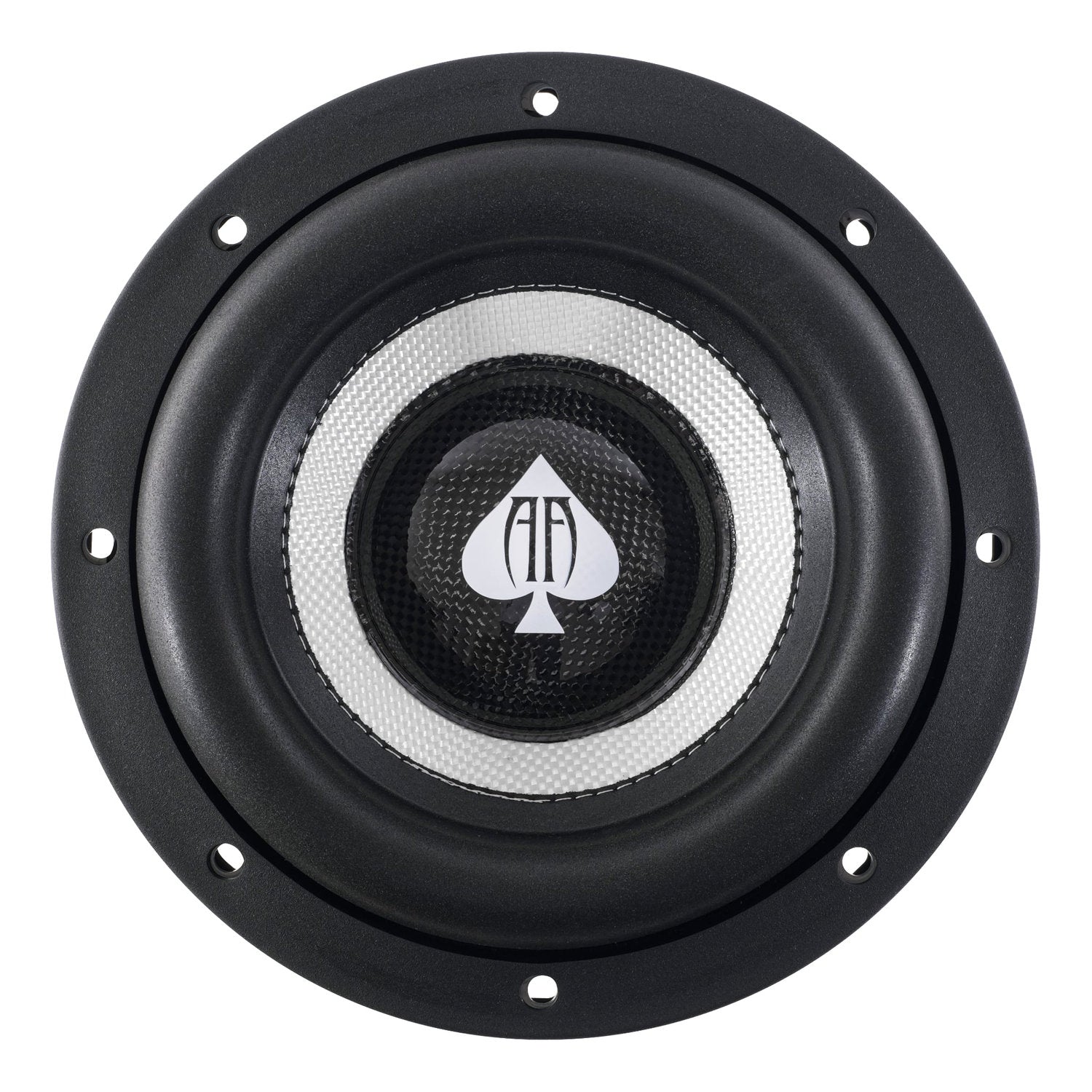

Audio Ace STR8 NST 1000W RMS Dual 2-Ohm Car Subwoofer
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20Audio%20Ace%20STR8%20NST%208%22%20SubwooferThe%20Audio%20Ace%20STR8%20NST%20is%20an%208%22%20subwoofer%20designed%20for%20...
){kind=link}
- Size — 8"
- RMS Power — 1000W

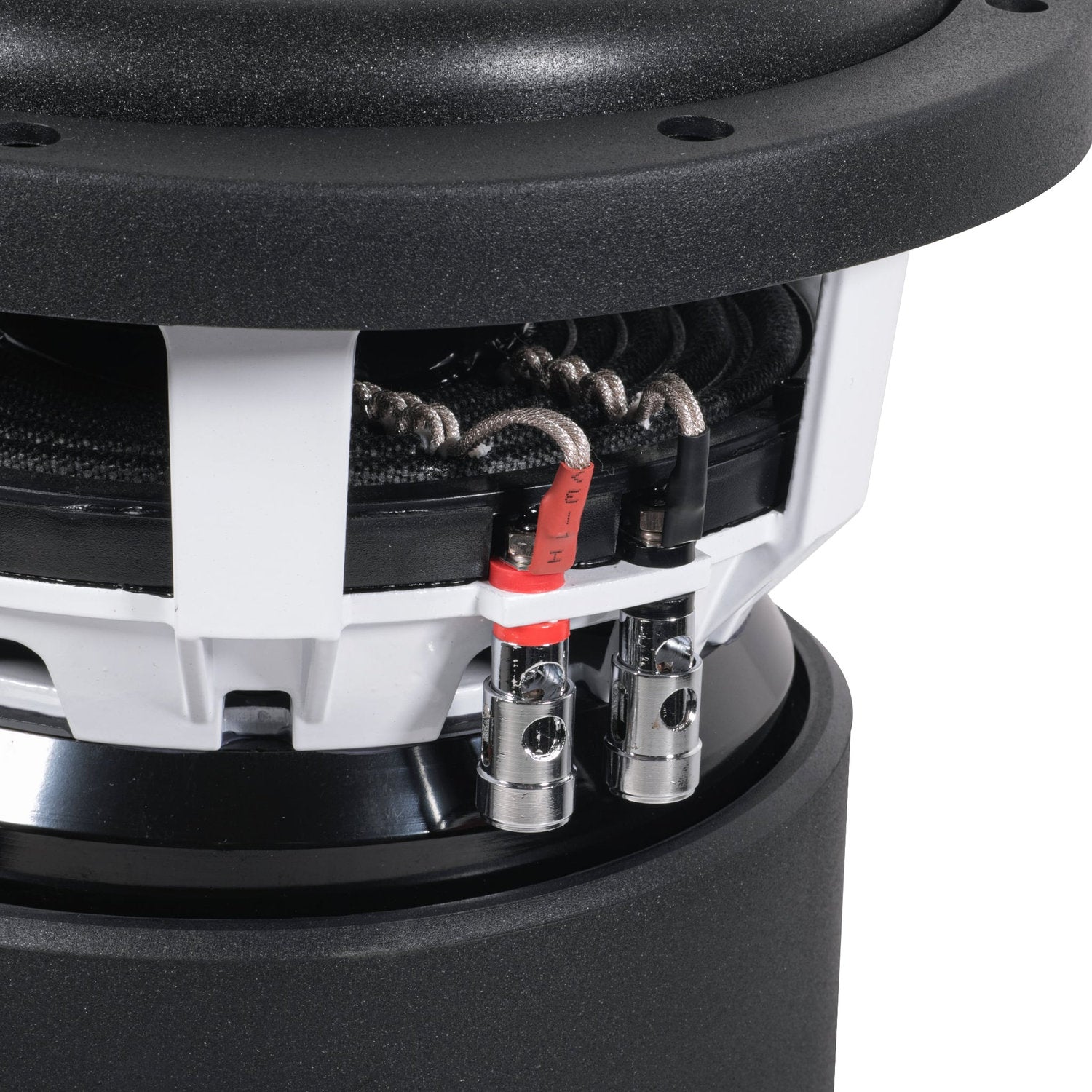

- Voice Coil — Dual 2 Ohm
- Motor — 159 oz
- Fs — 54 Hz
This Listing Includes: (1) Audio Ace STR8 NST 8" Subwoofer

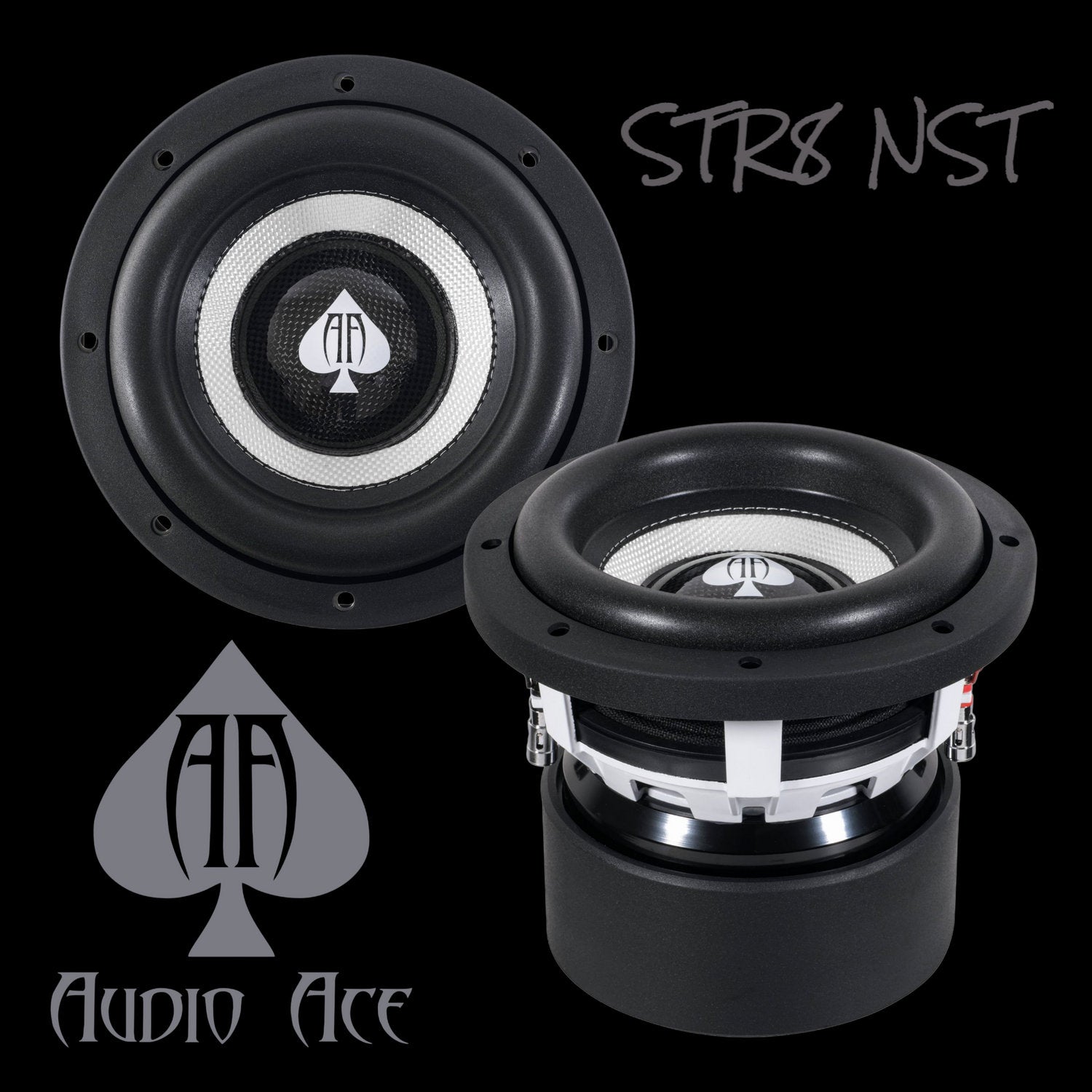

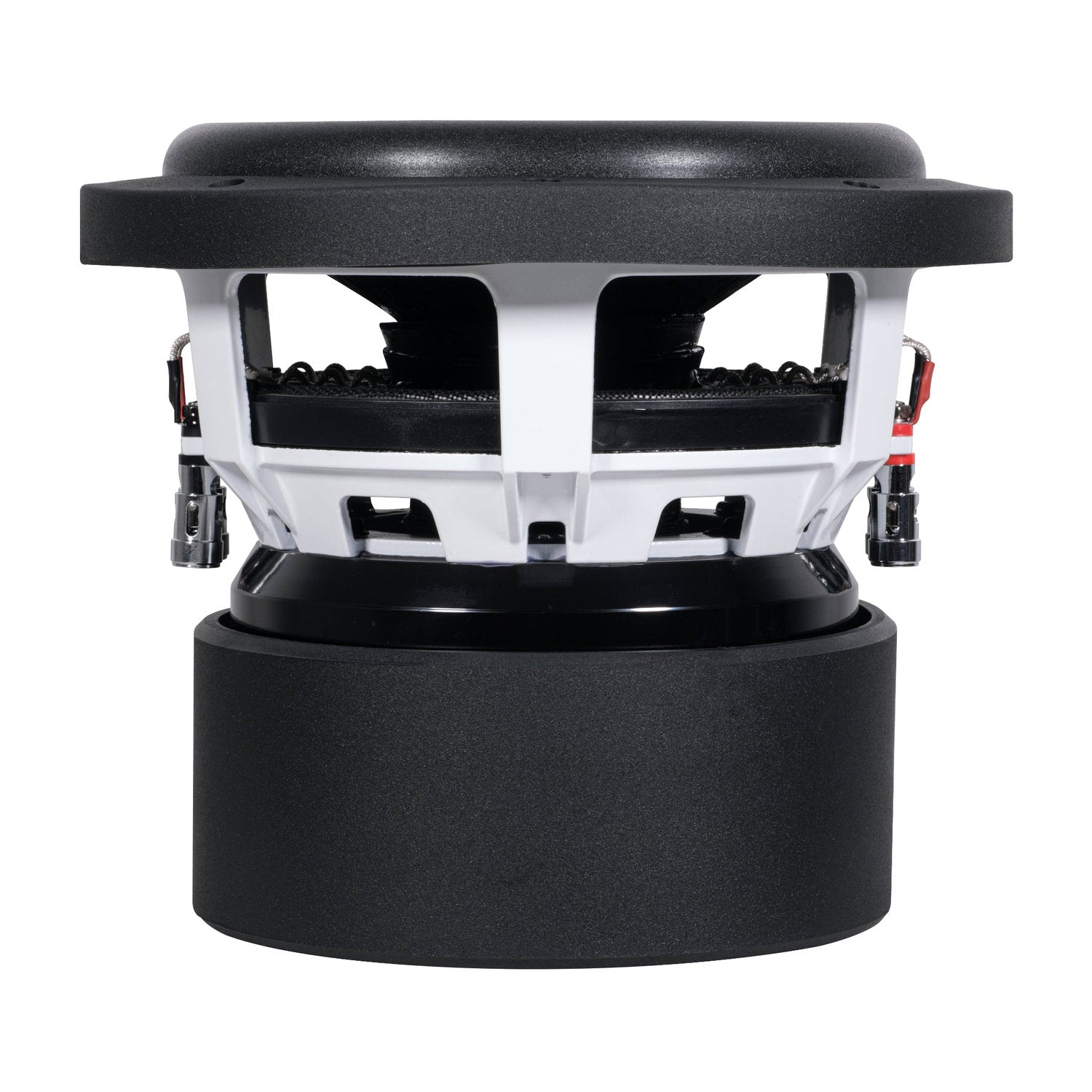

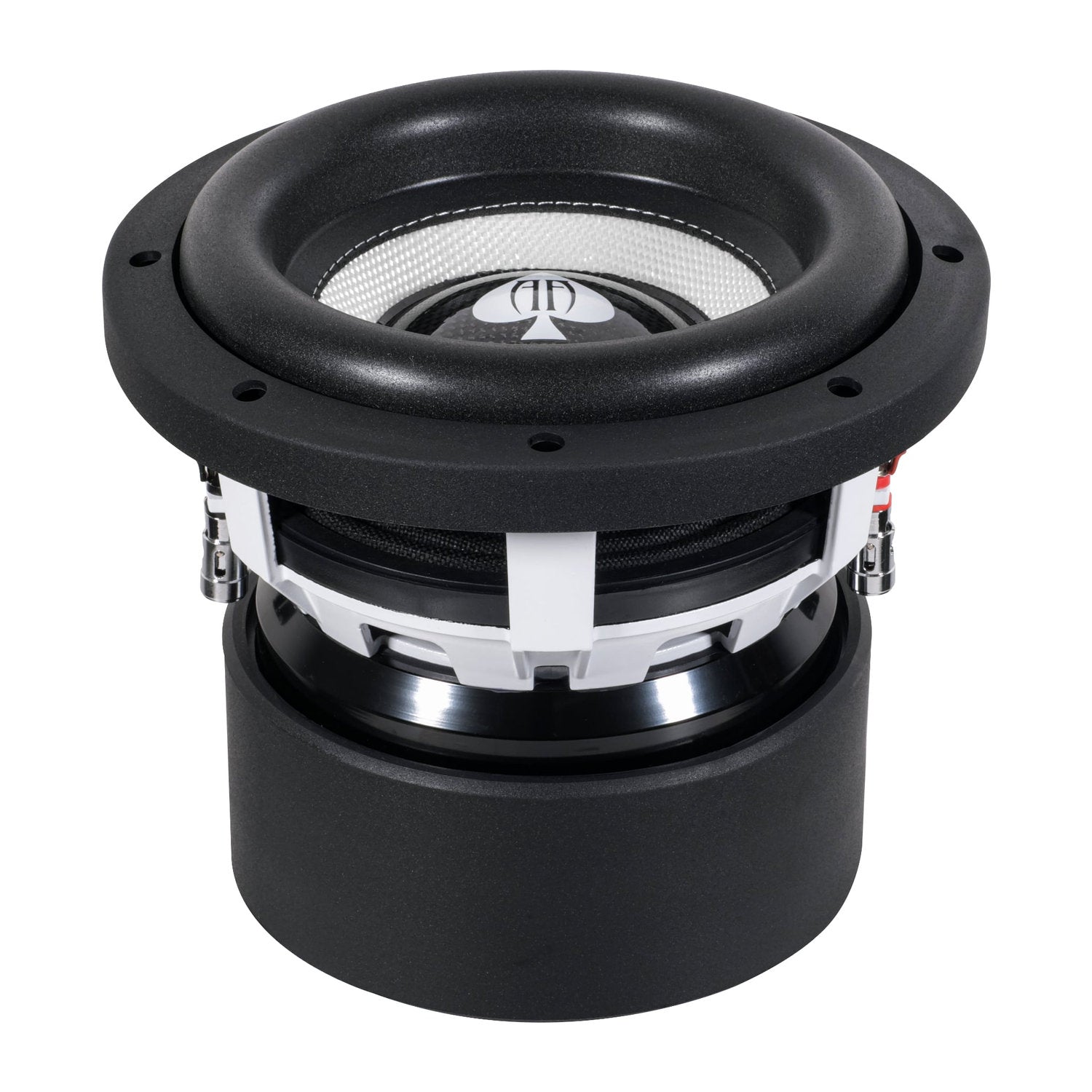

The Audio Ace STR8 NST is an 8" subwoofer designed for big output on a budget, rated for 1000W RMS on a 2.5" epoxy-coated voice coil with a dyeable cone you can customize. Authorized Audio Ace dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 2.5" epoxy-coated voice coil
- 159 oz motor

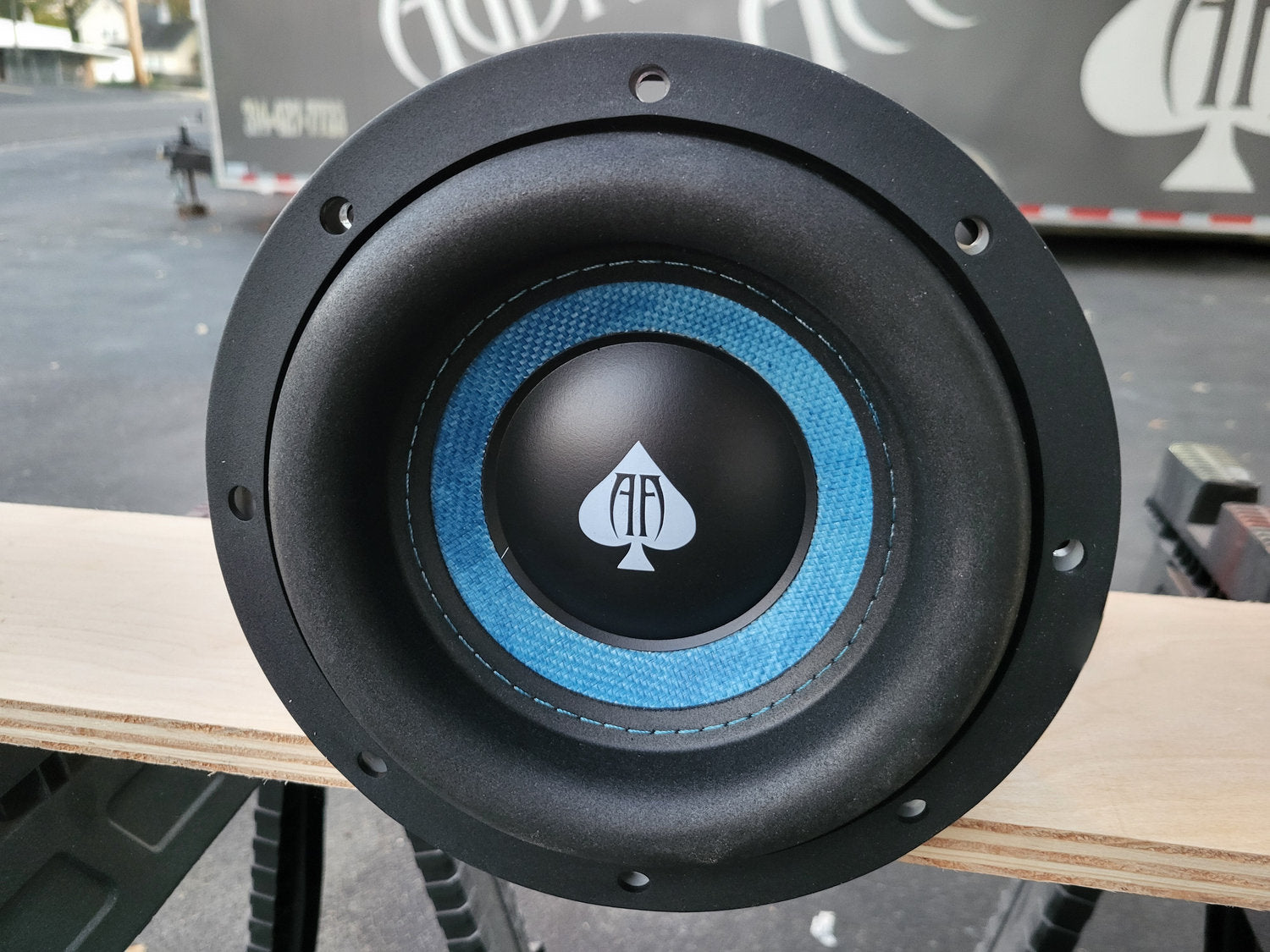

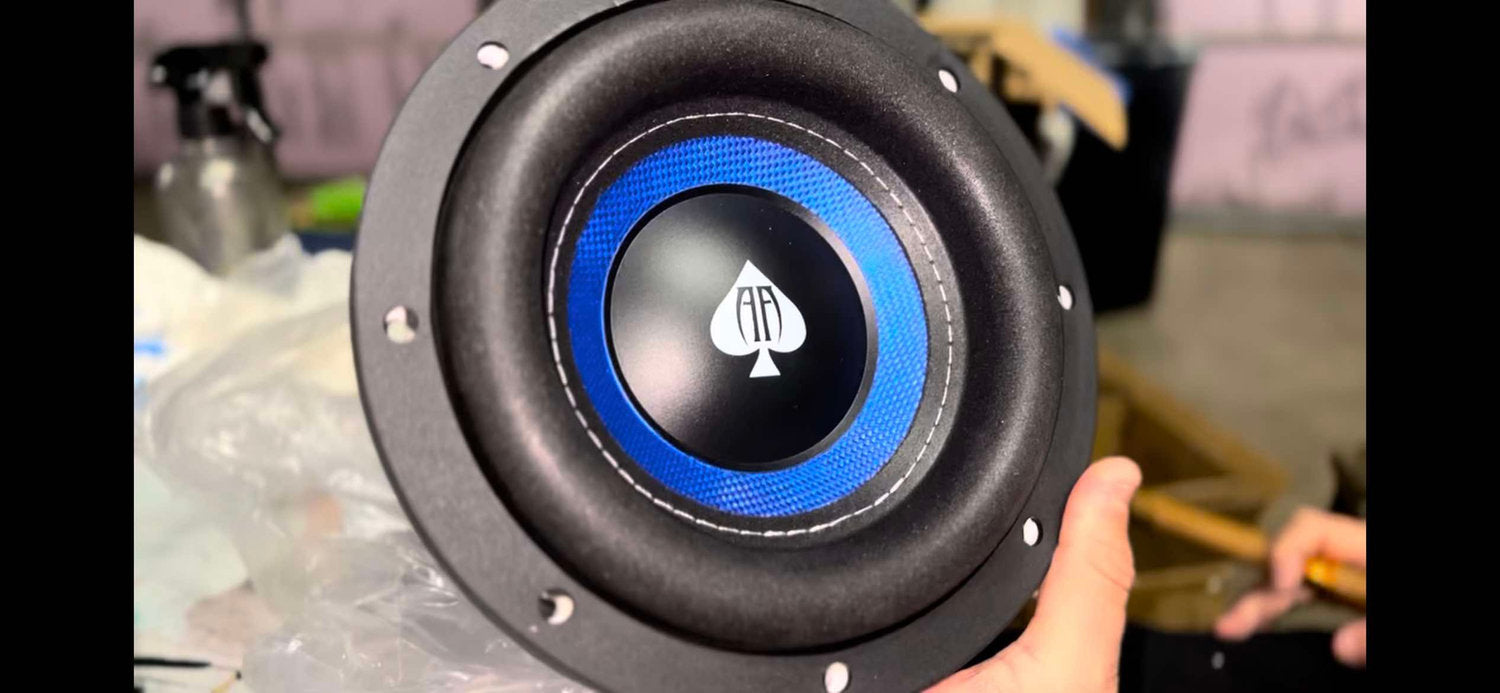

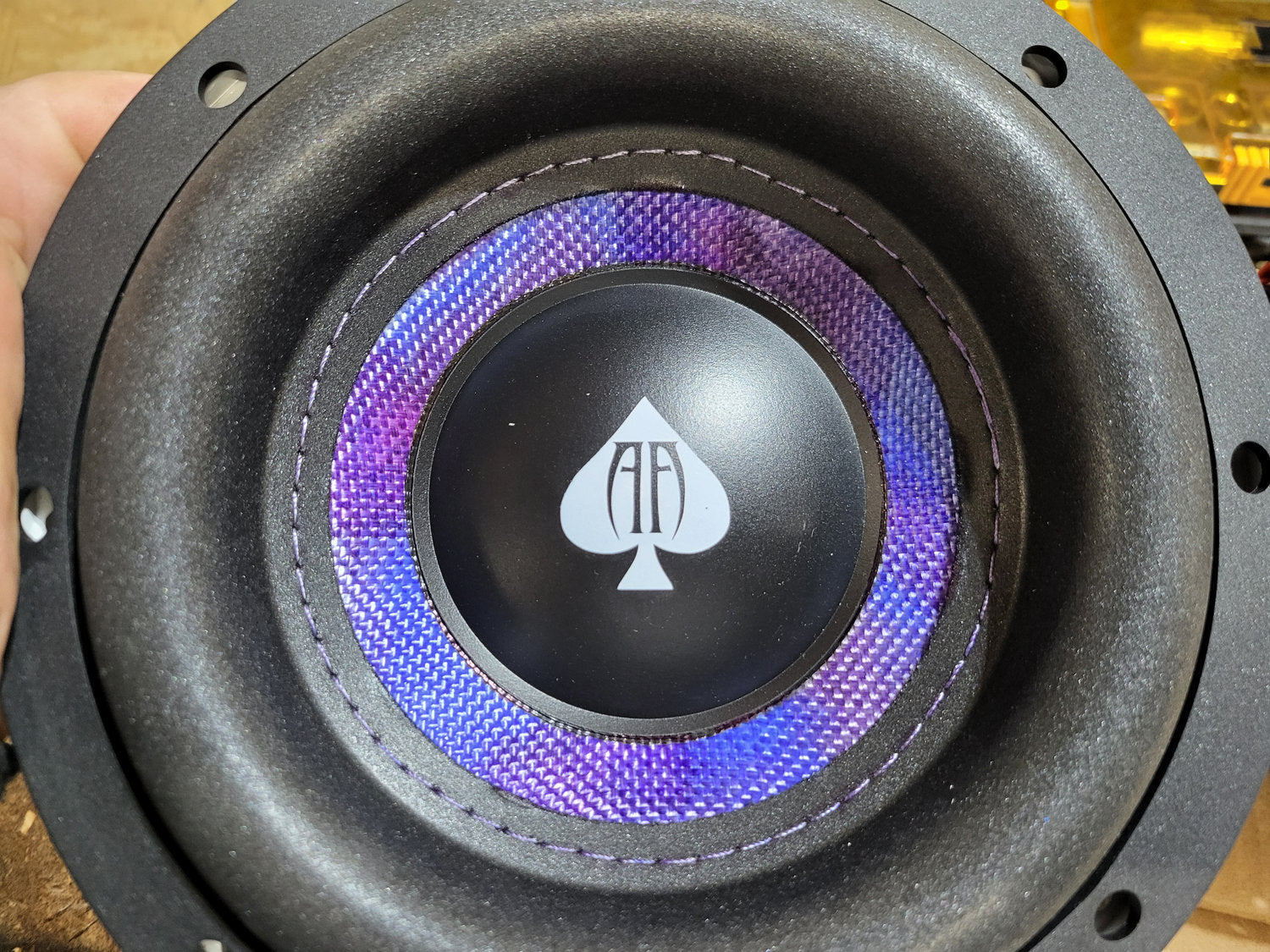

- Dyeable cone
- Compact 8" SPL-on-a-budget design
- Not recommended for sealed applications
Specifications
| Size | 8" |
| RMS Power | 1000W |
| Voice Coil | Dual 2 Ohm |
| Motor | 159 oz |
| Fs | 54 Hz |
| Qes | 0.616 |
| Qms | 5.529 |
| Qts | 0.554 |
| Sd | 196.07 cm² |
| SPL | 82 dB |
| BL | 19.132 |
| Mounting Depth | 6.5" |
| Cutout | 7.264" |
| Xmax | 15.5 mm one-way |
| Recommended Enclosure | 0.7 – 1.1 cu ft |
| Tuning | 32 – 38 Hz |
