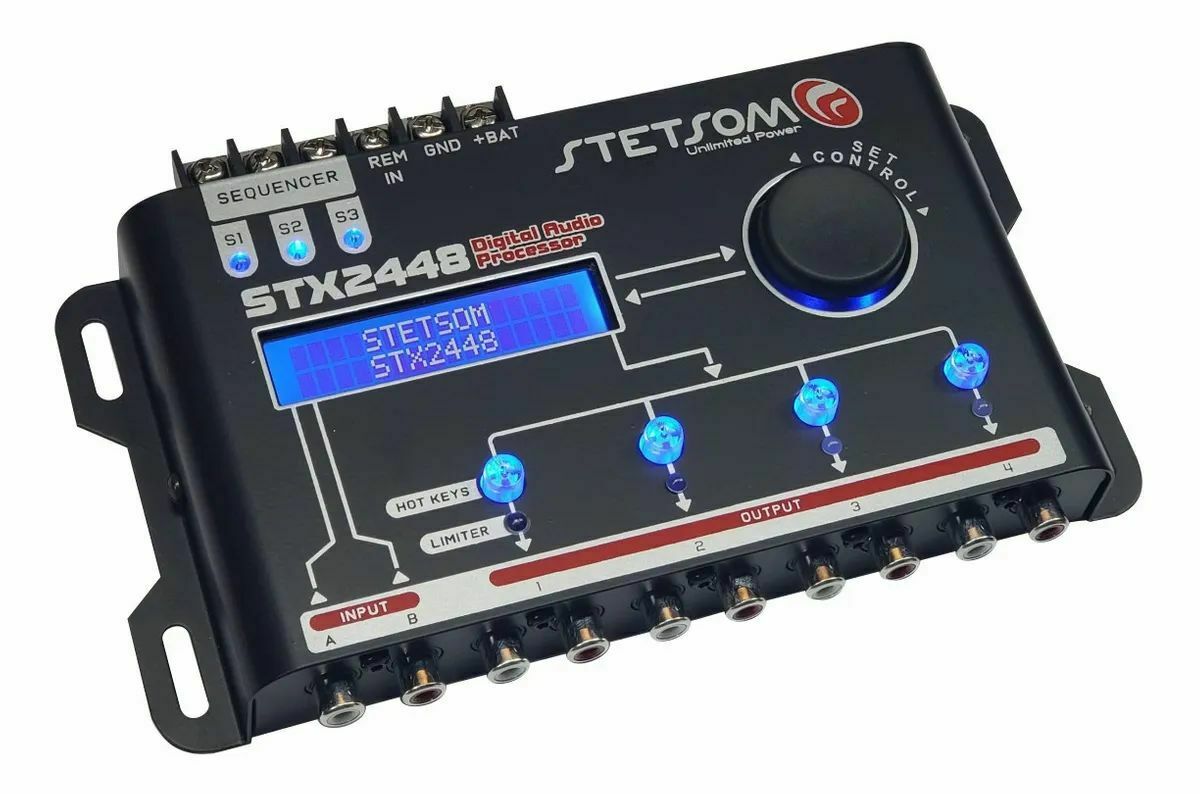

The STX 2448 DSP Crossover & Equalizer 4 Channel Full Digital Signal Processor (Sequencer) 2.4 delivers Stetsom's Brazilian-engineered build quality and dependable performance for your car audio system.
Key Features

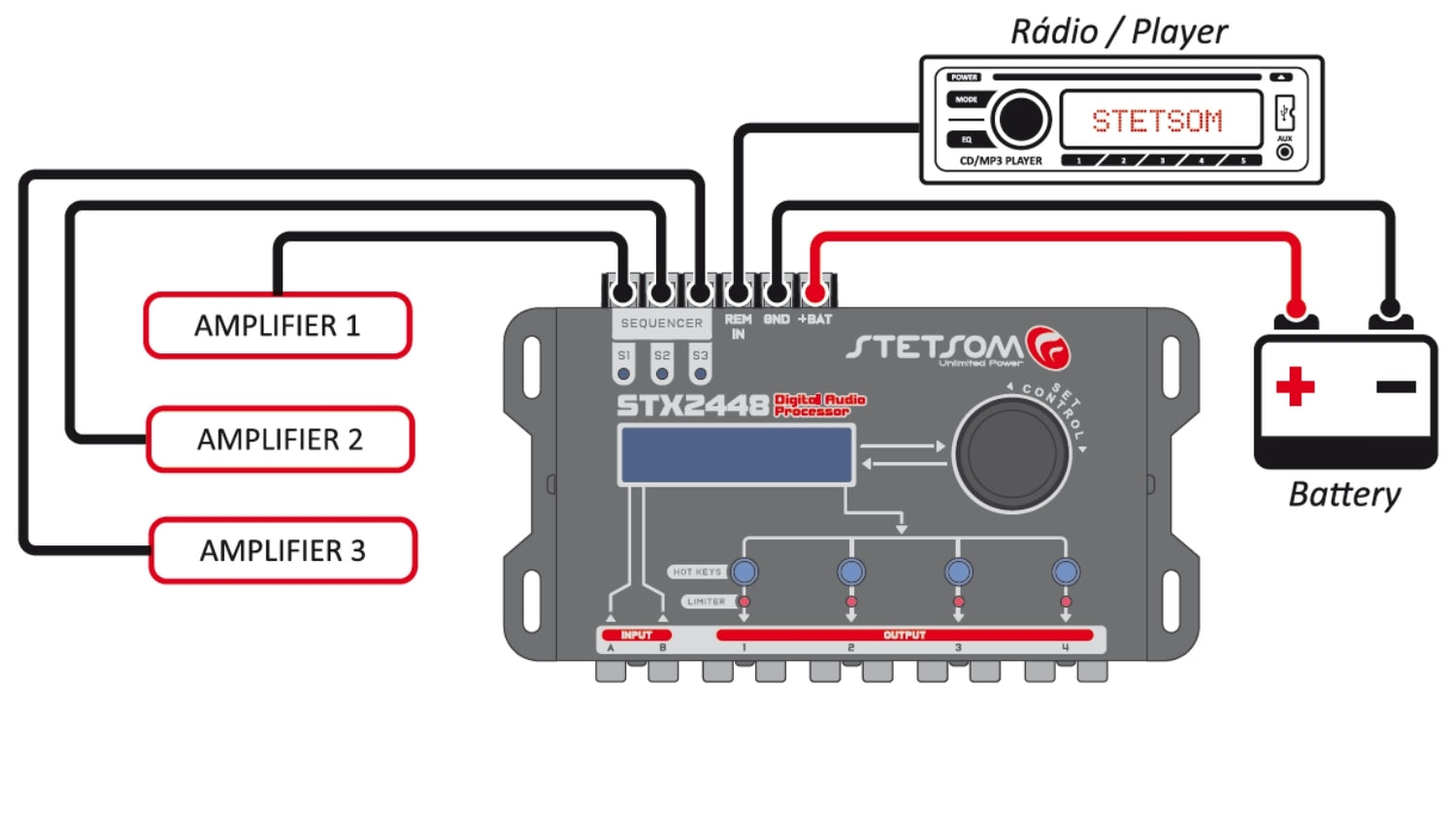

- SEQUENCER : It allows sequencial activation of other products through the remote activation (REM) connection.
- REM IN : Allows automatic activation of the amplifier when turning on the radio/player.
- NEGATIVE POWER CONNECTOR (GND) : Connect to the negative terminal of the battery.
- POSITIVE CONNECTOR (+BAT) : Connect to the positive terminal of the battery. It is recommended to use a fuse for external protection of 1A.
- DISPLAY LCD : It allows visualization and interaction with the processor system.
- ENCODER : Rotative control that allows interaction with the processor system functions and resources.
Specifications
| Channels | 4 |
| Number of Channels | 2 input / 4 output |
| Graphic Equalizer | 15 Bands (gain aprox. 12dB) |
| Graphic Equalization Presets | 12 |
| Parametric Equalizer | 1 input + 1 per Output (gain aprox. 12dB, Factor Q 0.4 ~ 10.0) |
| Crossover Variable Frequency | Butterworth: 12/18/24/36/48 dB/8ª - Linkwitz-Riley: 12/18/24/36/48 dB/8ª |
| Routing bet. Input and Output | A, B or A+B |
| Alignment | 0 ~ 8ms (275cm) |
| Phase Inversion | 0° ~ 180° |
| Limiter | Threshold: -24 ~ 0dB / Attack: 0.1 ~ 100.0ms and Release: 1 ~ 1600ms (manual/automatic) |
| Master Level and Gain | 0 ~ 100% (Gain -45 ~ +15dB per output) |
| Memory Positions Save/Load | Autosave + 5 slots |
| Secutiry | Password with 4 digits |
| Frequency Generator | 10Hz ~ 22kHz, Level -60 ~ 0dB |
| Frequency Sweep | Freq. initial and final 10Hz ~ 22kHz (Level -60 ~ 0dB and Speed Control) |
| Pink Noise Generator | 10Hz ~ 22kHz and Level -60 ~ 0dB |
| Screensaver | Editable text with 15 characters |
| Languages | Portuguese, English and Spanish |
| Latency | 1.08ms |
| Input Impedance | 10KΩ |
| Output Impedance | 47Ω |
| Max. Input and Output Voltage | 5.6 Vpp (+8.2 dBu) |
| Max. Output Current SEQUENCER | 180 mA per output |
| Saturation Indicator | 1 per input + 1 per output (linked to the Limiter) |
| Signal-to-noise ratio | >90dB |
| Total Harmonic Dist. (T.H.D) | <0.01% |
| Channel Separation | >80dB |
| Power supply | 9V ~ 16V DC |
| Max. Current Consumption | 350mA @ 12.6V DC |
This listing includes: (1) STX 2448 DSP Crossover & Equalizer 4 Channel Full Digital Signal Processor (Sequencer) 2.4.
